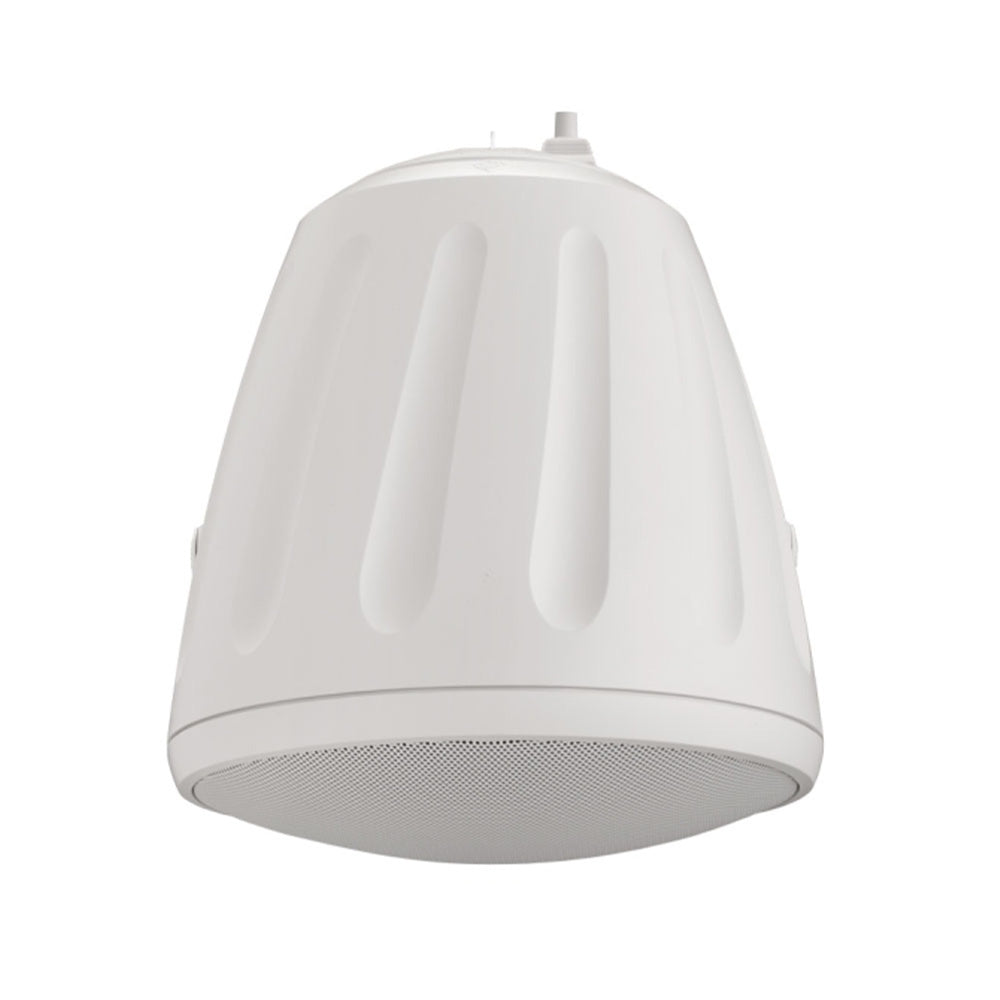

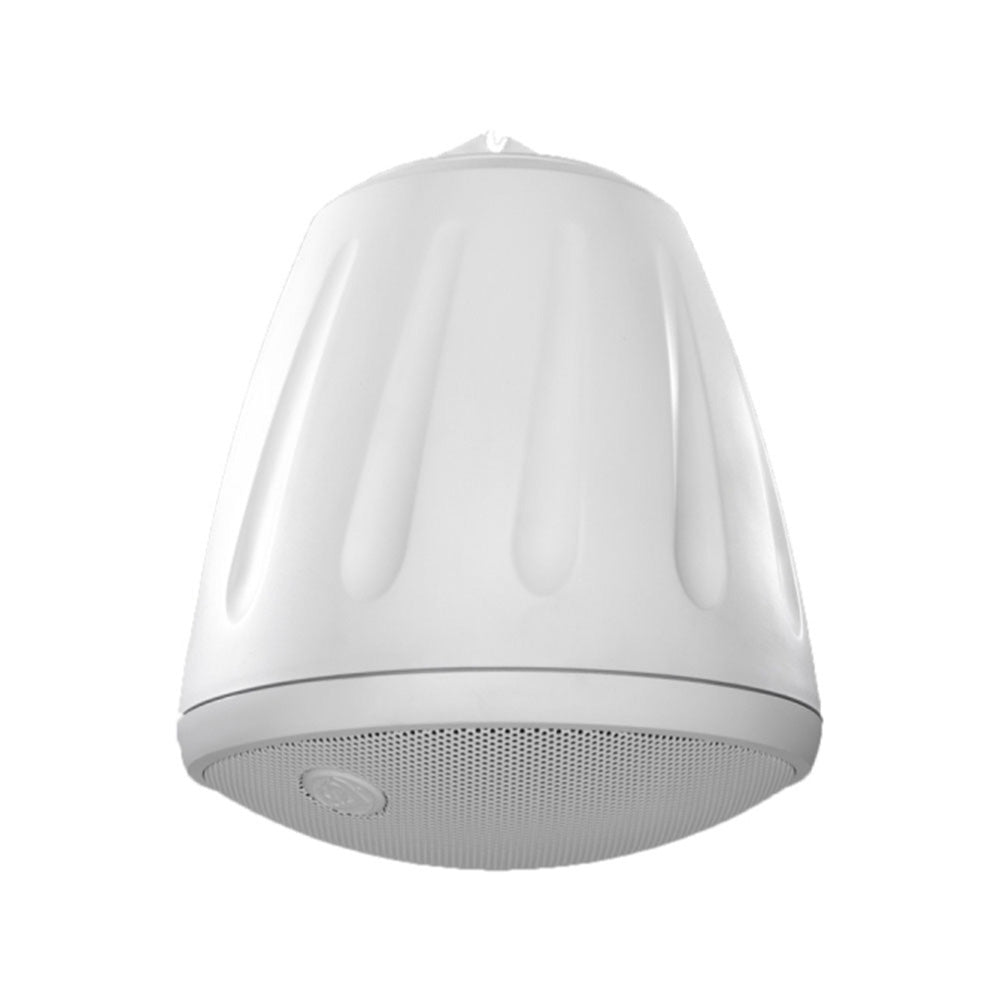

Soundtube RS1001i-II-T-WH - 10-Inch Open-Ceiling Hanging Subwoofer (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RS1001i-II-T is a 10Ó open-ceiling or surfacemount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 10Ó polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure, this speaker delivers maximum low-frequency response (38 Hz - 450 Hz, ±10 dB, independently verified) and high SPL (105 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClampª self-locking wire clamp for fast, easy, and secure installation. For easy ordering, stocking, and installation, the RS1001i-II-T includes a five-position tap switch for 25, 70.7, and 100 V applications with a transformer bypass position.
Features:
- One 10Ó (254 mm) polypropylene cone with a butyl rubber surround attached to a reinforced baffle.
- Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response.
- High output (105 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listenerÕs low-frequency experience.
- 150 W, low insertion-loss transformer with an easy access, five-position tap switch for 25, 70.7, and 100 V and transformer bypass positions.
- Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications.

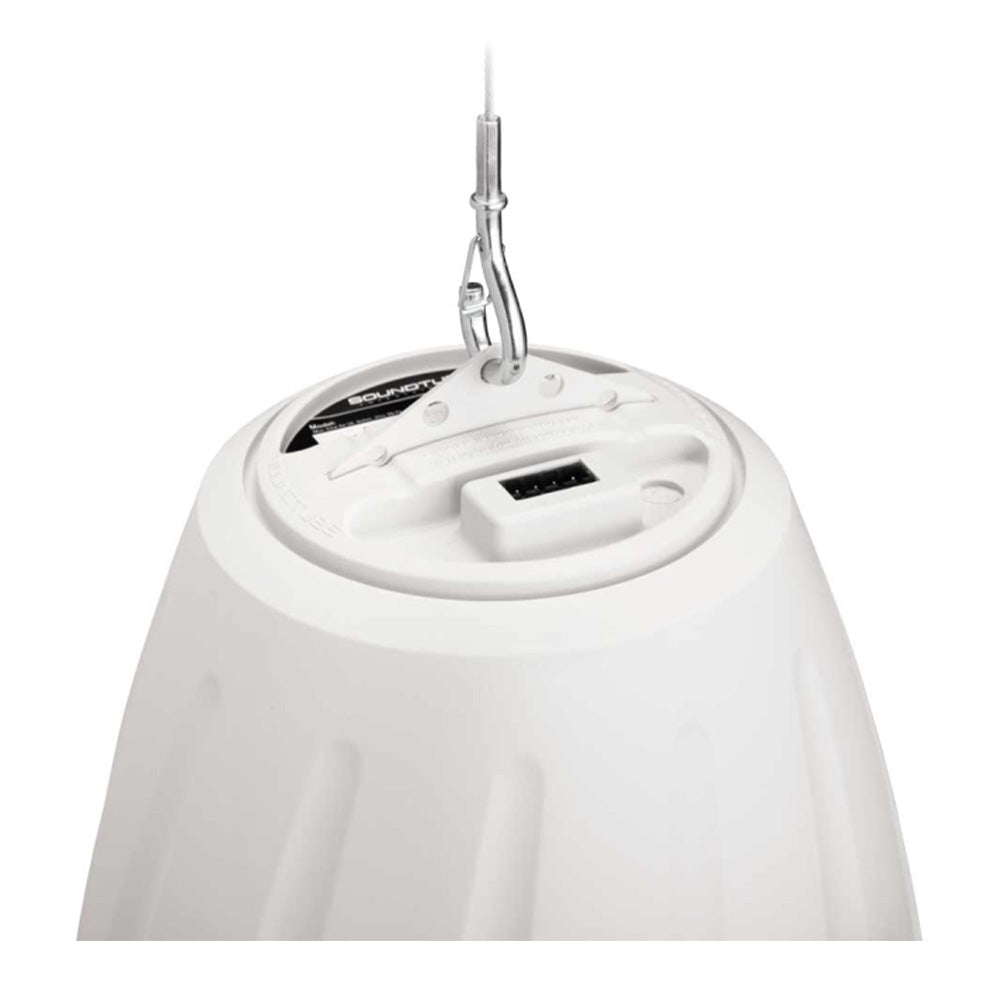

- Includes UL-listed hanging hardware with highquality cables and integrated SpeedClampª self-locking wire clamp for fast, easy, and secure installation.
- UL 1480A and CE approved. Hanging hardware is UL 2239 approved.
- High-quality black or white paint finish. Custom paint colors optional.
- Included accessories: hanging hardware, Euroblock connector, terminal weather boot.
- Optional accessory: AC-RS-SM8 bracket for surface-mount applications.
| Color | White |
| UPC | 752830445185 |
| Manufacturer | SoundTube |
| Manufacturer's Category | RSi Original Pendant |
| Height | 17.23 in / 437.6 mm |
| Width/Diameter | 14.82 in / 376.4 mm |
| Shipping Weight | 30.2 lbs / 13.7 kg |
| Carton Height | 19.5 in / 495.3 mm |
| Carton Length | 18 in / 457.2 mm |
| Carton Width | 18 in / 457.2 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1288.3 cu in / 21111.45 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-RS800-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM8-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 100.0 Hz |
| Frequency Response (± 10 dB) | 38 Hz - 450 Hz |
| Frequency Response (± 3 dB) | 53 Hz - 175 Hz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1.38 in / 35 mm |
| Low Pass Crossover | 6dB per octave 1st order |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (_ Ohms) | 5.1 _ |
| Nominal Impedance (_ Ohms) | 4 _ |
| Subwoofer Driver | 10" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 83 dB |
| Sensitivity dB @ 2.83V/1M | 86 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
The RS1001i-II-T is a 10Ó open-ceiling or surfacemount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 10Ó polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure, this speaker delivers maximum low-frequency response (38 Hz - 450 Hz, ±10 dB, independently verified) and high SPL (105 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClampª self-locking wire clamp for fast, easy, and secure installation. For easy ordering, stocking, and installation, the RS1001i-II-T includes a five-position tap switch for 25, 70.7, and 100 V applications with a transformer bypass position.
Features:
- One 10Ó (254 mm) polypropylene cone with a butyl rubber surround attached to a reinforced baffle.
- Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response.
- High output (105 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listenerÕs low-frequency experience.
- 150 W, low insertion-loss transformer with an easy access, five-position tap switch for 25, 70.7, and 100 V and transformer bypass positions.
- Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications.
- Includes UL-listed hanging hardware with highquality cables and integrated SpeedClampª self-locking wire clamp for fast, easy, and secure installation.
- UL 1480A and CE approved. Hanging hardware is UL 2239 approved.
- High-quality black or white paint finish. Custom paint colors optional.
- Included accessories: hanging hardware, Euroblock connector, terminal weather boot.
- Optional accessory: AC-RS-SM8 bracket for surface-mount applications.
| Color | White |
| UPC | 752830445185 |
| Manufacturer | SoundTube |
| Manufacturer's Category | RSi Original Pendant |
| Height | 17.23 in / 437.6 mm |
| Width/Diameter | 14.82 in / 376.4 mm |
| Shipping Weight | 30.2 lbs / 13.7 kg |
| Carton Height | 19.5 in / 495.3 mm |
| Carton Length | 18 in / 457.2 mm |
| Carton Width | 18 in / 457.2 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1288.3 cu in / 21111.45 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-RS800-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM8-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 100.0 Hz |
| Frequency Response (± 10 dB) | 38 Hz - 450 Hz |
| Frequency Response (± 3 dB) | 53 Hz - 175 Hz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1.38 in / 35 mm |
| Low Pass Crossover | 6dB per octave 1st order |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (_ Ohms) | 5.1 _ |
| Nominal Impedance (_ Ohms) | 4 _ |
| Subwoofer Driver | 10" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 83 dB |
| Sensitivity dB @ 2.83V/1M | 86 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
