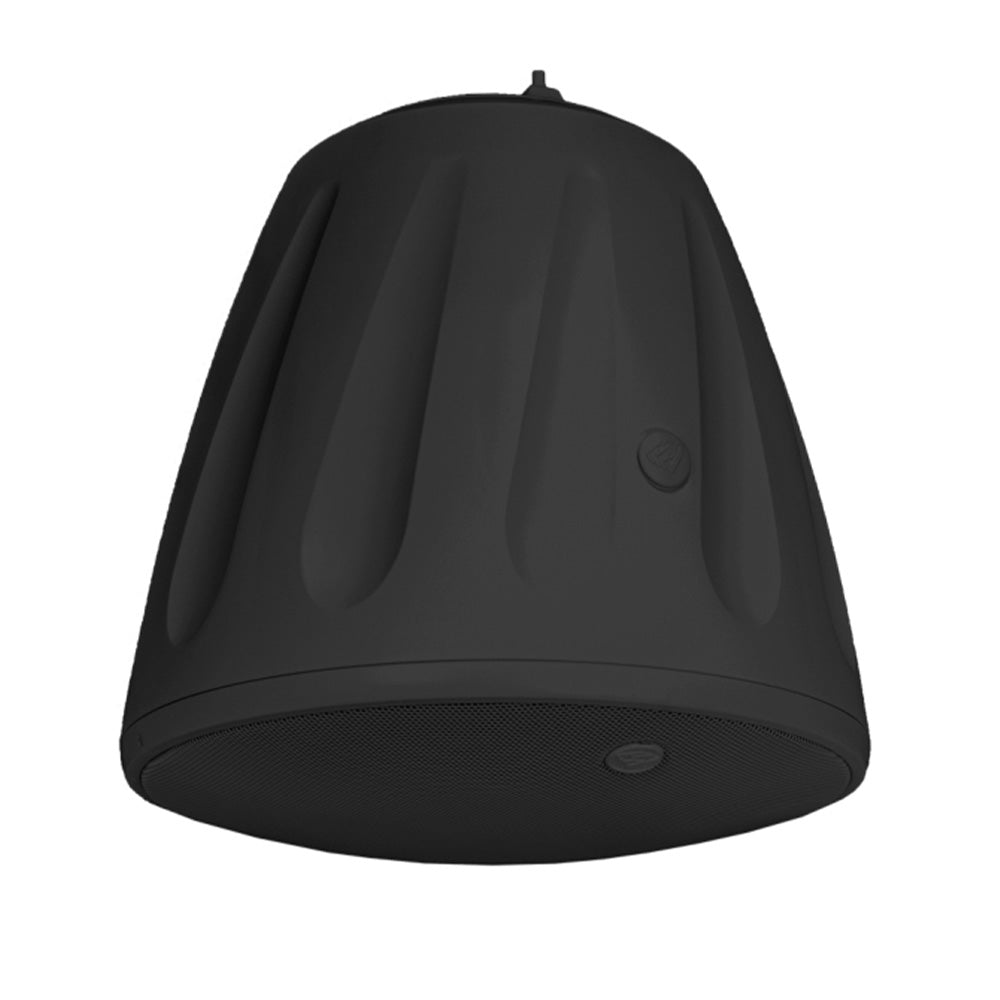

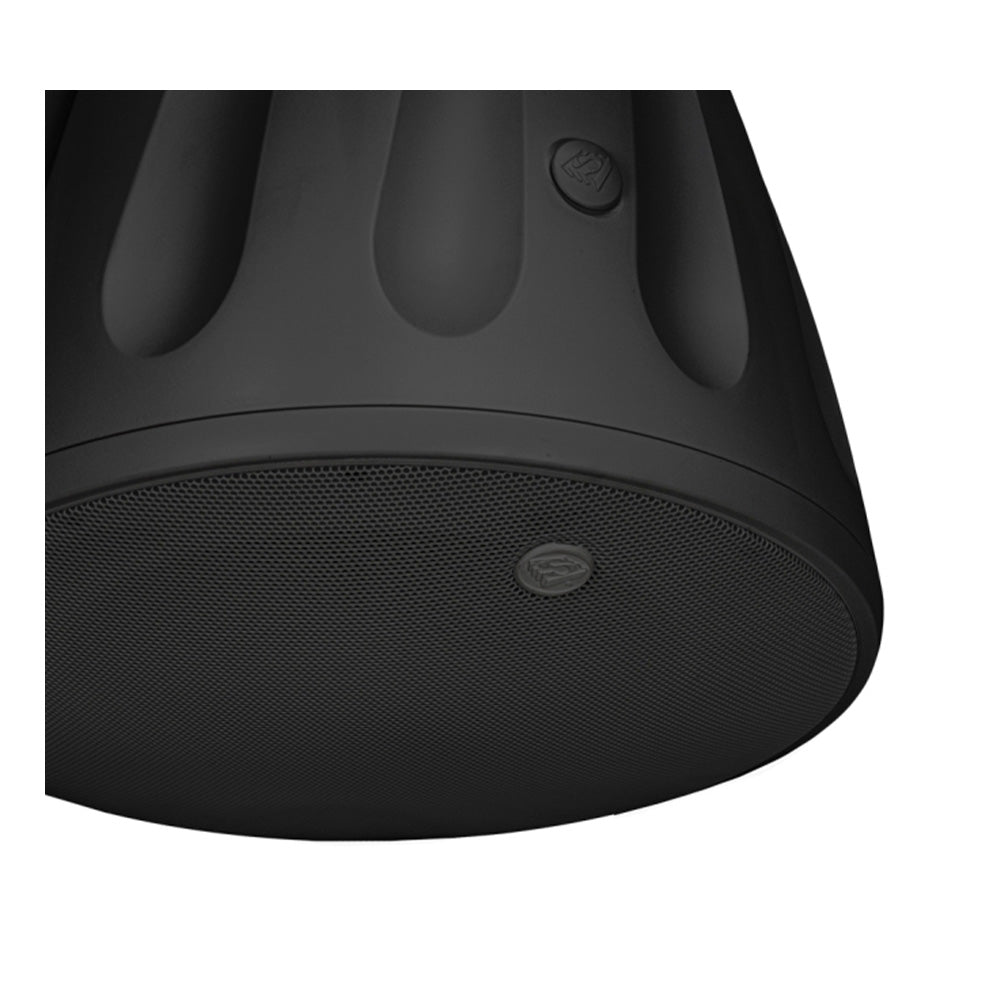

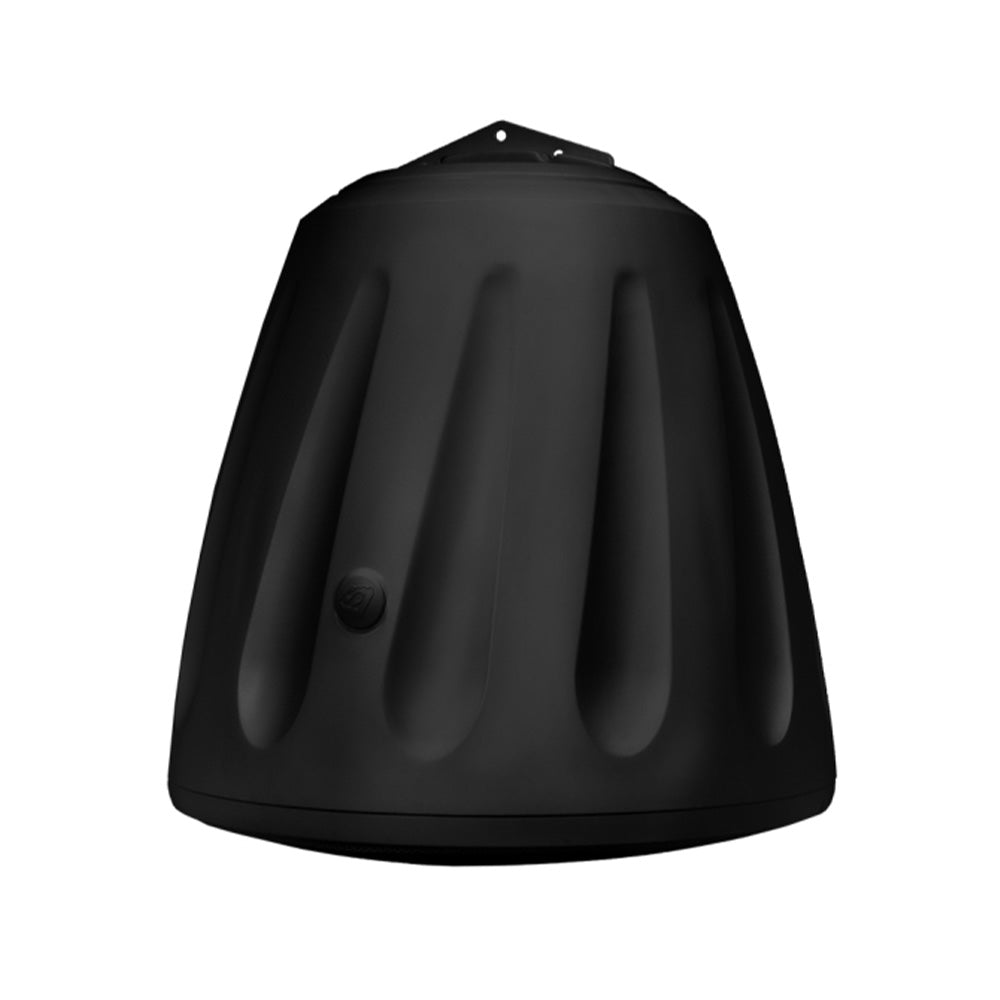

Soundtube RS1201i-BK - 12-Inch Open-Ceiling Hanging Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
The RS1201i-SuperTª is a 12Ó open-ceiling or surface-mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 12Ó treated fiber cone woofer and a treated cloth surround in a tuned and ported enclosure, this speaker delivers maximum low frequency response (32 Hz Ð 200 Hz, ±10 dB, independently verified) and high SPL (113 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClampª self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking and installation, the RS1201iSuperT includes a two-position tap switch for 70.7 and 100 V and 4 ½ applications.
Features:
- One 12Ó (305 mm) treated fiber cone woofer and a treated cloth surround.
- Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response.
- High-output (113 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listenerÕs low-frequency experience.
- 150 W, low insertion-loss transformer with an easy-access, two-position tap switch for 70.7, 100 V and 4 ½ applications.
- Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications.
- Includes UL listed hanging hardware with highquality cables and integrated SpeedClampª self-locking wire clamp for fast, easy and secure installation.
- High-quality black or white painted finish.
- Included accessories: hanging hardware, Euroblock connector, terminal weather boot.
- Optional accessories: surface-mount bracket (ACHP-SM1290).
Color | Black |
UPC | 644216201105 |
Manufacturer | SoundTube |
Manufacturer's Category | RSi Original Pendant |
Height | 22.8 in / 579.1 mm |
Width/Diameter | 20.8 in / 528.3 mm |
Shipping Weight | 45 lbs / 20.4 kg |
Certifications | CE, RoHS |
Enclosure Properties | ABS, Injection Molded, Ported |
Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
Optional Accessories | Surface Mount Bracket (AC-HP-SM1290) |
Source Inputs | 4 Pin 5.08mm Euroblock |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Frequency Response (± 10 dB) | 32 Hz - 200 Hz |
Frequency Response (± 3 dB) | 39 Hz - 200 Hz |
Grille Properties | Powder-Coated, Steel |
Low Frequency Voice Coil | 2 in / 50.8 mm |
Max. Continuous Power RMS | 150 W |
Max. Program Power | 300 W |
Nominal Impedance (_ Ohms) | 4 _ |
Woofer Driver | 12" Treated Fiber Cone w/ Treated Cloth Surround |
Sensitivity dB @ 1W/1M | 90 dB |
Sensitivity dB @ 2.83V/1M | 92 dB |
Tap Selector | Rotary Switch |
The RS1201i-SuperTª is a 12Ó open-ceiling or surface-mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 12Ó treated fiber cone woofer and a treated cloth surround in a tuned and ported enclosure, this speaker delivers maximum low frequency response (32 Hz Ð 200 Hz, ±10 dB, independently verified) and high SPL (113 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClampª self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking and installation, the RS1201iSuperT includes a two-position tap switch for 70.7 and 100 V and 4 ½ applications.
Features:
- One 12Ó (305 mm) treated fiber cone woofer and a treated cloth surround.
- Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response.
- High-output (113 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listenerÕs low-frequency experience.
- 150 W, low insertion-loss transformer with an easy-access, two-position tap switch for 70.7, 100 V and 4 ½ applications.
- Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications.
- Includes UL listed hanging hardware with highquality cables and integrated SpeedClampª self-locking wire clamp for fast, easy and secure installation.
- High-quality black or white painted finish.
- Included accessories: hanging hardware, Euroblock connector, terminal weather boot.
- Optional accessories: surface-mount bracket (ACHP-SM1290).
Color | Black |
UPC | 644216201105 |
Manufacturer | SoundTube |
Manufacturer's Category | RSi Original Pendant |
Height | 22.8 in / 579.1 mm |
Width/Diameter | 20.8 in / 528.3 mm |
Shipping Weight | 45 lbs / 20.4 kg |
Certifications | CE, RoHS |
Enclosure Properties | ABS, Injection Molded, Ported |
Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
Optional Accessories | Surface Mount Bracket (AC-HP-SM1290) |
Source Inputs | 4 Pin 5.08mm Euroblock |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Frequency Response (± 10 dB) | 32 Hz - 200 Hz |
Frequency Response (± 3 dB) | 39 Hz - 200 Hz |
Grille Properties | Powder-Coated, Steel |
Low Frequency Voice Coil | 2 in / 50.8 mm |
Max. Continuous Power RMS | 150 W |
Max. Program Power | 300 W |
Nominal Impedance (_ Ohms) | 4 _ |
Woofer Driver | 12" Treated Fiber Cone w/ Treated Cloth Surround |
Sensitivity dB @ 1W/1M | 90 dB |
Sensitivity dB @ 2.83V/1M | 92 dB |
Tap Selector | Rotary Switch |
