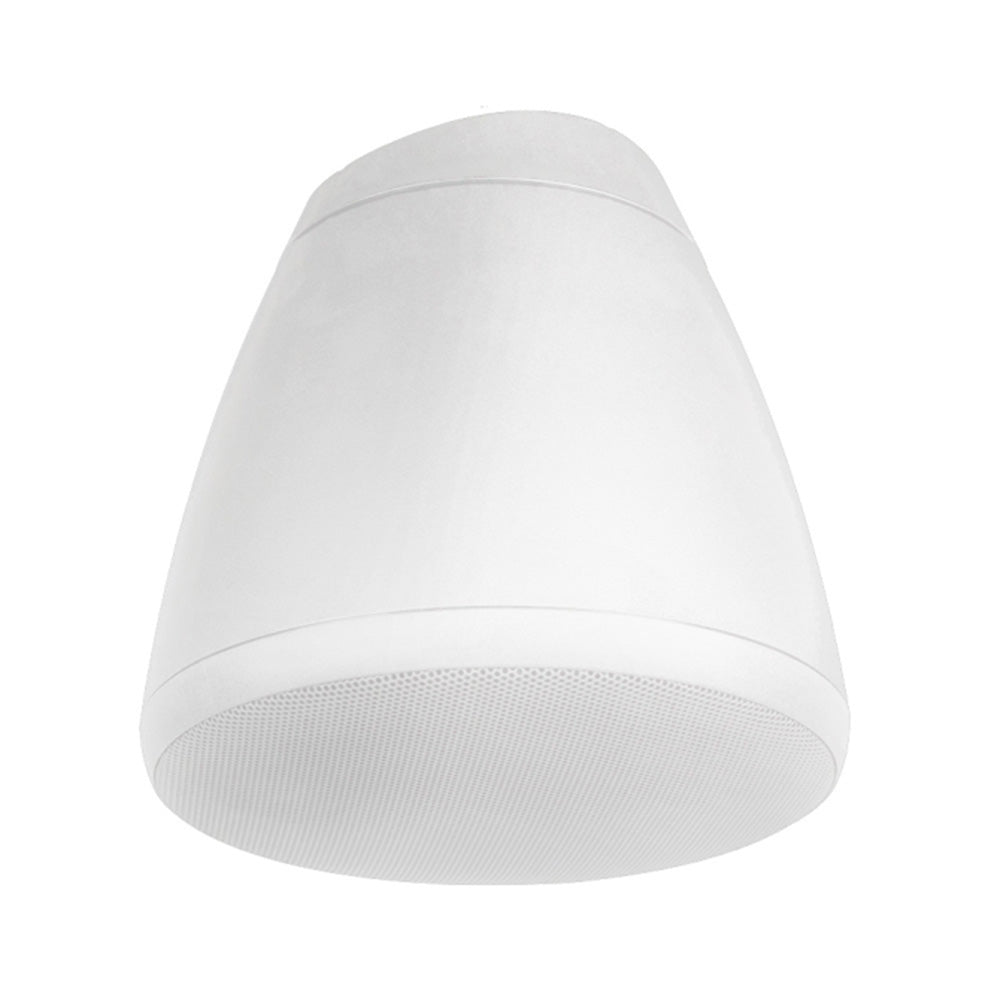

Soundtube RS42-EZ-WH - Full-Range 4-Inch Hanging Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed for superior off-axis performance and easy installation, the RS42-EZ offers attractive styling in an economical speakers for open-ceiling uses. The RS42- EZ includes hanging cables and a built in mounting plate for suspending the speaker and a threaded opening on top of itÕs cover plate for direct-to-conduit mounting. Costeffective engineering with high-performance sound makes the RS42-EZ speaker ideal for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows and conference rooms. For applications where additional bass is required, SoundTubeÕs RS1001i-II-T 10-inch subwoofer may be used.
Features:
- One 4 inch (102 mm) coaxial driver with BroadBeam Ringª technology for consistently smooth high frequency directivity.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation.
- Unit may be hung or mounted direct-to conduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass ber reinforcement for lasting durability in indoor or outdoor applications.
- 16 ohm impedance for easy daisy chaining in low voltage systems.

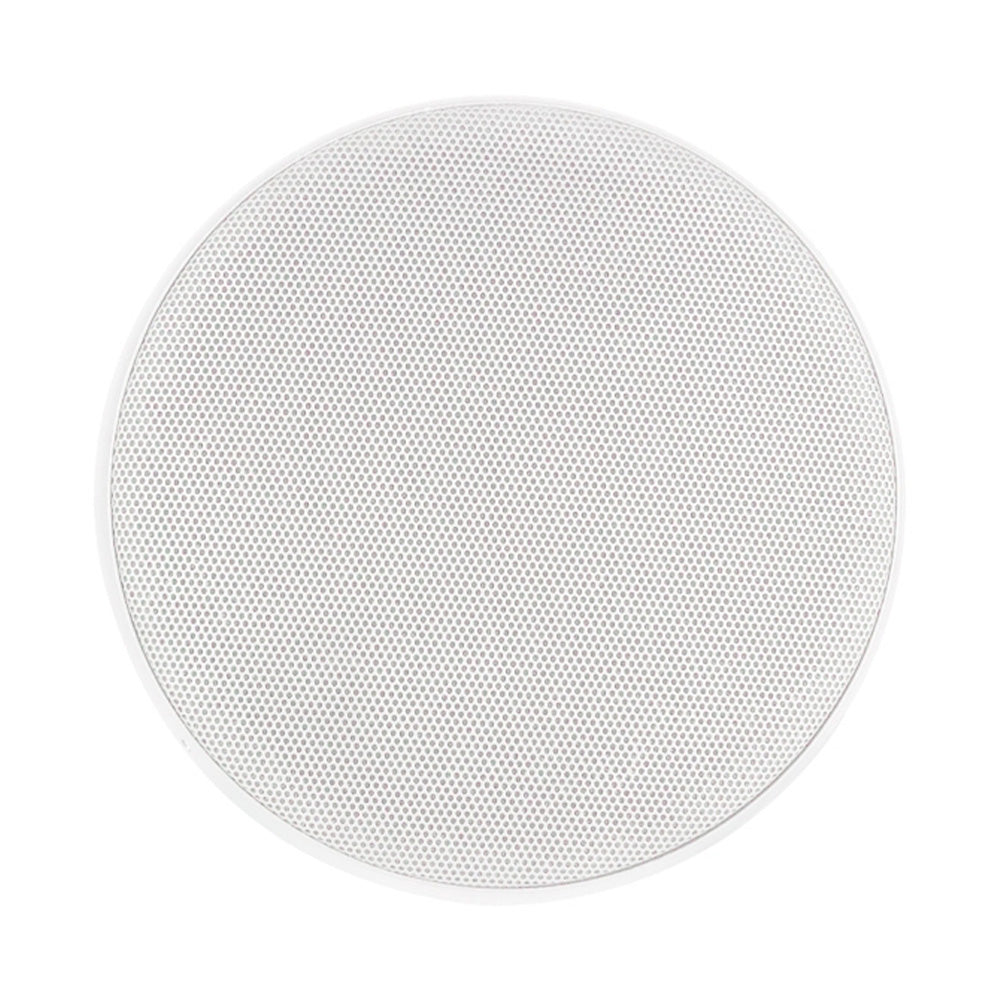

- Aluminum grille with protective powder coated finish.
- Built-in thermal fuse.
- Unit ships in eco-friendly, recyclable packaging.
- UL 1480 UEAY & UL 2239 listed.
- High-quality black or white paint nish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
| System Type | 4.0î Coax, open-ceiling, ported (20 Watt transformer for 25/70.7/100 Volt or voice coil direct) |
| Impedance (nominal) | 16 ohm |
| Sensitivity dB @ 2.83 V/1 m | 84.0 dB |
| Sensitivity dB @ 1 W/1 m | 87.0 dB |
| Frequency Response ( - 3 dB) | 140 Hz - 22 kHz |
| Frequency Response ( - 10 dB) | 100 Hz - 22 kHz |
| Max. Program Power | 40 W |
| Max. Continuous Power RMS | 20 W |
| Max. Power SPL @ 1 m | 100.0 dB |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| Transducer - Low Frequency Driver | 102mm (4in) Polypropylene cone, butyl rubber surround |
| Transducer- High Frequency Driver | 19mm (0.75in) Silk dome with Beam Ring» |
| Low Frequency Voice Coil | 25.4 mm (1.00 in) |
| Crossover Frequency | 4.5 kHz |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 6dB per octave, 1st order |
| Enclosure Material | Injection molded ABS, glass fiber reinforced |
| Grille | Powder coated aluminum |
| Inputs | 4 position ceramic terminal connector |
| Colors | Black or white (paintable) |
| Height | 199.6 mm (7.86 in.) |
| Diameter | 189.5 mm (7.46 in.) |
| Weight | 1.8 kg (3.9 lbs.) |
| Shipping Weight | 2.7 kg (6 lbs.) |
| Packaging | One per box |
| Included Accessories | Hanging hardware, weather plug, cover plate |
| Optional Accessories | N/A |
| Regulatory - UL | UL 1480 UEAY / UL 2239 Listed |
| Regulatory - CE | Approved |
| RoHS | Approved |
