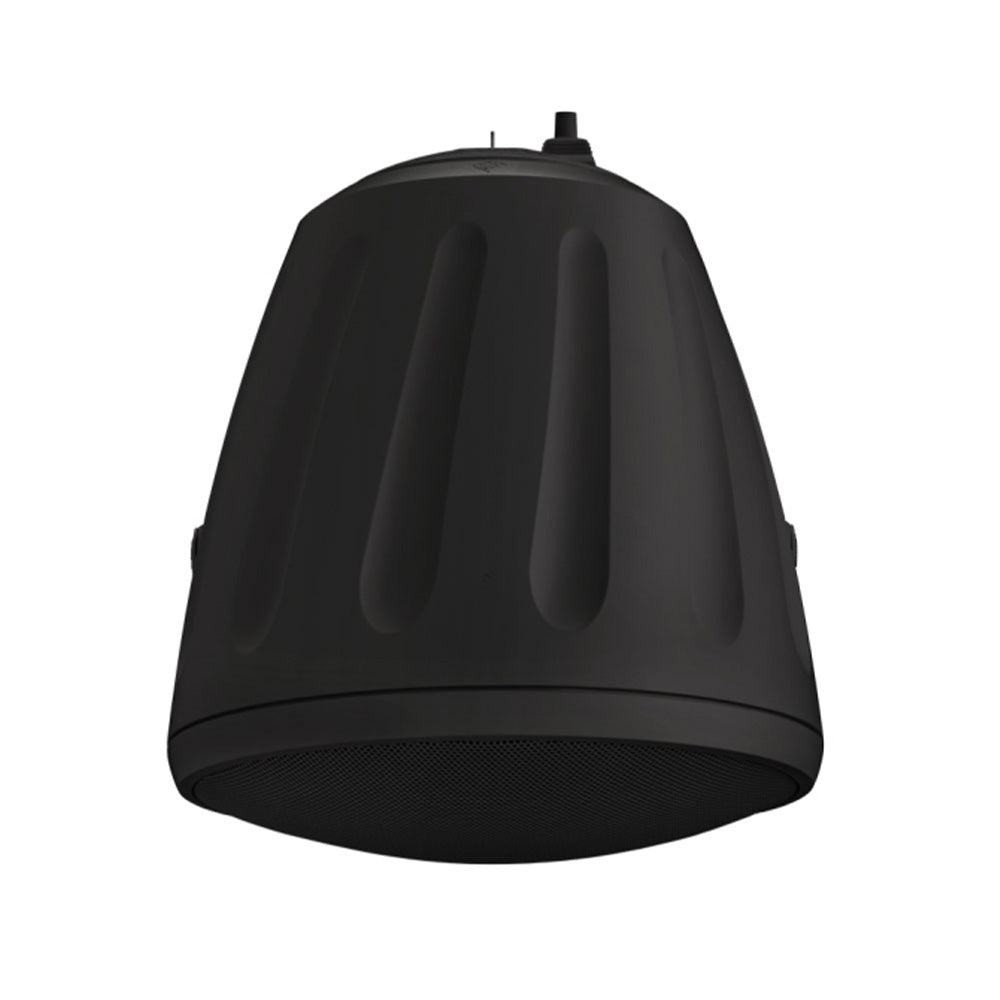

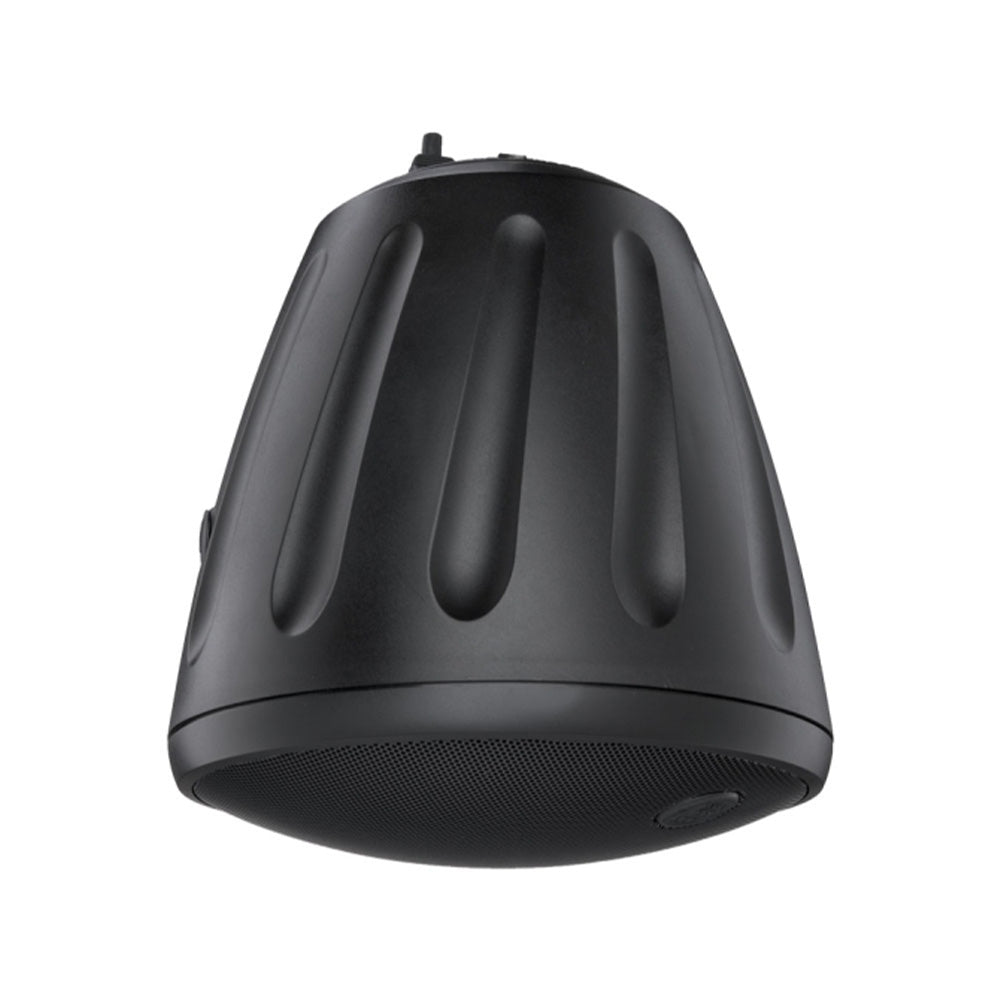

Soundtube RS600i-BK - Two-Way 6.5-Inch Hanging Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RS600i is a 6.5l0 2-way speaker with an open-ceiling enclosure design that delivers effective low-end response (45 Hz) and optimal off-axis performance (up to 10 kHz, EASE documented). SoundTubes proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS600i speaker design incorporates a low-profile grille, proprietary M6 motorboard, driver protection circuitry and a 6-position tap switch with voice coil/8 Ohm direct. Hanging hardware is included & features SpeedClamp self-locking cable grip for fast, easy & secure installation.
Key Features:- This product is BLACK in color
- 25, 70.7 and 100 Volt transformer options with 8 Ohm bypass.
- High-frequency driver protection with automatic reset.
- Durable construction, powder-coated grille and terminal weather boot allow for indoor or outdoor installations.
- Sonically matched with SoundTube's new CMi (in ceiling) and SMi (surface mount) speakers for applications requiring combinations of hanging and mounted speakers.
- May be used in conjunction with RS801i Subwoofer for applications requiring additional bass.
- May be surface-mounted to walls, beams or poles with optional bracket.
SoundTubes Patented BroadBeam(r) dispersion technology allows fewer speakers to cover more area with full-frequency sound. Included with every new RSi speaker is a fast-action, four-pin Euroblock connector that speeds up wiring, allows simplified daisy-chaining and provides the option for pre-wiring where "division of labor" codes exist.
Installation hardware, including hanging cables, snap-link, fast-adjusting cable clamps and wire ties, is packaged with each RSi speaker. New speed-tap power settings save customers time and money on ordering, inventory tracking, installation and system tuning.
Features
- BroadBeam11 waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker (EASE documented).
- One 165 mm (6.5 in) polypropylene woofer and one 25 mm (1.0 in) convex aluminum tweeter with FerroFluid cooling mounted to a proprietary cast- aluminum M6 baffle and heat sink.
- Weatherized components for indoor & outdoor applications.
- Includes hanging hardware with aircraft cables and integrated SpeedClamp self-locking cable grip for fast, easy & secure installation. Also includes Euroblock connector & terminal weather boot.
- Patented ZeroReflection enclosure technology for optimal sound reproduc- tion & cabinet rigidity.
- Easy access 6-position selectable tap switch for 25, 70.7 and 100 Volt applica- tions with voice coil/8 Ohm direct simplifies ordering and inventory tracking.
- Iridite-plated steel grille with protective powder-coated finish for lasting durability.
- 90.5 dB average sensitivity offers high- output capabilities & reduced amplification costs.
- UL 1480, CE approval (EMC Directive 89/366/EEC, EN55020, EN55013), Milspec 810 & IEC529 approval pending.
- Optional accessory: AC-RS-SM6 bracket for surface-mount applications.
- High-quality black or white paint finish. Custom paint colors optional.
| Frequency Response(-3 dB) | 63 Hz - 22 kHz |
| Low Frequency(-10 dB) | 45 Hz |
| Sensitivity | 90.5 |
| Power Capacity RMS | 90 |
| Max SPL dB @ 1 M | 110.5 |
| Nominal Impedance | 8 Ohm |
| Transformer Options | 0.63 - 33 W |
| Woofer | 6.5 Poly |
| Mid | N/A |
| Tweeter | 1 BroadBeamŒ¬ |
| Connections | 4-Pin Euroblock |
| Visible Height | 363.6 mm / 14.31 |
| Visible Diameter | 307.3 mm / 12.1 |
| Weight | 13.5 lbs / 6.1 kG |
| Colors | Black / White |
