Soundtube RS62-EZ-WH - Two-Way 6.5-Inch Hanging Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

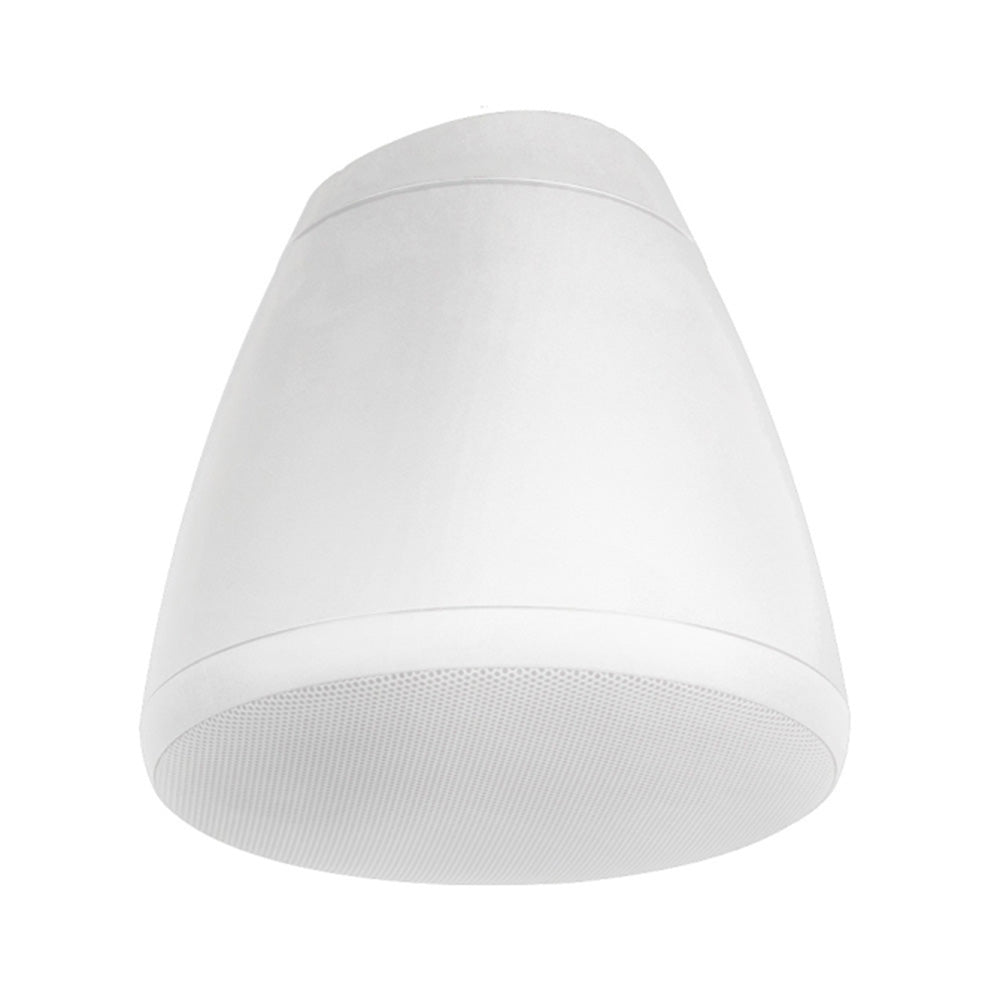

The RS62-EZ is a 6.5-inch, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be mounted direct-to-conduit via the locking cover plate (see installation instructions for additional information). The RS62-EZ speaker incorporates 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position.
Features:
- One 6.5 inch (165 mm) coaxial driver with BroadBeam Ringª technology for consistently smooth high frequency
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-toconduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
- 16 ohm impedance for easy daisy chaining in low voltage systems.

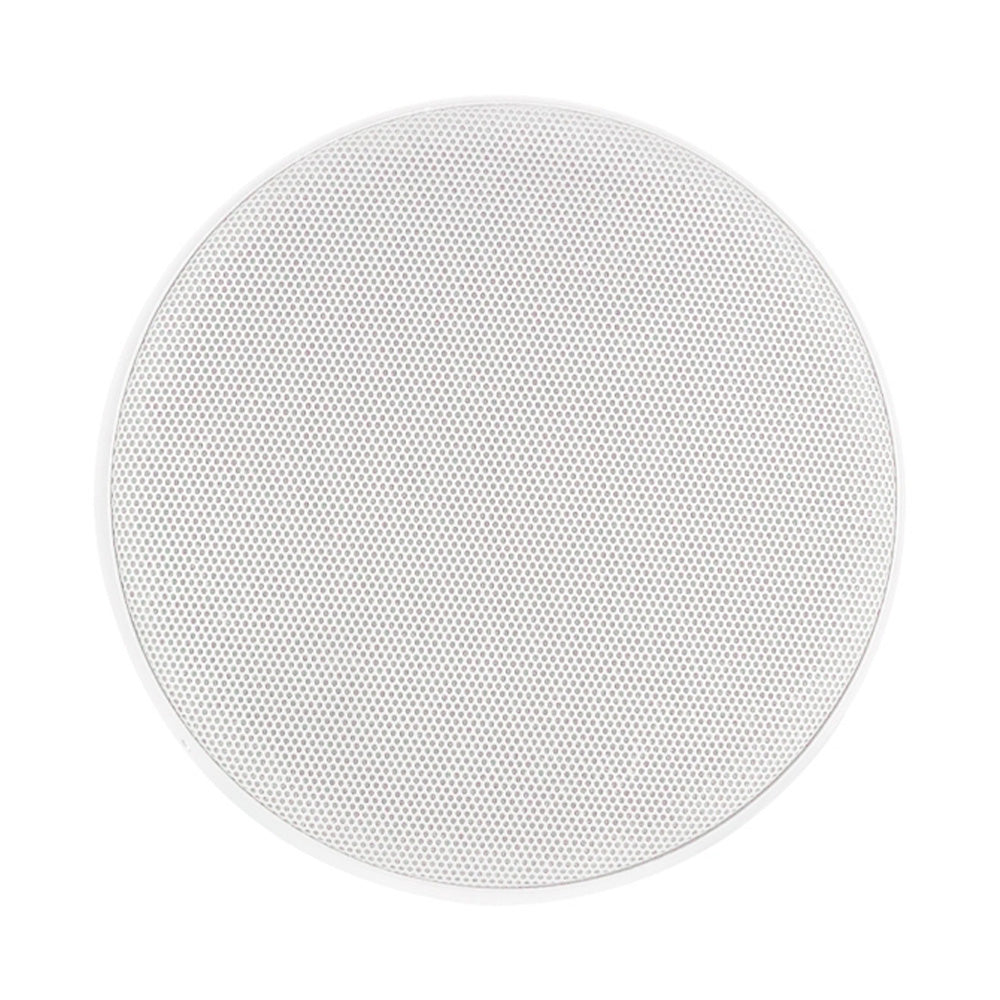

- Aluminum grille with protective powder coated finish.
- Built-in thermal fuse.
- Unit ships in eco-friendly, recyclable packaging.
- UL 1480 UEAY planned, UL 2239 approved.
- High-quality black or white paint nish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
With excellent off-axis performance and easy installation (including direct conduit mount), these economy pendant speakers are ideal for open-ceiling installations including retail, grocery stores, restaurants and fitness centers. Six RS-EZ models are available along with the long-throw HP82-EZ. Weatherized components for indoor and outdoor applications.
| Frequency Response (-3 dB) | 100 Hz _ 22 kHz |
| Low Frequency(-10 dB) | 80 Hz _ 22 kHz |
| Sensitivity | 86.0 dB |
| Power Capacity RMS | 32 W |
| Max SPL dB @ 1 M | 104.0 dB |
| Nominal Impedance | 16 ohm |
| Tweeter | 25.4 mm (1.00 in) Silk dome with BroadBeam Ring» |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 16 Ohm direct |
| Woofer | 165 mm (6.5 in.) Polypropylene cone, butyl rubber surround |

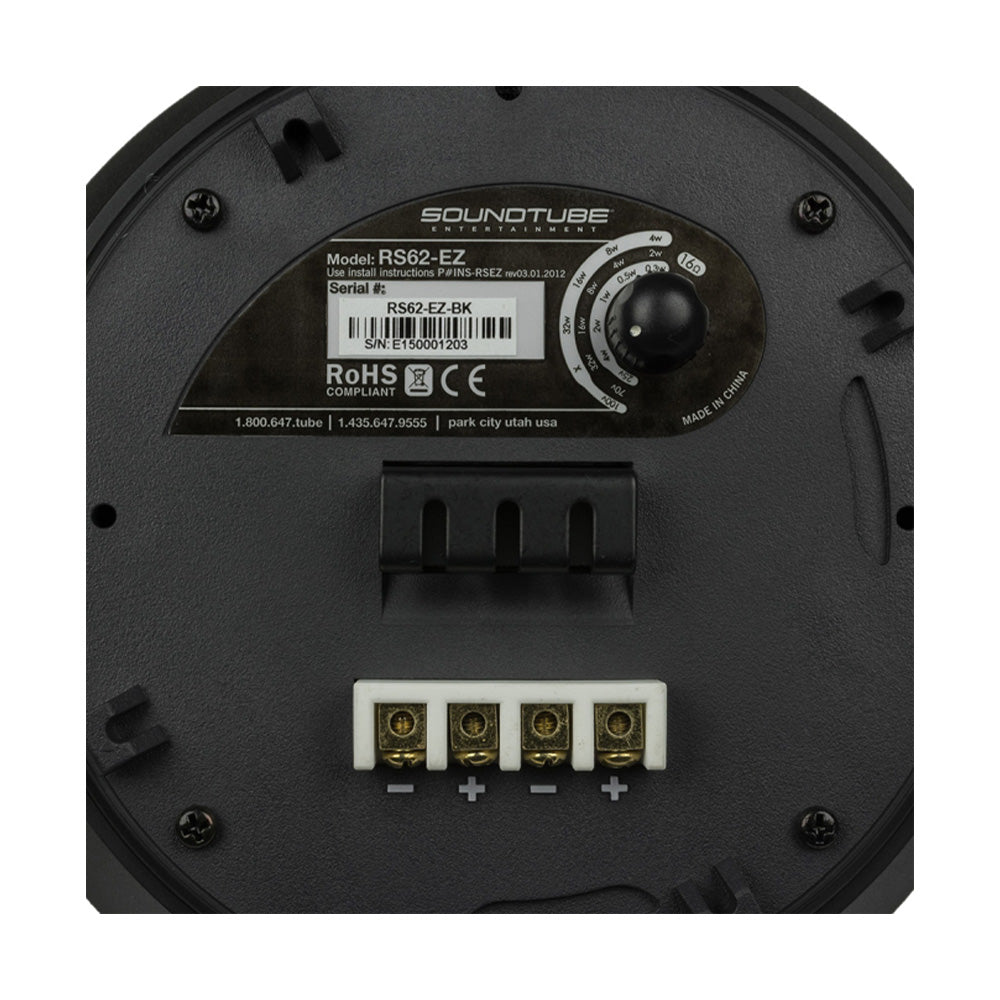

| Connections | 4 position ceramic terminal connector |
| Height | 264.2 mm (10.4 in.) |
| Diameter | 256.0 mm (10.08 in.) |
| Weight | 3.2 kg (7.0 lbs.) |
| Shipping Weight | 4.1 kg (9.0 lbs.) |
| Optional Accessory | _ |
| Colors | Black / White, or Custom |
The RS62-EZ is a 6.5-inch, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be mounted direct-to-conduit via the locking cover plate (see installation instructions for additional information). The RS62-EZ speaker incorporates 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position.
Features:
- One 6.5 inch (165 mm) coaxial driver with BroadBeam Ringª technology for consistently smooth high frequency
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-toconduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
- 16 ohm impedance for easy daisy chaining in low voltage systems.
- Aluminum grille with protective powder coated finish.
- Built-in thermal fuse.
- Unit ships in eco-friendly, recyclable packaging.
- UL 1480 UEAY planned, UL 2239 approved.
- High-quality black or white paint nish. Speaker is paintable.
- Included accessories: hanging hardware, weather plug, cover plate.
With excellent off-axis performance and easy installation (including direct conduit mount), these economy pendant speakers are ideal for open-ceiling installations including retail, grocery stores, restaurants and fitness centers. Six RS-EZ models are available along with the long-throw HP82-EZ. Weatherized components for indoor and outdoor applications.
| Frequency Response (-3 dB) | 100 Hz _ 22 kHz |
| Low Frequency(-10 dB) | 80 Hz _ 22 kHz |
| Sensitivity | 86.0 dB |
| Power Capacity RMS | 32 W |
| Max SPL dB @ 1 M | 104.0 dB |
| Nominal Impedance | 16 ohm |
| Tweeter | 25.4 mm (1.00 in) Silk dome with BroadBeam Ring» |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 16 Ohm direct |
| Woofer | 165 mm (6.5 in.) Polypropylene cone, butyl rubber surround |
| Connections | 4 position ceramic terminal connector |
| Height | 264.2 mm (10.4 in.) |
| Diameter | 256.0 mm (10.08 in.) |
| Weight | 3.2 kg (7.0 lbs.) |
| Shipping Weight | 4.1 kg (9.0 lbs.) |
| Optional Accessory | _ |
| Colors | Black / White, or Custom |
