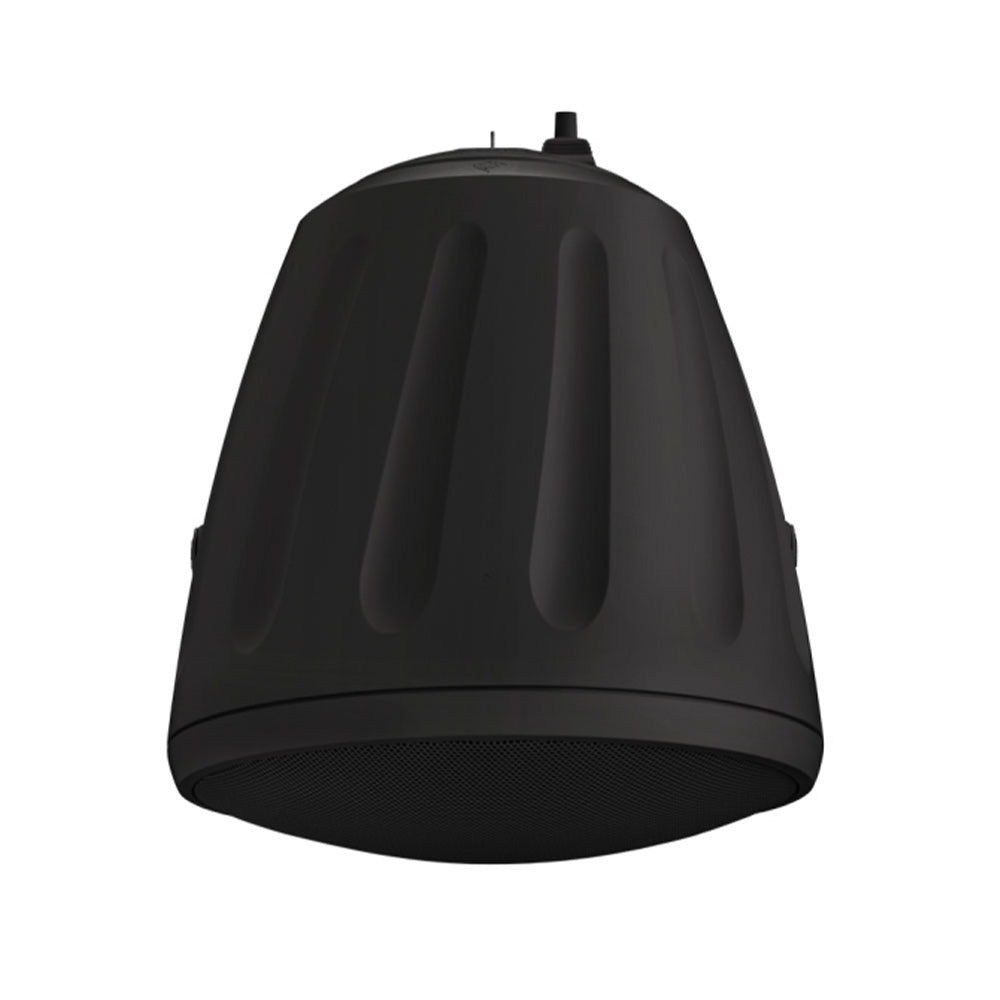

Soundtube RS800i-BK - Two-Way 8-Inch Hanging Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RS800i is an 8-inch, two-way, ported speaker with an open-ceiling enclosure design that delivers extended low-end response (58 Hz) and 105¼ offaxis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam¨ waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS800i speaker design incorporates a low-profile grille, a proprietary motorboard, driver protection circuitry and a six-position tap switch with a transformer bypass position. Hanging hardware is included and features a SpeedClampª self-locking cable grip for fast, easy and secure installation.
Features:
- Patented BroadBeam¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 10 kHz, independently verified).
- One 8.0 inch (203 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary castaluminum baffle and heat sink.
- Weatherized components for indoor and outdoor applications.

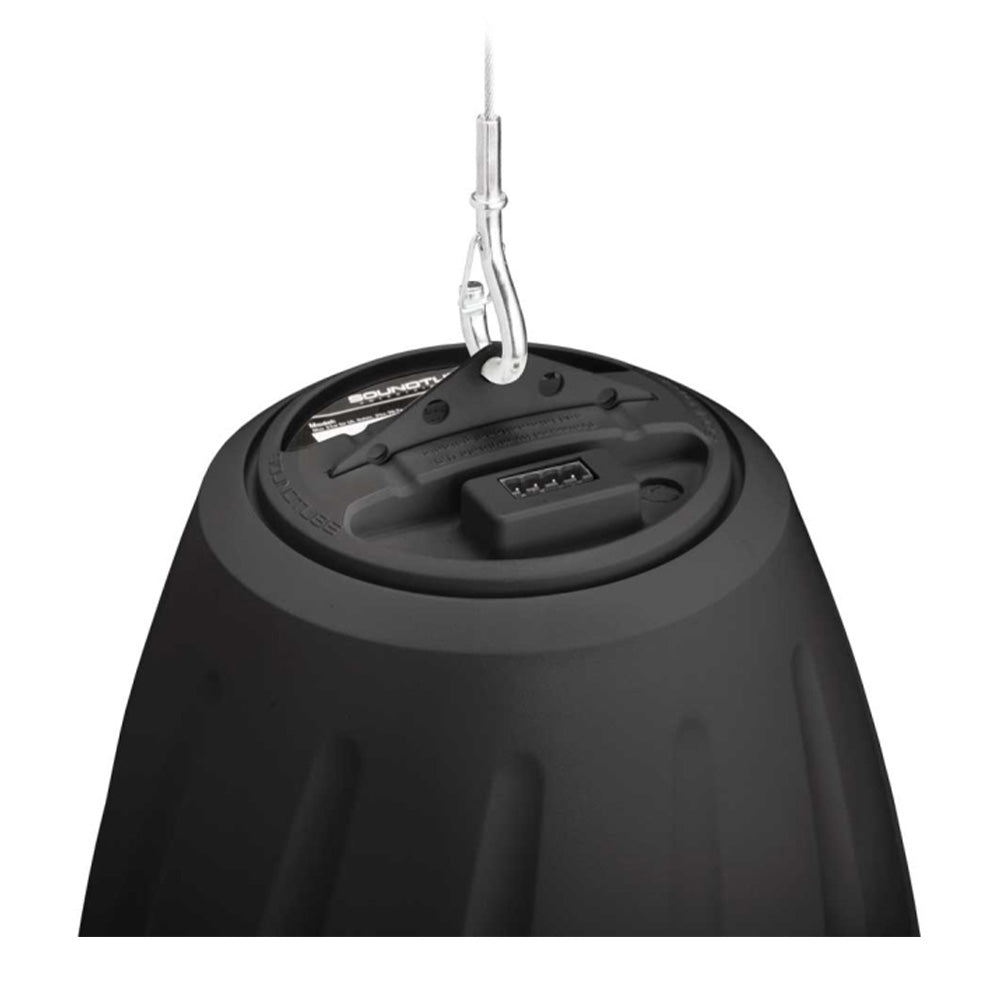

- Includes UL listed hanging hardware with galvanized steel cables and integrated SpeedClampª self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Patented ZeroReflectionª enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking.
- Steel grille with protective powdercoated finish for lasting durability.
- Average sensitivity of 89.5 dB offers high-output capabilities and reduced amplification costs.
- UL 1480 (UEAY), 2239 (hanging cable) and Milspec 810 approved.
- High-quality black or white paint finish. Custom paint colors optional.
- Optional accessory: AC-RS-SM8 bracket for surface-mount applications.
| Nominal Impedance | 8 ohm |
| Impedance (min) | 5.3 ohm |
| Sensitivity dB @ 2.83V/1M | 89.5dB |
| Sensitivity dB @ 1W/1M (2) | 89.5dB |
| Frequency Response (± 3 dB) | 80 Hz - 22 kHz |
| Frequency Response (±10 dB) | 58 Hz _ 22 kHz |
| Max. Program Power | 250w |
| Max. Continuous Power RMS | 125w |
| Max. Power SPL @ 1 M | 110.5dB |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 66w / 107.5dB |
| 100 Volt Transformer Taps (dB) | 66w / 107.5dB |
| 25 Volt Transformer Taps (dB) | 9w / 99.0dB |
| Transformer Options | 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct |
| Angle | 100Á |
| Colors | Black or white |
| Port length | 2.24 in |
| Tweeter - part | 76.1 mm (3.0 in.) Polypropylene driver w/ butyl rubber surround. |
| Woofer - part | 8" Polypropylene |
| Inputs | 4 Pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Height (SM = Height) | 437.6 mm / 17.22 in |
| Diameter (SM = Width) | 376.4 mm / 14.81 in |
| Weight | 9.3 kg / 20.50 lb |
| Shipping Weight | 11.6 kg / 25.57 lb |
| Accessories Optional | Surface-Mount Bracket (AC-RS-SM8),æSplit Loom Tubing (AC-SLT-10),Hanging Kit (AC-RS-HH-10),æHanging Kit (AC-RS-HH-20),æHanging Kit (AC-RS-HH-50),æForged Eyebolt (AC-FE1),æSnap Link (AC-SL-1) |
| Packaging | 1 per box |
| Regulatory - UL | Approved 1480 |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
