Description

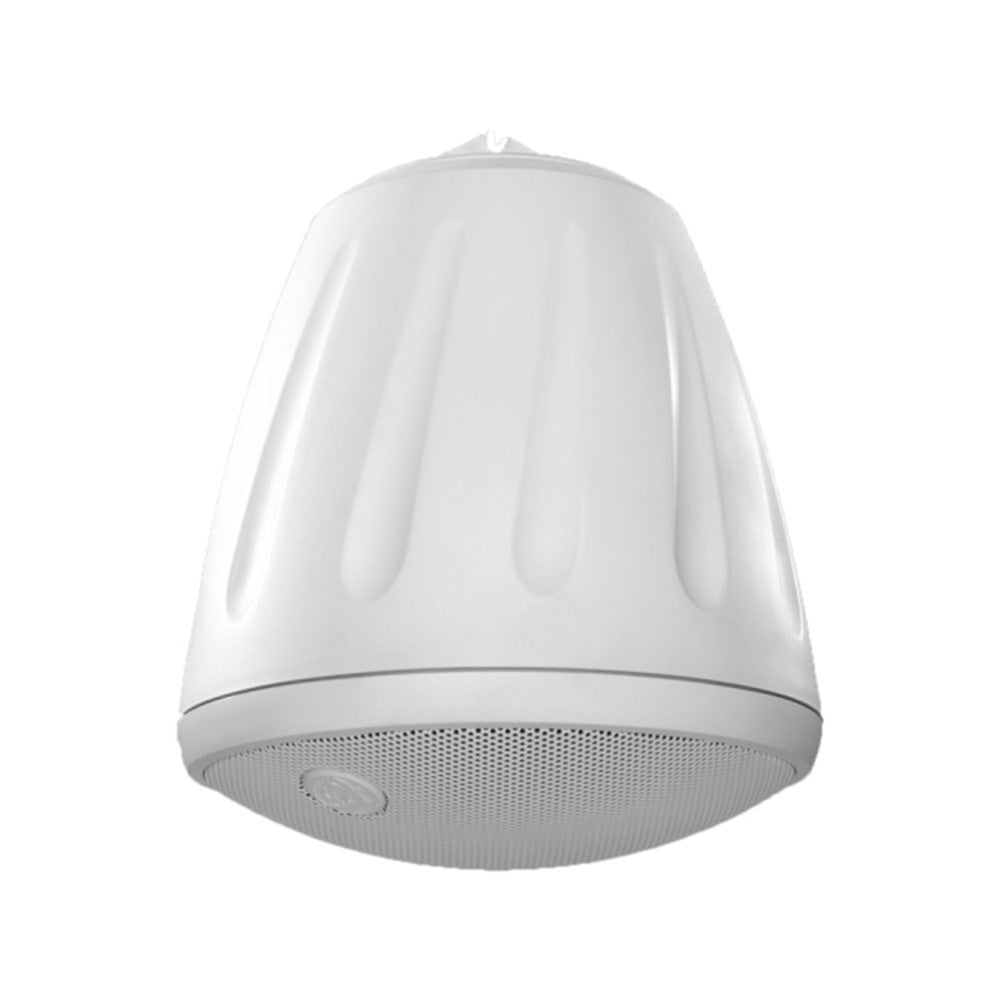

The RS800i is an 8-inch, two-way, ported speaker with an open-ceiling enclosure design that delivers extended low-end response (58 Hz) and 105¼ offaxis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam¨ waveguide tweeter system delivers consistent high-performan... Read MoreOur Price: $545.00
Free Shipping (Continental US)
Suggested Accessories
Description
The RS800i is an 8-inch, two-way, ported speaker with an open-ceiling enclosure design that delivers extended low-end response (58 Hz) and 105¼ offaxis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam¨ waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS800i speaker design incorporates a low-profile grille, a proprietary motorboard, driver protection circuitry and a six-position tap switch with a transformer bypass position. Hanging hardware is included and features a SpeedClampª self-locking cable grip for fast, easy and secure installation.
Features:
More +
Product Specs
Nominal Impedance | 8 ohm |
Impedance (min) | 5.3 ohm |
Sensitivity dB @ 2.83V/1M | 89.5dB |
Sensitivity dB @ 1W/1M (2) | 89.5dB |
Frequency Response (± 3 dB) | 80 Hz - 22 kHz |
Frequency Response (±10 dB) | 58 Hz Ð 22 kHz |
Max. Program Power | 250w |
Max. Continuous Power RMS | 125w |
Max. Power SPL @ 1 M | 110.5dB |
Tap Selector | 6 Position rotary switch with transformer bypass |
70.7 Volt Transformer Taps | 66w / 107.5dB |
100 Volt Transformer Taps (dB) | 66w / 107.5dB |
25 Volt Transformer Taps (dB) | 9w / 99.0dB |
Transformer Options | 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct |
Angle | 100¡ |
Colors | Black or white |
Port length | 2.24 in |
Tweeter - part | 76.1 mm (3.0 in.) Polypropylene driver w/ butyl rubber surround. |
Woofer - part | 8" Polypropylene |
Inputs | 4 Pin, 5.08 mm Euroblock for individual or daisy chain connection |
Height (SM = Height) | 437.6 mm / 17.22 in |
Diameter (SM = Width) | 376.4 mm / 14.81 in |
Weight | 9.3 kg / 20.50 lb |
Shipping Weight | 11.6 kg / 25.57 lb |
Accessories Optional | Surface-Mount Bracket (AC-RS-SM8),ÊSplit Loom Tubing (AC-SLT-10),Hanging Kit (AC-RS-HH-10),ÊHanging Kit (AC-RS-HH-20),ÊHanging Kit (AC-RS-HH-50),ÊForged Eyebolt (AC-FE1),ÊSnap Link (AC-SL-1) |
Packaging | 1 per box |
Regulatory - UL | Approved 1480 |
Regulatory - CE | Approved |
Regulatory - RoHS | approved |
