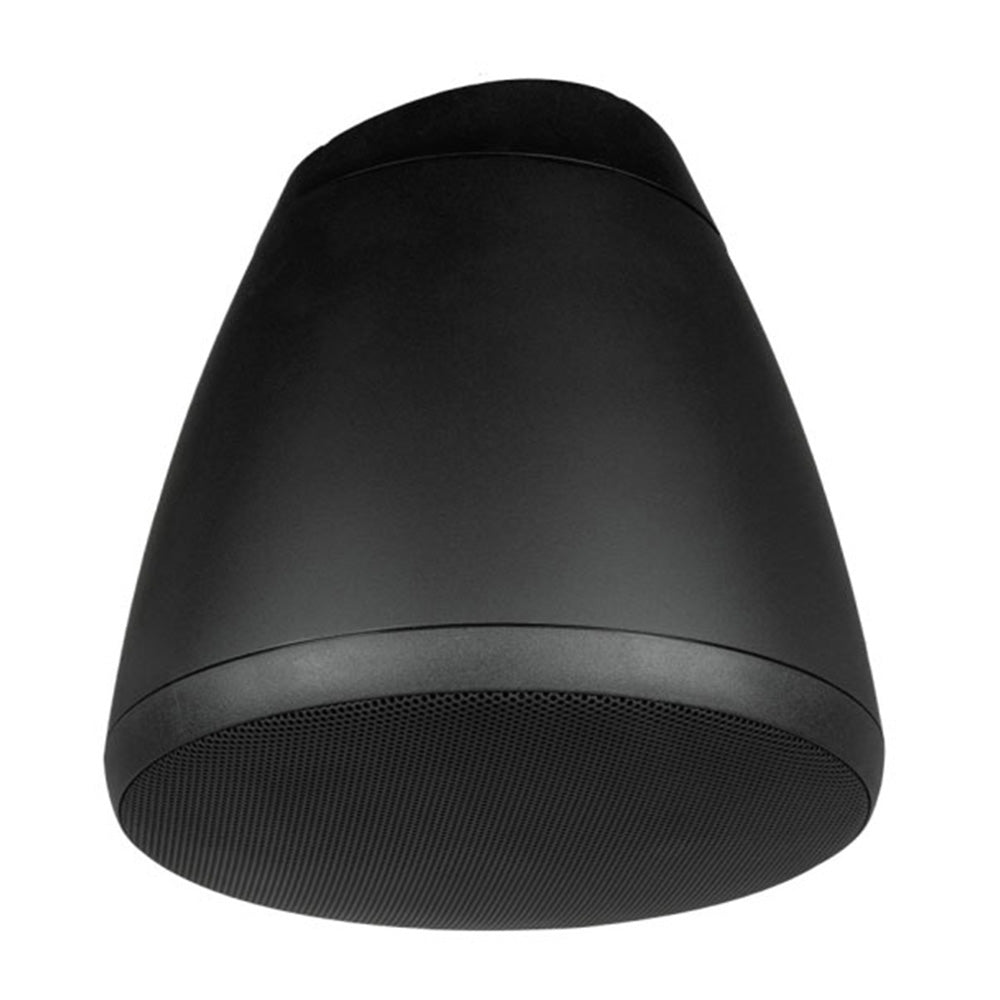

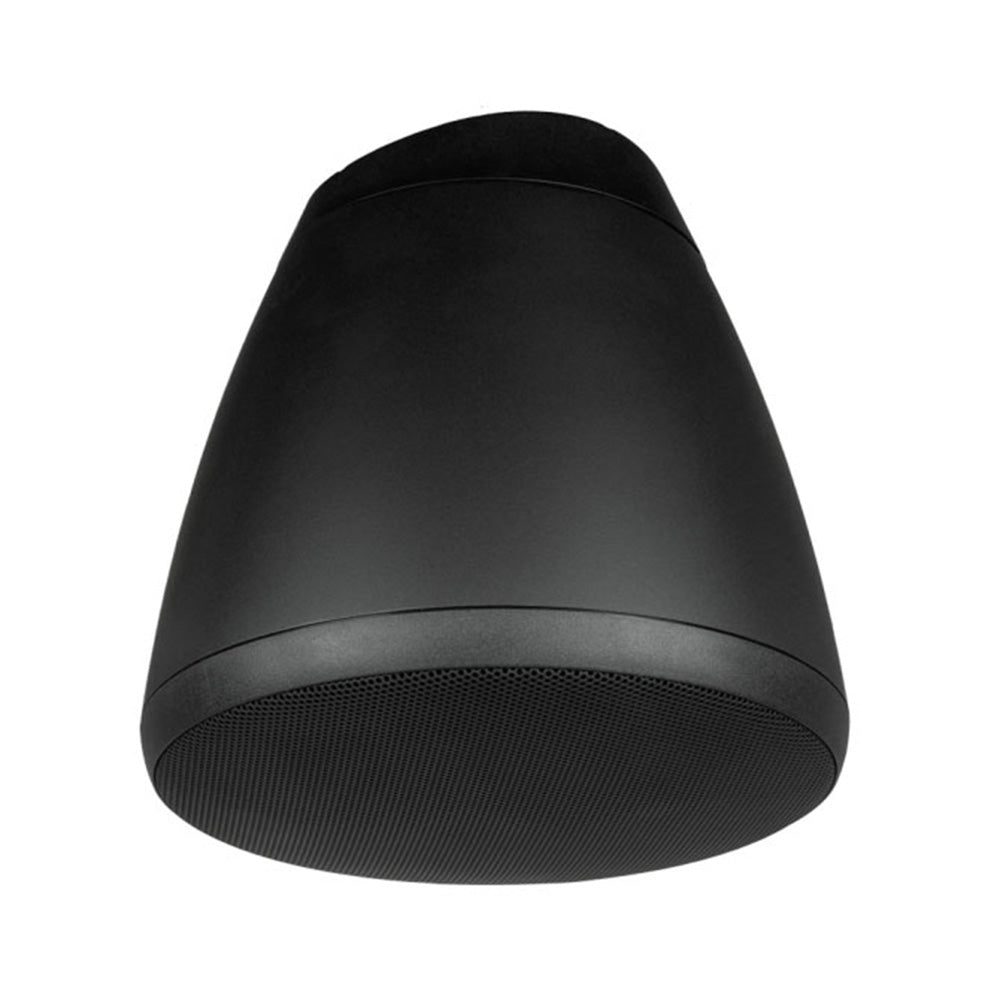

Soundtube RS82-EZ-BK - Two-Way 8-Inch Hanging Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RS82-EZ is an 8-inch, coaxial speaker with BroadBeam Ringª technology for consistently smooth high frequency sound, designed for open ceiling applications. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and has an aluminum grille with a protective powder coated finish. Hanging hardware with galvanized steel cables is included and features a built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via the locking cover plate. The RS82-EZ speaker includes a ceramic terminal input accepting up to 10 gauge plenum rated signal wire and a 6 position tap switch with transformer bypass position, as well as a 16 ohm impedance for easy daisy chaining in low voltage systems. The RS82-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, terminal weather boot, and cover plate are included.
Applications
Designed for superior off-axis performance and easy installation, the RS82-EZ offers attractive styling in an economical speaker for open-ceiling uses. The RS82-EZ includes hanging cables and a built-in mounting plate for suspending the speaker and a threaded opening to top of its cover plate for direct-to-conduit mounting. Cost-effective engineering with highperformance sound makes the RS82-EZ speaker ideal for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows, and conference rooms. For applications where additional bass is required, SoundTube's RS1201i-II-T subwoofer may be used.
Features:
- One 8-inch (203mm) coaxial driver with BroadBeam Ringª technology for consistently smooth high frequency directivity
- Weatherized components for indoor and outdoor applications
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy, and secure installation
- Unit may be hung or mounted direct-to-conduit via locking cover plate
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications
- 16 ½ impedance for easy daisy chaining in low voltage systems
- Aluminum grille with protective powder-coated finish
- Built-in thermal fuse
- Unit ships in eco-friendly, recyclable packaging
- UL 1480A
- High-quality black or white paint finish. Speaker is paintable Included accessories: hanging hardware, terminal weather boot, cover plate.
| Color | White |
| UPC | 644216202607 |
| Manufacturer | SoundTube |
| Manufacturer's Category | RS-EZ Economical Pendant |
| Height | 12.9 in / 327.7 mm |
| Width/Diameter | 12.83 in / 325.9 mm |
| Shipping Weight | 15.15 lbs / 6.87 kg |
| Carton Height | 15.75 in / 400.05 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 14.5 in / 368.3 mm |
| Certifications | CE, RoHS, UL1480A |
| Enclosure Properties | Ported, Reinforced ABS |
| Included Accessories | Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland |
| Optional Accessories | White Grille (GRL-RS82-EZ-WH)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|White Mounting Bracket (AC-RS-SM5-WH)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|White Split Loom Tubing (AC-SLT-10-WH)|Snap Link (AC-SL1) |

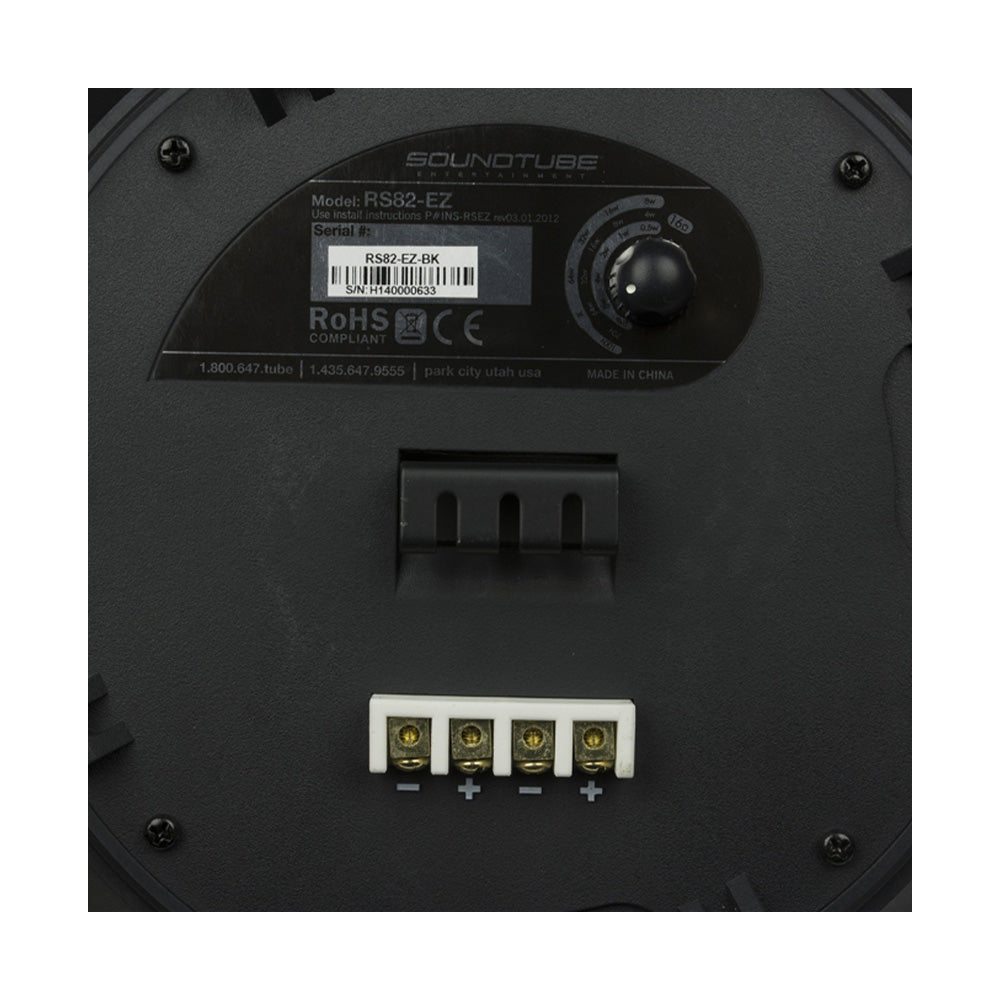

| Source Inputs | 4 Pin Ceramic Terminal |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.7 and 6.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.7db and 7.8dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 100 Hz - 22 kHz |

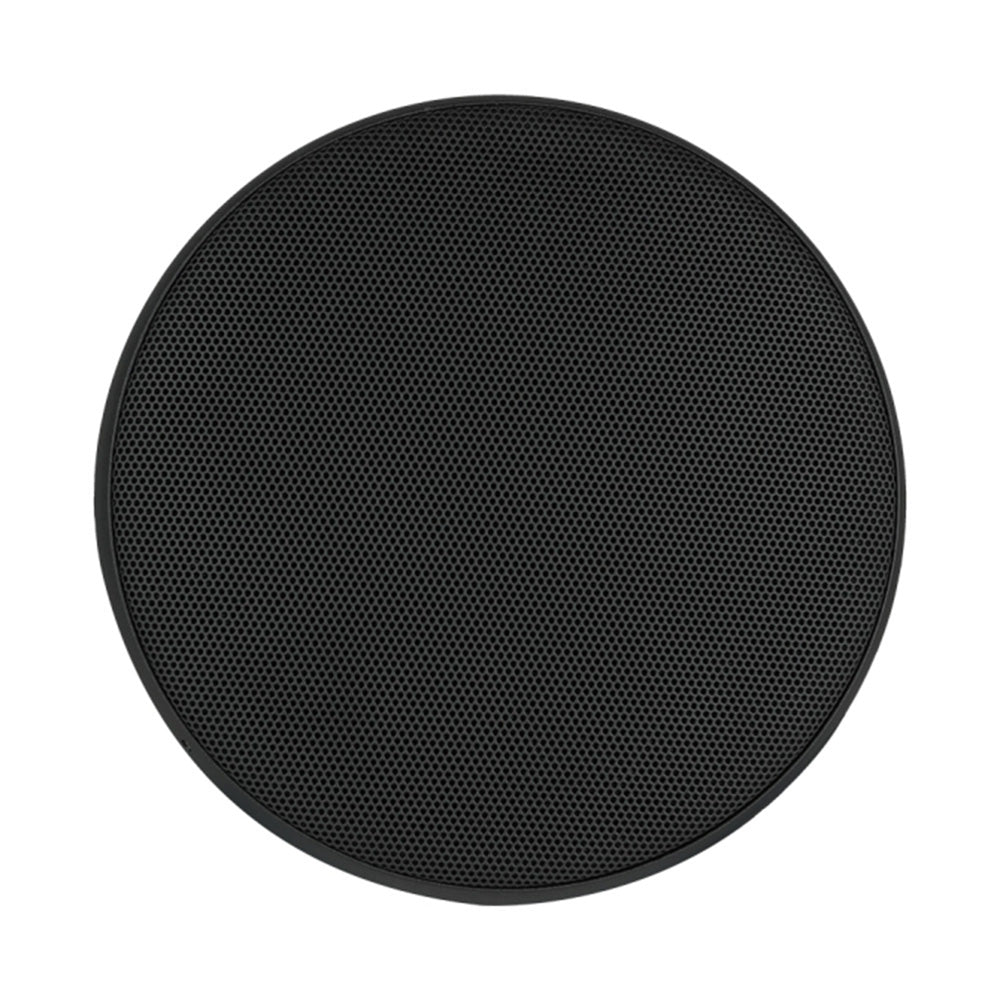

| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 64W |
| Max. Program Power | 128 W |
| Minimum Impedance (_ Ohms) | 16 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 16 _ |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring¬ |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 92 dB |
| Sensitivity dB @ 2.83V/1M | 89 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 16 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
