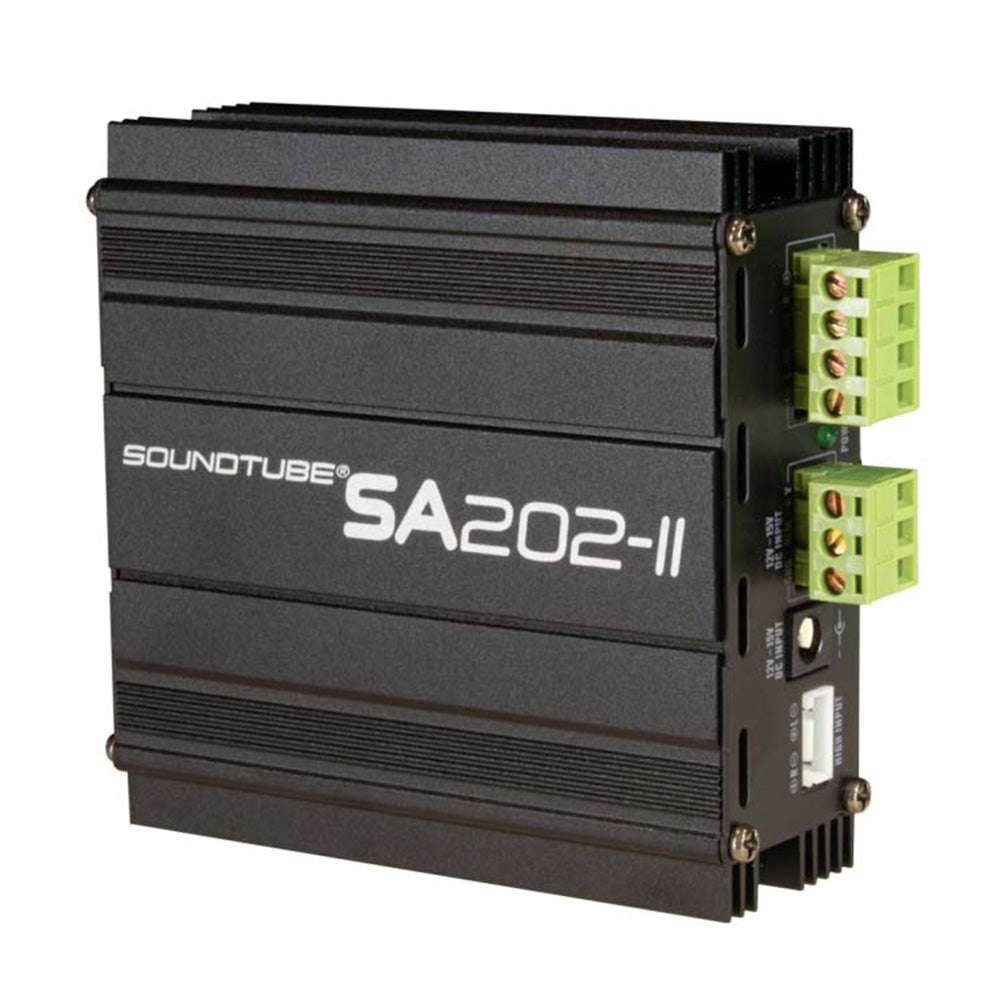

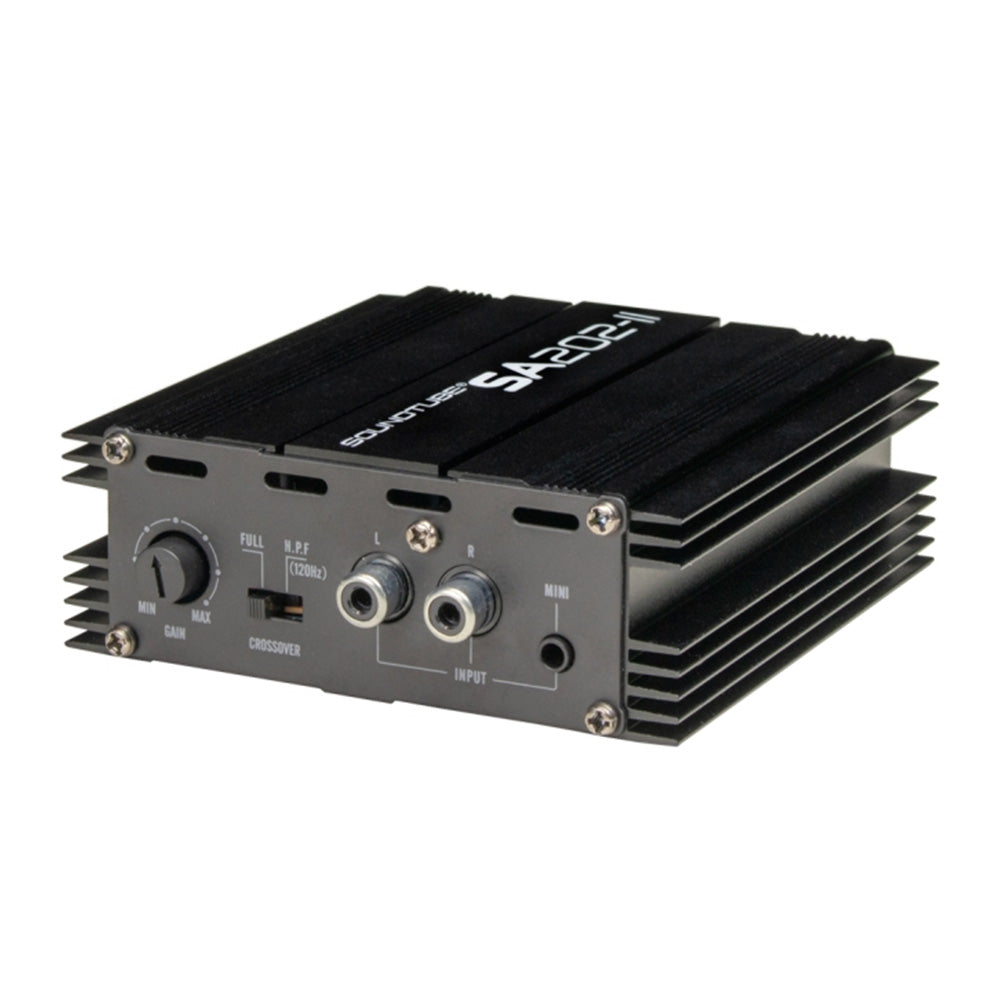

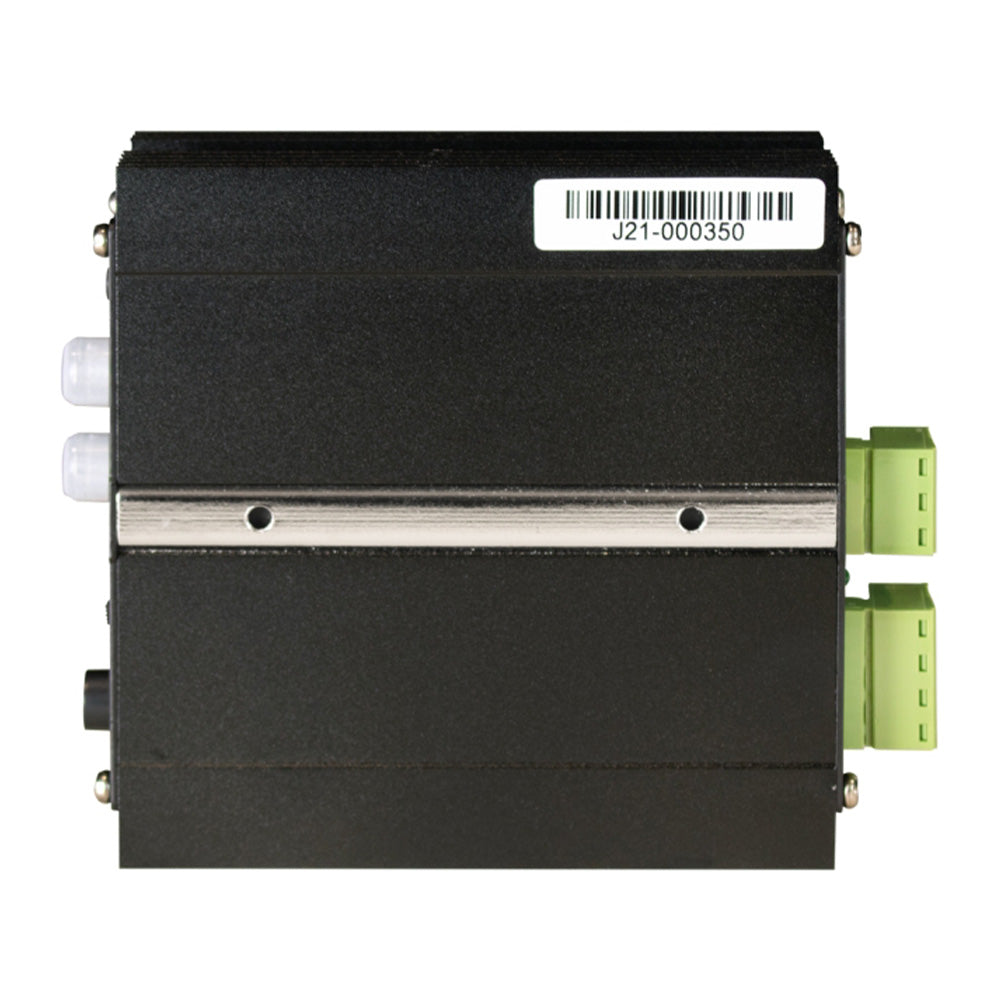

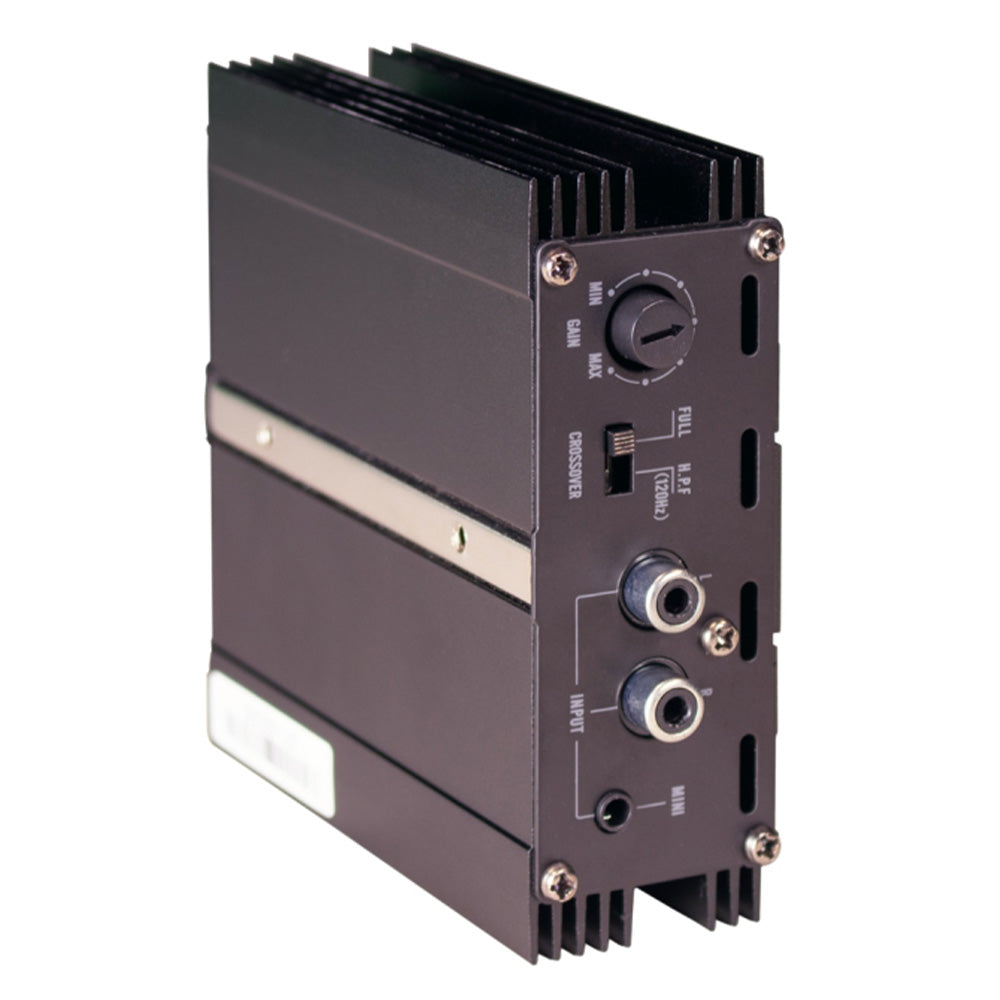

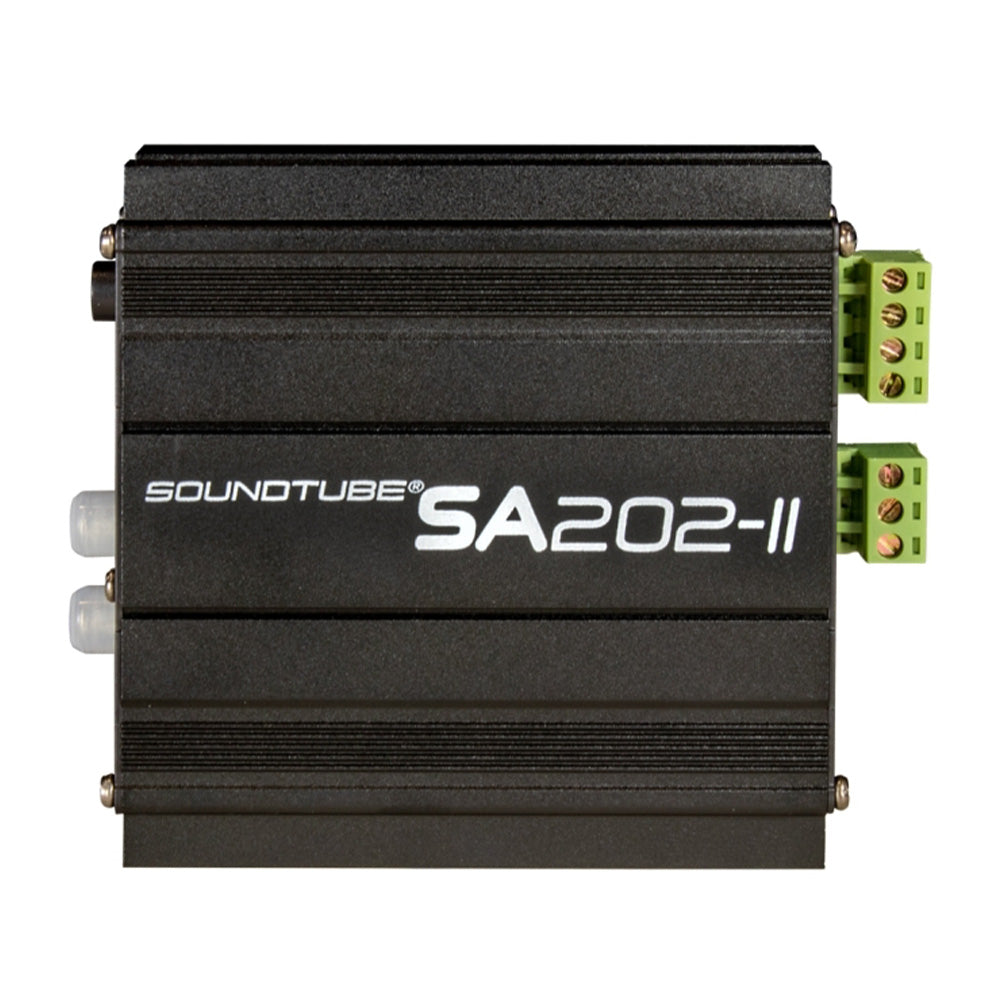

Soundtube SA202-II - Class AB Mini Amplifier (No PSU)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SA202-II and SA202-II-RDT are 20-watt per channel (4 ½) Class AB amplifiers with maximum gain of 35 dB. Input options include dual RCA jacks and a stereo mini jack for line-level audio sources and a speaker-level (amplified) input for applications with low-wattage speaker outputs (e.g., A/V projector to external speakers). A 15 V power supply is included with the SA202-II-RDT. Mounting hardware is included and adapts to pole, surface or security attachment installations.
Features:
- 35 dB maximum gain with 2 x 20 watt output
- Dual RCA, stereo mini jack and high-level inputs
- High pass filter at 120 Hz (12 dB per octave) to reduce bass distortion in smaller speakers
- Aluminum housing with integrated heat sink
- Power inputs include either three-pin Euroblock or barrel connector
- 12 V trigger for automatic on/off functions when source power is detected
- Included accessory: universal pole- and surfacemount adapter
- Included SA202-II-RDT accessories: universal pole- and surface-mount adapter, 15 V power supply.
- Optional accessory for SA202-II: 15 V, 3-amp power supply (PS1530-RDT).
| Color | Black |
| UPC | 644216234509 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 4.86 in / 123.44 mm |
| Height | 1.43 in / 36.2 mm |
| Width/Diameter | 3.98 in / 101.09 mm |
| Shipping Weight | 0.75 lbs / 0.34 kg |
| Carton Height | 1.75 in / 44.45 mm |
| Carton Length | 5.75 in / 146.05 mm |
| Carton Width | 4.5 in / 114.3 mm |
| Certifications | CE, RoHS |
| Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Pole/Surface Mount Adapter |
| Optional Accessories | Rack Mount Adapter (AC-SA202-RMA)|Power Supply (PS1530-RDT)|UK Power Cord (AC-PSCORD-UK)|EU Power Cord (AC-PSCORD-EU)|China Power Cord (AC-PSCORD-CHINA) |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Input Impedance | 6K _ |
| Output Type | Euroblock |
| Voltage Gain | 35 dB |
| Frequency Response (± 3 dB) | 20 Hz - 20 kHz |
