Soundtube SB335 - Two-Channel Compact Class D Amplifier with Bluetooth
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

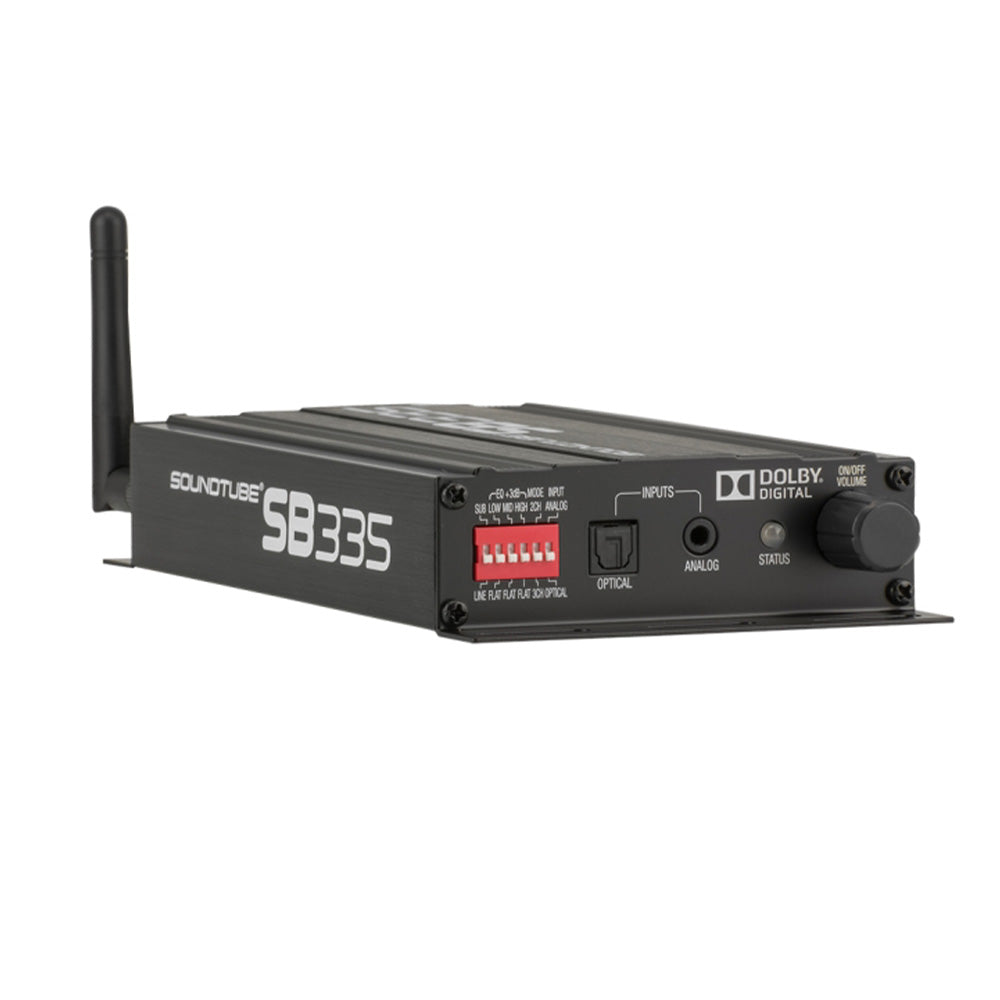

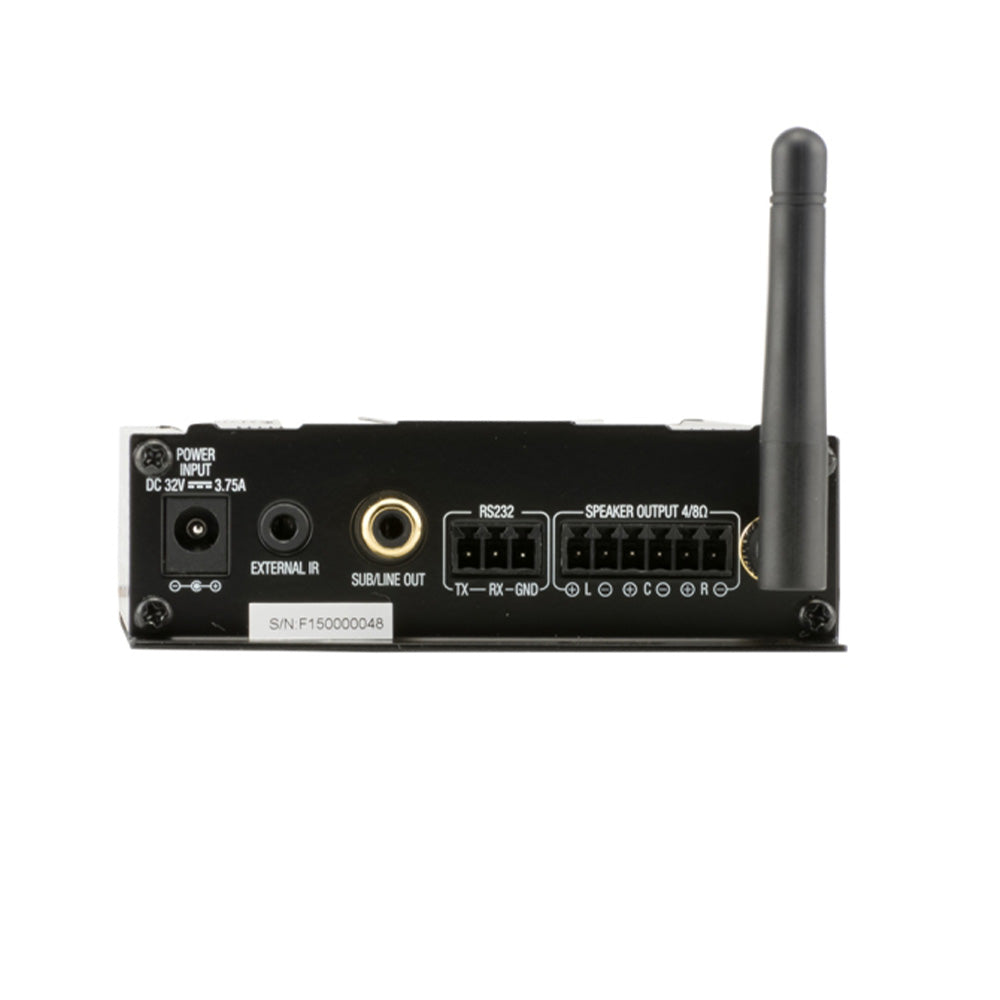

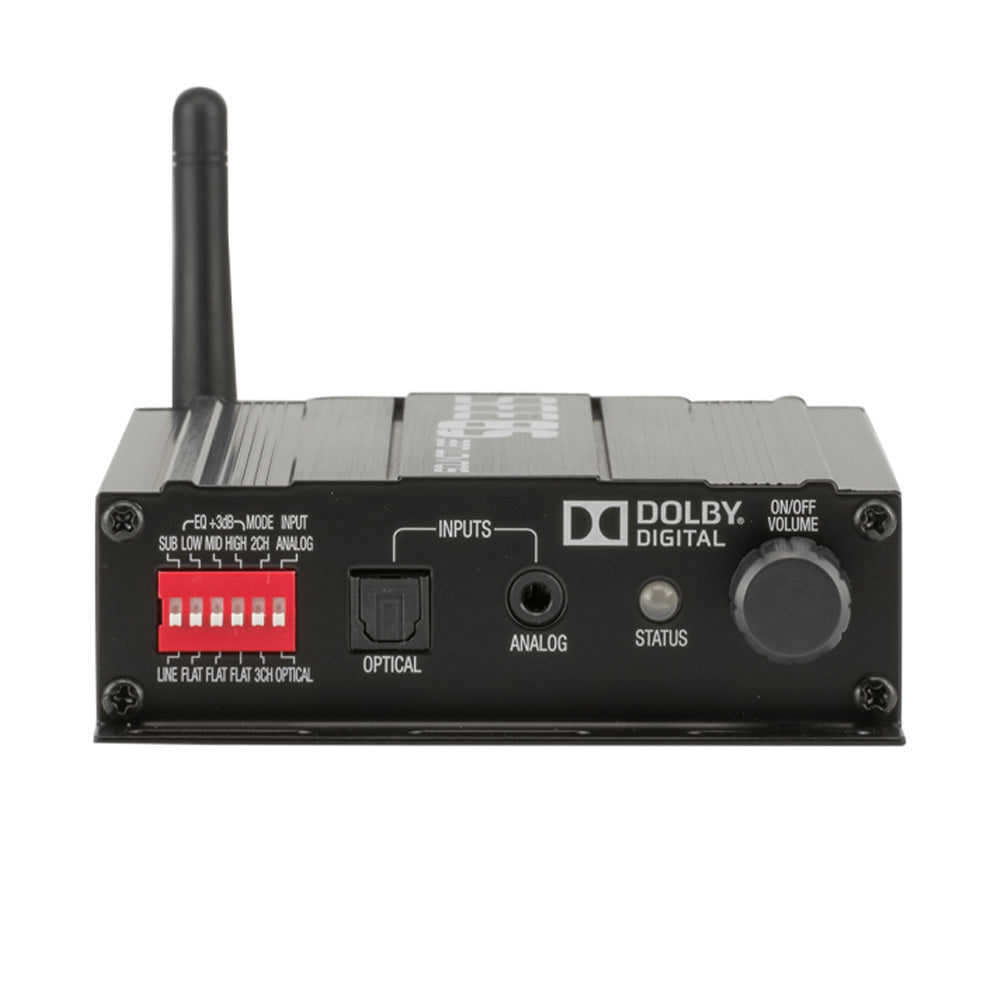

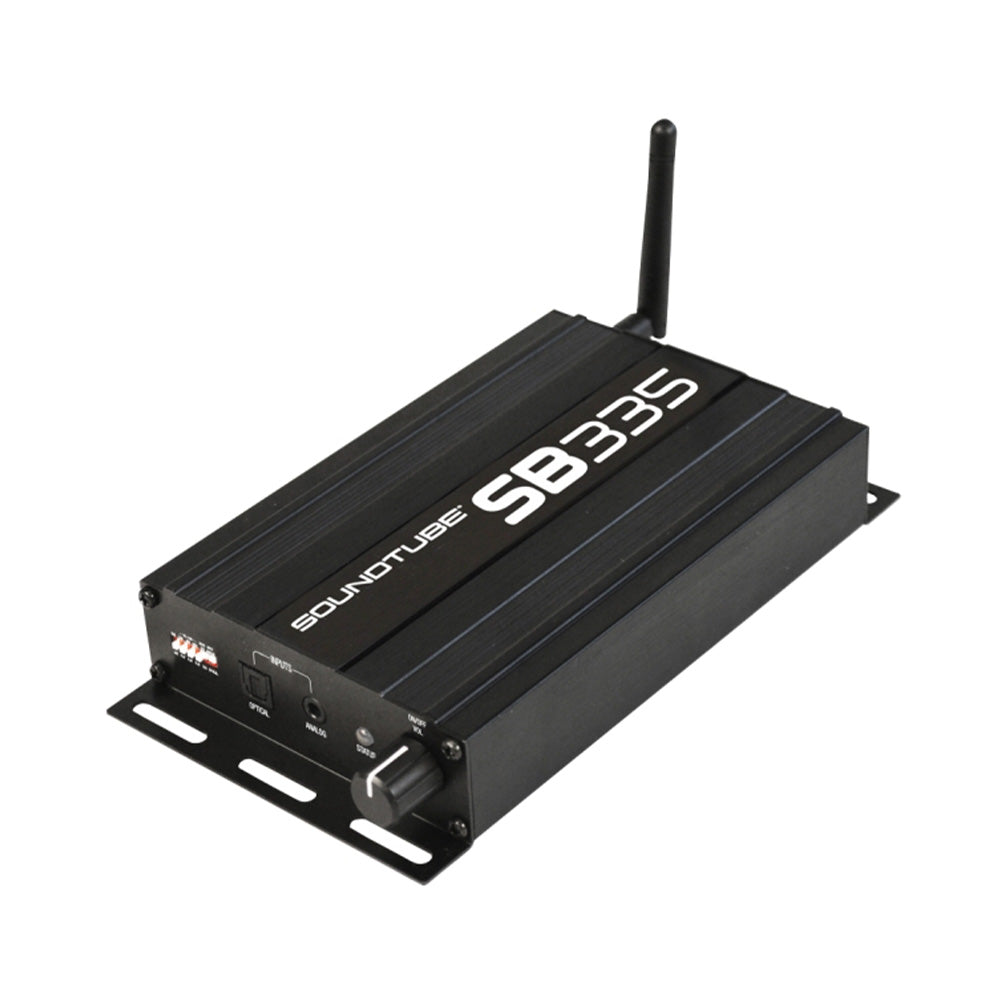

The SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications. Designed for use with SoundTube speakers, other high-fidelity speakers and passive soundbars, the SB335 provides 50 watts per channel into 8 ½ (2 channel operation) or 35 watts per channel into 8 ½ (3 channel operation). Digital and analog inputs are provided, enabling direct connection from most TVs or monitors. Bluetooth¨ streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line level subwoofer output. Dolby Digital¨ decoding is also provided. The SB335 may be controlled via RS-232 and will learn IR codes for volume control.
Features:
- 35 Watts per channel at 8 ½ (3 channels)
- 50 Watts per channel at 8 ½ (2 channels)
- IR learning for volume control via TV remote
- Bluetooth¨ connectivity
- Dolby Digital¨ decoding
- 8ÓH x 4ÓW x 1.125ÓD
| Color | Black |
| UPC | 748252171863 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 7.25 in / 184.15 mm |
| Height | 1.25 in / 31.75 mm |
| Width/Diameter | 3.9 in / 99.06 mm |
| Shipping Weight | 3.35 lbs / 1.52 kg |
| Carton Height | 3 in / 76.2 mm |
| Carton Length | 9.5 in / 241.3 mm |
| Carton Width | 9 in / 228.6 mm |
| Certifications | CCC, CE, RoHS, UL60065, ETL-C/US, FCC |
| Included Accessories | 3-Pin Euroblock, 6-Pin Euroblock, Antenna, IR Receiver, Mounting Hardware, Power Supply |
| Optional Accessories | Replacement Power Supply (AC-PS3240)|European Power Supply (AC-PS3240-EU) |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Input Impedance | 10K _ Unbalanced |
| Output Type | Euroblock |
| Voltage Gain | 34 dB |
The SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications. Designed for use with SoundTube speakers, other high-fidelity speakers and passive soundbars, the SB335 provides 50 watts per channel into 8 ½ (2 channel operation) or 35 watts per channel into 8 ½ (3 channel operation). Digital and analog inputs are provided, enabling direct connection from most TVs or monitors. Bluetooth¨ streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line level subwoofer output. Dolby Digital¨ decoding is also provided. The SB335 may be controlled via RS-232 and will learn IR codes for volume control.
Features:
- 35 Watts per channel at 8 ½ (3 channels)
- 50 Watts per channel at 8 ½ (2 channels)
- IR learning for volume control via TV remote
- Bluetooth¨ connectivity
- Dolby Digital¨ decoding
- 8ÓH x 4ÓW x 1.125ÓD
| Color | Black |
| UPC | 748252171863 |
| Manufacturer | SoundTube |
| Manufacturer's Category | Amplifier |
| Depth | 7.25 in / 184.15 mm |
| Height | 1.25 in / 31.75 mm |
| Width/Diameter | 3.9 in / 99.06 mm |
| Shipping Weight | 3.35 lbs / 1.52 kg |
| Carton Height | 3 in / 76.2 mm |
| Carton Length | 9.5 in / 241.3 mm |
| Carton Width | 9 in / 228.6 mm |
| Certifications | CCC, CE, RoHS, UL60065, ETL-C/US, FCC |
| Included Accessories | 3-Pin Euroblock, 6-Pin Euroblock, Antenna, IR Receiver, Mounting Hardware, Power Supply |
| Optional Accessories | Replacement Power Supply (AC-PS3240)|European Power Supply (AC-PS3240-EU) |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Input Impedance | 10K _ Unbalanced |
| Output Type | Euroblock |
| Voltage Gain | 34 dB |
