DALE SKU # SOTU-SM1001BK

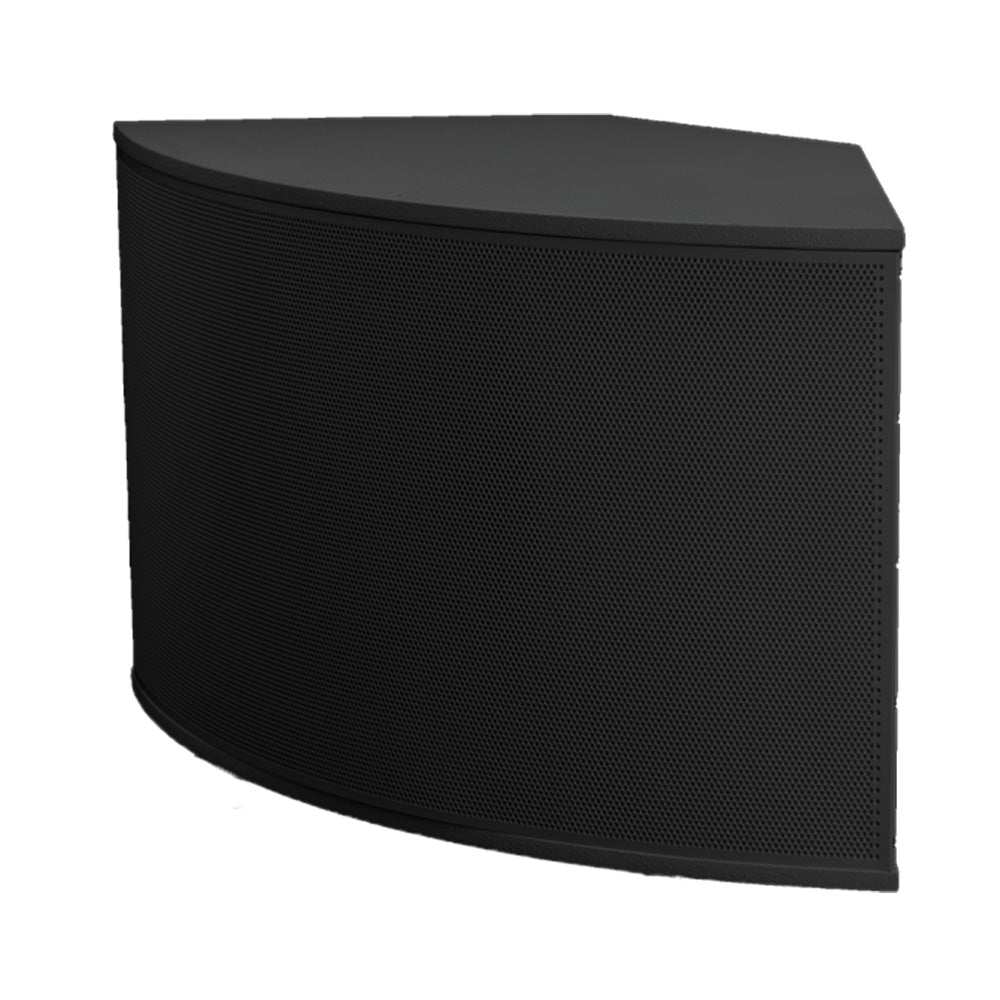

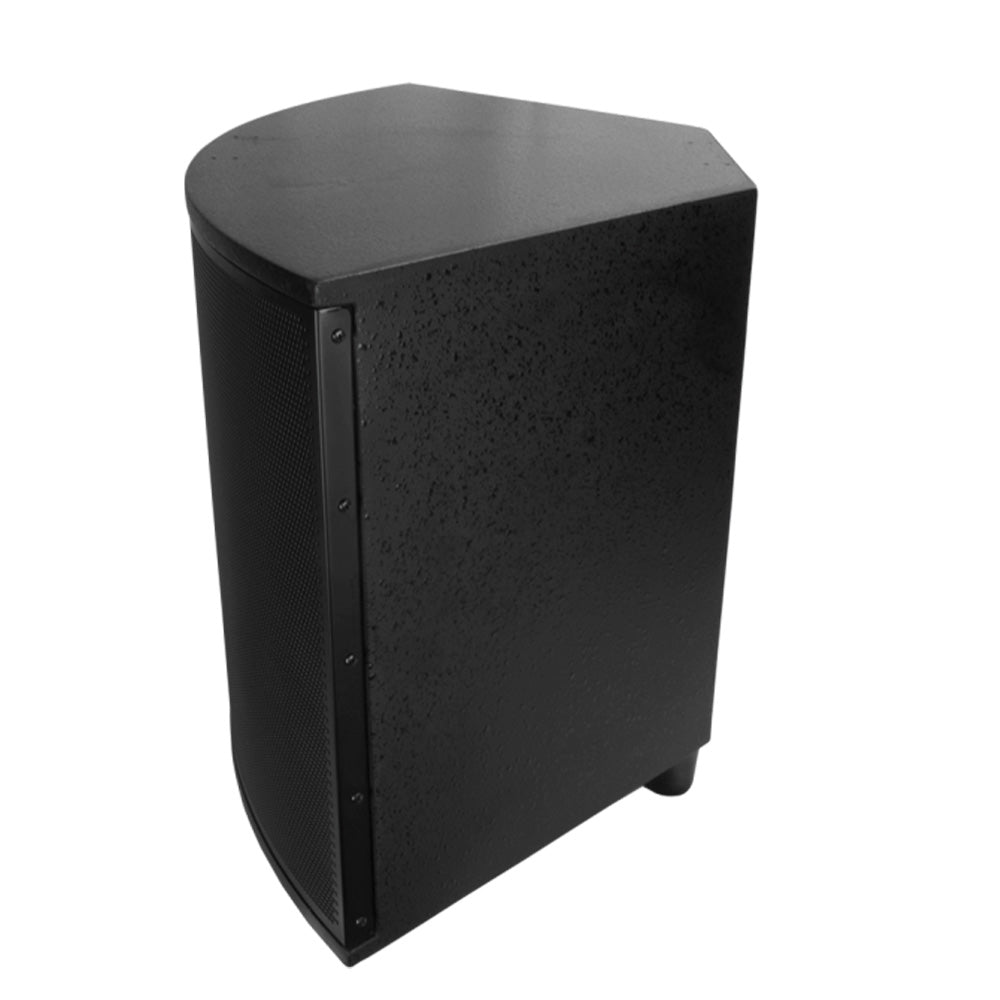

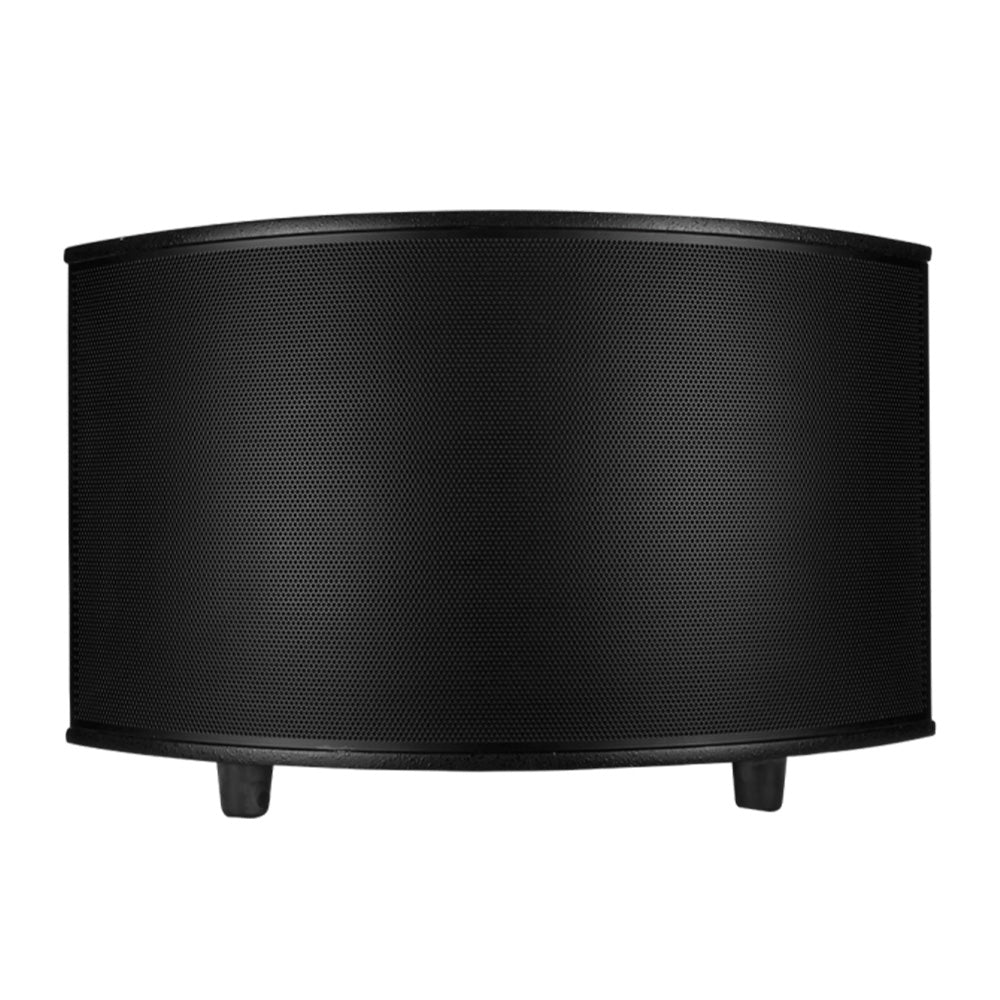

Soundtube SM1001-BK - 10-Inch Install Subwoofer with Passive Radiator (Black)

Sale price$778.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SM1001 is a 10Ó subwoofer with a passive radiator to generate deep, high output bass response. The SM1001 uses a proprietary 10-inch high-excursion, ultra-long throw mica-graphite polypropylene driver and a downward-firing bass radiator. The efficient long throw designs are superbly linear, making the SM1001 an ideal complement to any music system. The driver is attached to a 1.5-inch MDF baffle to eliminate cabinet distortion The SM1001 is a great addition to background and foreground audio installations where high-quality, true bass response and rapid installation are critical. Aerobic rooms, retail stores, restaurants, nightclubs, bars, theme parks, arenas, ballrooms, and churches are all ideal fits for this subwoofer.

    Features:

    • 10Ó high excursion subwoofer
    • 10Ó high excursion passive radiator
    • Solid cabinet with textured paint finish.
    • Powder-coated steel grilles provide lasting durability.
    • Included accessory: Euroblock connector, Safety cable and forged eyebolt.
    • Optional accessories: Surface mount bracket (AC-SM1001p-S), corner mount bracket (AC-SM1001p-C).
    Color Black
    UPC 644216228706
    Manufacturer SoundTube
    Manufacturer's Category Subwoofer
    Depth 12.5 in / 317.5 mm
    Height 15.5 in / 393.7 mm
    Width/Diameter 24.5 in / 622.3 mm
    Shipping Weight 32 lbs / 14.5 kg
    Enclosure Properties MDF
    Included Accessories Euroblock
    Optional Accessories Corner Mount Bracket (AC-SM1001p-C), Surface Mount Bracket (AC-SM1001p-S)
    Source Inputs 2 Pin 5.08mm Euroblock
    TAA Compliant (Trade America) Yes
    BAA Compliant (Made in USA) Yes
    Frequency Response (± 3 dB) 26 - 150 Hz
    Grille Properties Powder-Coated, Steel
    Max. Continuous Power RMS 175 W
    Max SPL @ 1M 104 dB RMS, 116 dB Peak
    Max. Program Power 350 W
    Nominal Impedance (_ Ohms) 4 _
    Subwoofer Driver (1) 10" Active / (1) 10" Passive Mica-Graphite Polypropylene
    Sensitivity dB @ 1W/1M 88 dB
    Sensitivity dB @ 2.83V/1M 91 dB
