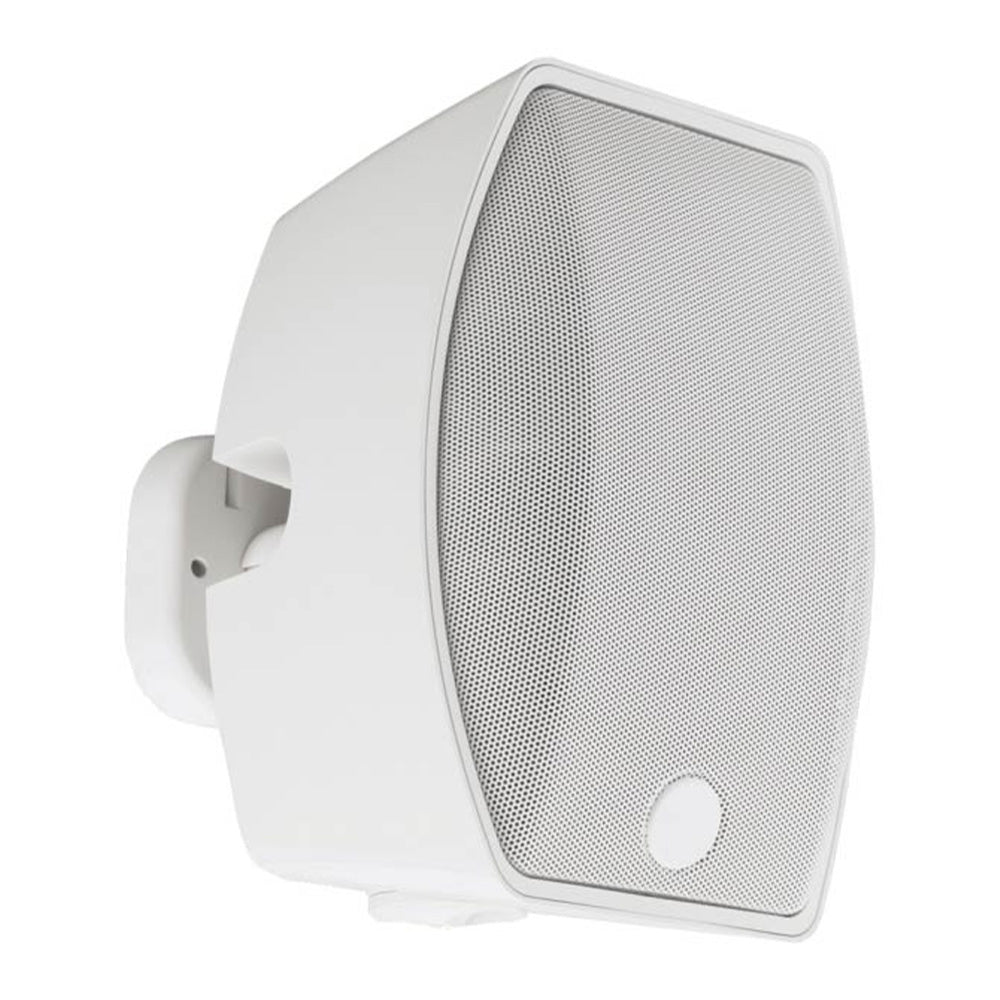

Soundtube SM500i-II-WX-WH - Two-Way 5.25-Inch Outdoor Surface Mount Speaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SM500i-II-WX is a 5.25Ó, two-way surface-mount speaker with a mid-size enclosure design that delivers effective low-end response (60 Hz) and optimal offaxis performance (2-10 kHz). SoundTubeÕs proprietary BroadBeam¨ waveguide tweeter system delivers consistent high-performance audio across operating bandwidth. The SM500i-II-WX speaker design incorporates a low-profile grille, six-position tap switch with transformer bypass and mounting hardware, including the Stealthª bracket mounting system. The SM500i-II-WX incorporates a security knob to reduce tampering after placement, unlimited directional aiming, and a low profile.
Features:
- BroadBeam¨ waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.

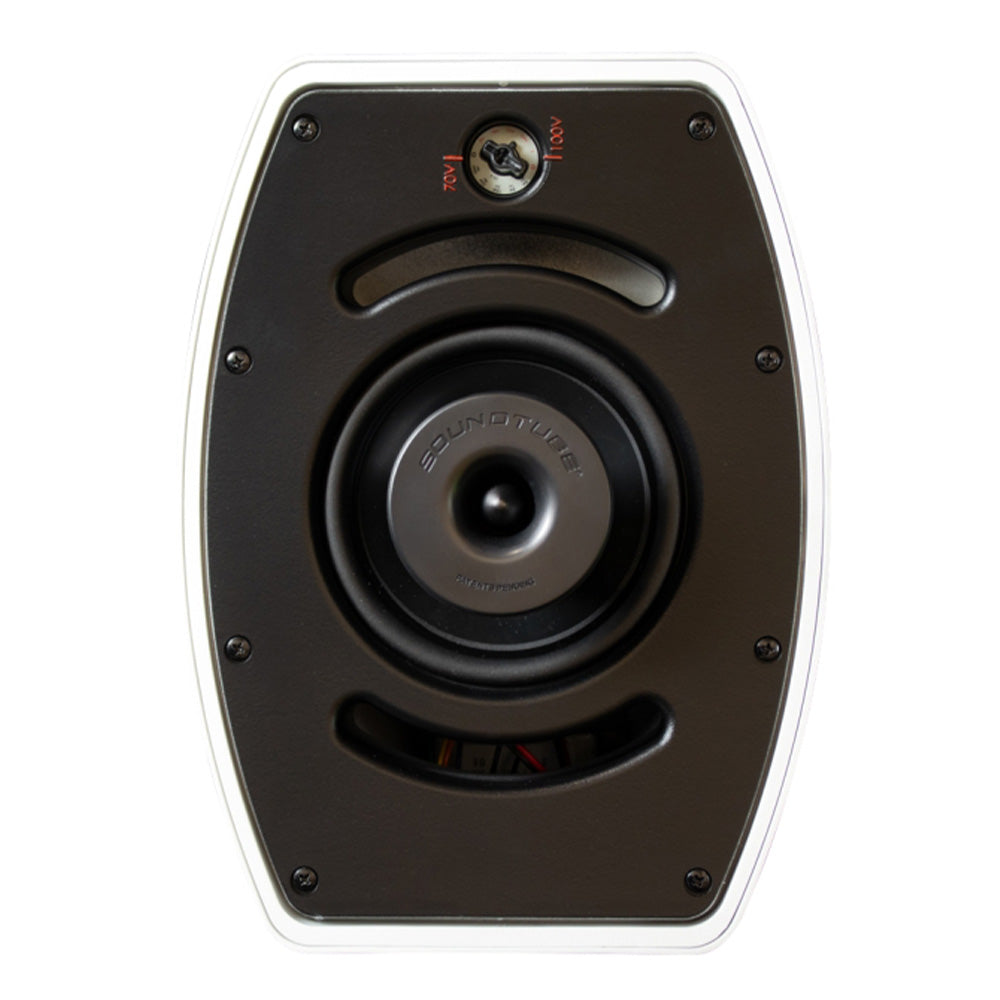

- One 5.25Ó (133 mm) polypropylene woofer and one 1Ó (25.4 mm) convex titanium tweeter with FerroFluid cooling.
- 86 dB average sensitivity offers high output capabilities and reduced amplification costs.
- Includes stainless steel screws and rust-free grille for severe weather, outdoor applications.

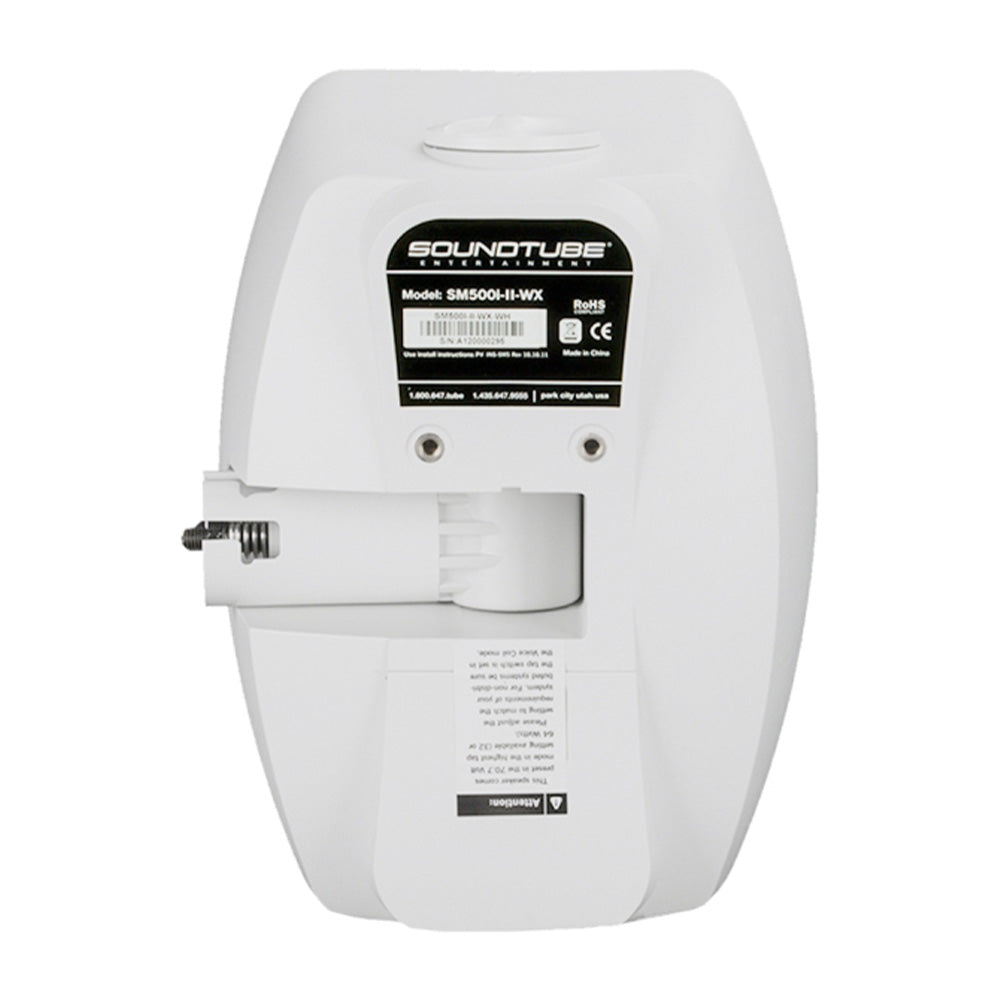

- Easy access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position.
- Patented ZeroReflectionª enclosure technology for optimal sound reproduction and cabinet rigidity.

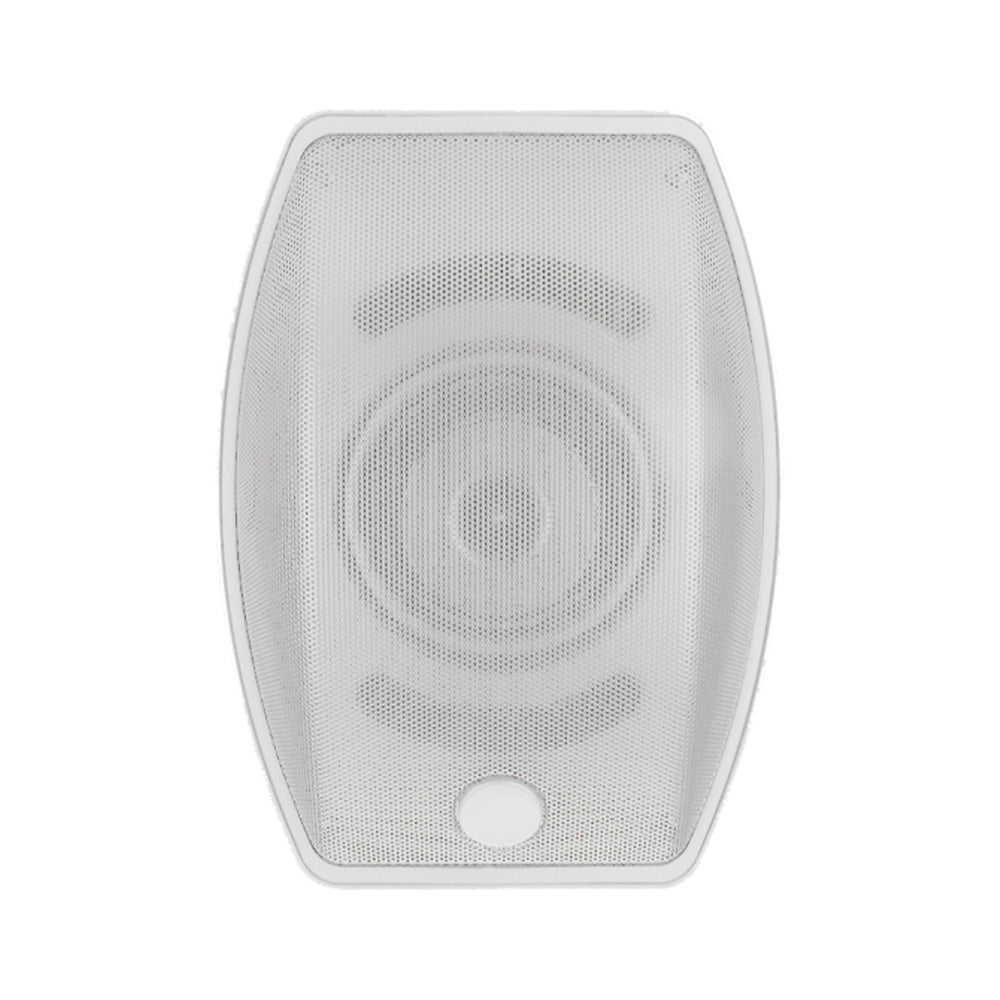

- Aluminum grille with powder-coat finish.

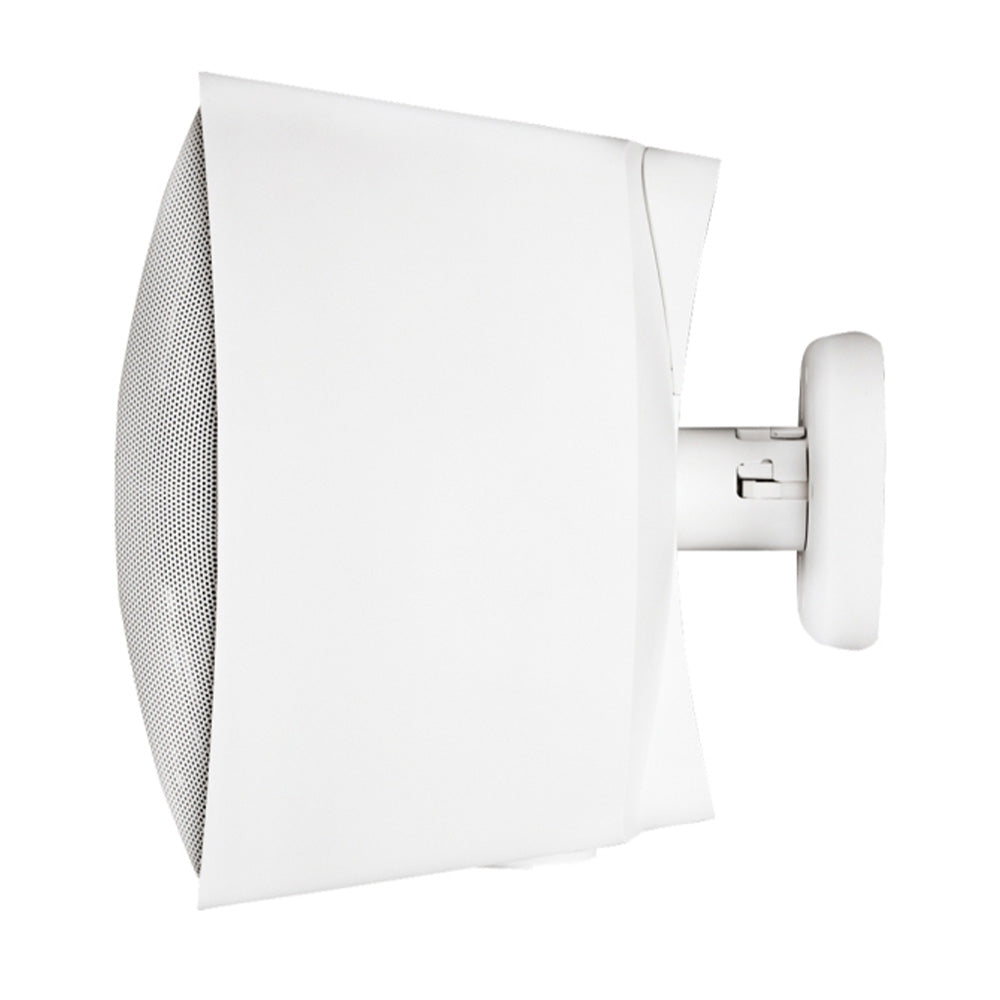

- Includes the new SM500i-II-WX Stealthª bracket mounting system.

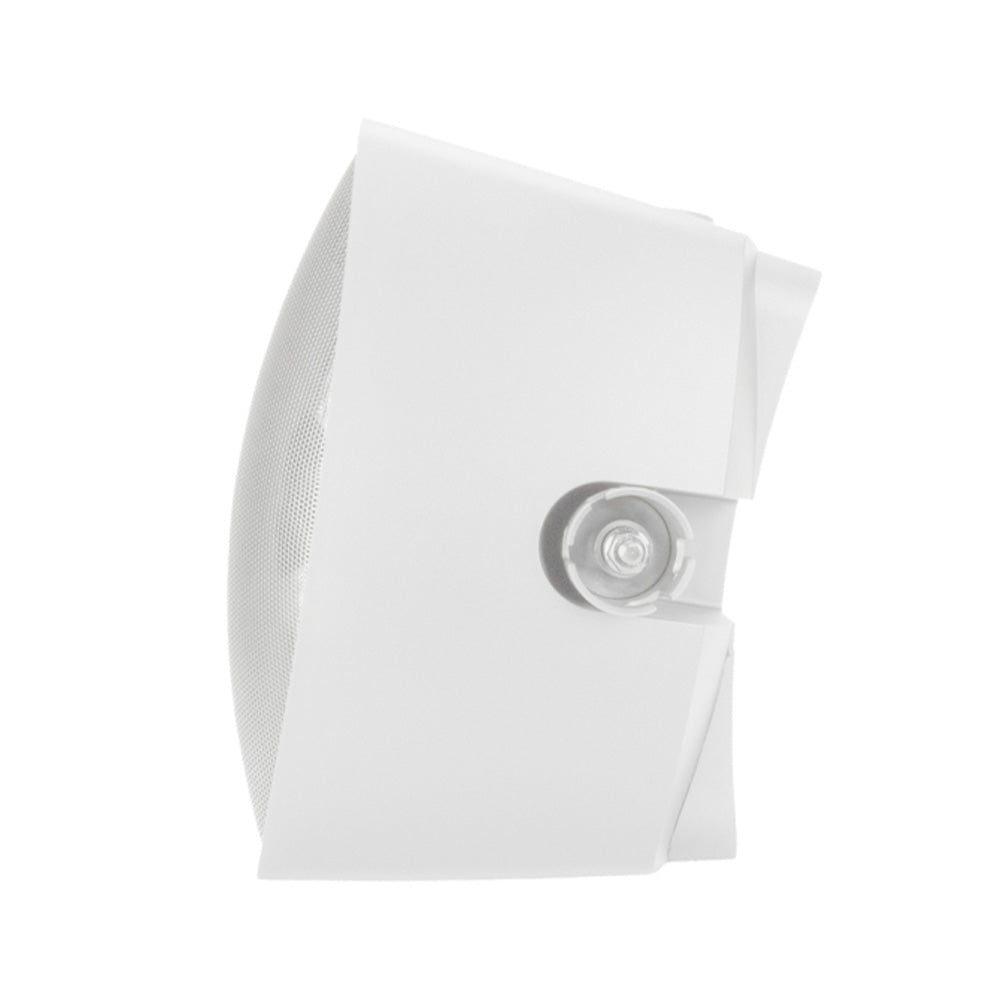

- Vertical and horizontal pivoting allow the SM500i-II-WX to be aimed anywhere within the installation space.
- Low profile enclosure design keeps the speaker close to the wall.
- UL 1480A approved.
- High-quality black or white paint finish.
- Included accessories: safety cable with speaker mounting bolt, Euroblock connector, wall-mount bracket, and terminal weather boot.
| Color | White |
| UPC | 644216203505 |
| Manufacturer | SoundTube |
| Manufacturer's Category | SMi Surface Mount |
| Height | 11.4 in / 289.6 mm |
| Width/Diameter | 8.36 in / 212.3 mm |
| Shipping Weight | 10.5 lbs / 4.76 kg |
| Carton Height | 12.25 in / 311.15 mm |
| Carton Length | 13.5 in / 342.9 mm |
| Carton Width | 10.5 in / 266.7 mm |
| Certifications | CE, RoHS, UL1480A |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 349.6 cu in / 5728.92 cu cm |
| Included Accessories | Euroblock, Mounting Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-SM500-II-WX-BK)|10" Safety Cable (AC-SM-SC10)|Black Mounting Bracket (AC-SM5-II-WP-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-S-BK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| IP Rating | IP44 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.6 and 9.8 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB and 9.9dB |
| Frequency Response (± 10 dB) | 60 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 86 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated, Weatherproof |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 75W |
| Max. Program Power | 150 W |
| Minimum Impedance (_ Ohms) | 4 _ |
| Mounting Depth | 10.48 in / 266.2 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 4 _ |
| Tweeter Driver | 1" Convex Aluminum w/ BroadBeam¬ Waveguide |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 83 dB |
| Sensitivity dB @ 2.83V/1M | 86 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
