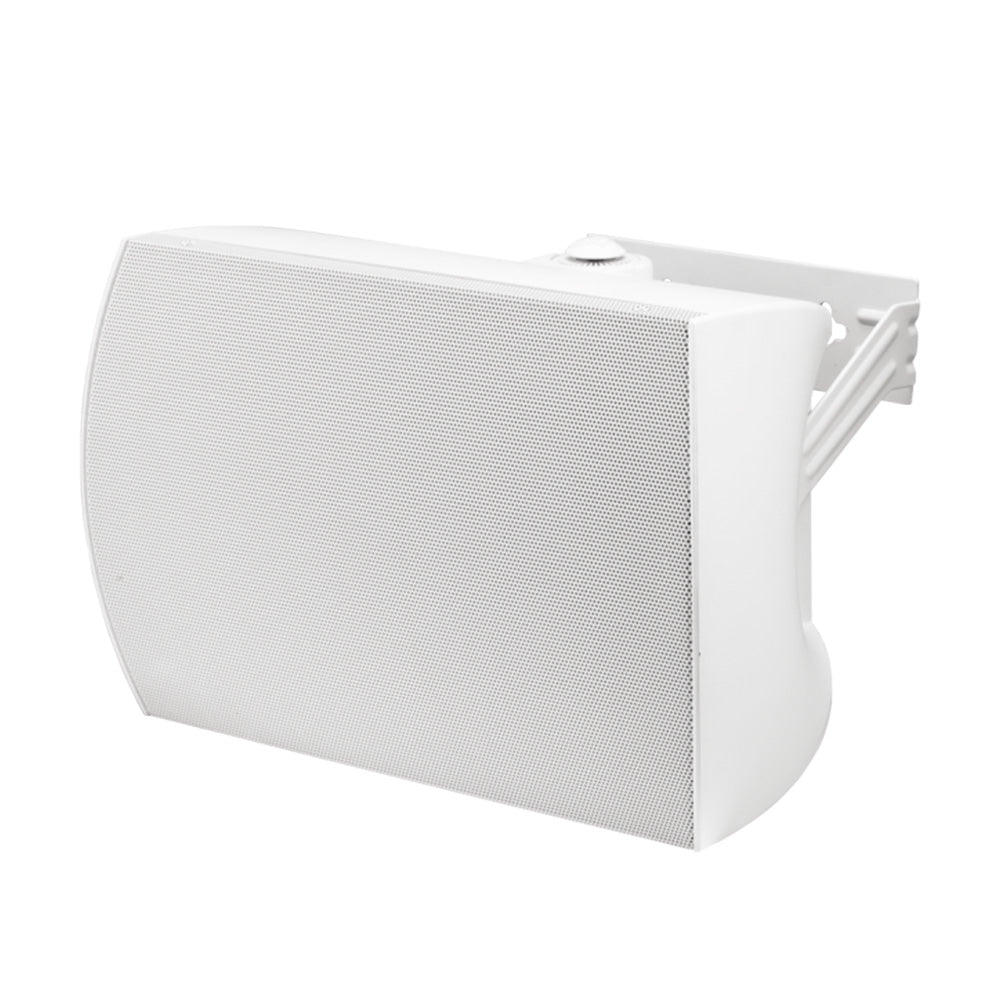

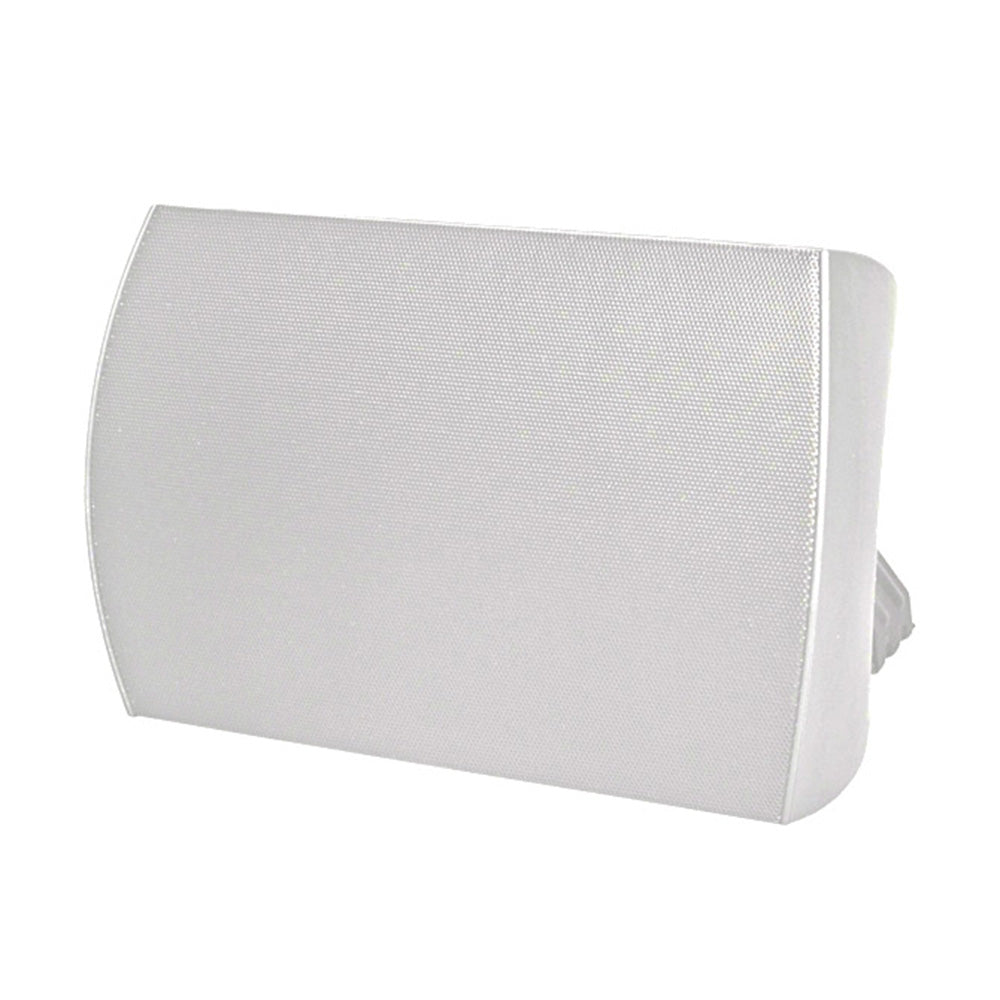

Soundtube SM52-EZ-WX-WH - Two-Way 5.25-Inch Outdoor Surface Mount Speaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Designed for extreme weather resistance, the SM52-EZ-WX is an economical solution for integrators who need a surface-mount outdoor speaker option for music and paging applications. The speaker incorporates a dedicated 5.25 inch polypropylene woofer and an offset 1 inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 100.0 dB max. SPL). SoundTube's proprietary BroadBeam Ringª technology in all models ensures high intelligibility, even well off-axis. The SM-EZ-WX speakers are Weather Extreme with an IP65 rating, meaning the speakers are dust-tight and will withstand water jets aimed directly at them when installed with the included port plugs. With its 32 watt transformer and 6 position tap switch, the SM52-EZ offers 25.5 V, 70.7 V and 100 V operation with an 8 ohm bypass. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. The SM52-EZ-WX contains a powder coated aluminum grille and mounting hardware, a safety cable, wall mount bracket, conduit connector, and port hole plug.
Features:
- The SM52-EZ-WX is a cost-conscious, weatherresistant, surface-mount loudspeaker.
- BroadBeam Ringª technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker.
- One 5.25" (133 mm) polypropylene woofer and one 1" (25.4 mm) soft dome tweeter.
- Extreme weather resistance with IP65 ingress protection rating allows use in challenging outdoor conditions.
- 83 dB average sensitivity offers high output capabilities and reduced amplification costs.
- Easy access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position.
- Aluminum grille with powder-coat finish.
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
- UL 1480A and EN54 approved.
- High-quality black or white paint finish.
- Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.
| Color | Black |
| UPC | 748252172372 |
| Manufacturer | SoundTube |
| Manufacturer's Category | SM-EZ Economical Surface Mount |
| Height | 11.88 in / 301.8 mm |
| Width/Diameter | 7.5 in / 190.5 mm |
| Shipping Weight | 9.05 lbs / 4.11 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 15.25 in / 387.35 mm |
| Carton Width | 10.5 in / 266.7 mm |
| Certifications | CE, EN54, IP65, RoHS, UL1480A |
| Enclosure Properties | Polystyrene, Ported |
| Included Accessories | Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland |
| Optional Accessories | Black Surface Mount Bracket (AC-SMB-SM52-SS-BK) |
| Source Inputs | 4 Pin Ceramic Terminal |
| Coverage Angle (±6dB @ 2kHz) | 70Á |
| Crossover Frequency | 3.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 and 5.9 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2dB and 7.7dB |
| Frequency Response (± 10 dB) | 62 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 80 Hz - 20 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 50W |
| Max. Program Power | 100 W |
| Minimum Impedance (_ Ohms) | 8 _ |
| Mounting Depth | 6.63 in / 168.4 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 83 dB |
| Sensitivity dB @ 2.83V/1M | 83 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
Designed for extreme weather resistance, the SM52-EZ-WX is an economical solution for integrators who need a surface-mount outdoor speaker option for music and paging applications. The speaker incorporates a dedicated 5.25 inch polypropylene woofer and an offset 1 inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 100.0 dB max. SPL). SoundTube's proprietary BroadBeam Ringª technology in all models ensures high intelligibility, even well off-axis. The SM-EZ-WX speakers are Weather Extreme with an IP65 rating, meaning the speakers are dust-tight and will withstand water jets aimed directly at them when installed with the included port plugs. With its 32 watt transformer and 6 position tap switch, the SM52-EZ offers 25.5 V, 70.7 V and 100 V operation with an 8 ohm bypass. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. The SM52-EZ-WX contains a powder coated aluminum grille and mounting hardware, a safety cable, wall mount bracket, conduit connector, and port hole plug.
Features:
- The SM52-EZ-WX is a cost-conscious, weatherresistant, surface-mount loudspeaker.
- BroadBeam Ringª technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker.
- One 5.25" (133 mm) polypropylene woofer and one 1" (25.4 mm) soft dome tweeter.
- Extreme weather resistance with IP65 ingress protection rating allows use in challenging outdoor conditions.
- 83 dB average sensitivity offers high output capabilities and reduced amplification costs.
- Easy access, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position.
- Aluminum grille with powder-coat finish.
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
- UL 1480A and EN54 approved.
- High-quality black or white paint finish.
- Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.
| Color | Black |
| UPC | 748252172372 |
| Manufacturer | SoundTube |
| Manufacturer's Category | SM-EZ Economical Surface Mount |
| Height | 11.88 in / 301.8 mm |
| Width/Diameter | 7.5 in / 190.5 mm |
| Shipping Weight | 9.05 lbs / 4.11 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 15.25 in / 387.35 mm |
| Carton Width | 10.5 in / 266.7 mm |
| Certifications | CE, EN54, IP65, RoHS, UL1480A |
| Enclosure Properties | Polystyrene, Ported |
| Included Accessories | Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland |
| Optional Accessories | Black Surface Mount Bracket (AC-SMB-SM52-SS-BK) |
| Source Inputs | 4 Pin Ceramic Terminal |
| Coverage Angle (±6dB @ 2kHz) | 70Á |
| Crossover Frequency | 3.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 and 5.9 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2dB and 7.7dB |
| Frequency Response (± 10 dB) | 62 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 80 Hz - 20 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 50W |
| Max. Program Power | 100 W |
| Minimum Impedance (_ Ohms) | 8 _ |
| Mounting Depth | 6.63 in / 168.4 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 83 dB |
| Sensitivity dB @ 2.83V/1M | 83 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
