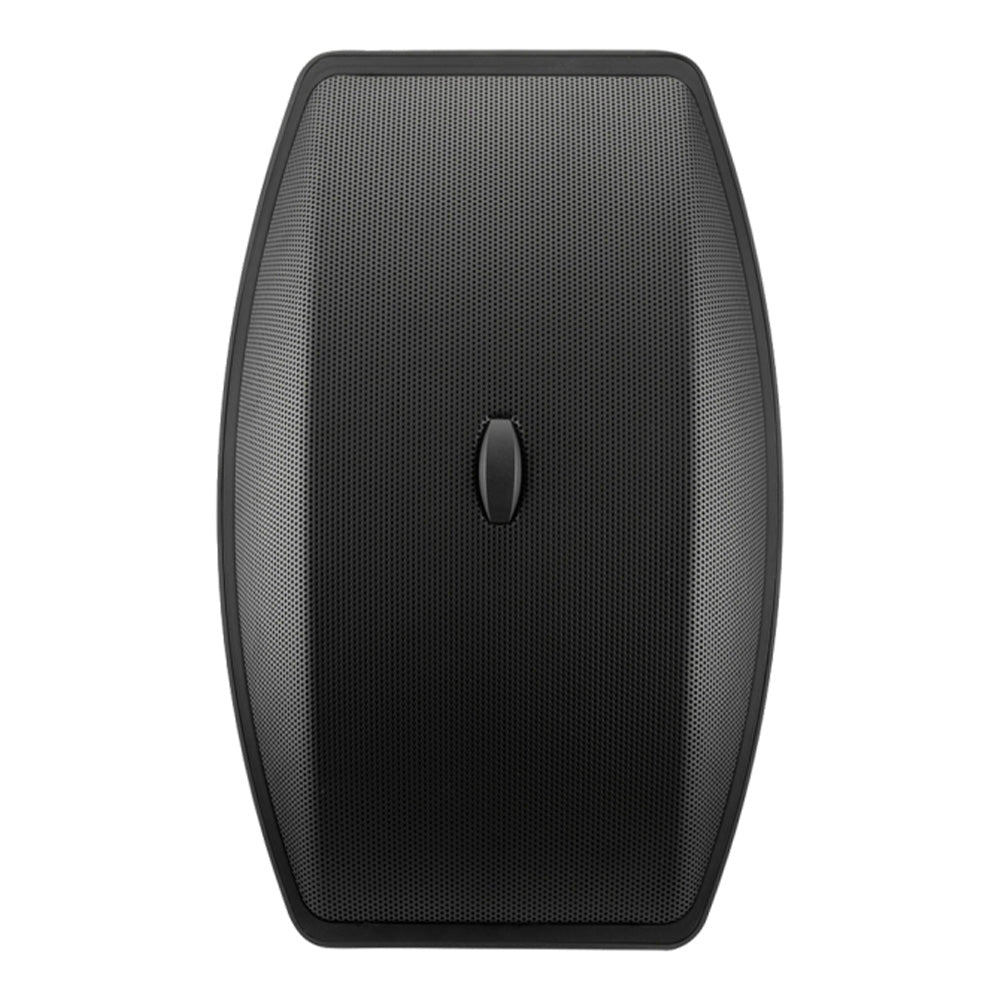

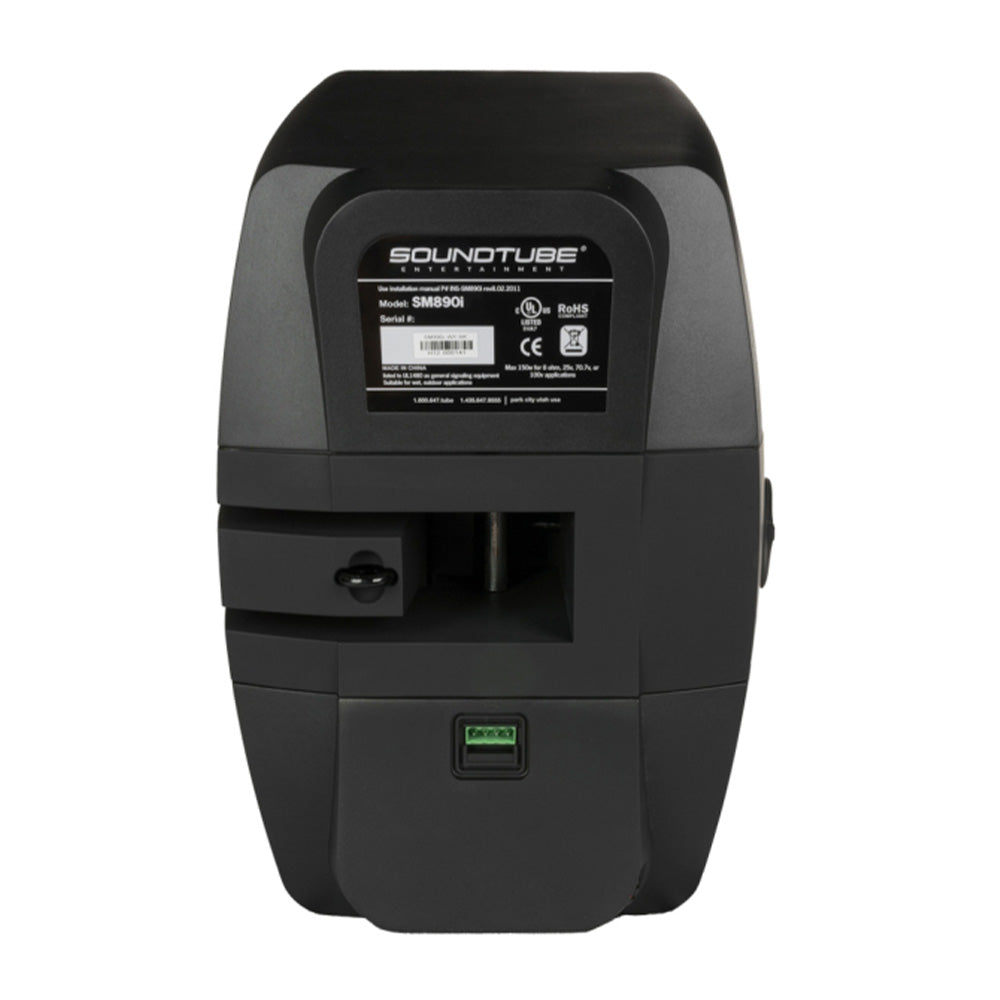

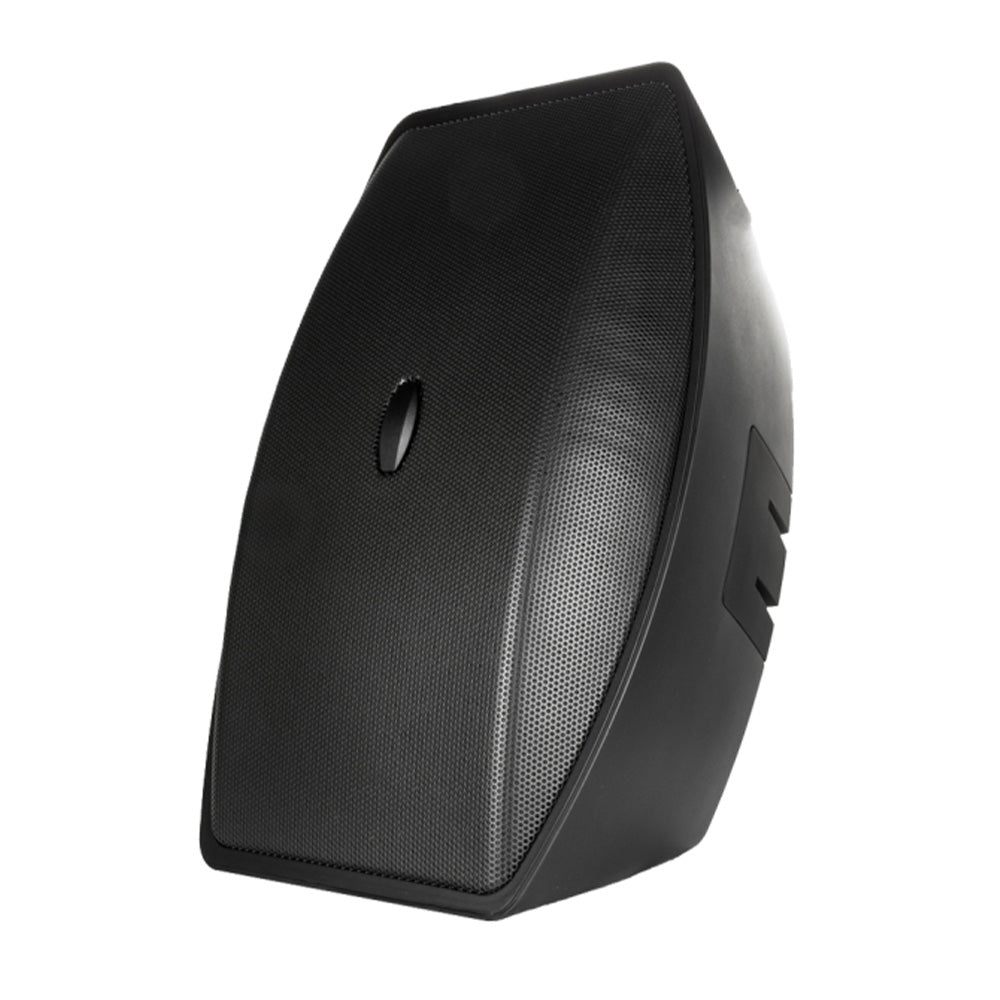

Soundtube SM890i-WX-BK - Two-Way 8-Inch Outdoor Surface Mount Speaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
SoundTube¨'s WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille to keep water from the drivers and internal electronics in even the most extreme weather conditions. The speaker also has as a powder-coated steel grille with tool-free locking system. Patented BroadBeamHP¨Êwaveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. The SM890I-WX has one 8.0 inch treated fiber driver with an offset 1.42 inch compression horn configuration. The speaker features a proprietary tool-free rotatable 110 x 85 bayonet-mounted horn for tailored dispersion and throw. As well as 150-watt low-insertion loss transformer and maximum output for short to medium throw, PA and sound reinforcement and an easy-access six-position tap switch for 25-, 70.7-, 100-volt applications with transformer bypass position. Surface-Mount Bracket, Safety Cable, Euroblock Connector, Terminal Weather Boot, and Paint Mask are included. IP-Rating: IP44.
Features:
- Patented BroadBeamHP¨ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 8 kHz, indepedently verified).
- One 8Ó (203 mm) treated fiber driver with an offset 1.42Ó (36 mm) compression horn configuration.
- Engineered with corrosion-resistant materials for indoor/outdoor applications.
- Proprietary tool-free rotatable 110¡ x 85¡ bayonet-mounted horn for tailored dispersion and throw.
- 150 W low-insertion loss transformer and maximum output (115 dB max. SPL, 93 dB sensitivity) for short to medium throw, PA and sound reinforcement.
- Easy-access six-position tap switch for 25/70.7/100 V applications with transformer bypass position.
- Powder-coated steel grille with tool-free locking system.

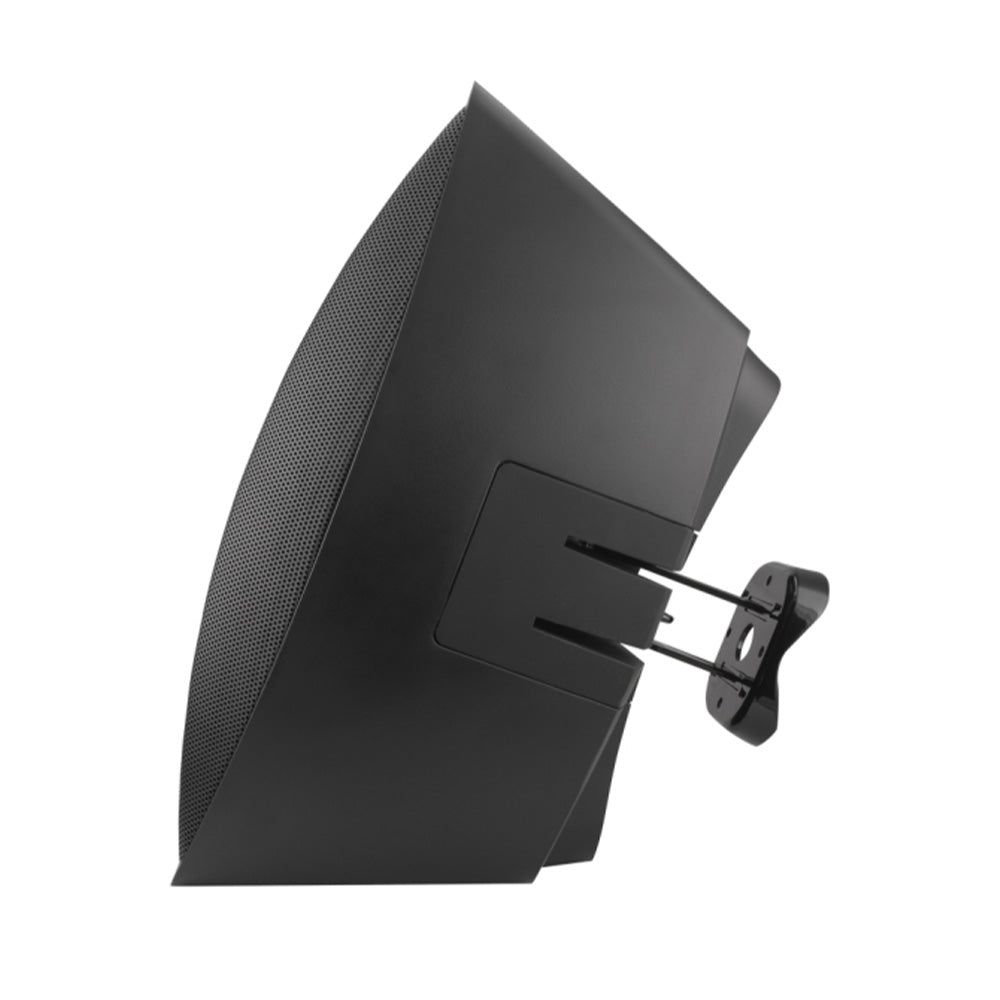

- Tool-free, low-profile Stealthª bracket with an integrated internal wedge cam for stable and precise aiming from 0¡ to 90¡. Mounting hardware is constructed of die-cast aluminum.
- Included pre-mountable pole and surface-mount bracket allows for quick and easy division of labor.
- UL 1480A approved.
- High quality black or white paint finish, custom colors optional.
- Included accessories: surface-mount bracket, safety cable, paint mask, Euroblock connector, and terminal weather boot.
| Color | Black |
| UPC | 644216204007 |
| Manufacturer | SoundTube |
| Manufacturer's Category | SMi Surface Mount |
| Height | 18.78 in / 477 mm |
| Width/Diameter | 11.65 in / 295.9 mm |
| Shipping Weight | 24.5 lbs / 11.11 kg |
| Carton Height | 16 in / 406.4 mm |
| Carton Length | 21.5 in / 546.1 mm |
| Carton Width | 14.5 in / 368.3 mm |
| Certifications | CCC, CE, IP44, RoHS, UL1480 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1008 cu in / 16518.16 cu cm |
| Included Accessories | Euroblock, Mounting Hardware, Paint Mask, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-SM890-WX-BK)|10' Safety Cable (AC-SC-10)|Black Mounting Bracket (AC-SM82-WM-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-S-BK)|Port Plug (AC-SM8-PP) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| IP Rating | IP44 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.4 and 7.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.7 dB and 9.4 dB |
| Frequency Response (± 10 dB) | 80 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 105 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
| Low Frequency Voice Coil | 1.34 in / 34 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 150 W |
| Max. Program Power | 300 W |
| Minimum Impedance (_ Ohms) | 8 _ |
| Mounting Depth | 15.37 in / 390.4 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1.38" Titanium Compression Driver w/ Waveguide |
| Woofer Driver | 8" High-Efficiency Woofer |
| Sensitivity dB @ 1W/1M | 92 dB |
| Sensitivity dB @ 2.83V/1M | 92 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
