Soundtube XT850-LED-GN - 2-Way Outdoor Lighted In-Ground Speaker (Green)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SoundTube XT850-LED is a premium 2-way outdoor loudspeaker solution for installations requiring LED landscape lighting with high-performance sound. It is UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long-lasting performance and durability. The SoundTube XT850-LED is designed for outdoor use with LED lighting and full-range background music, foreground music, and paging capabilities. The speakers' sealed, in-ground enclosure design delivers true low-end response (38 Hz, 10dB) and optimal of axis performance. The XT850-LED includes theft resistant mounting hardware and a weatherproof 5-position tap switch for 25/70.7/100V applications with a transformer bypass position. IP-Rating is IP55.

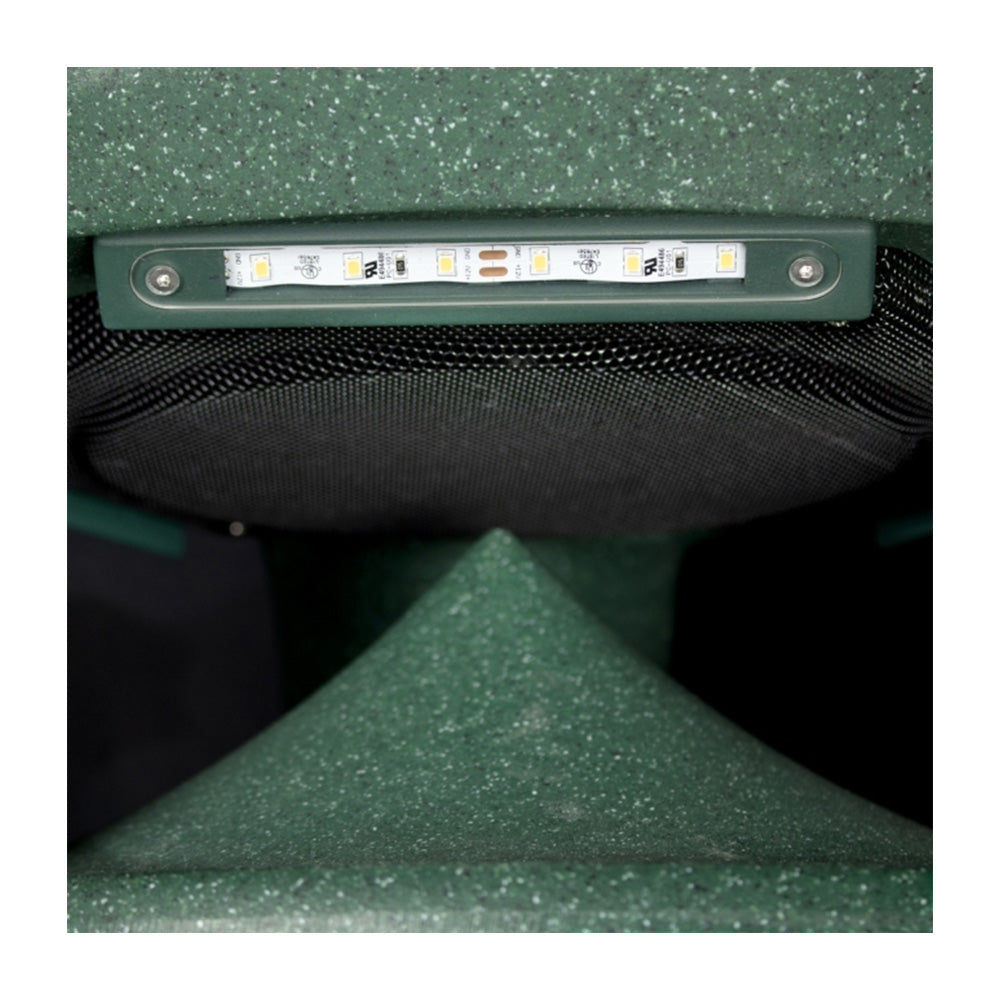

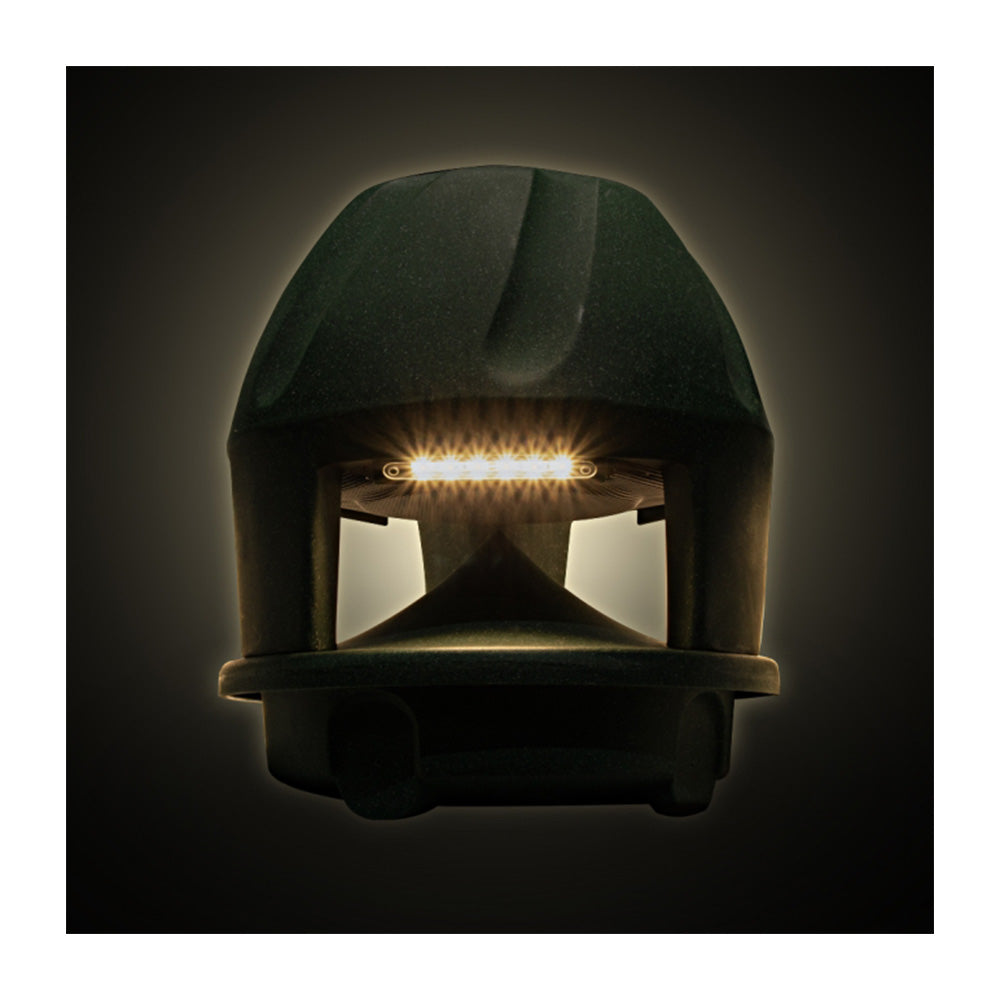

Omni-directional LED strips are integrated into the underside of the speaker enclosureÊto create warm pathway lighting for outdoor applications. The LEDs are powered by a conventional 12V landscapeÊlighting transformer (not included) and connect just like standard landscape lights. The XT850- LEDs have a 3000K warm-white color temperature and are compatible with third-party dimmer switches. MultipleÊXT850-LED light emitting speakers can be run off a single transformer. The number of speakers per transformer is determined by the power capacity of the transformer. For example, a 30-watt transformer can power 6 units, a 60-watt transformerÊcan power 12 units, a 150-watt transformer can power 34 units, and so on.
Features:
- Patented BroadBeam¨ waveguide technology provides smooth 360¡ horizontal off-axis coverage and reduces overall system costs.
- One 8" (203 mm) weatherproof polypropylene woofer with butyl rubber surround and one 1" (25 mm) aluminum dome tweeter with integrated horn and mounting bracket.
- UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long-lasting performance and durability.
- Patented, durable and weather sealed ZeroReflectionª enclosure.
- Weather-proof 5-position tap switch for 25/70.7/100 V applications with transformer bypass position. 64 W transformer included.
- Liquid-tight compression fittings for water-tight protection.
- Multiple wire inlet locations for fast and easy daisy chaining.
- Stainless steel fasteners / grille.
- Color options: granite green.
| Color | Green |
| UPC | 644216228904 |
| Manufacturer | SoundTube |
| Manufacturer's Category | XT Extreme Weather Outdoor Series |
| Height | 16.42 in / 417.1 mm |
| Width/Diameter | 14.17 in / 359.9 mm |
| Shipping Weight | 21.60 lbs / 9.8 kg |
| Carton Height | 19 in / 482.6 mm |
| Carton Length | 16.25 in / 412.75 mm |
| Carton Width | 16.25 in / 412.75 mm |
| Certifications | CE, IP55, RoHS |
| Included Accessories | Anti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts |
| Optional Accessories | Anti-Theft Bracket (ATD-XT)|Grille (GRL-XT8)|Tap Switch Cover (CVR-XT-TAPSW) |
| Source Inputs | Wire Leads |
| IP Rating | IP55 |
| Crossover Frequency | 3.0 kHz |
| Frequency Response (± 10 dB) | 38 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 51 Hz - 10 kHz |
| Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
| Low Frequency Voice Coil | 1.26 in / 32 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 100W |
| Max. Program Power | 200 W |
| Minimum Impedance (_ Ohms) | 3.7 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 4 _ |
| Tweeter Driver | 1" Aluminum Dome |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
The SoundTube XT850-LED is a premium 2-way outdoor loudspeaker solution for installations requiring LED landscape lighting with high-performance sound. It is UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long-lasting performance and durability. The SoundTube XT850-LED is designed for outdoor use with LED lighting and full-range background music, foreground music, and paging capabilities. The speakers' sealed, in-ground enclosure design delivers true low-end response (38 Hz, 10dB) and optimal of axis performance. The XT850-LED includes theft resistant mounting hardware and a weatherproof 5-position tap switch for 25/70.7/100V applications with a transformer bypass position. IP-Rating is IP55.
Omni-directional LED strips are integrated into the underside of the speaker enclosureÊto create warm pathway lighting for outdoor applications. The LEDs are powered by a conventional 12V landscapeÊlighting transformer (not included) and connect just like standard landscape lights. The XT850- LEDs have a 3000K warm-white color temperature and are compatible with third-party dimmer switches. MultipleÊXT850-LED light emitting speakers can be run off a single transformer. The number of speakers per transformer is determined by the power capacity of the transformer. For example, a 30-watt transformer can power 6 units, a 60-watt transformerÊcan power 12 units, a 150-watt transformer can power 34 units, and so on.
Features:
- Patented BroadBeam¨ waveguide technology provides smooth 360¡ horizontal off-axis coverage and reduces overall system costs.
- One 8" (203 mm) weatherproof polypropylene woofer with butyl rubber surround and one 1" (25 mm) aluminum dome tweeter with integrated horn and mounting bracket.
- UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long-lasting performance and durability.
- Patented, durable and weather sealed ZeroReflectionª enclosure.
- Weather-proof 5-position tap switch for 25/70.7/100 V applications with transformer bypass position. 64 W transformer included.
- Liquid-tight compression fittings for water-tight protection.
- Multiple wire inlet locations for fast and easy daisy chaining.
- Stainless steel fasteners / grille.
- Color options: granite green.
| Color | Green |
| UPC | 644216228904 |
| Manufacturer | SoundTube |
| Manufacturer's Category | XT Extreme Weather Outdoor Series |
| Height | 16.42 in / 417.1 mm |
| Width/Diameter | 14.17 in / 359.9 mm |
| Shipping Weight | 21.60 lbs / 9.8 kg |
| Carton Height | 19 in / 482.6 mm |
| Carton Length | 16.25 in / 412.75 mm |
| Carton Width | 16.25 in / 412.75 mm |
| Certifications | CE, IP55, RoHS |
| Included Accessories | Anti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts |
| Optional Accessories | Anti-Theft Bracket (ATD-XT)|Grille (GRL-XT8)|Tap Switch Cover (CVR-XT-TAPSW) |
| Source Inputs | Wire Leads |
| IP Rating | IP55 |
| Crossover Frequency | 3.0 kHz |
| Frequency Response (± 10 dB) | 38 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 51 Hz - 10 kHz |
| Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
| Low Frequency Voice Coil | 1.26 in / 32 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 100W |
| Max. Program Power | 200 W |
| Minimum Impedance (_ Ohms) | 3.7 _ |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (_ Ohms) | 4 _ |
| Tweeter Driver | 1" Aluminum Dome |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
