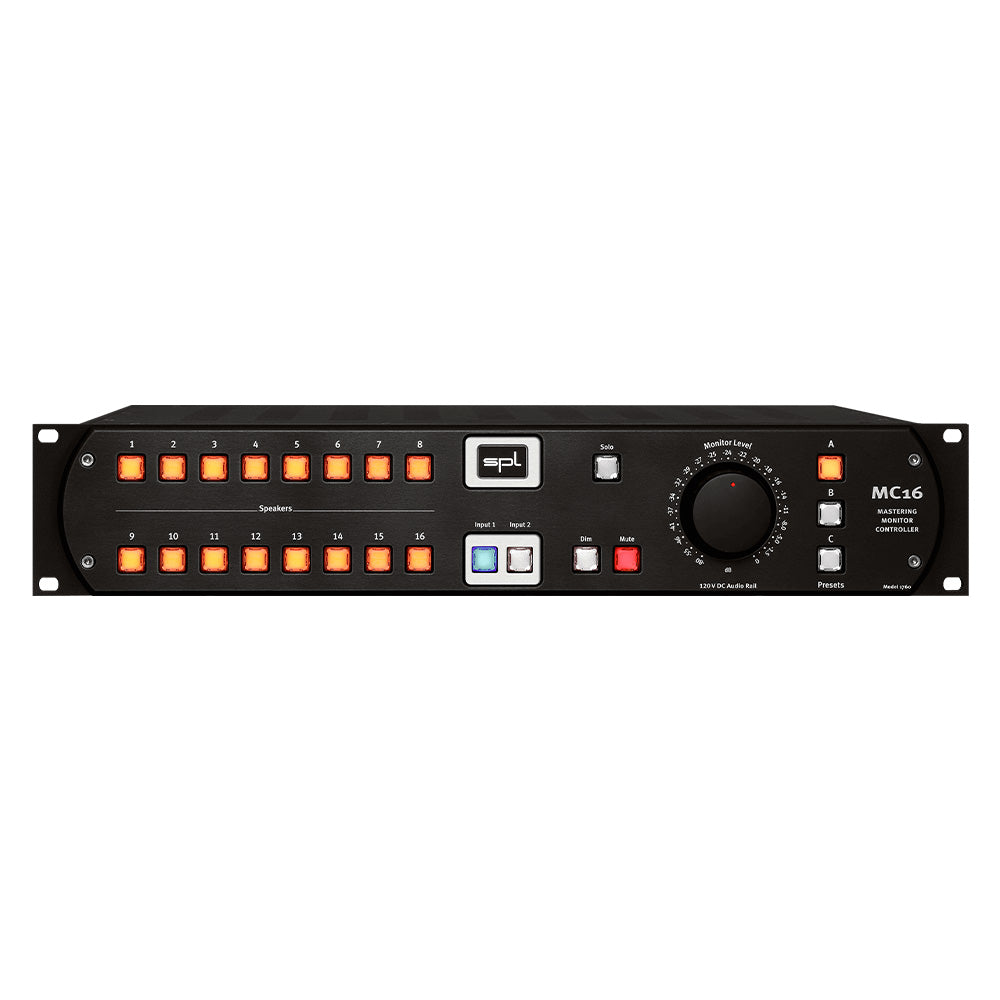

SPL MC16 - 16-Channel Mastering Monitor Controller (Black)


  • Dale #:

    SPL-1760
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The MC16 is designed to monitor surround and immersive audio projects (Dolby Atmos®, Auro 3D®, etc...) in the analog domain, offering the same unrivalled quality as 120V stereo monitoring. 16 Speakers Sixteen buttons are used to activate the corresponding loudspeakers. The 16 inputs of Input 1 an... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The MC16 is designed to monitor surround and immersive audio projects (Dolby Atmos®, Auro 3D®, etc...) in the analog domain, offering the same unrivalled quality as 120V stereo monitoring.

16 Speakers
Sixteen buttons are used to activate the corresponding loudspeakers. The 16 inputs of Input 1 and Input 2 are routed directly to the outputs to ensures that an output routing of a DAW session always matches the routing in the MC16. The buttons allow you to insert a label with the exact name of the loudspeaker.

2 x 16
MC16 offers two 16-channel inputs to quickly compare a current project with a reference production.

Monitor Level
This analog potentiometer is used to adjust the monitor level. We developed a 16-level potentiometer, with which we could realize the volume control in the analog domain, because we did not want to accept a digital control, which is afflicted with resolution deficits and limited dynamic range.

Presets
You can save speaker setups to three memory locations. So you can quickly call up a 5.1 or an 11.1 or a 9.1.6 configuration.

In solo mode, three more memory locations are available with the same keys. For example, you can create solo groups for all front speakers and all ceiling speakers and all rear speakers.

The 120V technology
The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.

The highest possible audio quality requires the highest possible audio operating voltage. The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers. This high voltage would destroy conventional components and operational amplifiers.

The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.

By the way, the "120V" in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.

The mains voltage from the mains power socket is transformed to the required secondary voltage in the device's internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.

More +

Product Specs

Analog inputs / output; XLR / DB25 (balanced)
Maximum input / output gain 32.5 dBu
Input impedance 20 k?
Output impedance 75 ?
Common mode rejection -82 dBu
Frequency range (-3 dB) 4 Hz – 300 kHz
Crosstalk (1 kHz) -100 dBu
THD + N (+24 dBu) > 112 dB
Noise (A-weighted) -102.4 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio +/- 60 V
Operating voltage for relays and LEDs + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber) 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V T 1 A
Fuse for 115 V T 2 A
Power consumption max. 70 VA
Dimensions W x H x D (width x height x depth) 482 x 88 x 300 mm
19 x 3.46 x 11.8 inch
Unit weight 8.4 kg
18.52 lbs
Shipping weight (incl. packaging) 11 kg
24.25 lbs
