SPL PASSEQ - Stereo Passive Mastering Equalizer (All Black)

The PASSEQ has revived the concept of the passive equalizer that was used in the 50's and 60's. The charming sound of this vintage technology combined with the modern 120V technology results in a very special equalizer.

Only one filter

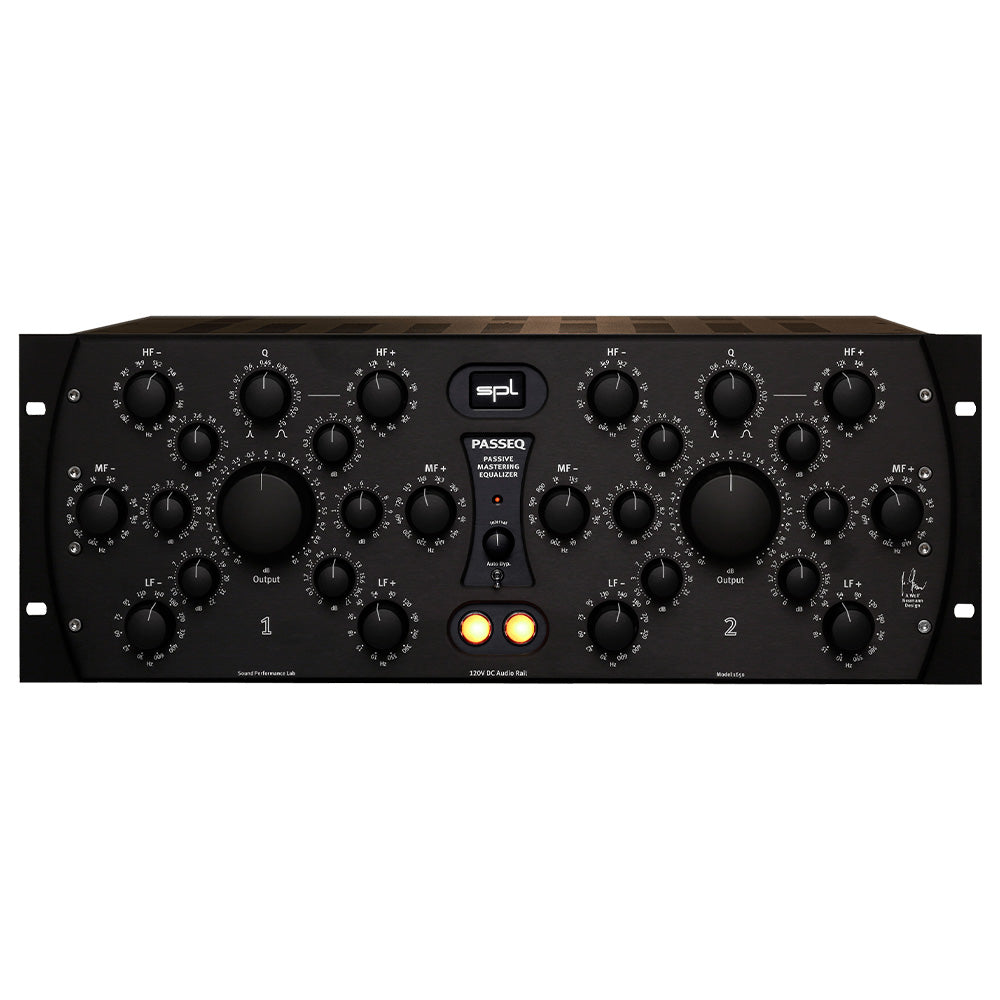

All control functions are part of only one passive filter. There are three frequency ranges:

Low Freq / Mid Freq / High Freq

Each with a cut control on the left and a boost control on the right.

In the middle is the output control.

Design
A passive filter has no amplification stages. It can therefore only be lowered. If one frequency is to be boosted, all the others must be lowered. Behind the filter there is a stage that makes up for the lowered overall level. Since low noise is particularly important here, since up to 20 dB can be made up for, the 120V technology comes into its own.

The entire passive filter (variable resistor, capacitor and coil) provides a very nice sound characteristic. Besides the choice of components, the charging behaviour of the capacitors and the saturation behaviour of the coils play a major role in this. The resulting relative inertia compared to potentially very fast active filters is the reason for a pleasant, musically advantageous sound characteristic. We would choose smoothness and transparency as well as strikingly silky highs and pithy basses as a description that suits our perception.

During fine-tuning, through component selection, in countless listening sessions, the emphasis was on achieving the most musical sounding curves possible, which, for example, need fear no comparison with a Pultec EQ from the 1950/60s. Only without all the disadvantages of a 60 year old original, such as the very high background noise, but above all the very limited frequency selection.

Another highlight of the PASSEQ is the HF+ band, which has been extended by the frequencies 25 kHz and 35 kHz and sounds so incredibly good that you don't want to switch it off.

The 120V technology
The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.

The highest possible audio quality requires the highest possible audio operating voltage. The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers. This high voltage would destroy conventional components and operational amplifiers.

The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.

By the way, the "120V" in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.

The mains voltage from the mains power socket is transformed to the required secondary voltage in the device's internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.
