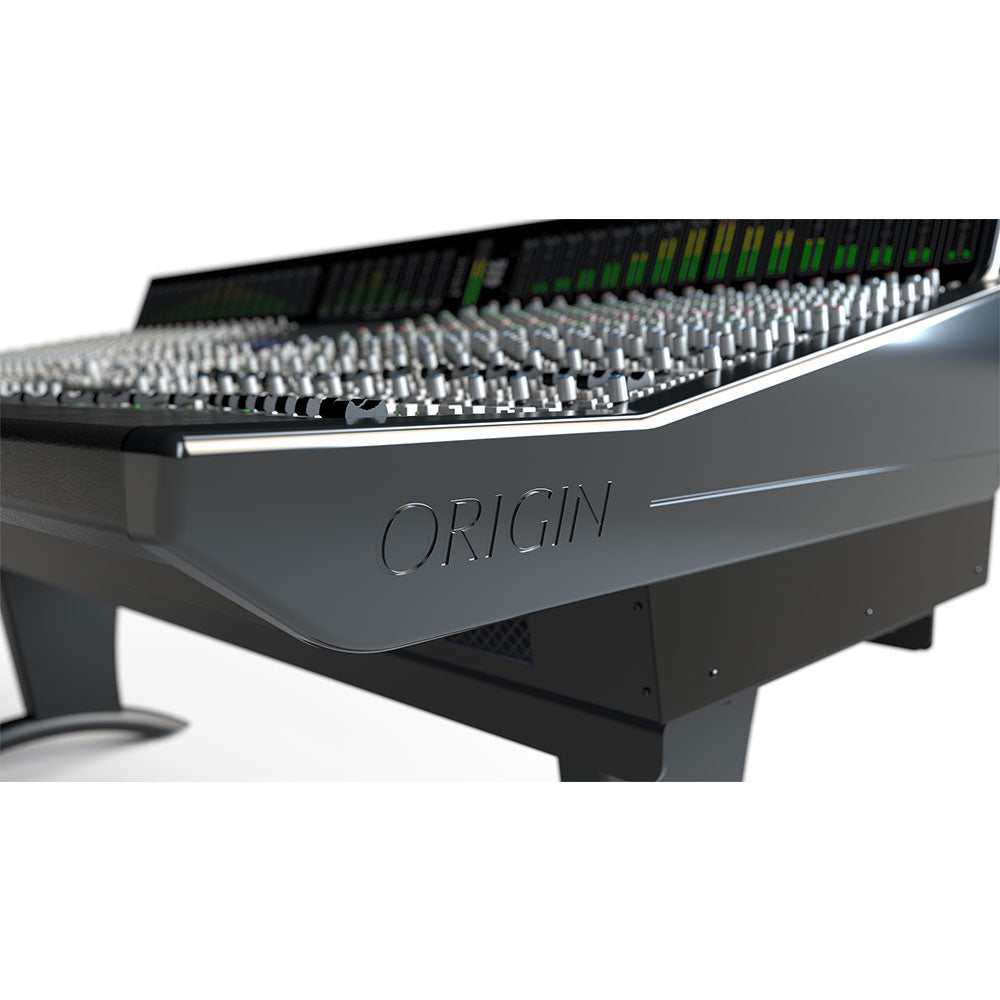

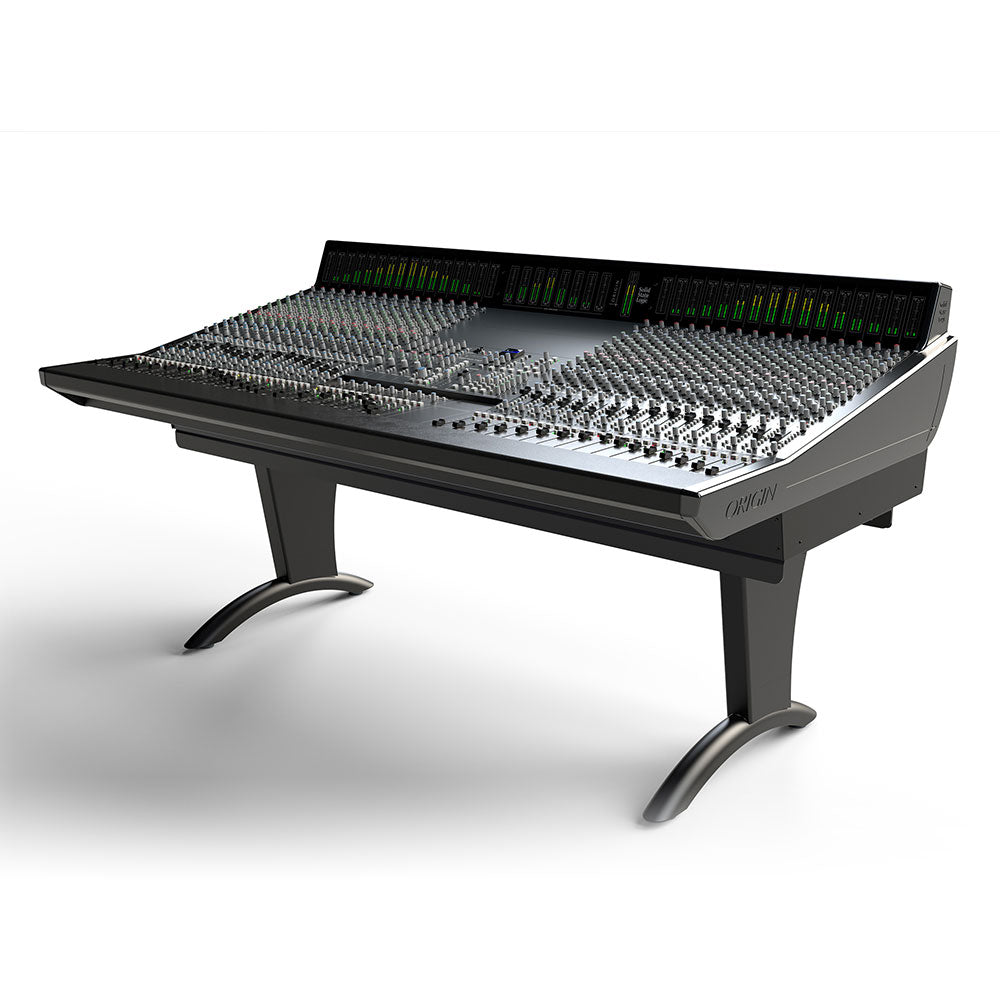

SSL Origin - Analog In-Line Console For Hybrid Production Environments

As the latest in a long heritage of SSL studio mixing consoles, ORIGIN has traditional analog studio workflow at its heart whilst providing the perfect partner for a modern DAW-driven hybrid production studio. ORIGIN takes a fresh look at what a large format console needs to do to work in harmony with a modern DAW driven production studio.

The functional design looks back at the origin of in-line consoles for signal flow inspiration, but its circuits are at the cutting edge of SSL's latest analog developments. These new analog designs deliver huge dynamic range and bandwidth yet still have the characterful, pleasing qualities of space and depth that analog breathes on digital audio.

Features:

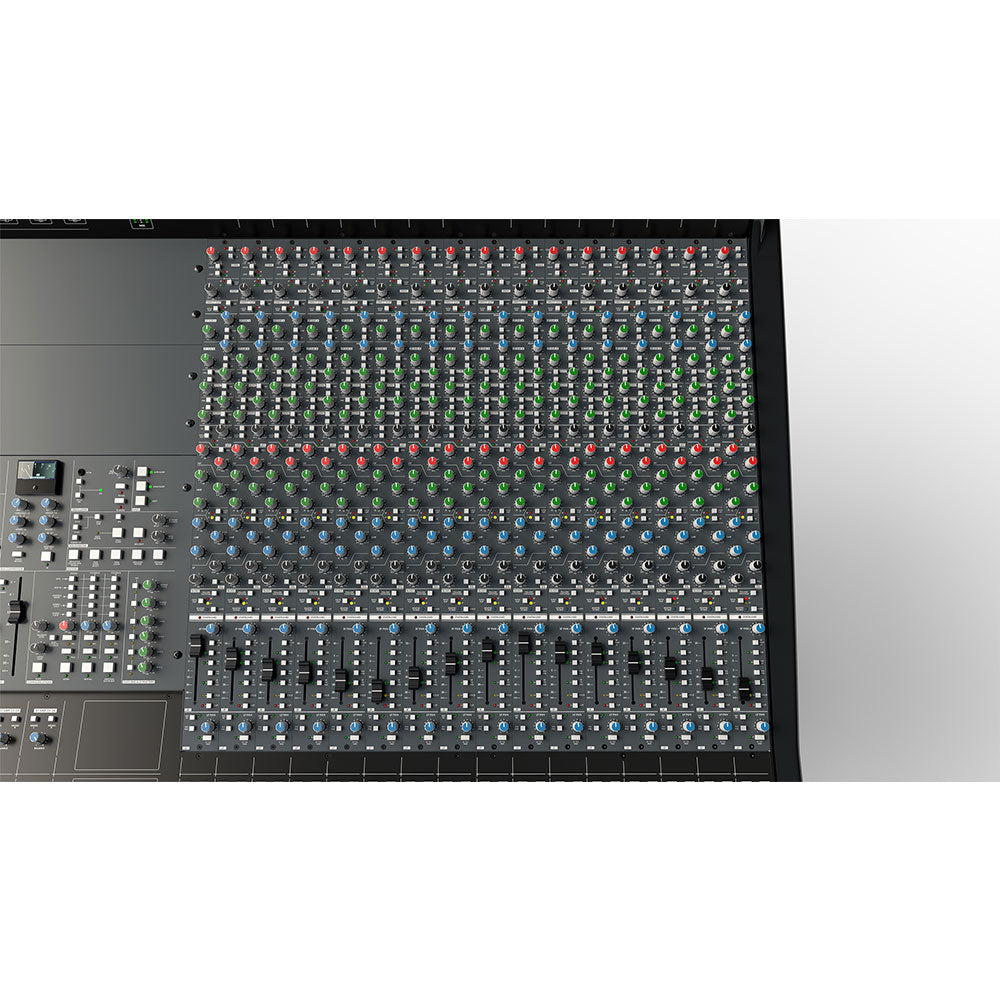

• 32-channel analog in-line design

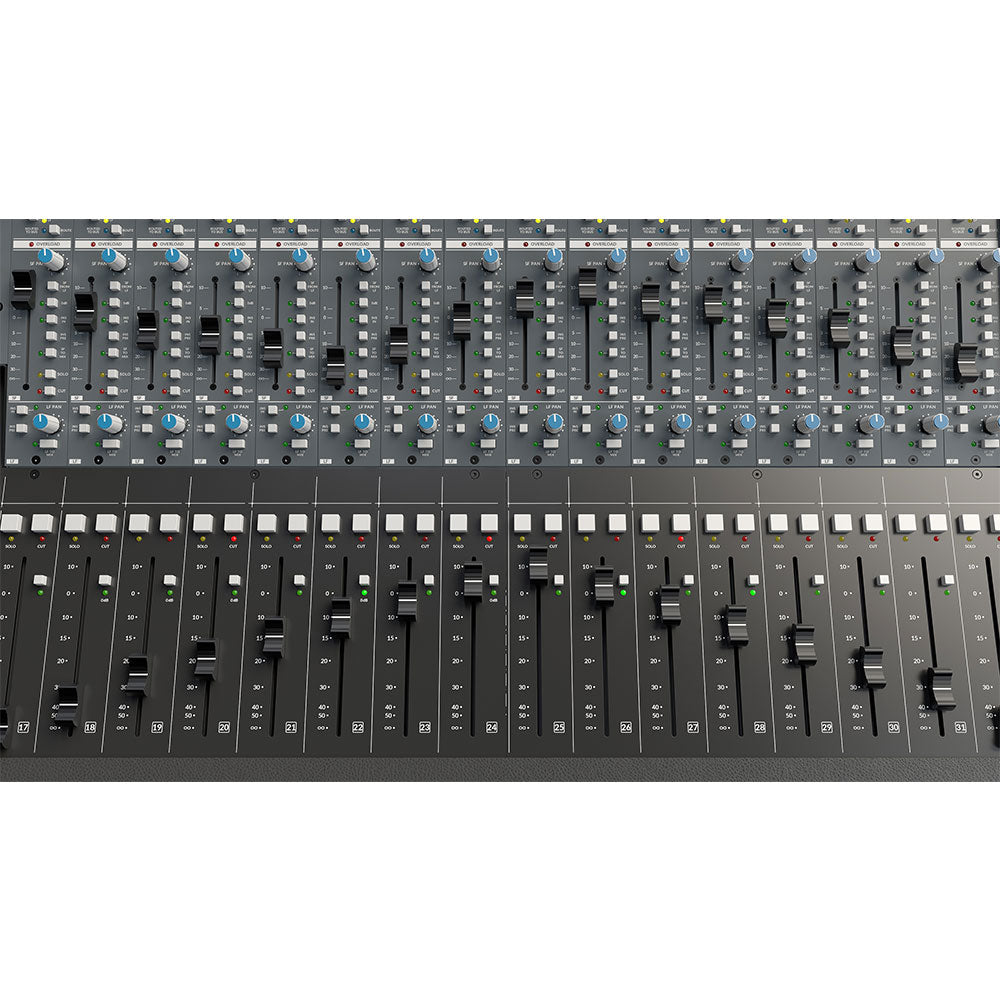

• High quality 100mm large and 60mm small fader on every channel
• 16+2 buses
• 4x Monitor outputs
• 3x Foldback outputs
• Acclaimed SSL E-Series four band parametric channel EQ
• Sweepable HPF on every channel
• Classic SSL Bus Compressor with side-chain access, HP filter and insert point
• Dedicated channel direct outputs
• New PureDrive Mic pre and drive circuit
• New mix bus and mix amp architecture - delivers ultra-low noise floor and huge headroom
• Balanced Insert Point per Large Fader and Small Fader Channel Paths.
• Stem-ready 0dB fader bypass switch
• Unique power management tools deliver ultimate reliability and low running costs
• Freelance engineer friendly
• Adjustable centre section features 12U of rack space for:
  • Software controllers
  • Computer keyboard and accessories
  • Additional hardware processing
  • Drop down meter bridge

Technical Innovation
ORIGIN is more than just the culmination of four decades of technical innovation. With a deep knowledge of workflow and studio integration, SSL understands that a console has to provide the immediacy and well-executed ergonomics that will inspire and engage a modern studio environment.

ORIGIN takes these principles and combines them with a modern feature-set that bridges the gap between digital production and analog console workflow.

Analog Layout Hybrid Workflow
A unique and innovative modular centre section allow ORIGIN to adapt to different applications and priorities, whether being used as a purely tracking console with additional boutique analog additions to the 19" rack centre section, or a very digital/analog hybrid approach with screens and controllers easily reached from the centre of the console.

E-Series '242' EQ
The E-Series '242' EQ was probably the most popular EQ from the SL 4000 series console range, and it's back for ORIGIN, which uses this iconic SSL design for it's channel EQ.

ORIGIN features the acclaimed E-Series four-band parametric EQ on each of its 32-channels, with variable Cut/Boost per band, HF and LF Bell/Shelf switches, independent sweepable HPF on every channel and unmistakable '242' style growl and deep low end.

PureDrive™
ORIGIN features a completely new microphone pre-amplifier design that inherits the clarity and purity of previous SSL mic pre's, with the added flexibility of switching character to a warm, harmonically-rich and driven tone that varies with gain. The ideal solution to 'perfect' digital system and hybrid workflow.

PureDrive™ is a new discrete transistor mic-pre based around modern FET components. The result is an ultra-clean, ultra-low noise pre amp, that is fast and offers stunning resolution when in 'Pure' mode. Hit the switch and the 'Drive' circuit is engaged, adding gain dependent non-linear harmonic saturation.

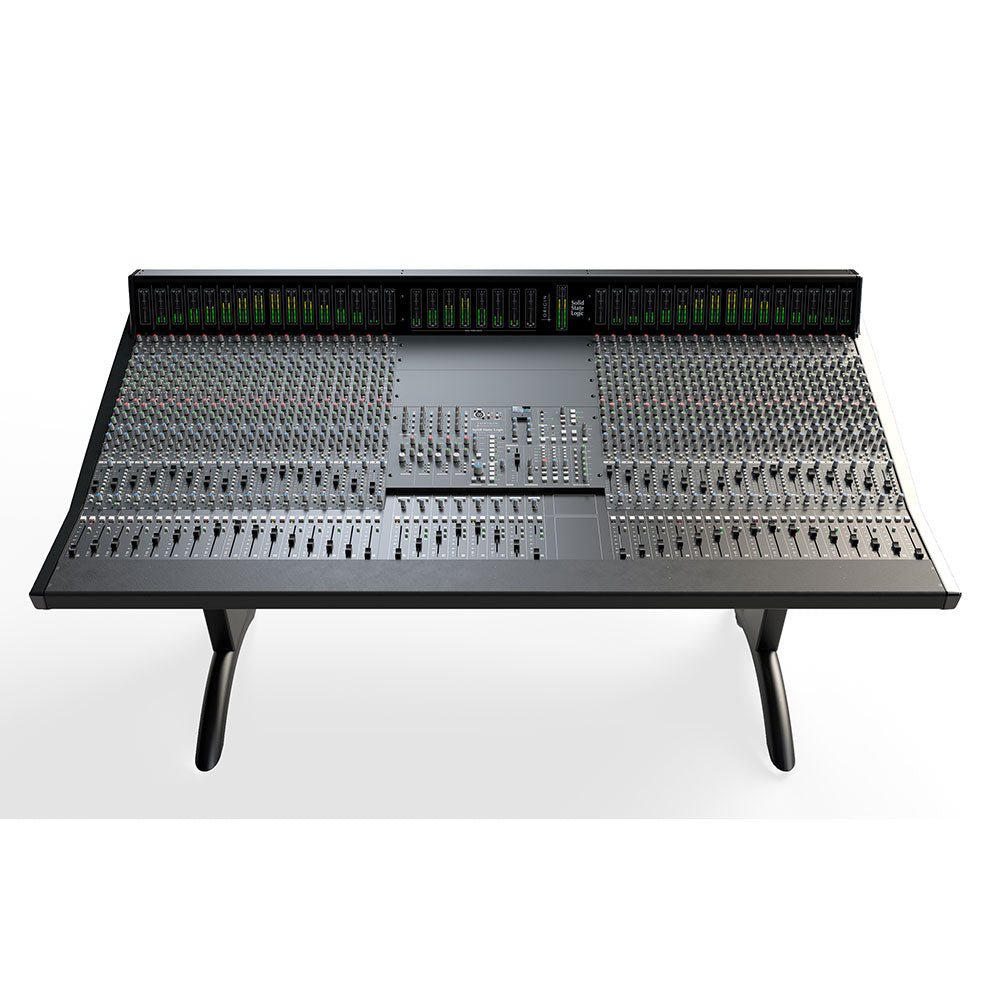

ORIGIN Centre Section
With the evolution of more sophisticated digital audio workstations and new hybrid approaches to session workflow, ORIGIN takes a fresh look at what an analog console provides to complement these sophisticated digital tools.

While ORIGIN has a familiar surface, its design makes it adaptable for many different production scenarios. The 19" rack based 'modular' centre section allows the console to adapt to different control priorities and adds space for custom outboard processing. For example, the addition of a central 500 series rack provides a way to accommodate flexible analogue processing from a number of manufacturers, the ability to move the centre section allows for workstation controllers to be centrally located, even the 3U centre meter panel can be moved to allow a workstation monitor to move closer to the engineer without obscuring the main meters.

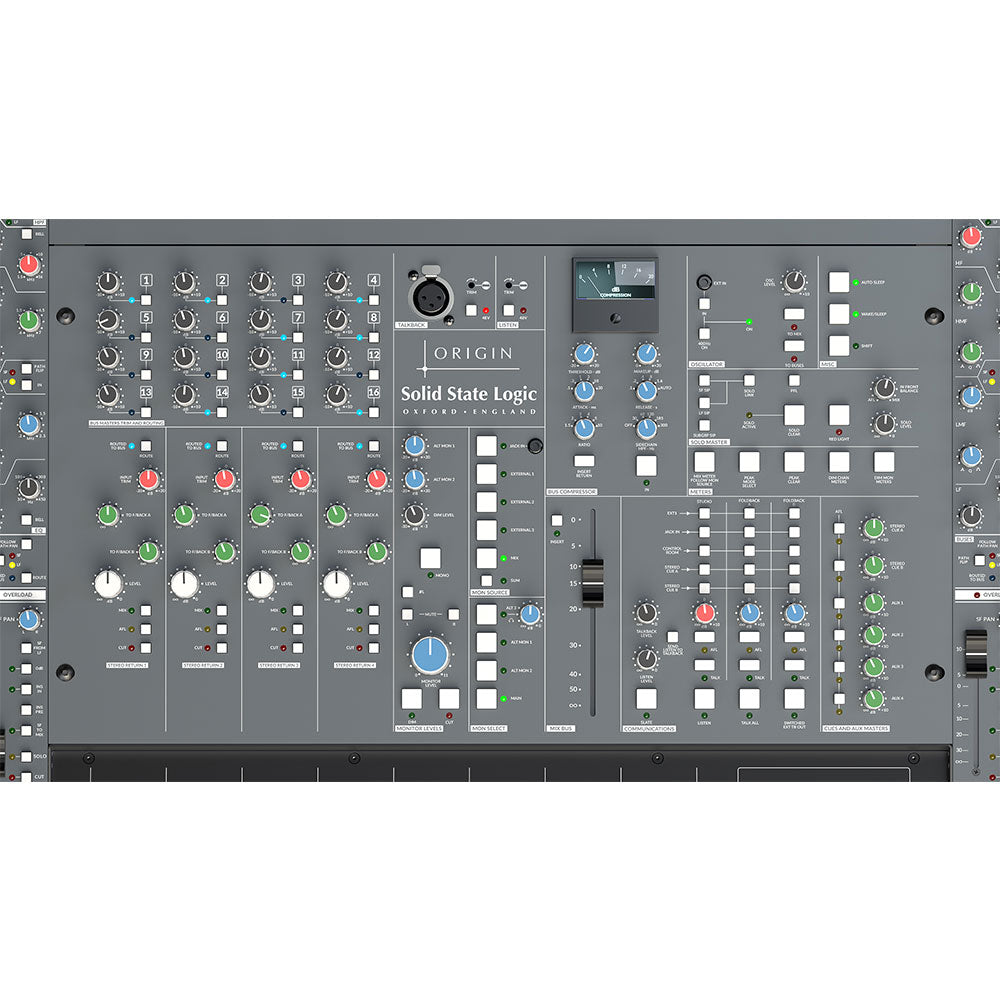

ORIGIN Master Control
The Master Control section is the heart of the ORIGIN, designed with the easily accessible features and tools needed for fast and creative session workflow.

ORIGIN offers engineers and producers the tools required for everything from large-scale tracking to hybrid mix down session.

Taking sustainability, ergonomics, modern gain-staging and communication requirements into consideration, ORIGIN offers a reassuringly familiar Master Control feature-set with some ahead-of-the-curve functionality.

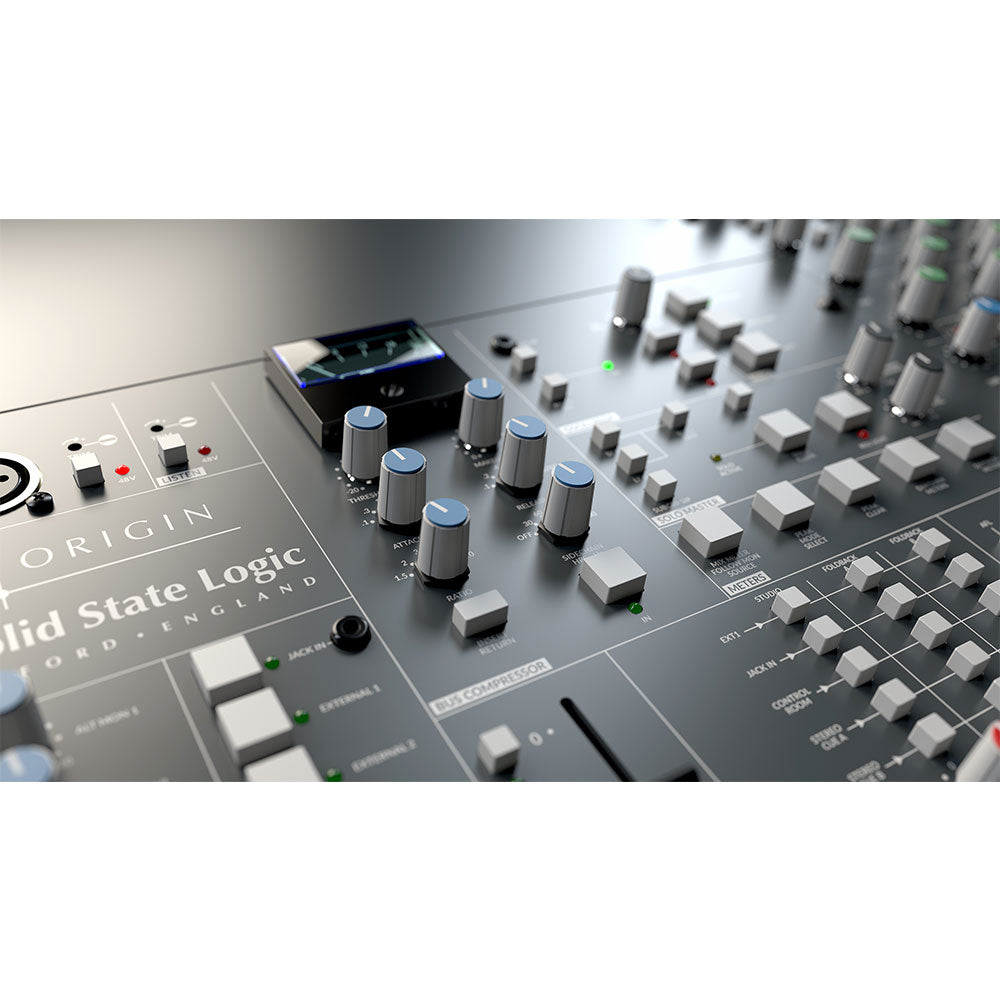

SSL Bus Compressor
The legend has been updated. The classic SSL Bus Compressor is a fundamental feature of SSL Master Control tiles, and see's a number of enhancements in ORIGIN. Offering new compression ratios, insert return and built-in side chain filter, the legendary mix bus glue (and punch) is ready for even the most modern of productions.

Bus Trim Masters and Routing
Central track bus routing matrix, featuring sixteen +/- 10dB Trims for the track buses, with a routing assign switches for each bus.

Auto Sleep
The unique Auto Sleep mode enables automatic detection of prolonged inactivity to put the console in stand-by, reducing power consumption and making ORIGIN significantly more efficient than legacy SSL consoles. Once the engineer is ready to use the console again, simply move a control and ORIGIN will wake-up and return to full functionality in an instant.

Solo Master Section
Comprehensive Solo controls provide choice of Solo-In-Front with Mix balance, Solo-In-Place for Large, Small and Group faders and PFL options. Solo Level, Solo Clear and Red Light Switch complete the available options.

Oscillator and 3.5mm Jack Input
The 400Hz internal oscillator has an additional switched 3.5mm jack external input, a level trim plus To Mix and To Buses switches.

Metering
Peak Hold Selection plus Peak Clear for all console LED Meters. Mix Meter Follow Monitor Source option increases main mix mater flexibility. Independent DIM controls for path Channel and Monitor Inputs reduce meter distractions in fast-paced sessions.

Mix Bus
The mix bus features a high-quality 100mm fader, with fully balanced switched Insert for external bus processing.

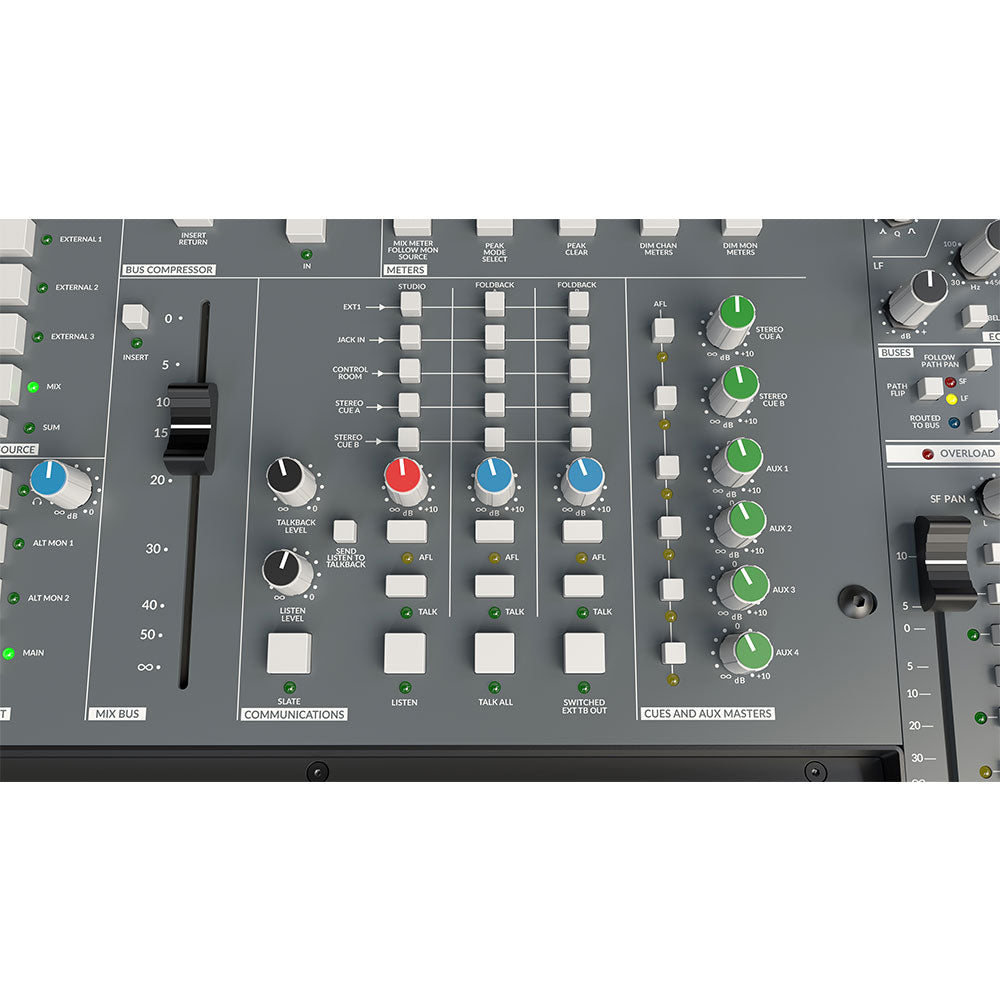

Communications
Master Talkback and Listen controls, the comm's section of ORIGIN offers a matrix of sources and outputs to manage communication and foldback to the studio floor and artists. Listen To Talkback features provide a simple way for artists to artists communication in large recording rooms.

CUE and AUX Masters
Master Output Trims and AFL Switches for Stereo Cue A and B buses, plus mono AUX Buses 1 to 4.

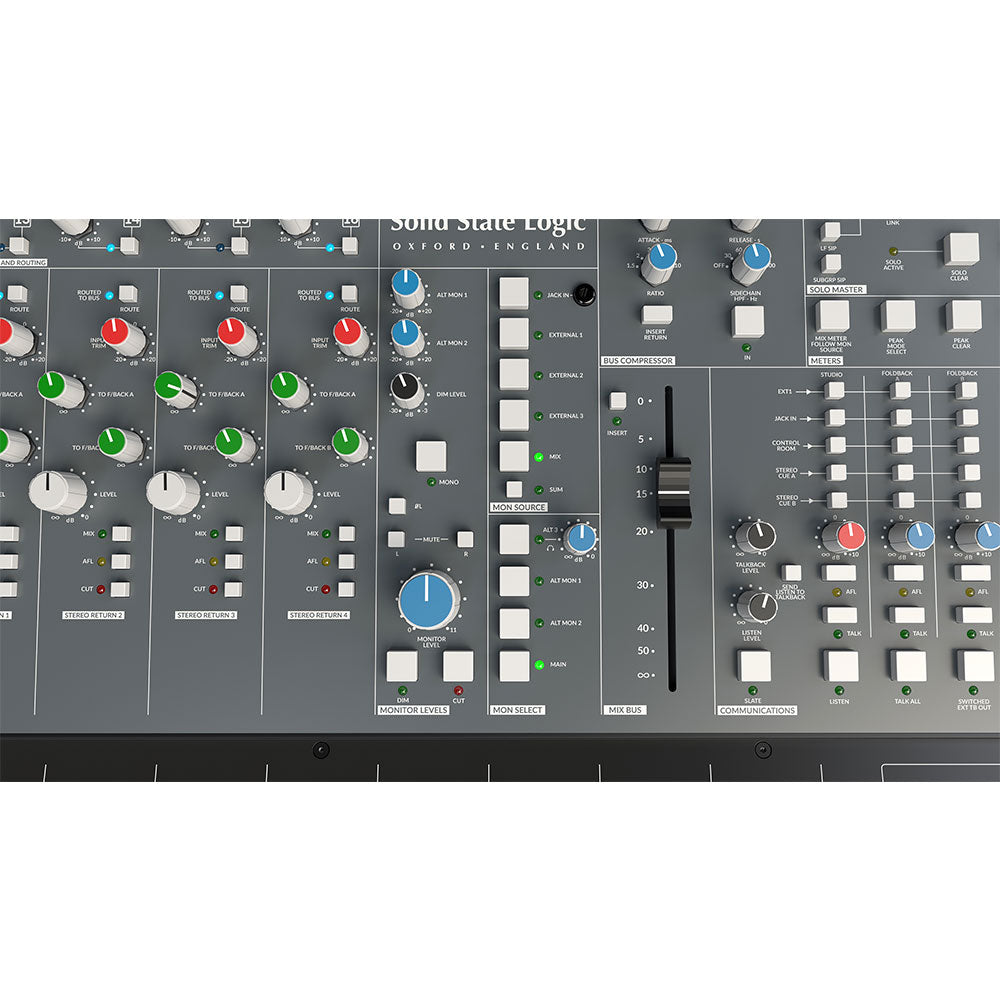

Monitoring
The monitoring section features independent Trims for Alternate Monitors 1 and 2, variable DIM level, MONO plus Left and Right MUTES and OL polarity switch. You can select your monitor source from the main mix, three external stereo sources or a front panel stereo 3.5mm jack input, with a Sum switch allowing selected sources to be listened to simultaneously.

The monitor speaker selector allows you to choose between the Main monitors plus two Alternate monitor sets, plus headphones with level control (under console armrest).

Returns
Four Stereo Return Inputs enable ORIGIN to route to Mix and Track Buses with level controlled feeds to Stereo Foldback Outputs A and B.

Listen Mic and Talkback
The top of the Master Control tile features an XLR input for talkback mic, with level trims and +48V switches for both the talkback and rear panel Listen Mic input.
