Studio Technologies IFB Plus Model 33A Talent Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

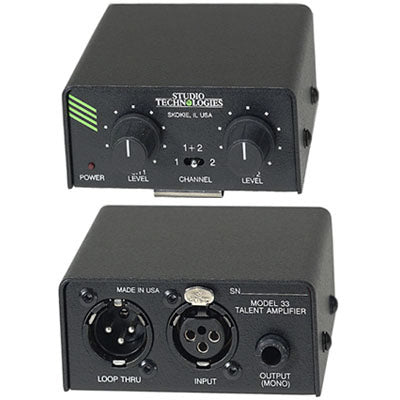

Studio Technologies IFB Plus Model 33 Talent AmplifierThe Model 33 Talent Amplifier is a self-contained "belt pack" unit that drives talent earpieces or headsets. A single 3-conductor microphone-type cable links the Model 2 with the talent amplifier. Each Model 33 contains both a male and female XLR-type connector, allowing simple "loop through" connection of multiple units.
Up to four talent amplifiers can be connected to, and powered by, a single Model 2 Central Controller. The audio output signal is provided on a standard 1/4-inch phone jack. An LED lights whenever power is present, providing setup assistance and user confidence. The Model 33 is housed in a lightweight, yet rugged, aluminum housing that includes a belt clip. An optional mounting adapter is available, allowing a Model 33 to be installed in a permanent location. The Model 33 is unique in that a "mix" of IFB channels 1 and 2 can be created. Two level controls, along with a source select switch, allows camera and production personnel to hear IFB cues from either or both channels. This allows IFB signals intended for both technician and talent to be simultaneously monitored.| Application | Intended for portable applications. Contains integral belt clip. Optional adapter available to allow permanent mounting. |
| Indicator Light | 1, indicates presence of operating power |
| Input Connector | 3-pin XLR-type, female |
| Loop Through Connector | Ê3-pin XLR-type, male. Connected in parallel with input connector. Intended to be used to connect multiple talent amplifiers in a "loop through" arrangement. |
| Audio Source | IFB channel 1 and/or channel 2, switch selectable by user |
| Audio Output | Connector: _-inch, 2-conductor (monaural) phone jack Load: intended for connection to headphones or earpieces with impedance of 150 ohms or greater Output Level: user adjustable via potentiometer Maximum Output Power: 35 mW into 150 ohms @ 1% THD+Noise, 400 Hz Distortion: <0.15%, THD+Noise, measured at 400 Hz with 32 mW output power into 150 ohms Frequency Response: optimized for voice response (100 Hz to 20 kHz, ±0.5 dB) |
| Dimensions (Overall) | 3.25 inches wide (8.3 cm) 1.80 inches high (4.6 cm) 3.95 inches deep (10.0 cm) |
| Weight | 0.6 pounds (0.3 kg) |
Studio Technologies IFB Plus Model 33 Talent AmplifierThe Model 33 Talent Amplifier is a self-contained "belt pack" unit that drives talent earpieces or headsets. A single 3-conductor microphone-type cable links the Model 2 with the talent amplifier. Each Model 33 contains both a male and female XLR-type connector, allowing simple "loop through" connection of multiple units.
Up to four talent amplifiers can be connected to, and powered by, a single Model 2 Central Controller. The audio output signal is provided on a standard 1/4-inch phone jack. An LED lights whenever power is present, providing setup assistance and user confidence. The Model 33 is housed in a lightweight, yet rugged, aluminum housing that includes a belt clip. An optional mounting adapter is available, allowing a Model 33 to be installed in a permanent location. The Model 33 is unique in that a "mix" of IFB channels 1 and 2 can be created. Two level controls, along with a source select switch, allows camera and production personnel to hear IFB cues from either or both channels. This allows IFB signals intended for both technician and talent to be simultaneously monitored.| Application | Intended for portable applications. Contains integral belt clip. Optional adapter available to allow permanent mounting. |
| Indicator Light | 1, indicates presence of operating power |
| Input Connector | 3-pin XLR-type, female |
| Loop Through Connector | Ê3-pin XLR-type, male. Connected in parallel with input connector. Intended to be used to connect multiple talent amplifiers in a "loop through" arrangement. |
| Audio Source | IFB channel 1 and/or channel 2, switch selectable by user |
| Audio Output | Connector: _-inch, 2-conductor (monaural) phone jack Load: intended for connection to headphones or earpieces with impedance of 150 ohms or greater Output Level: user adjustable via potentiometer Maximum Output Power: 35 mW into 150 ohms @ 1% THD+Noise, 400 Hz Distortion: <0.15%, THD+Noise, measured at 400 Hz with 32 mW output power into 150 ohms Frequency Response: optimized for voice response (100 Hz to 20 kHz, ±0.5 dB) |
| Dimensions (Overall) | 3.25 inches wide (8.3 cm) 1.80 inches high (4.6 cm) 3.95 inches deep (10.0 cm) |
| Weight | 0.6 pounds (0.3 kg) |
