Studio Technologies LL-3G-CR-048 - Live-Link Sr. Control Room Rack-Ready PL Transport Interface
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ST Optical Connectors, Qty. 2 (two fibers) Control Room Unit – Party-Line (PL) Intercom: Rack-Ready Version
Designed to handle news, sports, and other day-to-day remote interfacing needs with ease, the Live-Link™ Sr. Remote Camera Interface System offers a comprehensive fiber-optic-connected solution for transporting digital video, audio, intercom, and data between a remote camera location and a truck or control room. The point-to-point system consists of a portable Camera End Unit and either a portable or rack-ready Control Room Unit. Both use industry-standard connectors that are clearly labeled for fast, intuitive setup.
Live-Link Sr. provides two digital video paths in each direction that support the 3G/HD/SD-SDI SMPTE®-standards. In addition, the system provides connectivity for mic/line level signals, talent cueing, 2-channel party-line intercom, GPI/GPO, RS-232/RS-422 asynchronous data, and Gigabit Ethernet. A full complement of status LEDs simplifies monitoring and troubleshooting. Live-Link Sr. systems are suitable for remote production or permanent installation and can be powered by a DC supply or battery.
Live-Link Sr. is a reliable and convenient way of linking a production camera crew to an ENG or OB van, SNG vehicle, or production trailer. The system's portability and ease-of-deployment make it an ideal infrastructure solution for studio complexes, arenas, and campus environments. Live-Link Sr. units interconnect using two strands of single-mode fiber-optic cable and provide a transmission distance of at least 10 km (per SMPTE 297). Featuring the rugged opticalCON® DUO fiber-optic connectors from Neutrik®, units can also be ordered with ST optical connectors.
Features:
- Transports digital video, audio, and data over two single-mode optical fibers
- Supports standard 3G/HD/SD-SDI digital video formats
- Four mic/line inputs with selectable gain and +48 V phantom power
- Two line-level audio paths for IFB or general-purpose use
- Party-line intercom interface with 28 V beltpack power
- 2-wire-to-4-wire auto nulling hybrids for excellent intercom audio
- 10/100/1000 (Gigabit) Ethernet
- RS-232 and RS-422 for camera control
- Available with Neutrik opticalCON DUO for fast, reliable fiber connectivity
- Anton/Bauer® battery mount standard on both units
- Low power consumption allows extended battery operating time
- Industry-standard connectors for all inputs and outputs
- Available in portable or rack-ready versions
Live-Link Sr. Camera End Unit
The Live-Link Sr. Camera End Unit goes where the action is. Weighing less than 11 pounds (5 kg) the unit is truly portable. And with its rugged aluminum housing it's built to withstand the rigors of field use. The intuitive I/O panel uses industry-standard connectors: BNC for digital video, 3-pin XLR for audio and intercom, RJ45 for Ethernet, and 9-pin D-Sub for asynchronous data. Status indicators and multi-segment audio level meters make setup and use a simple process. The 2-channel party-line intercom interface provides DC power for direct connection of intercom beltpacks. The 10/100/1000 Ethernet interface features an auto MDI/MDI-X input eliminating the need for crossover cables. An Anton/Bauer battery mount allows for battery-powered operation. A maximum power draw of 30 watts allows battery operating time of four hours or greater. As an alternate to battery operation a source of 10 to 18 Vdc can be connected.

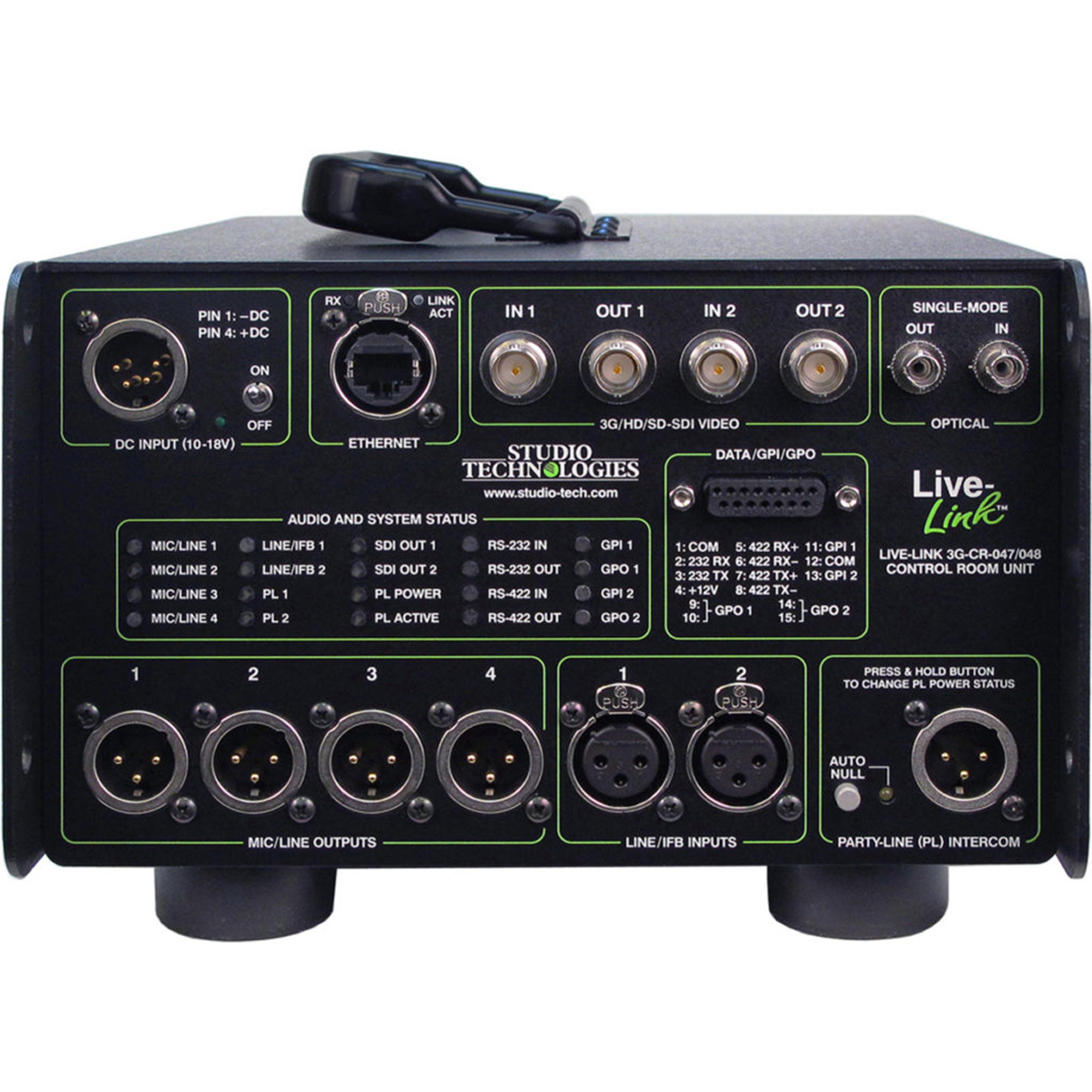

Live-Link Sr. Control Room Unit
Typically residing in an ENG truck or at a control room location, Live-Link Sr.'s Control Room Unit serves as the I/O panel for signals going to and from the Camera End Unit. Two single-mode optical fibers carry WDM-multiplexed signals between the units. All video, audio, and data inputs and outputs use standard connectors. Multiple LEDs provide video, audio, and system status information. The Control Room Unit is available in a portable or rack-ready version. The portable version can be powered by a 10 to 18 Vdc source or via battery using the Anton/Bauer mount. Consuming a maximum of 20 watts, battery operation in excess of six hours is easily achieved. The rack-ready version is optimized for use in permanent (fixed or mobile) installations. Using the optional Live-Link Sr. Rack Mounting Enclosure, one or two units can be mounted in three spaces (3U) of a standard equipment rack.
Selected Live-Link Sr. Control Room versions provide 2-wire party-line support instead of 4-wire. Alternately, applications that require a 2-wire party-line circuit to be interfaced with the Control Room Unit's 4-wire interface can use the Studio Technologies' Model 45A Interface.
| Live-Link Sr. "04X" Series General Specifications | |
| Optical | Cable: 2 single-mode fibers Optical Budget: 14 dB minimum at 2.97 Gb/s; 17 dB minimum at 1.485 Gb/s Transmission Distance: 10 km, minimum (per SMPTE¨ 297) |
| Wavelengths UtilizedÐCamera End to Control Room End | SDI 1: 1310 nm SDI 2: 1550 nm Ethernet: 1490 nm |
| Wavelengths UtilizedÐControl Room End to Camera End | SDI 1: 1310 nm SDI 2: 1550 nm Ethernet: 1490 nm |
| Digital Video | Number of PathsÐCamera End to Control Room End: 2, SDI 1, SDI 2 Number of PathsÐControl Room End to Camera End: 2, SDI 1, SDI 2 Data Rate: 3.0 Gb/s maximum Supported Standards: 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292), SD-SDI (SMPTE 259M), DVB-ASI |
| Mic/Line Audio | Number of Channels: 4 (Camera End to Control Room End) Frequency Response: 20 Hz to 20 kHz ±0.2 dB Distortion: 0.1%, DC to 40 kHz Signal-to-Noise Ratio: 84 dB, DC to 40 kHz Dynamic Range: 104 dB |
| Line-Level Audio | Number of Channels: 2 (Control Room End to Camera End) Frequency Response: 20 Hz to 20 kHz ±0.1 dB Distortion: 0.03%, DC to 40 kHz Signal-to-Noise Ratio: 84 dB, DC to 40 kHz Dynamic Range: 104 dB |
| 2-Wire-to-4-Wire Interface | Frequency Response: 100 Hz to 8 kHz ±2.5 dB Distortion: 0.1% Signal-To-Noise Ratio: 65 dB Nulling Method: automatic upon user initiation; null settings stored in non-volatile memory Nulling Cable Length Range: 0 to 3500 feet, typical |
| Data Transport | RS-232, full duplex, asynchronous (serial) RS-422, full duplex, asynchronous (serial) Rate: auto-sensing, 115.2 kb/s, maximum with HD- or 3G-SDI (57.6 kb/s with SD-SDI) |
| GPI/GPO Transport | GPI Input: +3.3 Vdc logic, activates on closure to system common GPO Output: normally-open (form A) solid-state relay contact |
| Auxiliary Power Source | 12 Vdc nominal, 30 mA maximum |
| Live-Link Sr. "04X" Series Camera End Specifications | |
| Optical Connector(s) | Neutrik¨ opticalCON¨ DUO or two ST (UPC polish), factory installed, selectable at time of order |
| Digital Video Inputs | Digital Video Inputs: 2 Connector: BNC Type: unbalanced Impedance: 75 ohms |
| Digital Video Outputs | Digital Video Outputs: 2 Connector: BNC Type: unbalanced Impedance: 75 ohms Level: 800 mV p-p |
| Mic/Line Audio Inputs | Mic/Line Audio Inputs: 4 Connector: 3-pin female XLR Type: electronically balanced Impedance: 2 k ohms Level: +24 dBu maximum including mic gain Gain: 0 dB, 15 dB, 30 dB, 45 dB, selectable Phantom Power: P48 (+48 Vdc nominal), selectable on/off |
| Non-Powered IFB Audio Outputs | Non-Powered IFB Audio Outputs: 2 Connector: 3-pin male XLR Type: electronically balanced Impedance: 100 ohms Level: +4 dBu nominal, +24 dBu maximum |
| Powered IFB Output | Powered IFB Output: 1, 2-channel Connector: 3-pin male XLR Type: DC power with two channels of unbalanced audio ("wet" IFB) Impedance: 200 ohms Audio Level: Ð10 dBu nominal Power Source: 28 Vdc nominal, 120 mA maximum |
| Party-Line (PL) Intercom Interface | Party-Line (PL) Intercom Interface: 1, 2-channel Connector: 3-pin male XLR Type: 2-wire party-line (PL) Impedance: 200 ohms Audio Level: Ð10 dBu nominal 2-Wire Power Source: 28 Vdc nominal, 230 mA maximum Compatibility: single- and dual-channel intercom systems such as those from RTS¨ and Clear-Com¨ |
| Ethernet | Connector: RJ45 (auto MDI/MDI-X) Rate: 10/100/1000 auto sensing |
| RS-232, RS-422, GPI, GPO, and Auxiliary Power Source | Connector: 15-pin D-subminiature female (DA-15F) |
| Power | DC Input Range: 10 to 18 V Requirement: 30 watts maximum DC Input Connector: 4-pin male XLR Battery Mount: Anton/Bauer¨ Gold Mount System (V-Mount optional) |
| Dimensions (including protective bumpers and handle) | 8.36 inches wide (21.2 cm) 6.54 inches high (16.6 cm) 13.33 inches deep (33.9 cm) |
| Weight | 10.9 pounds (5.0 kg) |
| Live-Link Sr. "04X" Series Control Room Specifications | |
| Optical Connector(s) | Neutrik¨ opticalCON¨ DUO or two ST (UPC polish), factory installed, selectable at time of order |
| Digital Video Inputs | Digital Video Inputs: 2 Connector: BNC Type: unbalanced Impedance: 75 ohms |
| Digital Video Outputs | Digital Video Outputs: 2 Connector: BNC Type: unbalanced Impedance: 75 ohms Level: 800 mV p-p |
| Mic/Line Audio Outputs | Mic/Line Audio Outputs: 4 Connector: 3-pin male XLR Type: electronically balanced Impedance: 100 ohms Level: +4 dBu nominal, +24 dBu maximum |
| Line-Level Audio Inputs | Line-Level Audio Inputs: 2 Connector: 3-pin female XLR Type: electronically balanced Impedance: 10 k ohms Level: +4 dBu nominal, +24 dBu maximum |
| 4-Wire Intercom VersionÐAudio Inputs | 4-Wire Intercom VersionÐAudio Inputs: 2 Connector: 3-pin female XLR Type: electronically balanced Impedance: 10 k ohms Level: +4 dBu nominal, +24 dBu maximum |
| 4-Wire Intercom VersionÐAudio Outputs | 4-Wire Intercom VersionÐAudio Outputs: 2 Connector: 3-pin male XLR Type: electronically balanced Impedance: 100 ohms Level: +4 dBu nominal, +24 dBu maximum |
| Party-Line (PL) Intercom Interface Version | Party-Line (PL) Intercom Interface Version: 1, 2-channel Connector: 3-pin male XLR Type: 2-wire party-line (PL) Audio Level: Ð10 dBu nominal Power Source and Impedance: 28 Vdc nominal, 315 mA maximum, 200 ohms, selectable on/off Compatibility: single- and dual-channel intercom systems such as those from RTS¨ and Clear-Com¨ |
| Ethernet | Connector: RJ45 (auto MDI/MDI-X) Rate: 10/100/1000 auto sensing |
| RS-232, RS-422, GPI, GPO, and Auxiliary Power Source | Connector: 15-pin D-subminiature female (DA-15F) |
| Power | DC Input Range: 10 to 18 V Requirement: 20 watts maximum DC Input Connector: 4-pin male XLR Battery Mount: Anton/Bauer Gold Mount System (Portable Version only) (V-Mount optional) |
| Dimensions (Portable Version, including protective bumpers and handle) | 8.36 inches wide (21.2 cm) 6.54 inches high (16.6 cm) 13.33 inches deep (33.9 cm) |
| Dimensions (Rack-Ready Version) | 8.36 inches wide (21.2 cm) 5.00 inches high (12.7 cm) 12.60 inches deep (32.0 cm) |
| Weight | Portable Versions: 10.9 pounds (5.0 kg) Rack-Ready Versions: 7.7 pounds (3.5 kg) |
| Options and Accessories | Rack Mounting Enclosure: 3U, holds one or two Rack-Ready Control Room Units See Price List for other options and accessories |
