Availability: Usually ships in 5 - 10 Days
Our Price: $525.00
The Model 5110 Mic/Line Input Module is a compact, self-contained 2-channel module intended for use in custom broadcast, live-performance, and general audio applications. Offering a building block of resources, the Model 5110 provides two channels of high-performance audio capability in an easy-to-use yet technically sophisticated package. The module's basic functions include selectable input gain, 48 volt phantom power, status LED indicators, and analog and digital audio outputs. Module operation requires only an externally-provided source of 12 volts DC. Advanced features include user control lock out, metadata insertion, and remote monitoring/control capability.
Applications for the Model 5110 include sports broadcasting booth packages, remote news gathering fly-packs, stadium audio/video interface (I/O) locations, and government/corporate/performance space infrastructure projects. The number of Model 5110 modules used in a project can vary widely—from one to dozens. And in each case the Model 5110's performance will be completely pro with audio quality, reliability, and installation flexibility matching that of large-scale consoles, routers, and transport resources. Typical applications will find the Model 5110's analog and digital outputs being interfaced with inputs on fiber-optic transport modules, audio/video routers, and broadcast/production consoles.
Model 5110 Mic/Line Input Modules do not include a mounting enclosure or chassis. They are intended for mounting in custom 19-inch rack panels, equipment boxes, broadcast furniture, or other specialized settings. It is expected that integration firms will create applications that use Model 5110 modules as part of complete broadcast, production, corporate, and government solutions.

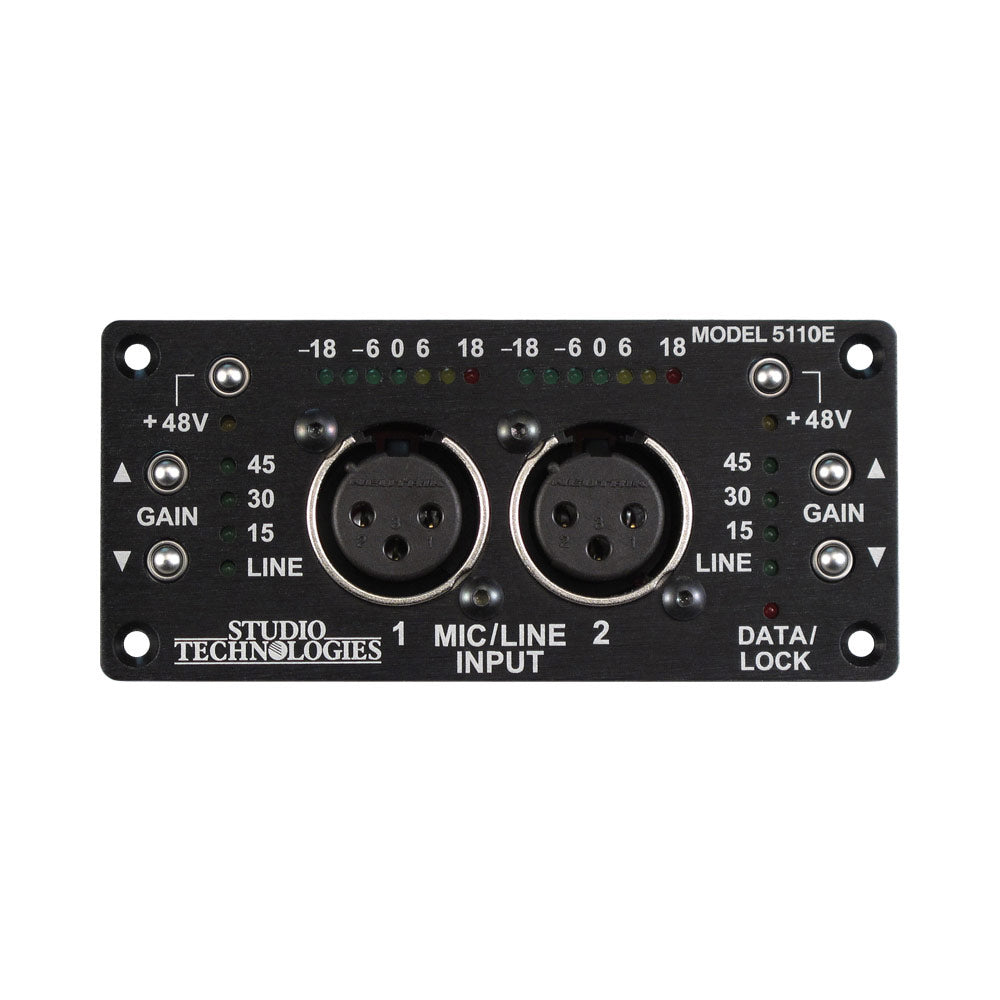

Two microphone or line-level audio signals can be connected to the Model 5110's front panel XLR-type connectors. Using the front-panel pushbutton switches, the sensitivity of each input can be adjusted to one of four gain settings: line (unity), 15 dB, 30 dB, or 45 dB. To support high-performance microphones +48 volt phantom power can be selected as required. Status LEDs are provided to display the current settings of the sensitivity and phantom power. A 7-segment LED level meter is also provided for each channel.
Six pushbutton switches on the Model 5110's front panel allow rapid selection of the input gain and phantom power on/off status. A simple button-press sequence allows the six pushbutton switches to be temporarily "locked out" to prevent accidental adjustment. This can be very useful in field applications, helping to ensure that unauthorized Model 5110 performance changes are not made. An LED indicator will light to alert users that pushbutton switch functionality has been disabled.
The Model 5110's audio performance is simply excellent. A low-noise, wide dynamic-range preamplifier section ensures that the input audio quality is preserved. The outputs of the mic-preamp circuitry are routed to two analog audio output sections. These provide line-level, balanced (differential), capacitor-coupled outputs.
The audio from the mic-preamps is also routed to high-performance analog-to-digital conversion (ADC) sections that support a sample rate of 48 kHz with a bit depth of 24. A precision voltage reference assists the ADC circuits in performing accurate conversion. The signals, now in the digital domain, are formatted into AES3id digital audio. This 2-channel digital bit stream is output as a 75 ohm unbalanced signal for direct connection into broadcast applications.
All audio inputs and outputs were carefully designed for use in permanent as well as field applications. Extensive filtering on the inputs minimizes the chance that radio frequency (RF) energy will interfere with audio input sources. Other components were included to address ESD ("static") and DC overload situations. The DC power input is protected from accidental polarity reversal.
The Model 5110 requires an external source of nominal 12 volts DC for operation. The acceptable input voltage range is 10 to 18 allowing a variety of power sources to be utilized. Internal power supply circuitry within the Model 5110 creates the voltages required for the analog and digital circuitry.

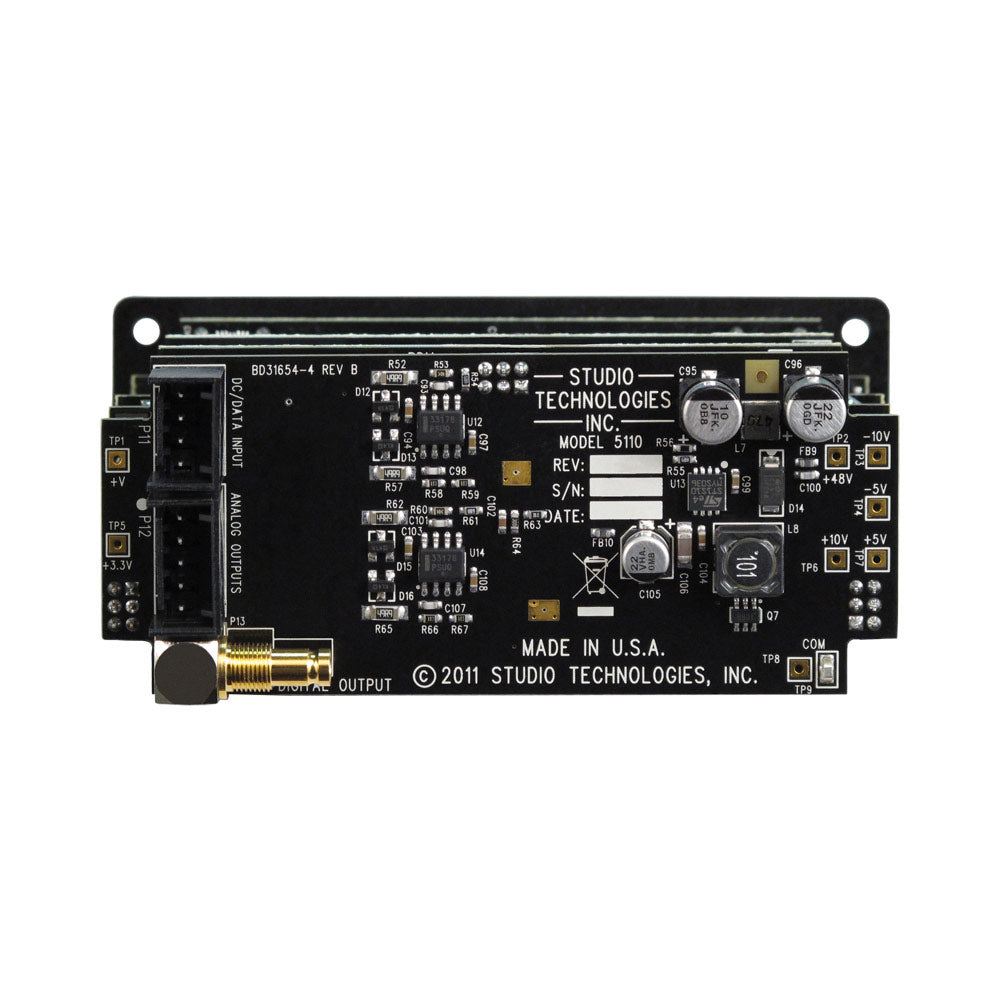

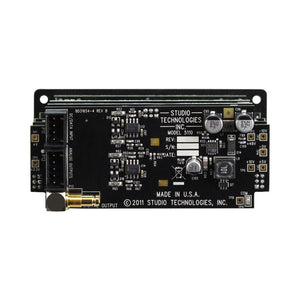

Standard connectors are used throughout the Model 5110. Input audio connections are made using gold-plated 3-pin female XLR-type connectors. A DIN 1.0/2.3 coaxial connector is used to interface with the digital audio output. The 2-channel analog audio outputs use a 5-position, 0.1-inch "header" connector. The DC power input and data bus signals use a 4-position, 0.1-inch header. Low-cost IDC (insulation displacement) mating connectors allow simple interconnection with the analog audio output and DC/data signals.
For compliance with international broadcast audio level standards two versions of the Model 5110 are available. The Model 5110S supports the SMPTE® audio standards which have an analog audio reference level of +4 dBu and a digital audio reference level of –20 dBFS (SMPTE RP155). The Model 5110E supports applications that require European Broadcast Union (EBU) compliance where the analog audio reference level is 0 dBu and the digital audio reference level is –18 dBFS (EBU R68).
Provision has been made in the Model 5110's hardware and firmware to support insertion of metadata information into its AES3id digital audio output. Following the Audio Engineering Society's AES52-2006 standard, this metadata can be used to include source location identification data within the audio data stream. While not currently commonly implemented, it is expected that AES3 metadata will become an important part of many infrastructures.
Using an optional remote access module, up to eight Model 5110 modules can be remotely monitored and controlled. Using the remote access module's Ethernet interface and SNMP MIB objects, personnel using "GUI" applications or remote control systems will be able to access all the Model 5110's functions, including input sensitivity, phantom power on/off, pushbutton switch lock out, and metadata insertion. A local 2-wire RS-485 data bus is used to interface the remote access module with the one or more Model 5110 Mic/Line Input Modules
|Input Sensitivity||selectable for line level (unity gain), 15, 30 or 45 dB gain|
|Maximum Input Level||+24 dBu|
|Impedance||approximately 3 k ohms|
|CMRR||61 dB at 60 Hz|
|Channel-to-Channel Crosstalk||less than –106 dB at 10 kHz|
|Phantom Power||48 volts DC, nominal, meets IEC 61938 P48 standard|
|Digital Audio Output||1 (2-channel)|
|Type||AES3id, unbalanced, 75 ohms|
|Sample Rate/Bit Depth||48 kHz/24|
|Frequency Response||±0.2 dB, 20 Hz to 20 kHz|
|Dynamic Range (A Weighted)||112 dB, input sensitivity set for Line, 15 dB gain, or 30 dB gain; 103 dB at 45 dB gain|
|Distortion||0.0008% (–101 dB) with output at –1 dBFS, 22 Hz to 22 kHz, 30 dB gain|
|Nominal Output Level||–20 dBFS (Model 5110S); –18 dBFS (Model 5110E)|
|Analog Audio Outputs||2|
|Type||electronically balanced, capacitor-coupled, intended to drive balanced loads of 2 k ohms or greater|
|Nominal Level||+4 dBu (Model 5110S), 0 dBu (Model 5110E)|
|Maximum Level||+24 dBu into 10 k ohms|
|Source Impedance||200 ohms, nominal, differential|
|Frequency Response||±0.5 dB, 20 Hz to 16 kHz; –1.5 dB at 20 kHz)|
|Dynamic Range (A Weighted)||107 dB, input sensitivity set for Line, 15 dB gain, or 30 dB gain; 102 dB at 45 dB gain|
|Distortion||0.002% (–93 dB) with output at +23 dBu, 22 Hz to 22 kHz, 30 dB gain)|
|Meters||2, 7-segment LED, modified VU ballistics|
|Metadata Insertion||Per AES52-2006|
|Remote Control Capability||mic gain, phantom power, pushbutton switch lock out; requires remote access module|
|Mic/Line Inputs||2, 3-pin female XLR-type, no latch|
|AES3id Digital Audio Output||1, DIN 1.0/2.3-compliant coaxial|
|Analog Audio Outputs||1, 5-position male header, AMP® MTA-100-Series, part number 2-644486-5|
|DC Input/Data||1, 4-position male header, AMP MTA-100-Series, part number 2-644486-4|
|Power Requirement||12 volts DC nominal, 300 milliamperes max; acceptable range 10-18 volts DC, 330 milliamperes max at 10 volts|
|Dimensions (Overall)||3.75 inches wide (9.5 cm) |
1.69 inches high (4.3 cm)
2.30 inches deep (5.8 cm)
|Mounting||requires custom implementation; no mounting method provided|
|Weight||0.2 pounds (91 g)|
