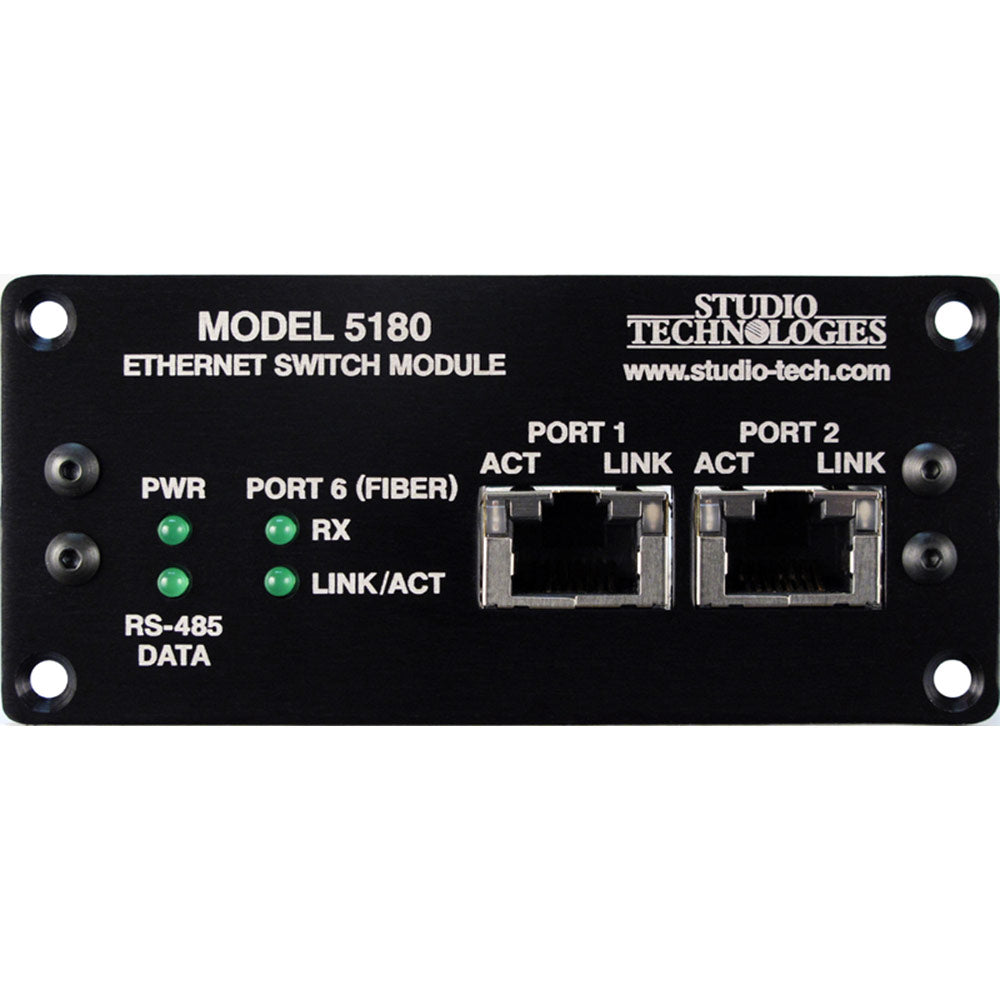

Studio Technologies Model 5180-02X Ethernet Switch Module with CWDM Transceiver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Model 5180 with CWDM Optical Transceiver.
The Model 5180 is a combination 5-port copper (UTC) Ethernet switch and single-mode optical fiber Ethernet media converter. All UTC ports (RJ45 jacks) support 10/100/1000 "Gigabit" Ethernet with auto MDI/MDI-X capability. Advanced high technology performance includes support for Ethernet AVB standards. Optional optical transceiver module adds Gigabit media conversion capability for interconnecting Ethernet signals via fiber. Standard optical output wavelength is 1310 nm FP; CWDM wavelengths available (1490 and 1550 nm stocked). Requires mounting method and 12 Vdc for operation.
For order code -02X: X = the standard CWDM output wavelength letter code. Typically available CWDM output wavelengths include L (1490 nm) and O (1550 nm).
Model 5180 with CWDM Optical Transceiver.
The Model 5180 is a combination 5-port copper (UTC) Ethernet switch and single-mode optical fiber Ethernet media converter. All UTC ports (RJ45 jacks) support 10/100/1000 "Gigabit" Ethernet with auto MDI/MDI-X capability. Advanced high technology performance includes support for Ethernet AVB standards. Optional optical transceiver module adds Gigabit media conversion capability for interconnecting Ethernet signals via fiber. Standard optical output wavelength is 1310 nm FP; CWDM wavelengths available (1490 and 1550 nm stocked). Requires mounting method and 12 Vdc for operation.
For order code -02X: X = the standard CWDM output wavelength letter code. Typically available CWDM output wavelengths include L (1490 nm) and O (1550 nm).
