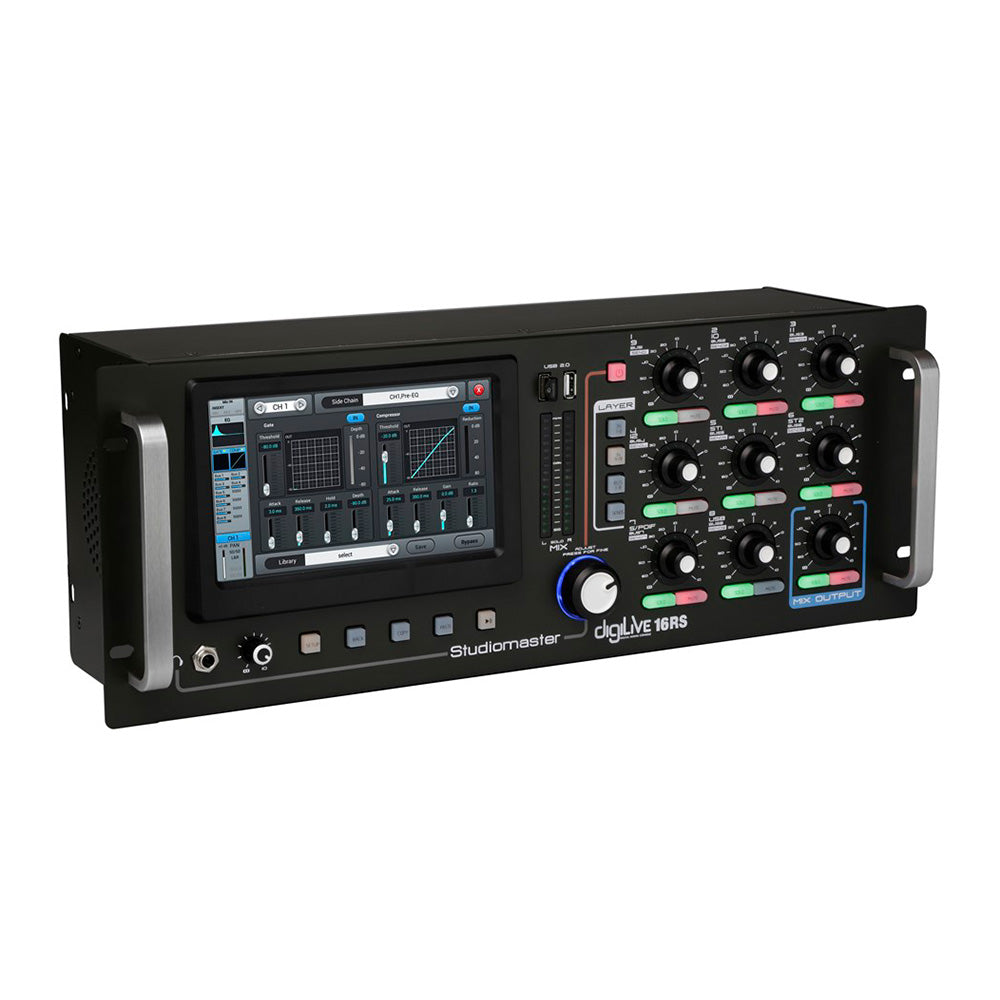

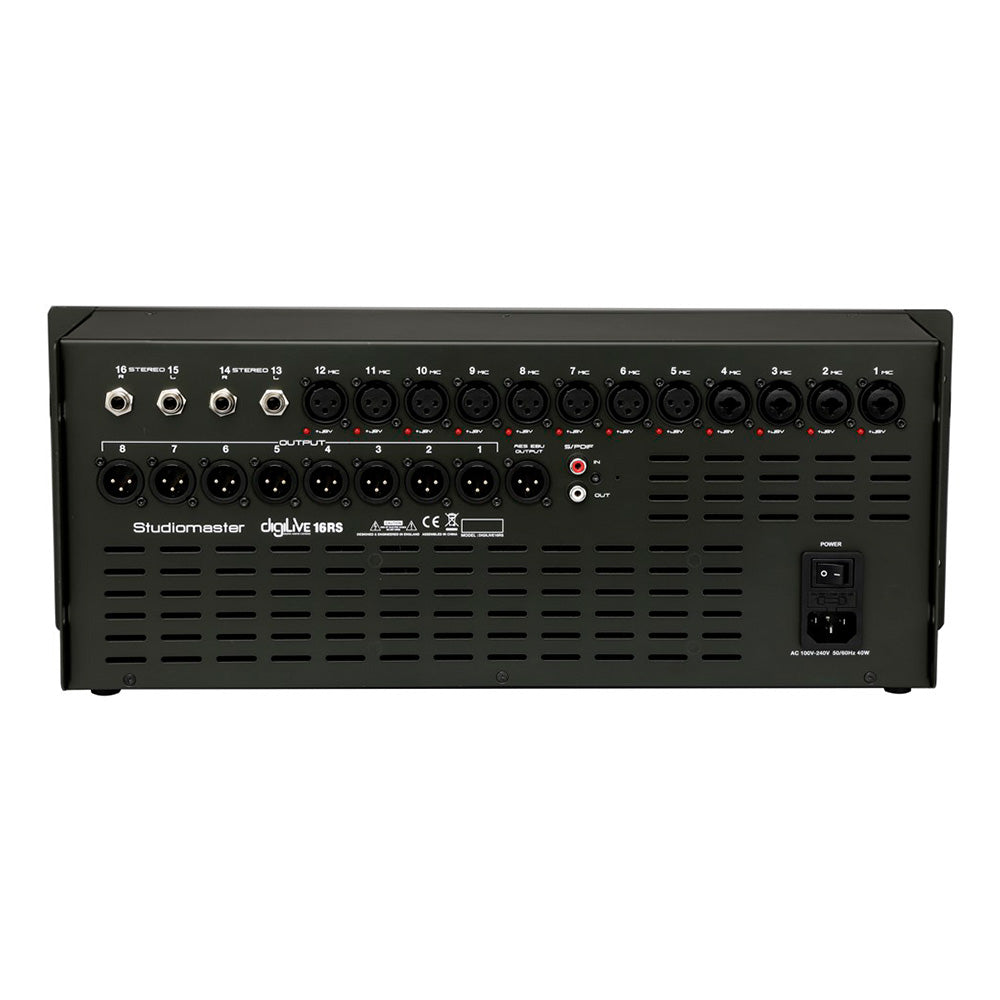

Studiomaster Digilive 16RS - Rack Mount 16-Channel Digital Mixer with Remote Control
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Studiomaster Digilive 16RS - Rack Mount 16-Channel Digital Mixer with Remote Control
Sale price$1,406.00
Regular price$1,815.00
Description
The compact black box style, rack mountable console with digital gain channels.
Features:
- 16 input with 16 internal busses
- 12 digital gain mic input channels
- 2 stereo inputs
- 8 configurable smart outputs
- 7" high resolution touch screen
- Ultra compact unit size
- Advanced hybrid user interface
- Full iOS Tablet control
| Mic Inputs | 12 (8x XLR / 4x Combo XLR) |
| Stereo Inputs | 2 |
| Master Output | 2 (Left/Right balanced XLR) |
| Smart Outputs | 6 (assignable balanced XLR) |
| Internal busses | 16 |
| Stage monitor | 1 TRS Jack output |
| Headphone | 1 TRS Jack output |
| Screen | 7" high definition touch screen |
| Operation system | Android system |
| Network | Yes, via included WiFi module |
| Remote control | iPad iOS via ÔDigilive BlackboxÕ app |
| Sample Frequency | 48 KHz |
| AD/DA | 192 KHz, 24-bit |
| DSP | 40 bit float point, SHARC processor |
| Effects | up to 8 assignable effect modules |
| AES/EBU | Output XLR |
| S/PDIF | Input / Output (RCA Phono) |
| USB Interface | 2 for playback/recording, scene/setting storage and system updates |
| Power Supply | 90-240V ~ 50/60Hz IEC power supply |
The compact black box style, rack mountable console with digital gain channels.
Features:
- 16 input with 16 internal busses
- 12 digital gain mic input channels
- 2 stereo inputs
- 8 configurable smart outputs
- 7" high resolution touch screen
- Ultra compact unit size
- Advanced hybrid user interface
- Full iOS Tablet control
| Mic Inputs | 12 (8x XLR / 4x Combo XLR) |
| Stereo Inputs | 2 |
| Master Output | 2 (Left/Right balanced XLR) |
| Smart Outputs | 6 (assignable balanced XLR) |
| Internal busses | 16 |
| Stage monitor | 1 TRS Jack output |
| Headphone | 1 TRS Jack output |
| Screen | 7" high definition touch screen |
| Operation system | Android system |
| Network | Yes, via included WiFi module |
| Remote control | iPad iOS via ÔDigilive BlackboxÕ app |
| Sample Frequency | 48 KHz |
| AD/DA | 192 KHz, 24-bit |
| DSP | 40 bit float point, SHARC processor |
| Effects | up to 8 assignable effect modules |
| AES/EBU | Output XLR |
| S/PDIF | Input / Output (RCA Phono) |
| USB Interface | 2 for playback/recording, scene/setting storage and system updates |
| Power Supply | 90-240V ~ 50/60Hz IEC power supply |
