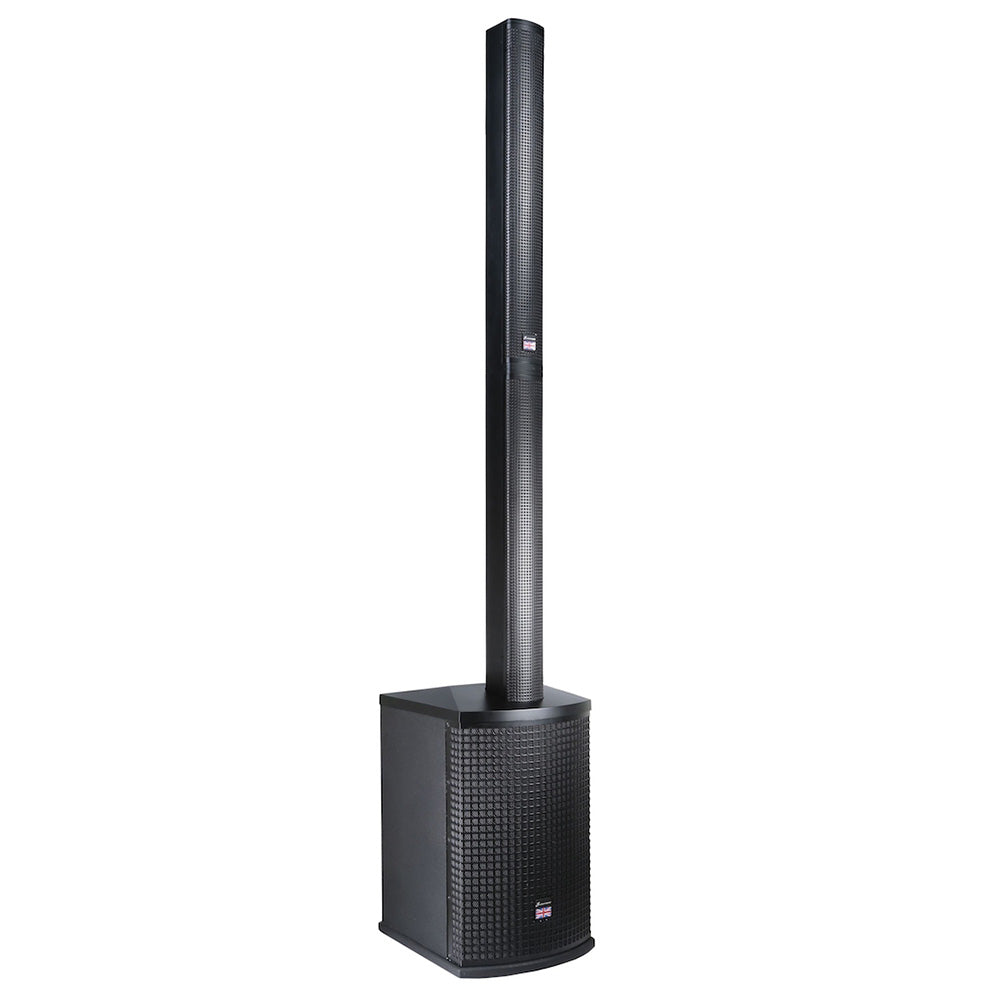

Studiomaster Direct 121 - Column PA System with 12-Inch Subwoofer and 4-Channel Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The self-powered all-in-one solution is an ultra-compact, powerful vertical array system for versatile use. DIRECT includes 6 x 3" mid frequency transducers for perfect clarity of instruments and voice. The 1" high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 10" or 12" transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it´s graphic display upgrades your sound to high definition audio quality.
Features:
- Self-powered 3-way system for high definition sound (122 dB max.)
- 6 x 3" plus 1 x 1" precision transducers
- 120° x 30° ultra wide sound coverage (HxV)
- 10" and 12" subwoofers for deep and powerful lows
- Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
- Extensive 4-channel mixer. 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input. 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
- Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization
- Digital delay for delay zones up to 100 m (in steps of 0.25 m)
| Direct 12AX | |
| Mixer | Analog |
| Inputs | 4 Channels (2x Mic/Line, 1x Hi-Z, 1x RCA or Bluetooth) |
| Input connectors | 2x XLR jack combo, 1x UNBAL TRS Jack, 1x RCA stereo |
| Input impedance | 10 k Ohms Balanced, 470 k Ohms Unbalanced |
| Output connector | 2x Line link XLR, 1x Main out XLR (pre DSP) |
| Amplifier | Rated power Ð 2 x 300 W RMS Frequency range Ð 20 Hz Ð 20 kHz DSP connection Ð 24 bit (1in-2out) |
| Subwoofer | |
| Speaker type | 1 x 12_ transducer |
| Rated Power | 300W (RMS) |
| Rated Impedance | 4½ |
| Dimensions (WxHxD) | 358*616*447mm |
| Net Weight (kg) | 23kg |
| Direct 12A | |
| Mixer | 12AD extension |
| Inputs | 5 pin XLR input, link to Direct 12AD |
| Controls | LF level, MHF level |
| Amplifier | Rated power Ð 2 x 300 W RMS Frequency range Ð 20 Hz Ð 20 kHz |
The self-powered all-in-one solution is an ultra-compact, powerful vertical array system for versatile use. DIRECT includes 6 x 3" mid frequency transducers for perfect clarity of instruments and voice. The 1" high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 10" or 12" transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it´s graphic display upgrades your sound to high definition audio quality.
Features:
- Self-powered 3-way system for high definition sound (122 dB max.)
- 6 x 3" plus 1 x 1" precision transducers
- 120° x 30° ultra wide sound coverage (HxV)
- 10" and 12" subwoofers for deep and powerful lows
- Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
- Extensive 4-channel mixer. 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input. 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
- Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization
- Digital delay for delay zones up to 100 m (in steps of 0.25 m)
| Direct 12AX | |
| Mixer | Analog |
| Inputs | 4 Channels (2x Mic/Line, 1x Hi-Z, 1x RCA or Bluetooth) |
| Input connectors | 2x XLR jack combo, 1x UNBAL TRS Jack, 1x RCA stereo |
| Input impedance | 10 k Ohms Balanced, 470 k Ohms Unbalanced |
| Output connector | 2x Line link XLR, 1x Main out XLR (pre DSP) |
| Amplifier | Rated power Ð 2 x 300 W RMS Frequency range Ð 20 Hz Ð 20 kHz DSP connection Ð 24 bit (1in-2out) |
| Subwoofer | |
| Speaker type | 1 x 12_ transducer |
| Rated Power | 300W (RMS) |
| Rated Impedance | 4½ |
| Dimensions (WxHxD) | 358*616*447mm |
| Net Weight (kg) | 23kg |
| Direct 12A | |
| Mixer | 12AD extension |
| Inputs | 5 pin XLR input, link to Direct 12AD |
| Controls | LF level, MHF level |
| Amplifier | Rated power Ð 2 x 300 W RMS Frequency range Ð 20 Hz Ð 20 kHz |
