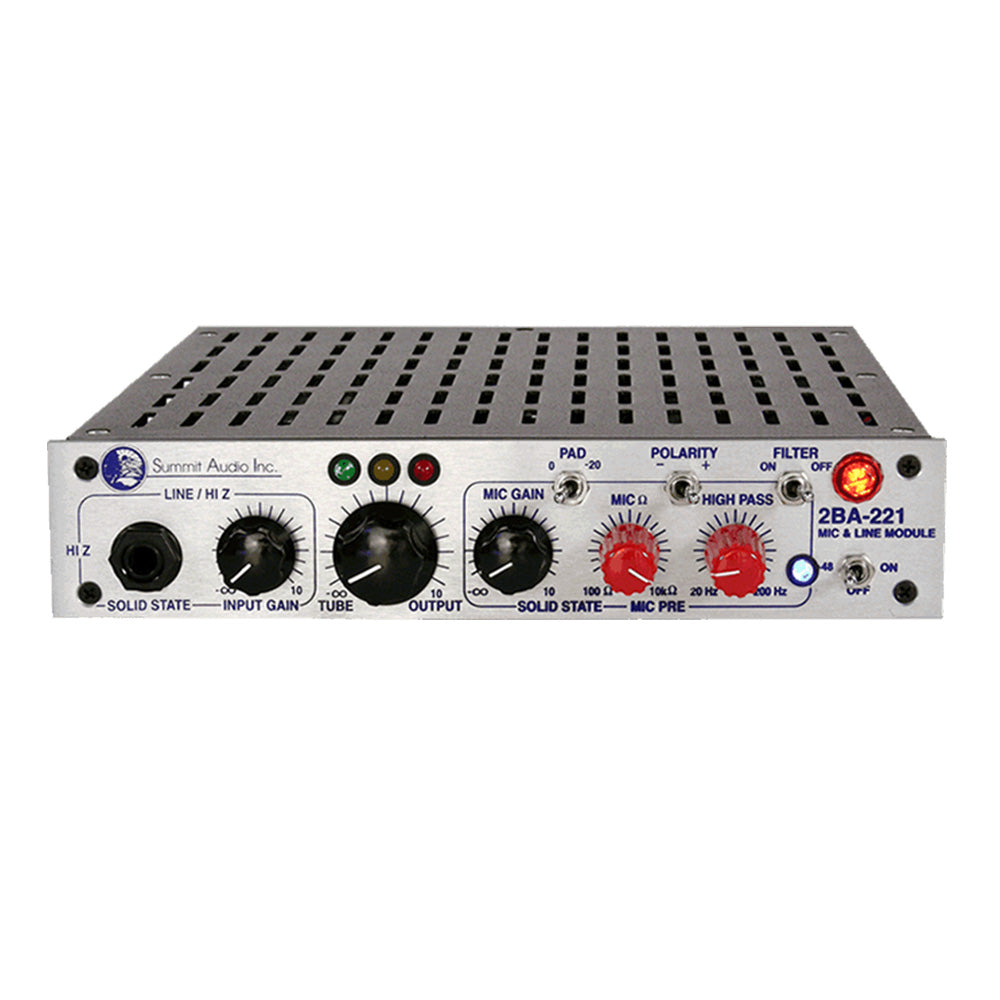

Summit Audio 2BA-221 Single Channel Tube Microphone/Line Preamplifier


  • Dale #:

    SUMM-2BA221
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

The proper amount of voltage to a tube and solid-state circuit can make all the difference in the quality of the sound. The 2BA-221 is made with the highest quality full-voltage tube and solid-state signal paths and the best components available. The 2BA-221 even has a separate, dedicated power s... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The proper amount of voltage to a tube and solid-state circuit can make all the difference in the quality of the sound. The 2BA-221 is made with the highest quality full-voltage tube and solid-state signal paths and the best components available. The 2BA-221 even has a separate, dedicated power source for its 48V phantom power, and does not draw current away from the main circuits.

Features:

  • Variable microphone impedance
  • High quality mic preamp with polarity, pad and level control
  • Channel insert
  • Highpass filter
  • 1 balanced input, 1 mic input, 1 instrument input
  • Balanced outputs
  • Hand Crafted in the U.S.A.


Integrating the 2BA-221 into your studio or live rig is easy given the comprehensive selection of input and output options provided. Summit Audio designed the connections of the 2BA-221 with creative options in mind.

Another really cool feature is its variable tube output control, which provides access to a huge variety of tones, from clean solid state to rich harmonics and all sorts of variations in between. What a benefit to have one preamp and still have the advantages of many different sounds! The 2BA-221’s single 12AX7A Tube provides rich, warm tone and is easy to find and replace.

The Summit Audio design philosophy considers the entire package when it comes to crafting gear. Special attention was paid to the details of construction and it included many refinements over the years so units are durable enough to handle the rigors of the road. That is one of the reasons why you will find Summit gear on tour with many of today’s top touring acts around the world.

Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.

More +

Product Specs

Dimensions Height:
1.75 inches (4.44 cm)
Width:
8.5 inches (21.59 cm)
Depth:
7.42 inches (21.59 cm)
Weight 7 pounds (3.15 kg)
Power Configuration Internal AC Supply
20 watts, 115, 50 or 60 Hz (USA model)
Fuse size .5 amp, slo-blo for 100/115 V
Fuse size .25 amp, slo-blo at 230 V
Input Impedendance Mic: 1.5K ohms
Hi-Z: 10K-1.75M ohms
Output impedance (XLR) 150 ohms

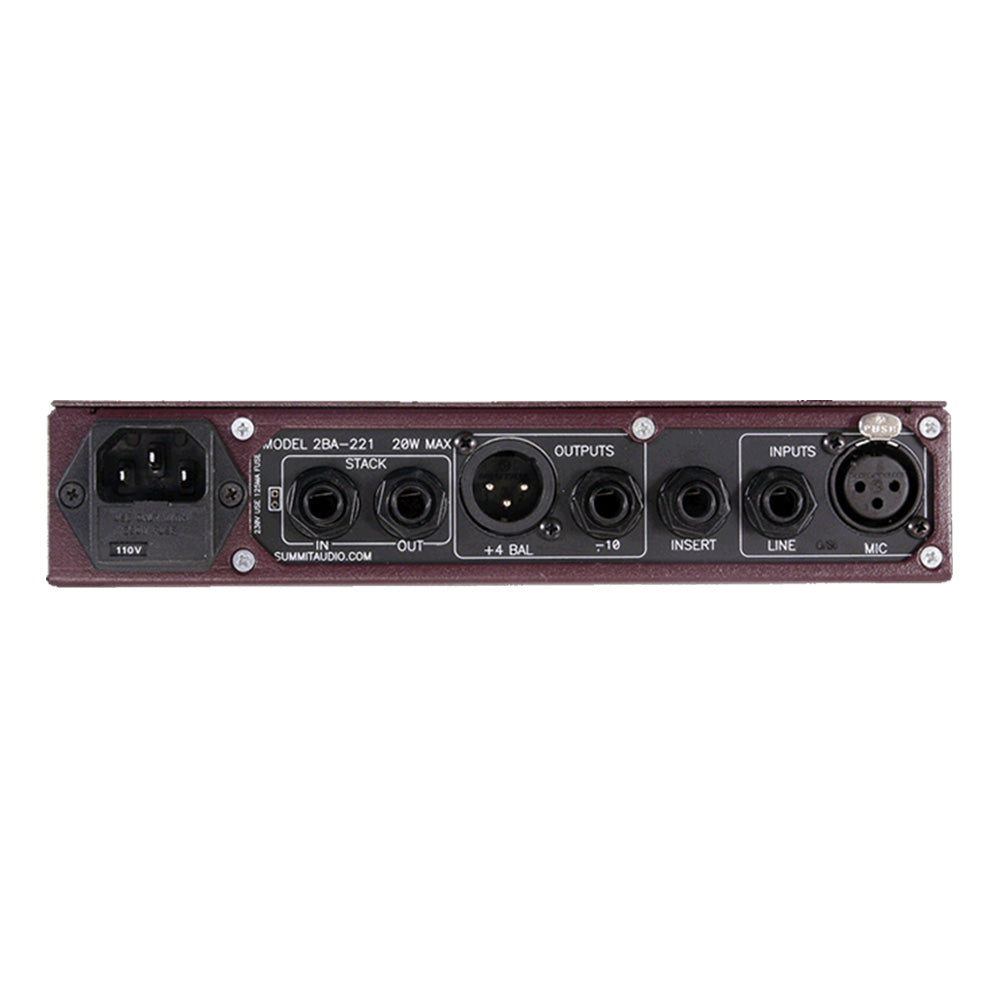

Connections Mic Input: +4 dB female XLR
Line Input: -10 dB 1/4" balanced
Outputs: +4 dB male XLR and 1/4" -10 dB balanced
Stacking Input/Output: -10 dB balanced
Max input level Mic: -16dBu
Line: 22dBu
Hi-Z: 15dBu
Operating Measurements Max output level (XLR): 25dBu
Max gain: 75dB
Equivalent input noise: -135dB average 10Hz-20kHz
Frequency response: 10Hz- 50kHz (-1dB)
Signal to noise ratio: 115dB average 10Hz- 20kHz
THD + Noise: 0.055%, -32dB in +4dB out, 1 kHz
Vacuum tubes 12AX7A
Warranty 3 year limited warranty
