Summit Audio ECS-410 Everest - Tube Channel Strip
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

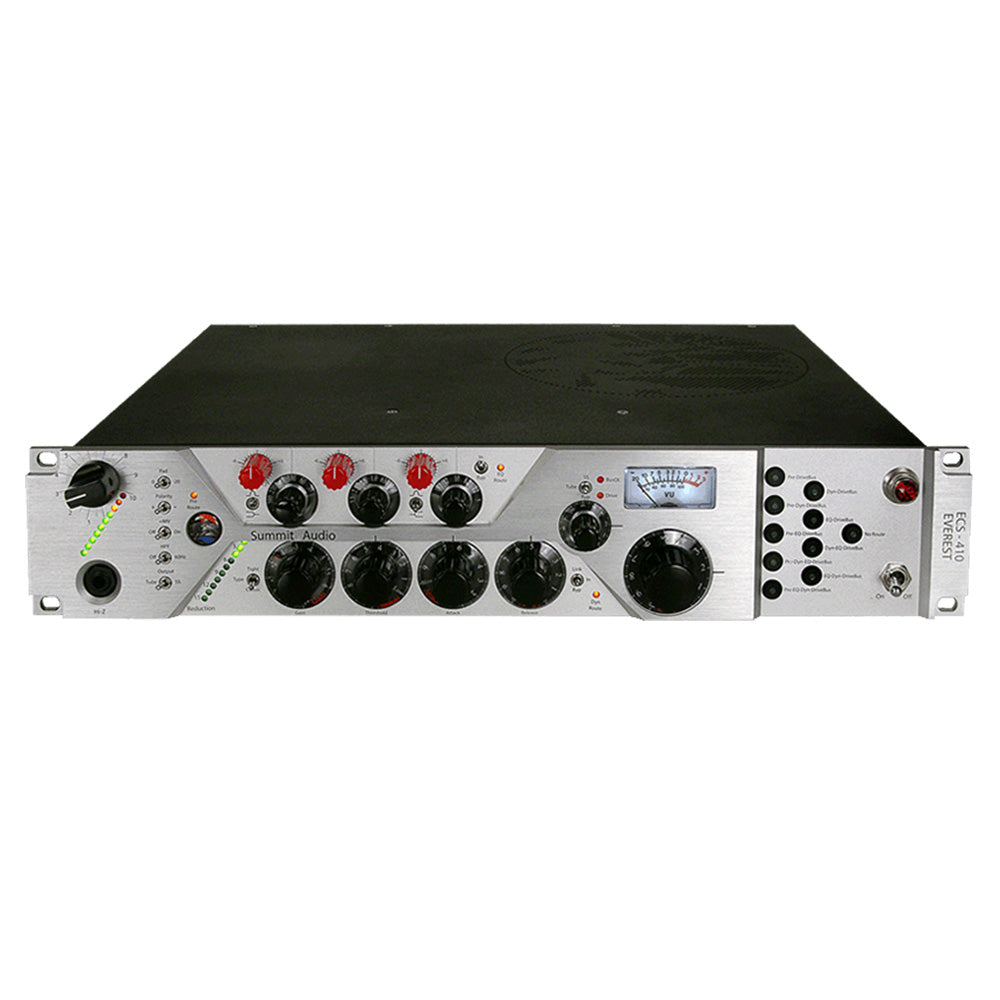

Everest is a state of the art channel strip comprised of four completely independent modules, each with its own fully balanced input and output, and the ability to effortlessly route and reroute each module internally entirely in the analog domain.
-
Mz-2 Mic & Inst. Preamp
The Mz-2 is a spectacular sounding microphone and instrument preamplifier with the ability to switch between tube and solid-state input stages. -
DC-1 Dual Mode Dynamics
The Dc-1 module is an ultra low noise dynamics control section with switchable Classic "soft knee" smooth compression or Tight mode, which provides a much higher compression ratio. -
Fe-1 Passive EQ
The Fe-1 Passive Equalizer offers up three bands of smooth Summit passive tube EQ with fixed frequency select knobs with six settings each. -
Db2 Drive Bus/Output
The Db2 Drive Bus has multiple gain stages for overdriving in either vacuum tube or discrete transistor mode, allowing for all sorts of tonal variation from ultra clean to overdrive.
With the TouchPatch routing system you're in control of your signal path quickly and efficiently. With just the push of a button, you can easily route any combination of the ECS-410 internal modules.

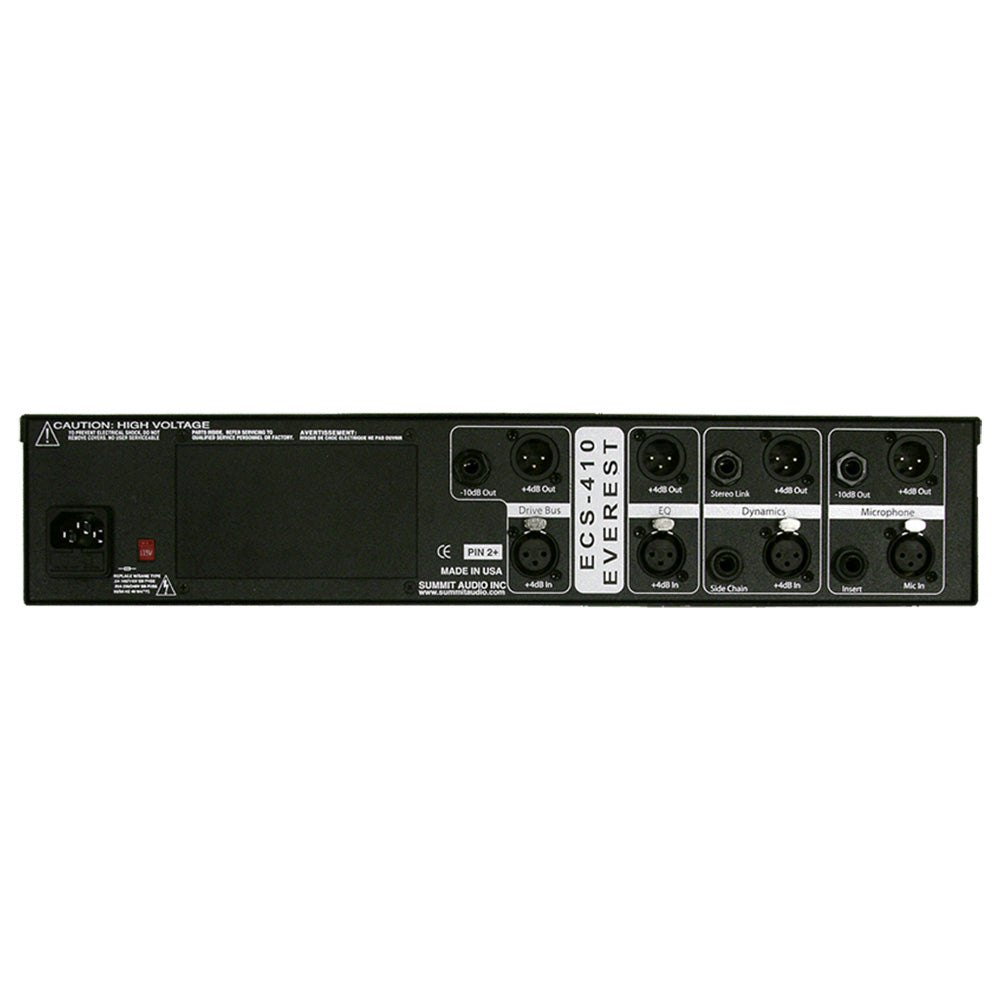

Each section has its own I/O (and in some cases, multiple I/O), so each one can be wired into your patch bay for individual use. Any section not routed internally is ready to be used on its own as if it were a completely independent piece of gear....and all six of Everest's outputs are always on and available, allowing for all sorts of creative routing and patching options.
Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.
Features:
- Tube or Discrete Transistor Mic Preamp w/Jensen Transformer
- Passive LC Equalizer for unparalleled warmth and flavor
- Dual Mode Dynamics using Summit Classic Design
- DriveBus Transistor or Dual Tube Overdrivable Output
- TouchPatch™ Single Touch Routing
- Independent Balanced I/O on All Sections
- Hand Crafted in the U.S.A.
| Dimensions | Height: 3.5 inches (8.89 cm) Width: 19 inches (48.26 cm) Depth: 17 inches (43.18 cm) |
| Weight | 26 pounds (11.79 kg) |
| Power Configuration | Internal AC Supply 100VAC-240VAC (different fuse for 100V, 115V, and 240V) |
| Dc1 Dual Mode Compressor Data | THD+N: (@+4dB, with no compression but |
| Db2- Drive Bus Master Output and Overdrive | THD+N (@+4dB, no cut or boost): Bypass: 0.002% (A weighted), 0.008% (unweighted) Tube: 0.3% to overdrive (unweighted) Solid State: 0.013% to overdrive (unweighted) Frequency Response: Tube 5Hz -> 50kHz +/- 2dB, 5Hz -> 25kHz +/- 0.5dB Solid State 5Hz-> 200kHz +/- 2dB, 5Hz-130kHz +/- 0.5dB Gain: +20dB Type: Tube (12AX7A) or discrete transistor Metering: analog VU output level IO: balanced XLR +4dB in and out, -10dB 1/4" TRS out |
| Mz2 Microphone Preamplifier | Max gain: +60dB (plus 20dB when routed through the Db2 drive bus output) THD+N (@ +30dB): 0.008% (A weighted), 0.01% (unweighted) Max Out: +25dB Frequency Response: Solid State 10Hz-200kHz +/- 3dB; 15Hz-120K +/-0.5dB Tube 15Hz-159K +/-3dB, 0Hz-65Hz +/- 0.5dB Input impedance: 2K ohms Type: Switchable tube (12AX7A) or discrete transistor HPF: 60Hz, 6dB/8va Metering: 10 segment LED Phantom Power +48VDC Pad: -20dB Polarity: 0 or 180 degrees IO: Balanced XLR mic in, front panel 1/4" Hi-Z in, balanced XLR +4dB (nominal) out, 1/4" TRS -10dB (nominal) |
| Fe1- Passive 3 Band Equalizer | THD+N (@+4dB, no cut or boost): (A weighted) 0.009%, (unweighted) 0.025% Frequency Response: 5Hz- 100kHz +/-0.5dB , 5Hz->200kHz +/-3dB Frequencies: Low 33, 60, 100, 150, 270, 390HZ (peak or shelf) Mid peaking bandwidth: 2 octaves High shelf: 6dB/8va, peaking bandwidth 2 octaves IO: balanced XLR +4dB in and out |
| Warranty | 3 year limited warranty |
