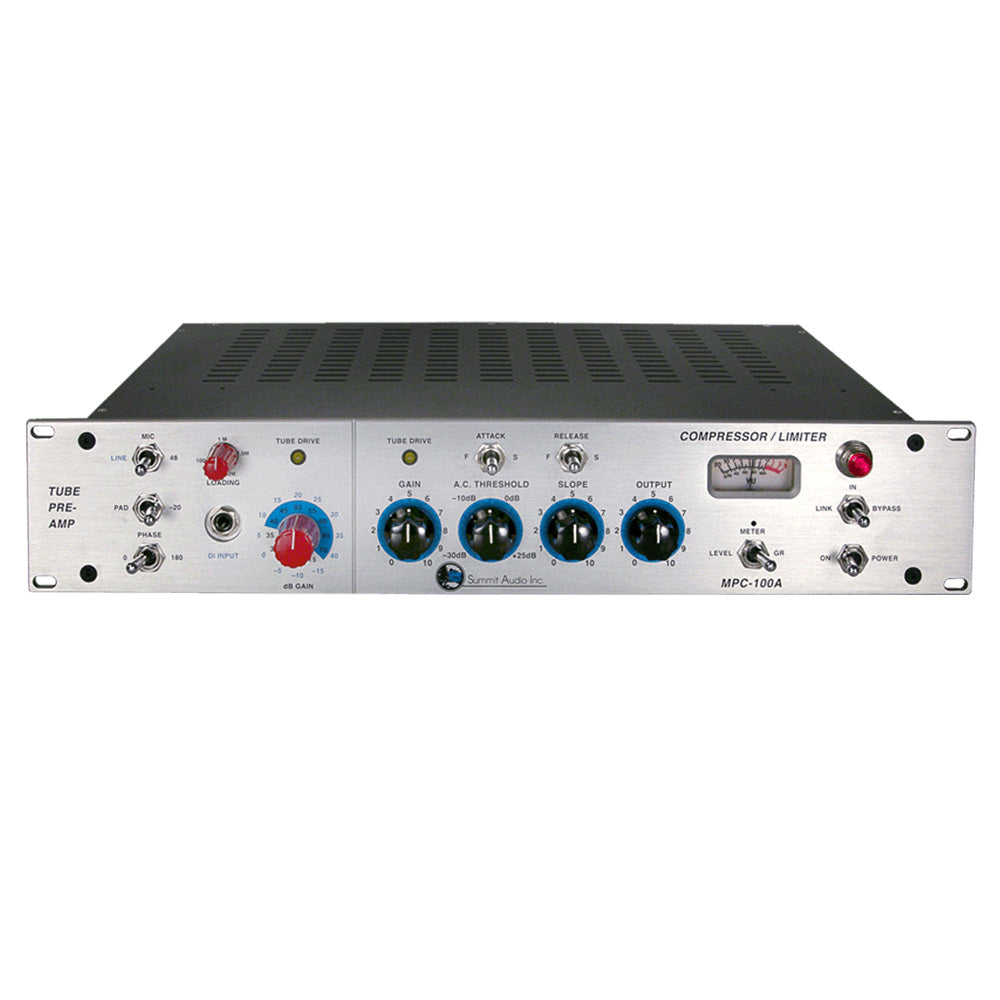

Summit Audio MPC-100A Single Channel Tube Mic Preamp and Compressor


  • Dale #:

    SUMM-MPC100A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The MPC-100A is a tube mic preamp and compressor. Three tube gain stages allow you to create realistic and natural harmonic tone that can help make the often 2 dimensional sound of digital come to life. Clean lines and dedicated, simple to use controls are the key to a great piece of gear. The MP... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The MPC-100A is a tube mic preamp and compressor. Three tube gain stages allow you to create realistic and natural harmonic tone that can help make the often 2 dimensional sound of digital come to life. Clean lines and dedicated, simple to use controls are the key to a great piece of gear. The MPC-100A is an intuitive extension of any studio environment.

The MPC-100A features one of Summit's fastest selectable compressors. Perfect for tracking difficult, transient signals, it has smooth and natural harmonics as you would expect from Summit Audio compression.

Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.

Features:

  • Mic, Line and Hi-Z inputs
  • "Clean" to "Saturated" tube sounds
  • Tube drive indicators
  • Unique Hi-Z instrument DI with impedance matching control
  • Two stages of tube amplification
  • 3 position "smart" attack and release switches
  • High quality true VU meter
  • Continuously variable level control
  • +4 dB balanced and -10 dB unbalanced outputs (useable simultaneously)
  • Stereo linkable to another MPC-100A or TLA-100A
  • Jensen Mic transformer
  • 990, discrete output stages
  • Hand crafted in the USA

More +

Product Specs

Output+4 dBu corresponds to 0 VU. The output is electronically balanced or unbalanced using 990 operational amplifiers. Output impedance is 75 ohms. The recommended output load is 600 ohms or more. Maximum output level is +25dBu
InputThe input is electronically balanced (except Hi-Z input). Input impedance is 20k ohms. Maximum input level is +25dBu.
Panel SizeStandard 19" by 3.5" (two units of rack space).
Depth Behind Panel10.5" in addition to user's 1/0 cabling.
Power35 watts, 115 or 230 volts operation, 50 or 60 Hz.
Components(2) selected 12AX7A vacuum tubes, (2) high reliability 990 discrete, operational amplifiers, (15) integrated circuits, (3) transistors, (2) compression cells.
Shipping Weight18 lbs. (8.17 kg.)
