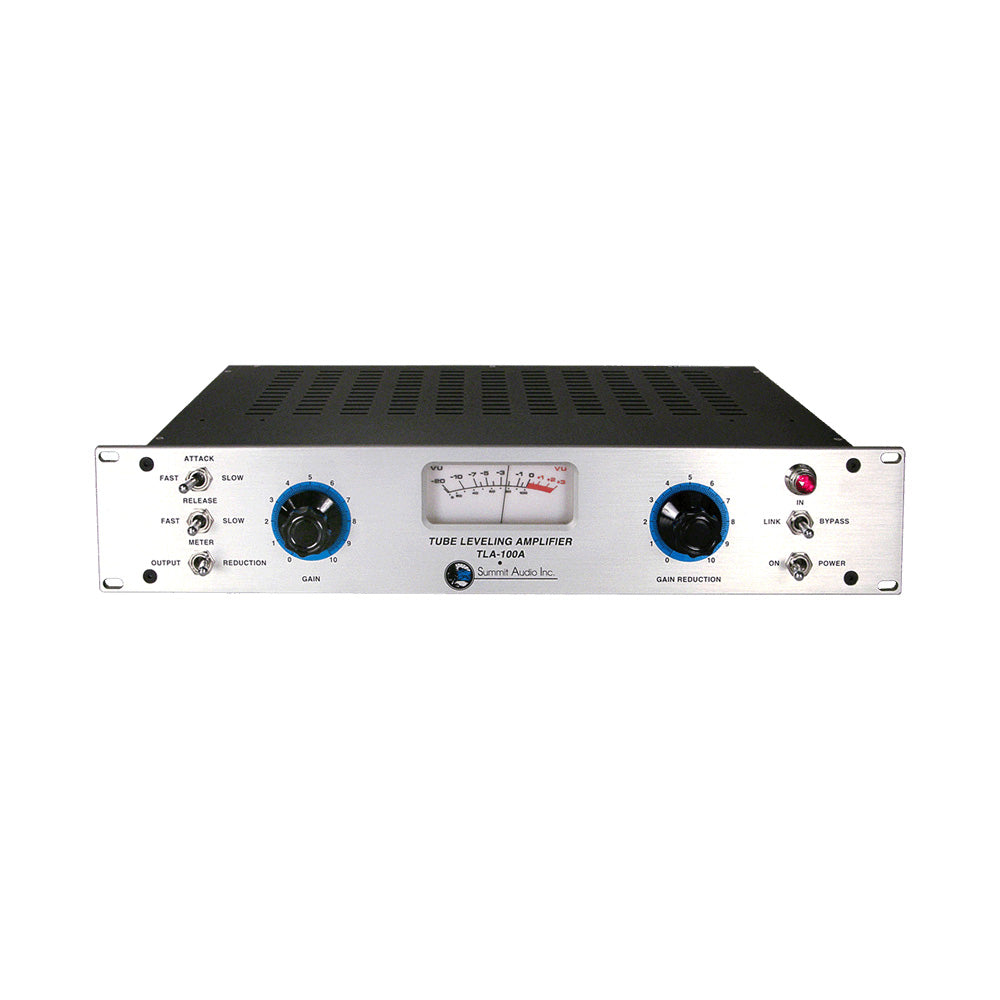

Summit Audio TLA-100A Mono Tube Leveling Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The world-renowned Summit Audio TLA-100A tube leveling amplifier has been regarded as a staple by studio and live engineers around the world for more than a quarter of a century. The main thing that has made the TLA-100A an industry standard since it's introduction in the mid-80s is that it's one of the easiest compressors to use, allowing the focus to remain on the performance...not on the gear. One of the main qualities that makes the TLA-100A so desirable is that it has the smooth program dependent sound of an optical compressor, but is capable of the much faster attack times required for taming fast transients found in source material such as vocals, bass, and drums.
Features:
- EASE OF OPERATION
- "SOFT KNEE" CHARACTERISTIC
- SWITCH SELECTABLE ATTACK AND RELEASE SETTINGS
- SIDE CHAIN ACCESS
- STEREO COUPLING CAPABILITY
- BALANCED INPUT
- 990 BALANCED OUTPUT STAGE
- HAND CRAFTED IN THE USA
| Dimensions | Height: 3.5 inches (8.89 cm) Width: 19 inches (48.26 cm) Depth: 10 inches (25.40 cm) |
| Weight | 17 pounds (7.71 kg) |
| Power Configuration | Internal AC Supply 35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable) Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC |
| Compressor Data | Attack times: 180uS-100mS Release times: 32mS- 1.5S |

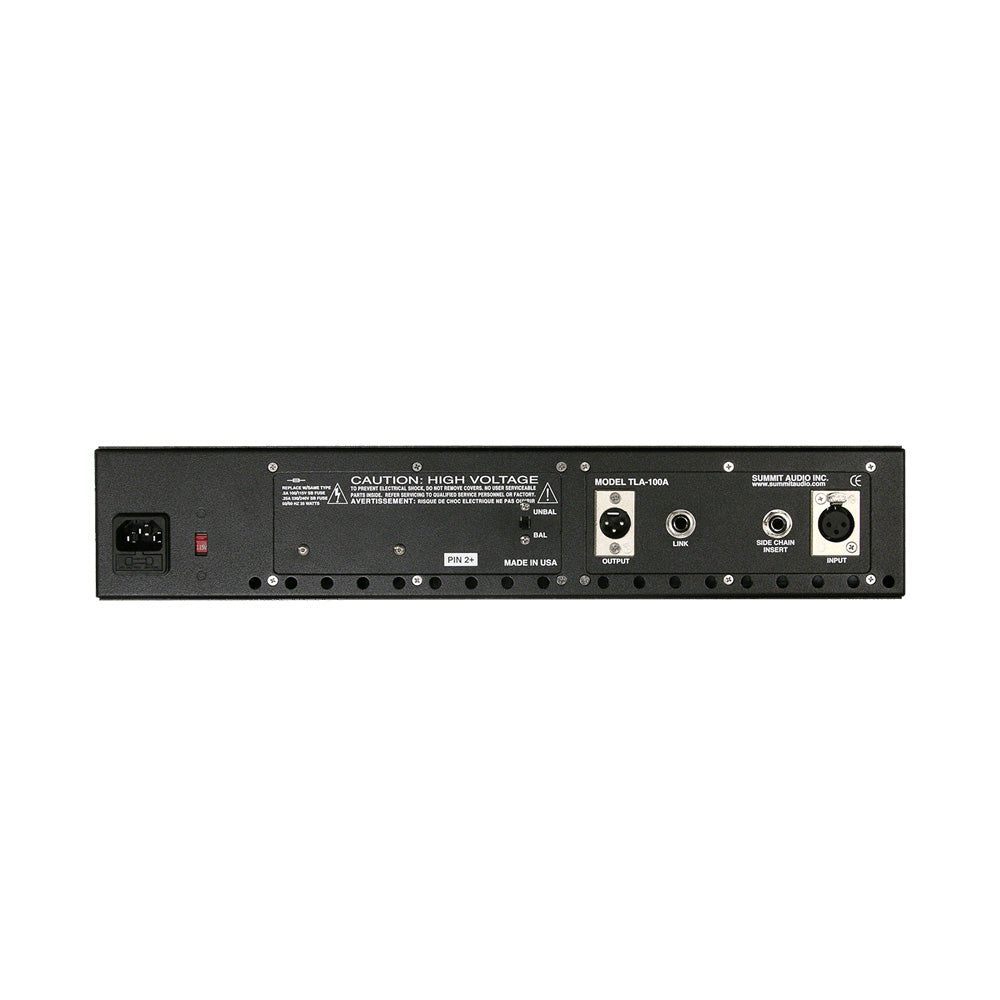

| Connections | Inputs: +4 dB female XLR Outputs: +4 dB male XLR Stereo Link: 1/4" mono Jack Side Chain: 1/4 stereo jack for balanced signal input |
| Max input level | +26dBu |
| Max output level (XLR) | +20dBu |
| Max gain | +34dBu |
| Frequency response | 20Hz- 20kHz +/- 1dB with 5dB compression |
| Signal to noise ratio | 124dB |
| THD + Noise | 0.09% @ 1kHz, 0dB out |
| Dynamic Range | 60dB |
| Vacuum tubes | single 12AX7A |
| Warranty | 3 year limited warranty |
The world-renowned Summit Audio TLA-100A tube leveling amplifier has been regarded as a staple by studio and live engineers around the world for more than a quarter of a century. The main thing that has made the TLA-100A an industry standard since it's introduction in the mid-80s is that it's one of the easiest compressors to use, allowing the focus to remain on the performance...not on the gear. One of the main qualities that makes the TLA-100A so desirable is that it has the smooth program dependent sound of an optical compressor, but is capable of the much faster attack times required for taming fast transients found in source material such as vocals, bass, and drums.
Features:
- EASE OF OPERATION
- "SOFT KNEE" CHARACTERISTIC
- SWITCH SELECTABLE ATTACK AND RELEASE SETTINGS
- SIDE CHAIN ACCESS
- STEREO COUPLING CAPABILITY
- BALANCED INPUT
- 990 BALANCED OUTPUT STAGE
- HAND CRAFTED IN THE USA
| Dimensions | Height: 3.5 inches (8.89 cm) Width: 19 inches (48.26 cm) Depth: 10 inches (25.40 cm) |
| Weight | 17 pounds (7.71 kg) |
| Power Configuration | Internal AC Supply 35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable) Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC |
| Compressor Data | Attack times: 180uS-100mS Release times: 32mS- 1.5S |
| Connections | Inputs: +4 dB female XLR Outputs: +4 dB male XLR Stereo Link: 1/4" mono Jack Side Chain: 1/4 stereo jack for balanced signal input |
| Max input level | +26dBu |
| Max output level (XLR) | +20dBu |
| Max gain | +34dBu |
| Frequency response | 20Hz- 20kHz +/- 1dB with 5dB compression |
| Signal to noise ratio | 124dB |
| THD + Noise | 0.09% @ 1kHz, 0dB out |
| Dynamic Range | 60dB |
| Vacuum tubes | single 12AX7A |
| Warranty | 3 year limited warranty |
