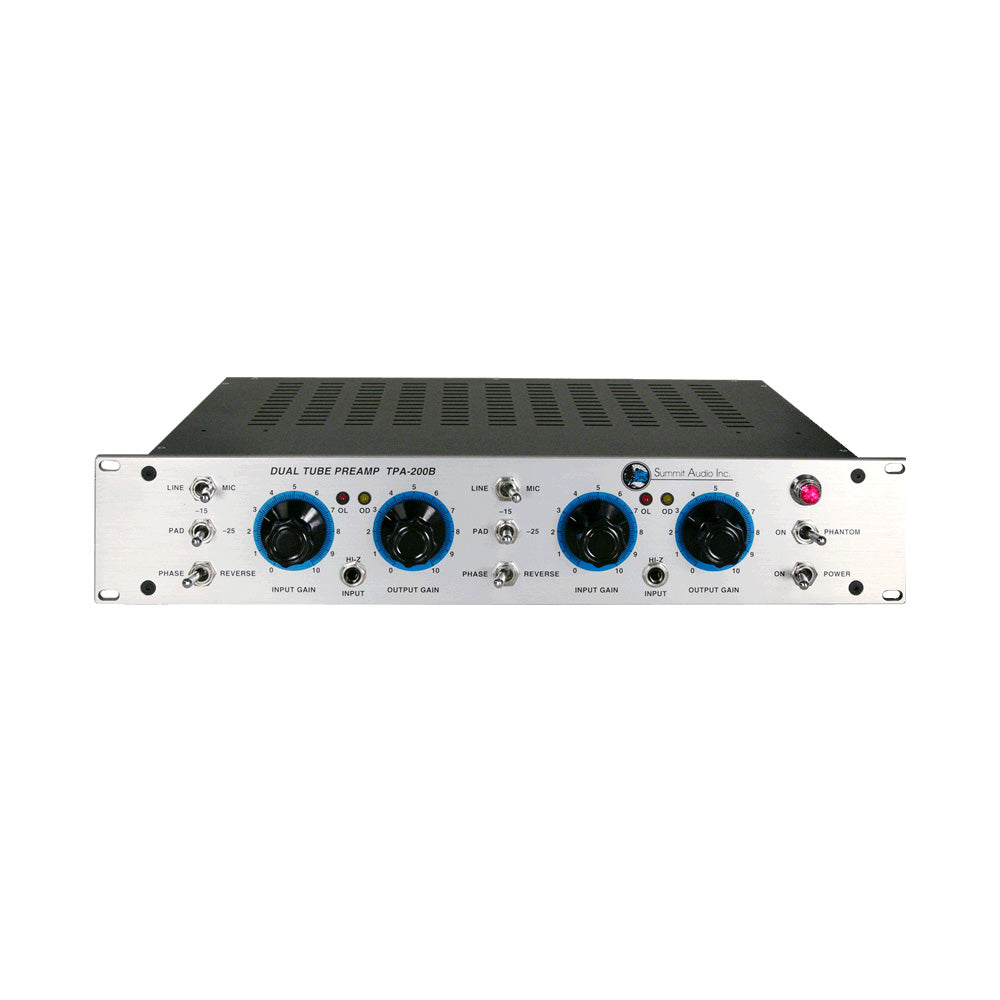

Summit Audio TPA-200B Dual Channel Tube Mic/Instrument Preamplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Summit Audio TPA-200B is an incredibly easy to use dual channel preamplifier marrying a classic tube and transformer front end design with a more modern solid state output stage, resulting in ultra clean gain that really lets the warmth and rich harmonic detail of the tube come through. The TPA-200B allows you to set gain clean and pristine or layer tube input saturation all the way to thick harmonic distortion with all sorts of variations in between. This is the swiss army knife of mic pres! Each of the two channels has its own set of knobs that control input gain and output gain. For cleaner applications, set the input gain lower and the output gain at maximum. For more harmonics and tube distortion, simply increase the input gain while decreasing the output gain to balance the overall signal level.
Each piece of Summit gear is meticulously crafted by hand in their shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.
Features:
- Easy operation
- Controllable sound, continuously variable from "clean" to "overdrive"
- Jensen input transformers
- Line level balanced input
- Mic level balanced input
- Phantom power
- Front panel Hi-Z input
- 990 balanced output stage
- Overload and overdrive indicators
- Polarity reversal
- -15dB and -25dB pads
- Hand crafted in the USA
| Dimensions | Height: 3.5 inches (8.89 cm) Width: 19 inches (48.26 cm) Depth: 10 inches (25.40 cm) |
| Weight | 17 pounds (9.45 kg) |
| Power Configuration | Internal AC Supply 35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable) Fuse: 0.5 Amp for 115VAC and 100VSC, 0.25 AMP for 230 VAC. |
| Input Impedance | Mic: 1.5k½ Hi-Z: 47k½ |
| Output impedance (XLR) | 120½ |
| Connections | Mic Input: +4 dB female XLR (2) |
| Max Input level | Mic: -16dBu Line: 22dBu Hi-Z: 15dBu |
| Max output level (XLR) | 25dBu |
| Max gain | 75dBv |
| Operating Measurements | Equivalent input noise: -135dB average 10Hz-20kHz: Frequency response: 10Hz-50kHz -1dB Signal to noise ratio: 115dB average 10Hz-20kHz THD+ Noise: 0.055% -32dB in +4dB out, 1kHz |
| Vacuum tubes | three 12AX7A |
| Warranty | 3 year limited warranty |
