DALE SKU # SURG-SA15

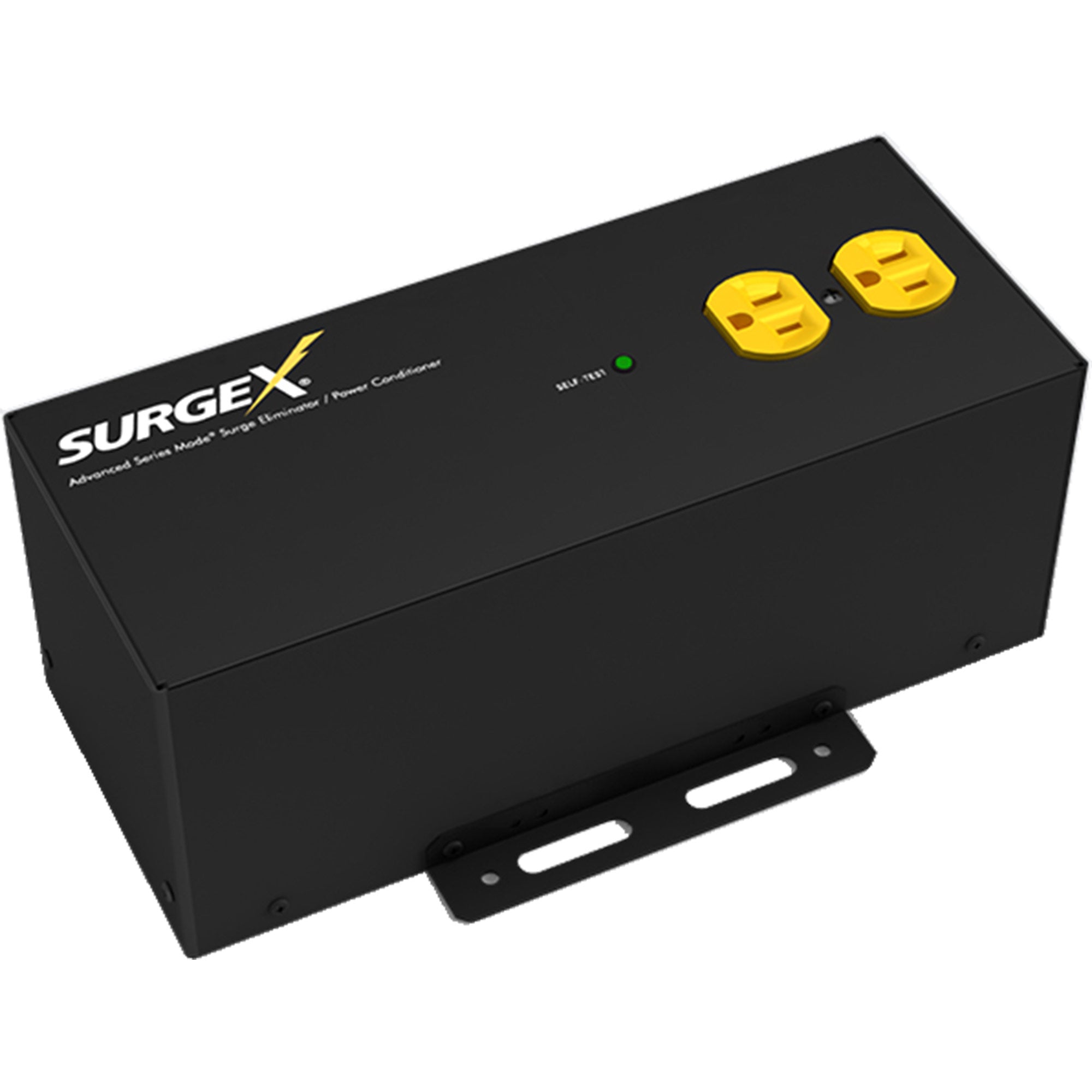

SurgeX SA-15 2 Outlet Surge Protector and Power Conditioner

Sale price$824.60
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    SurgeX SA15 Surge Protector & Power Conditioner With Advanced Series Mode Surge Protection Impedance Tolerant EMI/RFI Filtering

    When fitted with the optional mounting brackets these standalone units easily mount where you need them. The SA-15 is rated for 15 amps and has two industrial grade grounded AC receptacles. The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering for a comprehensive power conditioning solution.

    SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances. The SA-15 is specifically designed to upgrade and improve surge protection for audio, video, broadcast, computer and all sensitive electronic equipment.


    FEATURES

    • Magnetic shielding steel enclosure
    • 9' grounded 3-wire #14 line cord
    • 2 grounded AC receptacles
    • Advanced Series Mode surge protection
    • Advanced Impedance Tolerant EMI/RFI filtering
    • Self-test circuit with visual indicator
    • 10-year warranty
    • Made in U.S.A.
    Load Rating15 amps @ 120 volts
    Power Requirement (no load)10 watts
    Surge Let-Through Voltage (6000-volt surge)0 volts
    UL 1449 Adjunct Classification Test ResultsMeasured suppressed voltage1000 surges, 6000 volts, 3000 amps, B3 pulse, 170 volts, no failures
    Federal GuidelinesGrade A, Class 1, Mode 1 (CID A-A-55818)
    EMI/RFI Filter, Normal Mode (50-ohm load)40 dB @ 100 kHz; 50 dB @ 300 kHz;
    50 dB @ 3 MHz; 50 dB @ 30 MHz
    EMI/RFI Filter, Common Mode (50-ohm load)18 dB @ 300 kHz; 30 dB @ 1 MHz;
    50 dB @ 5 MHz; 50 dB @ 20 MHz
    Maximum Applied Surge Voltage6000 volts*
    Maximum Applied Surge CurrentUnlimited, due to current limiting*
    Maximum Applied Surge EnergyUnlimited, due to current limiting*
    Endurance (C62.41-1991 Category B3 pulses)1 kV>500,000; 3 kV>10,000; 6 kV>1000
    Dimensions4.0 H x 10.2 W x 4.2 D (10.2 x 25.9 x 10.7 cm)
    Weight8.5 lbs (3.8 kg)
    Temperature Range5¼ to 35¼ C
    Humidity Range5% to 95% R.H., non-condensing
    Agency Listings

    ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000)

    *1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41
