Description

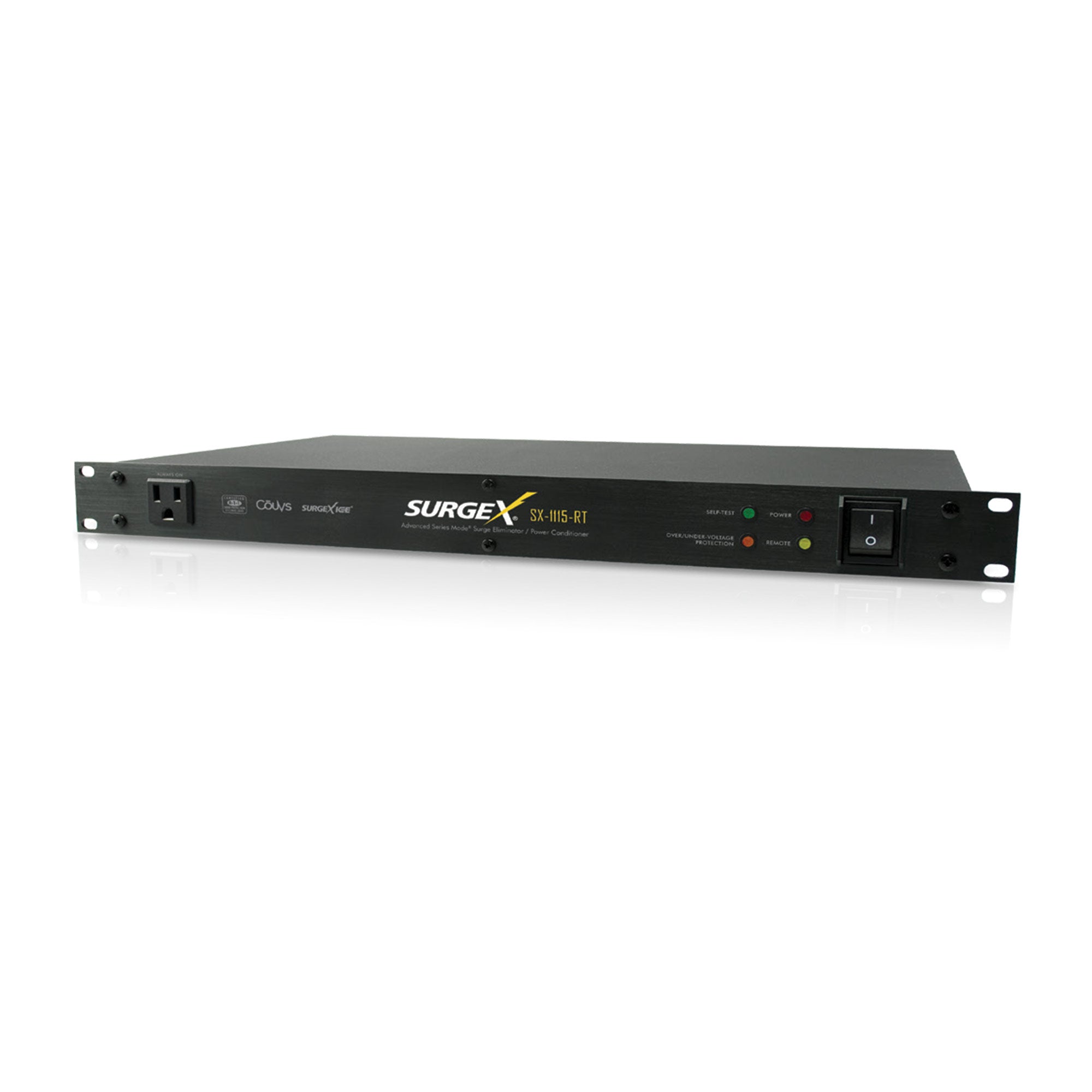

The SX1115RT provides guaranteed surge protection and power conditioning for audio, video, broadcast and computer equipment. The units are 15-amp load-capable and have 8 industrial grade grounded AC receptacles (6 switched, 2 always on) plus a front panel courtesy receptacle.
The unit features both common mode and normal mode Impedance Tolerant EMI/RFI filtering, SurgeX ICE -Inrush Current Elimination and COUVS -Catastophic Over/Under Voltage Shutdown for a complete power conditioning solution.
SurgeX Advanced Series Mode technology is superior to conventional MOV circuitry or MOV-Hybrid designs and is completely non-sacrificial. Our zero let-through technology provides the most reliable protection available. It stops all surges up to 6,000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances
Features:
- Magnetic shielding steel enclosure
- 9' grounded 3-wire #14 line cord

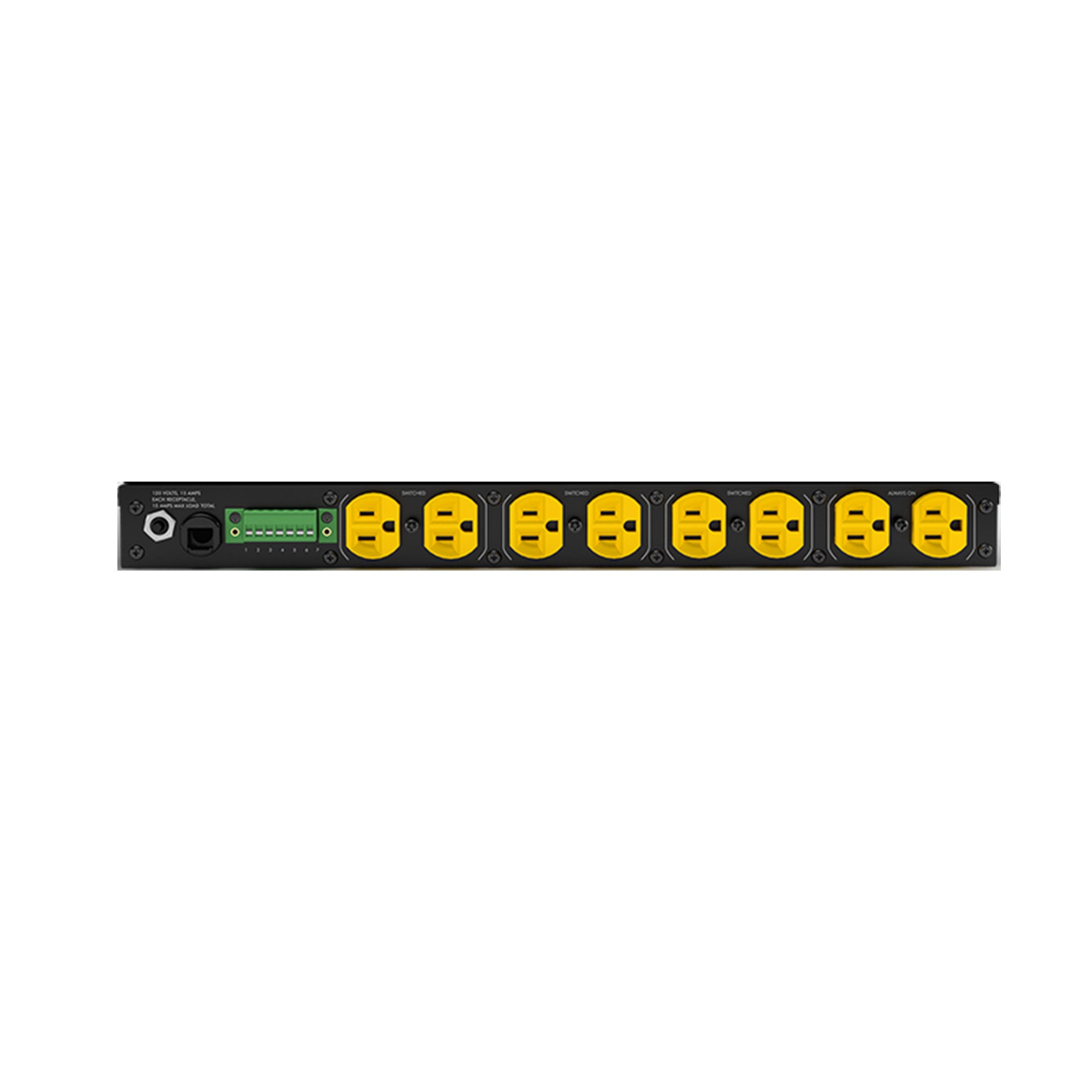

- 8 grounded AC outlets on rear panel (6 switched,
2 always on) - Front panel courtesy receptacle
- Advanced Series Mode surge protection
- Advanced Impedance Tolerant EMI/RFI filtering
- SurgeX ICE inrush current elimination technology
- COUVS catastrophic over/under-voltage shutdown
- Remote turn-on
- Thermal circuit breaker overload protection
- Self-test circuit with visual indicator
- 10-year warranty
- Made in U.S.A.
Switched receptacles can be controlled with an applied voltage (5-30 vdc) or contact closure switch connected to the Phoenix connector on the back panel. The connector can also be used to cascade multiple units or provide status to a central controller.
Load Rating | 15 amps @ 120 volts |
Power Requirement (no load) | 15 watts |
Surge Let-Through Voltage (6000-volt surge) | 0 volts |
UL 1449 Adjunct Classification Test Results | 1000 surges, 6000 volts, 3000 amps, B3 pulse |
Federal Guidelines | Grade A, Class 1, Mode 1 (CID A-A-55818) |
EMI/RFI Filter, Normal Mode (50-ohm load) | 40 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 3 MHz; 50 dB @ 30 MHz |
EMI/RFI Filter, Common Mode (50-ohm load) | 18 dB @ 300 kHz; 30 dB @ 1 MHz; 50 dB @ 5 MHz; 50 dB @ 20 MHz |
Maximum Applied Surge Voltage | 6000 volts* |
Maximum Applied Surge Current | Unlimited, due to current limiting* |
Maximum Applied Surge Energy | Unlimited, due to current limiting* |
Endurance (C62.41-1991 Category B3 pulses) | 1 kV>500,000; 3 kV>10,000; 6 kV>1000 |
Undervoltage Shutdown | 90 Volts |
Overvoltage Shutdown | 145 Volts |
Maximum Load Inrush Current During Power-up | 1000 Joules |
Remote Turn-on Applied Voltage Range | 5 to 30 volts DC |
Remote Turn-on Current Draw | Contact Closure: 1.5 mA 5 V DC Applied Voltage: 0.1 mA 12 V DC Applied Voltage: 1.5 mA 24 V DC Applied Voltage: 5.0 mA |
Auxiliary Relay Output | 1 amp, 30 Vdc |
LED Output | 12 volts DC, maximum 20 mA (resistor required) |
Dimensions | 3.5" H x 19.0" W x 10.5" D (8.9 x 48.3 x 26.7 cm) |
Weight | 16 lbs (7.3 kg) |
Temperature Range | 5¼ to 35¼ C |
Humidity Range | 5% to 95% R.H., non-condensing |
Agency Listings | ETL and cETL (UL 1449, 2nd edition; CSA C22.2 No.8-M1986, R2000) |
*1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41 |
