Symetrix 80-0062 - 4-Channel Analog Input Card for Edge or Radius Series
Sale price$692.00
Description

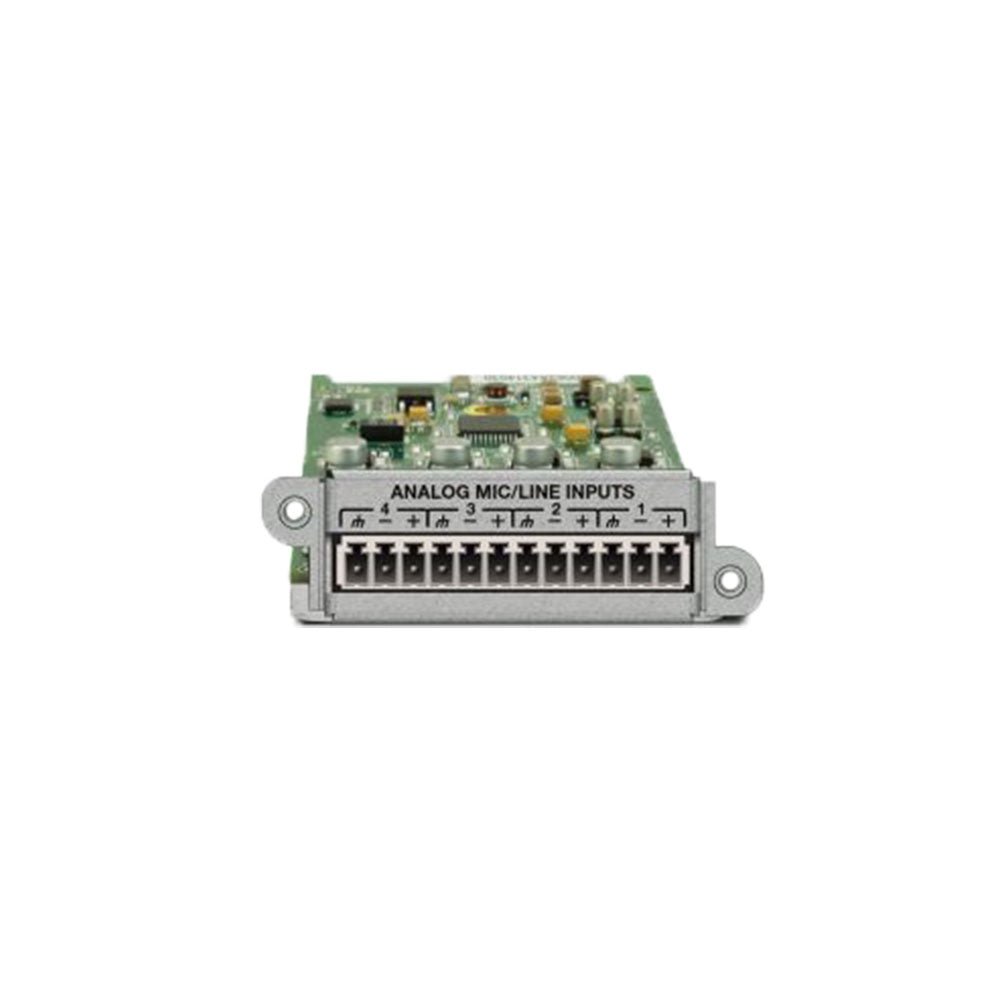

Four-channel analog input module for the Edge or Radius processors.
Features:
- Mic and/or line level inputs.
- 4 channels per card.
- +48v phantom power @10mA.
- Signal matching. 5 analog gain settings with +/-24dB of digital trim.
- Extended dynamic range A/D converters. over 115 dB.
- Easy wiring. 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs
- Field swappable by qualified technicians.
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Connectors | 3.81 mm terminal blocks. |
| Nominal Input Level | +4 dBu with 20 dB of headroom. |
| Maximum Input Level | +23 dBu |
| Mic Pre-amp Gain | 0, 11.8, 24, 44 or 54 dB switchable with ± 24 dB trim. |
| Mic Pre-Amp EIN | < -127dB with 150 Ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom Power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic Range | > 115 dB, A-weighted. |
| THD + Noise | < -94 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS |
| Shipping Weight | 1 lbs. (0.45 kg) |
| Certifications or Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
Four-channel analog input module for the Edge or Radius processors.
Features:
- Mic and/or line level inputs.
- 4 channels per card.
- +48v phantom power @10mA.
- Signal matching. 5 analog gain settings with +/-24dB of digital trim.
- Extended dynamic range A/D converters. over 115 dB.
- Easy wiring. 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs
- Field swappable by qualified technicians.
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Connectors | 3.81 mm terminal blocks. |
| Nominal Input Level | +4 dBu with 20 dB of headroom. |
| Maximum Input Level | +23 dBu |
| Mic Pre-amp Gain | 0, 11.8, 24, 44 or 54 dB switchable with ± 24 dB trim. |
| Mic Pre-Amp EIN | < -127dB with 150 Ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom Power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic Range | > 115 dB, A-weighted. |
| THD + Noise | < -94 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS |
| Shipping Weight | 1 lbs. (0.45 kg) |
| Certifications or Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
