Description

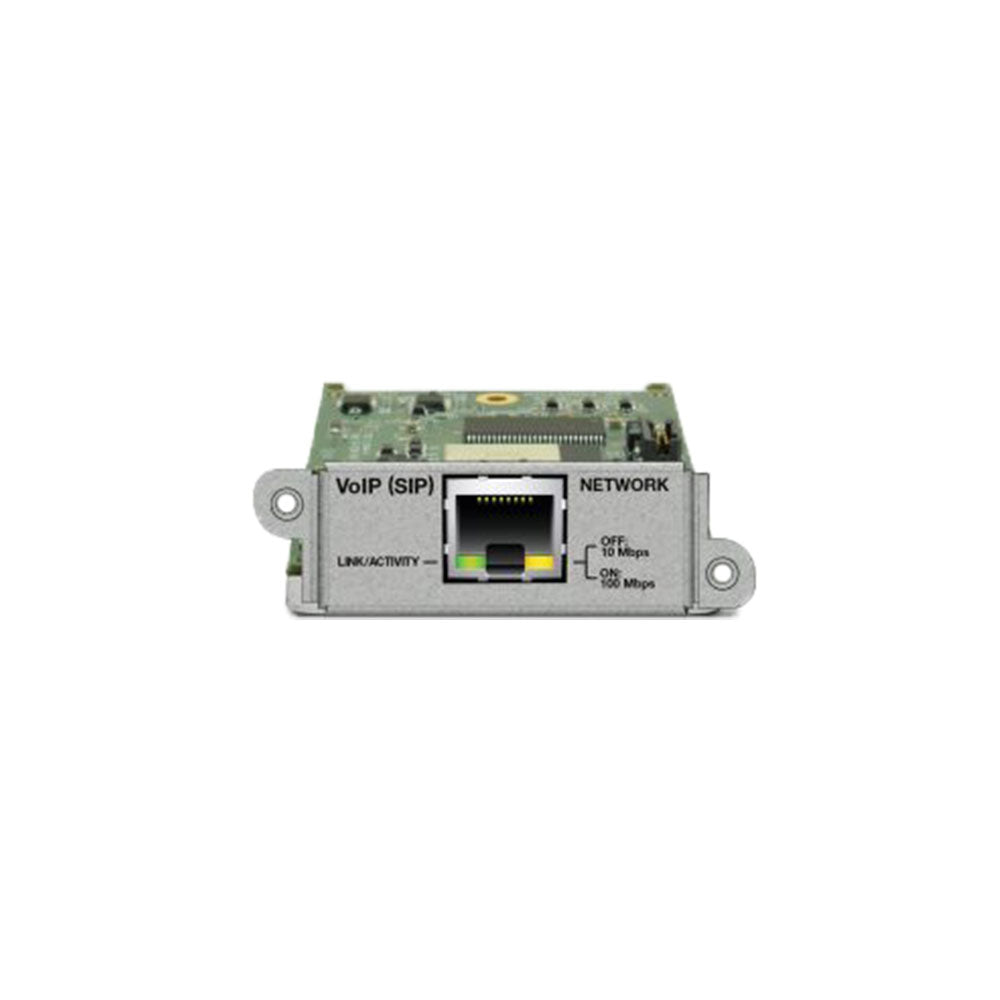

Two-line VoIP telephone interface card for the Edge or Radius processors.
Features:
- Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
- A diversity of applications – well suited for conferencing, paging, remote monitoring, and broadcast.
- Best-in-class deployment and administration – easy to deploy and manage. The intuitive configuration software is accessible from both the AV and VoIP LANs giving AV integrators and IT/VoIP administrators easy access for configuration and maintenance.
- Market-leading open standards interoperability – designed for enhanced interoperability while leveraging and complementing existing IT investments, the card delivers high-definition voice quality and a superior unified communications experience.
- Multiple Control Options – SymVue application builder and extensive third-party control support allow for intuitive end-user operation while reducing the amount of time needed to develop application specific user interfaces. An expanded series of Crestron certified control modules, including a VoIP Dialer Module, can be found in the Crestron Application Market.
| Connector | RJ45 |
| Ethernet Cable | Standard CAT5, maximum device to device length = 100 meters. |
| Ethernet Interface | 10/100 Base-T. |
| Shipping Weight | 1 lbs. (0.45 kg) |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS, WEEE. |
| What Ships in the Box | SymNet I/O card, card bracket, 2 black 4-40 Phillips head screws, 3 stainless steel 4-40 Phillis head screws, a quick start guide. Field swappable by certified technicians. |
Two-line VoIP telephone interface card for the Edge or Radius processors.
Features:
- Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
- A diversity of applications – well suited for conferencing, paging, remote monitoring, and broadcast.
- Best-in-class deployment and administration – easy to deploy and manage. The intuitive configuration software is accessible from both the AV and VoIP LANs giving AV integrators and IT/VoIP administrators easy access for configuration and maintenance.
- Market-leading open standards interoperability – designed for enhanced interoperability while leveraging and complementing existing IT investments, the card delivers high-definition voice quality and a superior unified communications experience.
- Multiple Control Options – SymVue application builder and extensive third-party control support allow for intuitive end-user operation while reducing the amount of time needed to develop application specific user interfaces. An expanded series of Crestron certified control modules, including a VoIP Dialer Module, can be found in the Crestron Application Market.
| Connector | RJ45 |
| Ethernet Cable | Standard CAT5, maximum device to device length = 100 meters. |
| Ethernet Interface | 10/100 Base-T. |
| Shipping Weight | 1 lbs. (0.45 kg) |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS, WEEE. |
| What Ships in the Box | SymNet I/O card, card bracket, 2 black 4-40 Phillips head screws, 3 stainless steel 4-40 Phillis head screws, a quick start guide. Field swappable by certified technicians. |
