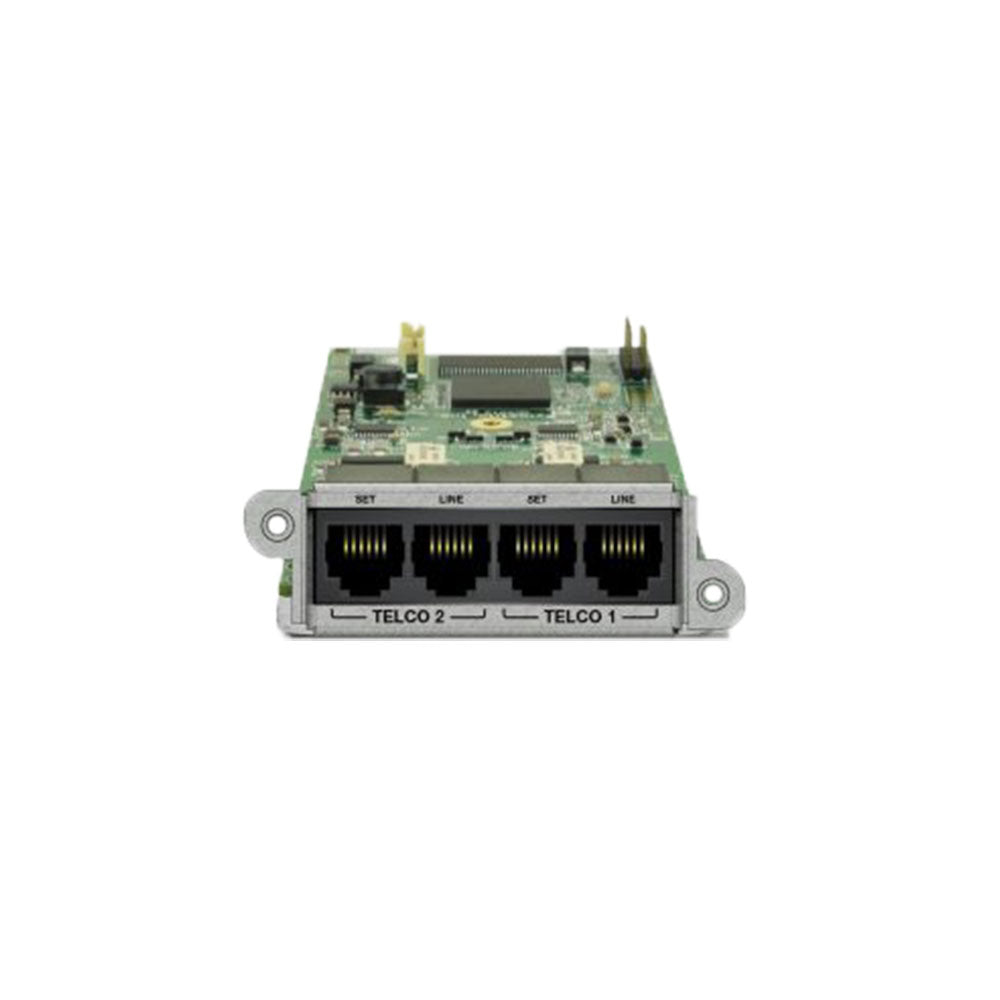

Symetrix 80-0066 - 2-Channel POTS Interface Card for Edge or Radius Series
DALE SKU # SYME-800066

Symetrix 80-0066 - 2-Channel POTS Interface Card for Edge or Radius Series

Contact us

  • Availability:

    Special Order Item

  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

    • LET OUR TEAM OF EXPERTS ASSIST YOU

    Call Us Chat With Us

    Description

    Two-line analog telephone interface card for the Edge or Radius processors.

    Features:

    • 2 PSTN (POTS) lines – telco connections via RJ11.
    • Multiple applications – teleconferencing, paging, remote monitoring, broadcast.
    • Deskset functionality – answer, dial, redial, speed-dial, ignore (DND), decode (DTMF), ID callers, detect progress, monitor line status and faults, + more.
    • Compliance – EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47-CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).
    • Field swappable by qualified technicians.
      Note: The 2 Line Analog Telephone Interface Card is only for use in North America at this time.
    Telco “Line” Connector RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX.
    Telco “Set” Connector RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX. Note: Relay bridged to Line port with option in software to isolate based on hook status.
    Frequency Response 250 Hz to 3.3 kHz ±1.0 dB.
    THD+Noise < 0.3%.
    Signal to Noise Ratio > 62 dB.
    LEC Tail Time 32 mS.
    Null 55 dB nominal.
    Compliance G.165, G.168 compliant.
    Tx Level -10.0 dBm RMS average; +3.2 dBm maximum.
    Rx Level -10.0 dBm RMS average; +3.2 dBm maximum.
    Transhybrid Loss > 48 dB with LEC enabled.
    Ringer Equivalency Number 0.0 dB.
    Shipping Weight 1 lbs. (0.45 kg).
    Certifications or Compliance EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47 CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).

    Two-line analog telephone interface card for the Edge or Radius processors.

    Features:

    • 2 PSTN (POTS) lines – telco connections via RJ11.
    • Multiple applications – teleconferencing, paging, remote monitoring, broadcast.
    • Deskset functionality – answer, dial, redial, speed-dial, ignore (DND), decode (DTMF), ID callers, detect progress, monitor line status and faults, + more.
    • Compliance – EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47-CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).
    • Field swappable by qualified technicians.
      Note: The 2 Line Analog Telephone Interface Card is only for use in North America at this time.
    Telco “Line” Connector RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX.
    Telco “Set” Connector RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX. Note: Relay bridged to Line port with option in software to isolate based on hook status.
    Frequency Response 250 Hz to 3.3 kHz ±1.0 dB.
    THD+Noise < 0.3%.
    Signal to Noise Ratio > 62 dB.
    LEC Tail Time 32 mS.
    Null 55 dB nominal.
    Compliance G.165, G.168 compliant.
    Tx Level -10.0 dBm RMS average; +3.2 dBm maximum.
    Rx Level -10.0 dBm RMS average; +3.2 dBm maximum.
    Transhybrid Loss > 48 dB with LEC enabled.
    Ringer Equivalency Number 0.0 dB.
    Shipping Weight 1 lbs. (0.45 kg).
    Certifications or Compliance EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47 CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).
