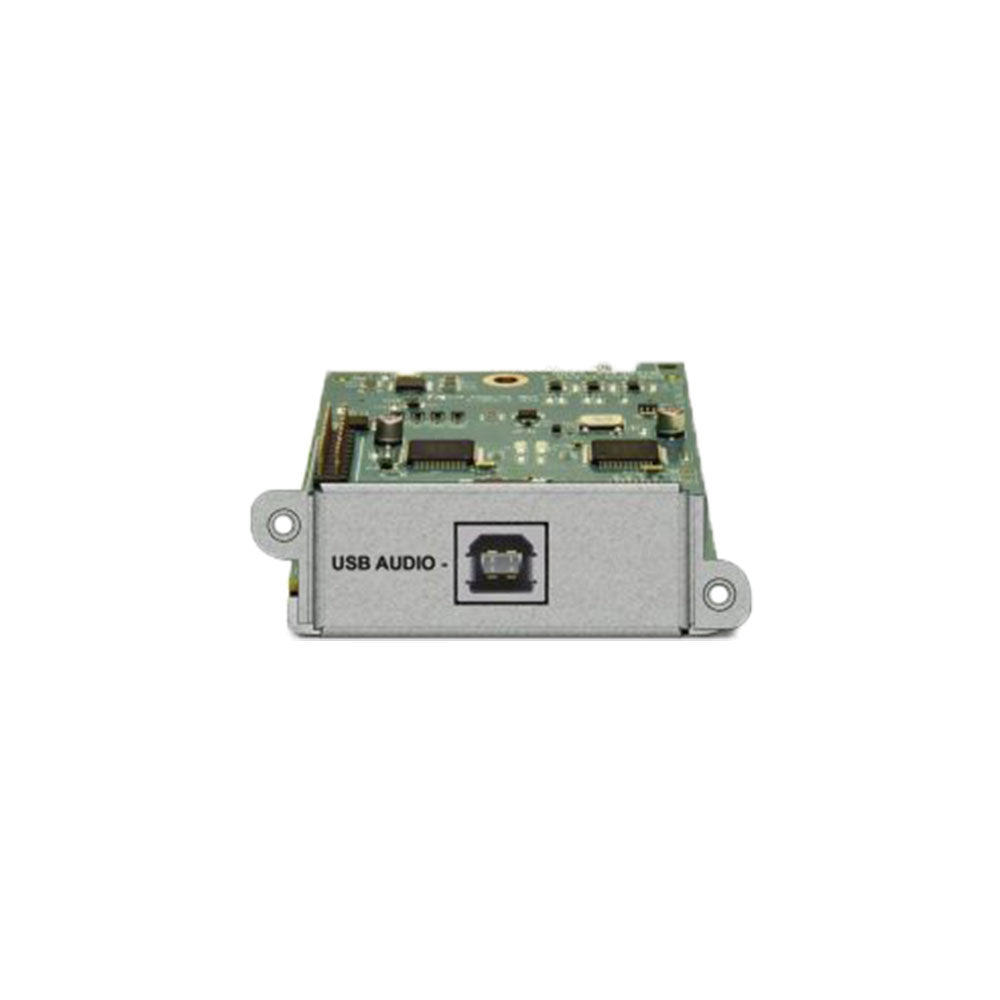

Symetrix 80-0132 - USB Audio Card for Edge or Radius Series
Sale price$742.00
Description
16-channel USB audio interface expansion for the Radius or Edge series audio network processors.
Features:
- Adds up to 16 channels of USB audio I/O to a Radius DSP, or up to 64 channels to an Edge DSP, bridging computer-based soft codecs or recording and playback software to the expansive Dante™ network audio ecosystem.
- Multiple distinct modes of operation including two speakerphone modes for conferencing, along with a 2×2 and 8×8 line I/O mode for multitrack recording and playback.
- Speakerphone and 2×2 line modes are class 1 USB (driverless) for quick and problem free plug-and-play connectivity and provide the ability to utilize a soft codec's AEC or disable it in favor of Symetrix' award-winning AEC.
- 8×8 line I/O mode utilizes Class 2 USB. Windows drivers are included.
- A high-retention Type B USB connection provides a robust and standard direct connection between the DSP and computer.
| Interface | 2.0 |
| Class | Audio Device Class 1.0 and 2.0. |
| Mode | Speakerphone (disable Computer AEC) 1x1, Speakerphone (allow Computer AEC) 1x1, Line 2x2, or Line 8x8. |
| Connector | One (1) high-retention Type B female. |
| Sample Rate | Internally 48 kHz. Externally, 48 KHz in legacy modes (speakerphones, 2x2), 16 KHz to 96 KHz in 8x8 mode. |
| Bit Depth | 16-bit in legacy modes (speakerphones, 2x2), 16 or 24-bit in 8x8 mode. |
| Environmental | Environmental specifications same as hosting unit. |
| Inputs | Gain, Invert, Mute, Meter, Channel Name. |
| USB Status | Connected, Streaming (Active). |
| Outputs | Gain, Mute, Meter, Channel Name. |
| Shipping Weight | 1 lbs. (0.45 kg). |
| Certifications or Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
| Form Factor | Standard Symetrix DSP I/O card form factor. |
| What Ships in the Box | Symetrix I/O card, card bracket, 2 black 4-40 Phillips head screws, 3 stainless steel 4-40 Phillis head screws, a quick start guide. Field swappable by certified technicians. |
