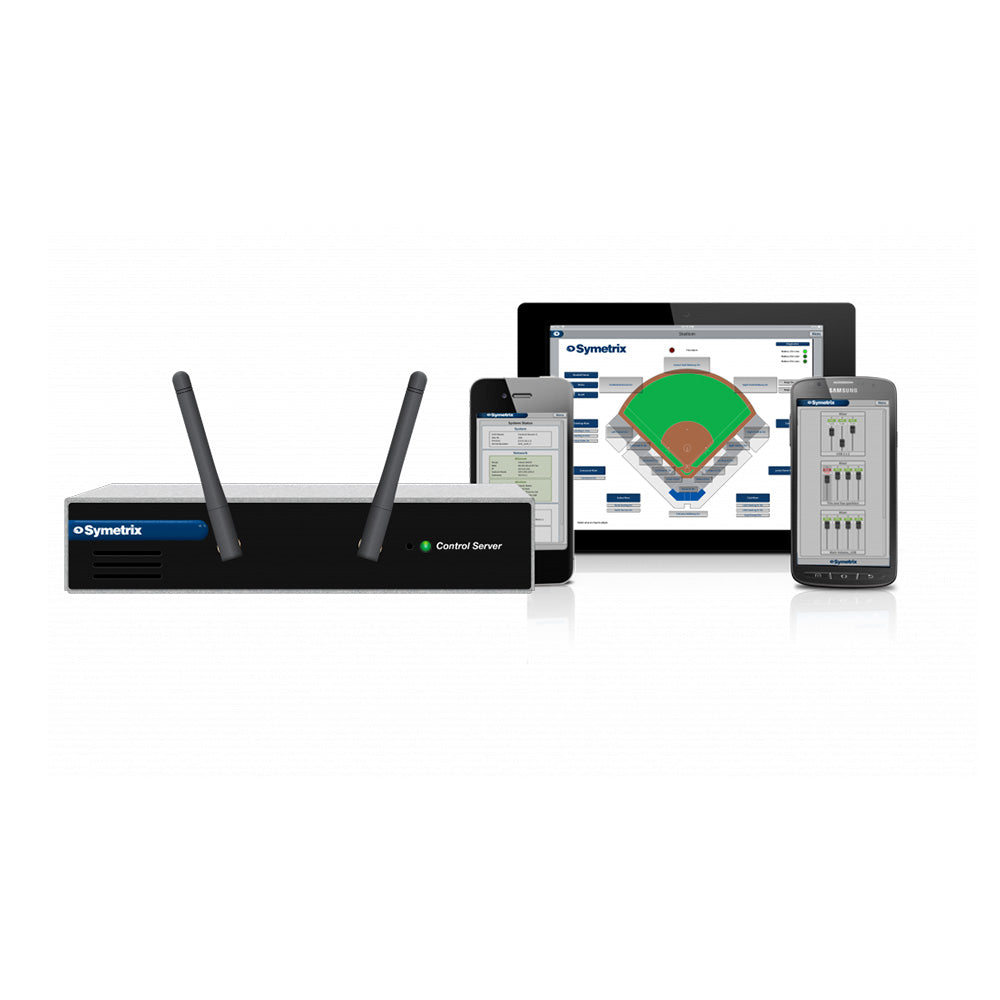

Symetrix Control Server - AV System Web Controller with Access Point


  • Dale #:

    SYME-800119
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Control Server is a flexible and extensible approach to the control of Symetrix Composer-enabled DSPs and select third-party AV components. The centralized server-based technology enables comprehensive design, deployment, and maintenance of large and sophisticated systems employing numerous contr... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Control Server is a flexible and extensible approach to the control of Symetrix Composer-enabled DSPs and select third-party AV components. The centralized server-based technology enables comprehensive design, deployment, and maintenance of large and sophisticated systems employing numerous control endpoints supporting multiple simultaneous users.

Features:

  • A web services platform for AV control.
  • Programmed using Composer software.
  • Built-in wireless and wired connectivity.
  • Browser-based administration and control.
  • Serves BYOD computers, tablets, and phones.
  • WI-FI access makes for a secure AV control island.


Wired and wireless network interfaces.
Control Server's wired Gigabit Ethernet port enables control via dedicated AV or general purpose facility networks, as well as direct communication with networked DSP hardware. Operating in wireless mode, Control Server functions as an access point providing mobile device connectivity - in essence providing a secure "AV control island".

Straight-forward Setup and Deployment.
Control Server is designed into a system using Composer - Symetrix' award winning open-architecture application. Composer is used to locate and program Control Server and other Symetrix DSPs and accessories. Control Server's browser-based administration is then used to manage app licenses, users, and user access.

SymVue for Control Server.
Award winning SymVue running on Control Server hardware makes possible robust deployment and maintenance of large scale systems by supporting numerous and diverse browser-based endpoints under the control of multiple simultaneous users.

Mixer for Control Server.
Mixer supports up to 32 virtual channel strips, each with an assignable fader and a mute button, and dynamic screen-sizing and orientation. Mixer can be used on virtually any mobile device. Users can group and hide channels, assign custom labels and colors, and adjust fader resolution and travel. Multi-touch functionality makes possible simultaneous adjustment of multiple faders, just like a physical mixer. A Mixer instance can be saved to a smart device's home page for instant access, appearing as a native app. Multiple users can operate the same instance, and user access control can be provided via username and password security for each user.

Benefits of the "App" Model.
Because apps are virtual, they serve to reduce overall system costs by cutting down on hardware requirements. Unlike Control Server apps, functionally equivalent hardware products are expensive and prone to wear, tear, and failure.

Unlimited Programming Flexibility.
Control Server is programmed using Composer - Symetrix' award winning open-architecture programming application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware - thereby eliminating the confusion of multiple or redundant software applications.

More +

Product Specs

System
Processor Intel® 64 Architecture Chipset.
Ethernet Cable Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.
Maximum Devices Per System 80 units per Site File.
Maximum Stored Presets 1000.
Mechanical Specifications
Space Required Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include antenna or connector allowance. Allow at least 3 inches additional clearance for front and rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Electrical 12 VDC @ 2.5 A, 30 Watts Maximum. Symetrix part number 12-0036, CUI part number SMI36-12-V-P6.
Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Certifications or Compliance SAFETY: UL/CSA/EN 60065. EMC: FCC 15.107, FCC 15.109, ICES-003, EN 300 328 V2.1.1, EN 301 489-17 v3.1.1, EN 301 893 V2.1.1, EN 55103-2, EN 55032, EN 61000-4-5, EN 61000-3-2. ENVIRONMENTAL: RoHS. FCC: Part 15 Subpart C, Subpart E (UNII-1/2/2Ext/3). ID: N6C-SXPCEAN2. JAPAN RADIO LAW (MIC): Rule Article 2 Section 1 Number 19, Rule Article 2 Section 1 Number 19-3, Rule Article 2 Section 1,Number 19-3-2. Certification Number: 007-AC0271.
Shipping Weight 5.2 lbs. (2.4 kg).
Peripheral Connectivity
Ethernet Integrated Intel® 10/100/1000 Network Connection.
Wi-Fi IEEE 802.11a/b/g/n.
USB Two Hi-Speed USB 2.0 ports.
Wi-Fi
Chipset Atheros XSPAN family with SST3™, with increased link rate by 100% at short range, 50% at mid-range and 25% at long range.
Type IEEE 802.11n compliant and backward compatible with 802.11a/b/g.
Frequency Simultaneous dual-band 2.4 GHz and 5 GHz with Dynamic Frequency Selection (DFS). IEEE 802.11 b/g/n: 2.412-2.462 GHz. IEEE 802.11a/n: 5.18-5.24 + 5.745-5.825 GHz (US) 5.18-5.24 GHz (Europe ETSI).
Data Transfer Rates Up to 300 Mbps.
Radio Data Rates Auto rate sensing.
Enhancements Dual-band 2x2 spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC), maximum ratio combining (MRC), space time block code (STBC) and Tx beamforming (TxBF).
Antennae Two RP-SMA (reverse-polarity SMA) auto switching omni-directional antennae providing 1.5 dBi nominal gain at 2.4 GHz and 2.1 dBi nominal at 5 GHz.
International Multi-Country Roaming Supported (IEEE 802.1d Global Harmonization Standard).
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM; DSSS; DBPSK, DQPSK, CCK.
Security 40-bit (also called 64-bit) and 128-bit WEP, WPA-PSK, WPA2-PSK, and WPA/WPA2 Enterprise, IEEE 802.11i encryption.
Number of Simultaneous Connections 50.
