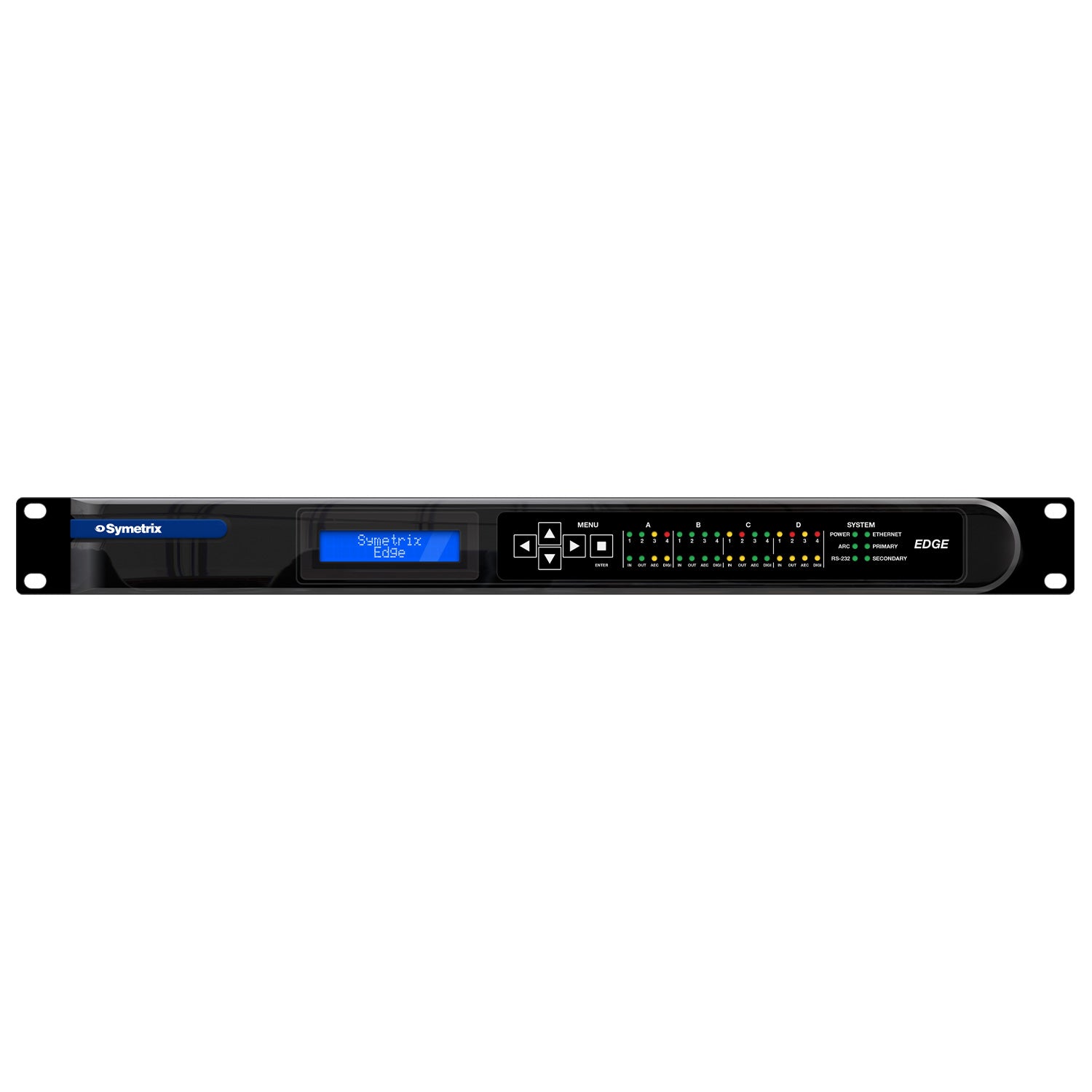

Symetrix Edge - Audio Networking DSP Chassis



  • Dale #:

    SYME-800204

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

When a preconfigured DSP just won’t do, Edge provides four versatile option card slots enabling unique I/O configurations – aligning the hardware with the exact system requirements. Optional cards support analog and AES-3 digital I/O as well as special purpose interfaces including USB, AEC, VoIP,... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

When a preconfigured DSP just won’t do, Edge provides four versatile option card slots enabling unique I/O configurations – aligning the hardware with the exact system requirements. Optional cards support analog and AES-3 digital I/O as well as special purpose interfaces including USB, AEC, VoIP, and analog telephone.

Features:

  • A Powerful DSP Featuring Flexible I/O Configuration
  • 4 I/O Expansion Card Slots
  • Optional 128 Channel (64×64) Redundant Dante
  • On-board Ethernet and Dante Network Switches


Dante™ in Our DNA. Edge DSPs are equipped with an optional factory installed 128 (64×64) redundant Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles. And an option without Dante provides even more accessible DSP pricing for standalone systems.

On-board 10/100 and Gigabit Switches. Unique to Symetrix Radius and Edge DSPs, built in switches lower system cost, reduce or eliminate the need for peripheral switches, and increase system reliability.

Unlimited Programming Flexibility. Edge is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

An Embedded Web Server for Status and Even More Control. Edge’s embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.

More +

Product Specs

Processors 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD.
Raw processing capacity 400 MIPS, 1.6 GFLOPS.
Sampling Rate 48 kHz, ± 100 ppm.
Frequency Response (A/D/A) 20 Hz Ð 20 kHz, ± 0.5 dB.
Dynamic Range (A/D/A) > 114 dB, A-weighted.
Channel Separation (A/D/A) > 108 dB @ 1 kHz, +24 dBu.
Latency (A/D/A) 0.88 mS, inputs routed to outputs.
Delay memory 174 mono seconds per Edge frame.
Analog control inputs 0-3.3 VDC.
Recommended external control potentiometer 10k Ohm, linear.
Logic outputs Low (0V) when active, pulled high (5V) when inactive.
Logic output maximum external power supply voltage 24 VDC.
Logic output maximum external power supply current sinking 50 mA.
Logic output maximum output current 10 mA.
RS-232 accessory serial I/O 38.4 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required.
RS-485 serial I/O 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
Ethernet Cable Standard CAT5, maximum device to device length = 100 meters.
Dante Cable Standard CAT6, maximum device to device length = 100 meters.
ARC Cable Standard CAT5, distance dependent upon load and number of devices
Maximum devices per system 32 units per Site File.
Maximum stored presets 1000
Models EDGE Frame, EDGE Frame Dante
Space Required 1U (WDH: 18.91 in x 9.5 in x 1.72 in / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Electrical 100-240 VAC, 50/60 Hz, 45 Watts maximum universal input and/or suitable 24 VDC / 2.0 Amp auxiliary power source. No line voltage switching required.
Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Shipping Weight 10 lbs. (4.54 kg)
Certifications or Compliance UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS.
