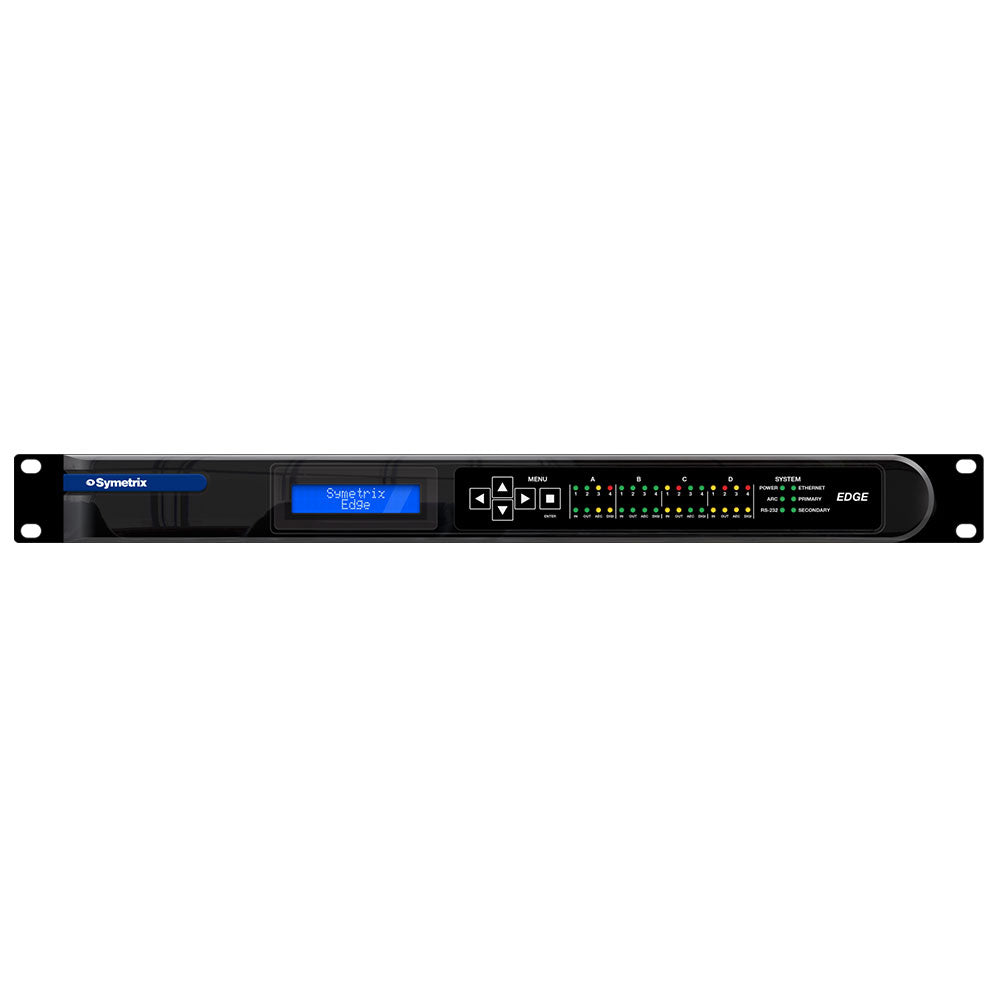

Symetrix Edge - Open-Architecture Processor for Dante Networks with 4 Expansion Slots
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Edge DSPs are equipped with 128 (64×64) redundant Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles.
Total Input/Output Flexibility. Four versatile option card slots enable unique I/O configurations – aligning the hardware with exact system requirements. Optional cards support analog and AES-3 digital I/O as well as special purpose interfaces including AEC, VoIP, and analog telephone.
On-board 10/100 and Gigabit Switches. Unique to Symetrix Radius and Edge DSPs, built in switches lower system cost, reduce or eliminate the need for peripheral switches, and increase system reliability.
Unlimited Programming Flexibility. Edge is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.
Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.
An Embedded Web Server for Status and Even More Control. Edge’s embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.
Features:
- A Powerful DSP Featuring Flexible I/O Configuration
- 128 Channel (64×64) Redundant Dante
- On-board Ethernet and Dante Network Switches
- 4 I/O Expansion Card Slots
| Processors | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD. |
| Raw processing capacity | 400 MIPS, 1.6 GFLOPS |
| Sampling Rate | 48 kHz, ± 100 ppm |
| Frequency Response (A/D/A) | 20 Hz Ð 20 kHz, ± 0.5 dB |
| Dynamic Range (A/D/A) | > 114 dB, A-weighted. |
| Channel Separation (A/D/A) | > 108 dB @ 1 kHz, +24 dBu |
| Latency (A/D/A) | 0.88 mS, inputs routed to outputs. |
| Delay memory | 174 mono seconds per Edge frame. |
| Analog control inputs | 0-3.3 VDC |
Recommended external control potentiometer |
10k Ohm, linear. |
| Logic outputs | Low (0V) when active, pulled high (5V) when inactive. |
Logic output maximum external power supply voltage |
24 VDC |
Logic output maximum external power supply current sinking |
50 mA |
Logic output maximum output current |
10 mA |
| RS-232 accessory serial I/O | 38.4 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straightthrough, only pins 2, 3, and 5 required. |
| RS-485 serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port. |
| Ethernet Cable | Standard CAT5, maximum device to device length = 100 meters. |
| Dante Cable | Standard CAT6, maximum device to device length = 100 meters. |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. |
| Maximum devices per system | 32 units per Site File. |
| Maximum stored presets | 1000 |
Edge DSPs are equipped with 128 (64×64) redundant Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles.
Total Input/Output Flexibility. Four versatile option card slots enable unique I/O configurations – aligning the hardware with exact system requirements. Optional cards support analog and AES-3 digital I/O as well as special purpose interfaces including AEC, VoIP, and analog telephone.
On-board 10/100 and Gigabit Switches. Unique to Symetrix Radius and Edge DSPs, built in switches lower system cost, reduce or eliminate the need for peripheral switches, and increase system reliability.
Unlimited Programming Flexibility. Edge is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.
Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.
An Embedded Web Server for Status and Even More Control. Edge’s embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.
Features:
- A Powerful DSP Featuring Flexible I/O Configuration
- 128 Channel (64×64) Redundant Dante
- On-board Ethernet and Dante Network Switches
- 4 I/O Expansion Card Slots
| Processors | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD. |
| Raw processing capacity | 400 MIPS, 1.6 GFLOPS |
| Sampling Rate | 48 kHz, ± 100 ppm |
| Frequency Response (A/D/A) | 20 Hz Ð 20 kHz, ± 0.5 dB |
| Dynamic Range (A/D/A) | > 114 dB, A-weighted. |
| Channel Separation (A/D/A) | > 108 dB @ 1 kHz, +24 dBu |
| Latency (A/D/A) | 0.88 mS, inputs routed to outputs. |
| Delay memory | 174 mono seconds per Edge frame. |
| Analog control inputs | 0-3.3 VDC |
Recommended external control potentiometer |
10k Ohm, linear. |
| Logic outputs | Low (0V) when active, pulled high (5V) when inactive. |
Logic output maximum external power supply voltage |
24 VDC |
Logic output maximum external power supply current sinking |
50 mA |
Logic output maximum output current |
10 mA |
| RS-232 accessory serial I/O | 38.4 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straightthrough, only pins 2, 3, and 5 required. |
| RS-485 serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port. |
| Ethernet Cable | Standard CAT5, maximum device to device length = 100 meters. |
| Dante Cable | Standard CAT6, maximum device to device length = 100 meters. |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. |
| Maximum devices per system | 32 units per Site File. |
| Maximum stored presets | 1000 |
