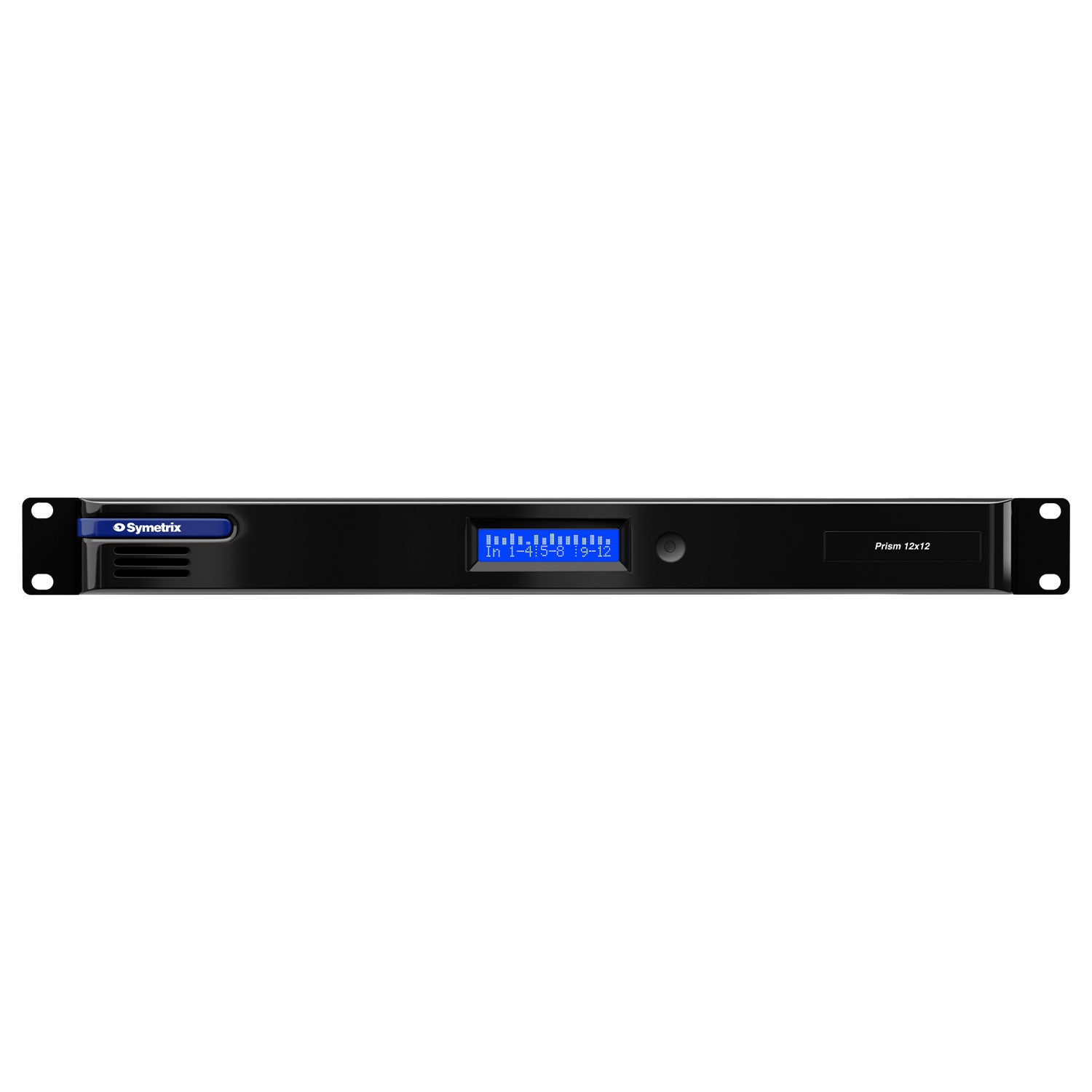

Symetrix Prism 12x12 - 12-In 12-Out Audio Network Processor


  • Dale #:

    SYME-800202
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Prism family scales from the smallest 4x4 to the largest 16x16, providing the perfect amount of class leading Symetrix quality IO for any installation. Features: DSP Price / Performance Breakthrough 4x4, 8x8, 12x12, and 16x16 models Optional 128 Channel (64x64) Dante™ DSP Processing Identica... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Prism family scales from the smallest 4x4 to the largest 16x16, providing the perfect amount of class leading Symetrix quality IO for any installation.

Features:

  • DSP Price / Performance Breakthrough
  • 4x4, 8x8, 12x12, and 16x16 models
  • Optional 128 Channel (64x64) Dante™
  • DSP Processing Identical to Radius / Edge / Solus NX
  • Delay Memory Identical to Radius / Edge / Solus NX


Dante™ in Our DNA.
Prism DSPs are equipped with optional factory installed 128 (64x64) Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories - including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles. Models without Dante provide even more accessible DSP pricing for smaller systems.

Scaling Up. A Prism system's analog input and output count may be increased using Symetrix Dante-enabled xIn 4, xIO 4x4, xOut 4, xIn 12, and xOut 12 analog I/O expanders.

Unlimited Programming Flexibility. Prism is programmed using Composer - Symetrix' award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware - thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

An Embedded Web Server for Status and Even More Control. Prism's embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB - a browser-based interface for smart phones, tablets, and computers.

Form, Fit and Function. Prism 8x8, 12x12 and 16x16 have been designed using standard 19" x 1U enclosures. For convenient point-of-use or rack mounting, Prism 4x4 features 1/2 rack 1U form factor. (Surface and rack mount kits sold separately.)

More +

Product Specs

Analog Inputs
Number of Inputs Twelve (12) switchable balanced mic or line level.
Connectors 3.81 mm terminal blocks.
Nominal Input Level +4 dBu.
Maximum Input Level +23 dBu.
Mic Pre-amp gain 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim.
Mic Pre-amp EIN < -125dB with 150 ohm source impedance. 22.4 kHz BW.
CMRR > 79 dB @ 1 kHz, unity gain.
Input impedance 8k Ohms balanced, 4k Ohms unbalanced.
Phantom power (per input) +48 VDC, 10 mA maximum.
Dynamic range > 113 dB, A-weighted.
THD+Noise < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4dBu.
A to D Latency 0.28 mS.
Analog Outputs
Number of Outputs Twelve (12) balanced line level.
Connectors 3.81 mm terminal blocks.
Nominal Output Level +4 dBu with 20 dB of headroom.
Maximum Output Level +24 dBu (+22.8 dBu into a 2k Ohm minimum load).
Output Impedance 300 Ohms balanced, 150 Ohms unbalanced.
Dynamic Range > 117 dB, A-weighted.
THD+Noise < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output.
D to A Latency 0.60 mS.
System
Sampling Rate 48 kHz.
Frequency Response (A/D/A) 20 Hz – 20 kHz, ± 0.5 dB.
Dynamic Range (A/D/A) > 113 dB, A-weighted.
Channel Separation (A/D/A) > 110 dB @ 1 kHz, +24 dBu.
THD+Noise <-95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain.
Latency (A/D/A) 1.04 mS, inputs routed to outputs.
Processors 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD.
Raw Processing Capacity 400 MIPS, 1.6 GFLOPS.
Delay Memory 174 mono seconds.
Analog control inputs 0-3.3 VDC.
Recommended External Control Potentiometer 10k Ohm, linear.
Logic Outputs Low (0V) when active, pulled high (5V) when inactive.
Logic Output Maximum External Power Supply Voltage 24 VDC.
Logic Output Maximum External Power Supply Current Sinking 50 mA.
Logic Output Maximum Output Current 10 mA.
RS-485 Serial I/O 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
Ethernet Cable Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.
Dante Cable Standard CAT6, maximum device-to-device length = 100 meters.
ARC Cable Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available.
Maximum Devices Per System 80 units per Site File.
Maximum Stored Presets 1000
Models Prism 12x12, Prism 12x12 Dante
Mechanical
Space Required 1U (WDH: 18.91 in. x 9.5 in. x 1.72 in. / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Electrical 24V 1.9A, 45W Maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5.
Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Certifications or Compliance Safety: UL 60065, cUL 60065, IEC 60065. EMC: “Class A” device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003. Environmental: RoHS.
Shipping Weight 9 lbs. (4.1 kg)
