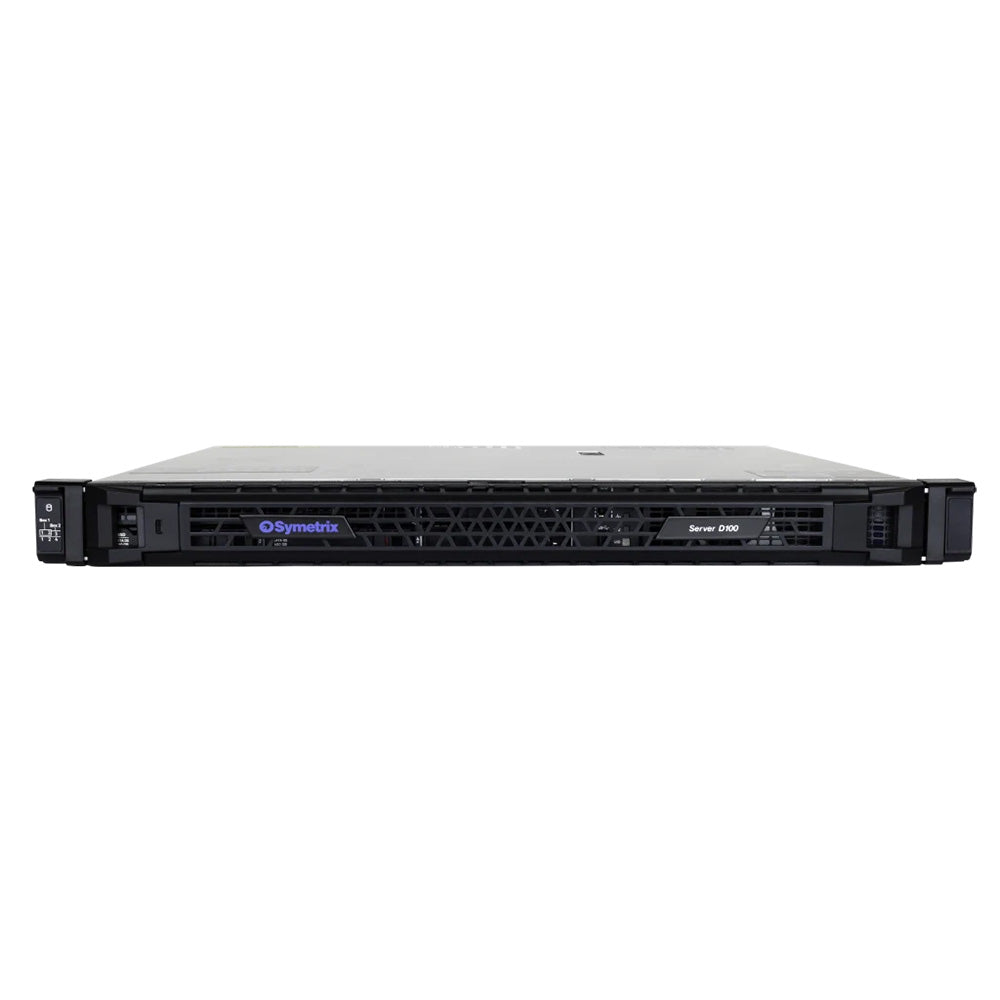

Symetrix Server D100 - Enterprise-Class Audio Networking Processor

Server D100 is an enterprise-class rack component designed specifically for professional AVoIP installations with high node counts and for systems that require complex channel management. The platform leverages an HP Enterprise processor and is purpose-built for large scale systems such as campuses, transportation hubs, museums, performing arts, and more.

Symetrix Server D100 ships with 256 by 256 Dante channels, 64 channels of acoustic echo cancellation (AEC), 32 media playback channels, eight media record channels, and flexible open architecture processing to tie it all together. On-demand software upgrades can further expand channel counts and media management capacity allowing for performance and cost optimization.

The Server D100 platform includes a proprietary operating system, a rewritten premium audio engine, and all new AEC algorithms to deliver clarity that empowers effective communication.

Features:

• Full-featured, open architecture DSP engine
• 256 x 256 Dante IO
• 64 channels of AEC
• 32 media playback channels
• 8 media record channels
• Embedded web server provides remote metering, diagnostics, and configurable ARC-WEB browser-based control
• Extensive control options via SymVue for Windows, T-Series touchscreens, Control Server, W-Series remotes, ARC-WEB, and TCP/UDP
• Third-party control via Intelligent Modules
• Lua scripting support included

Standard Configuration:

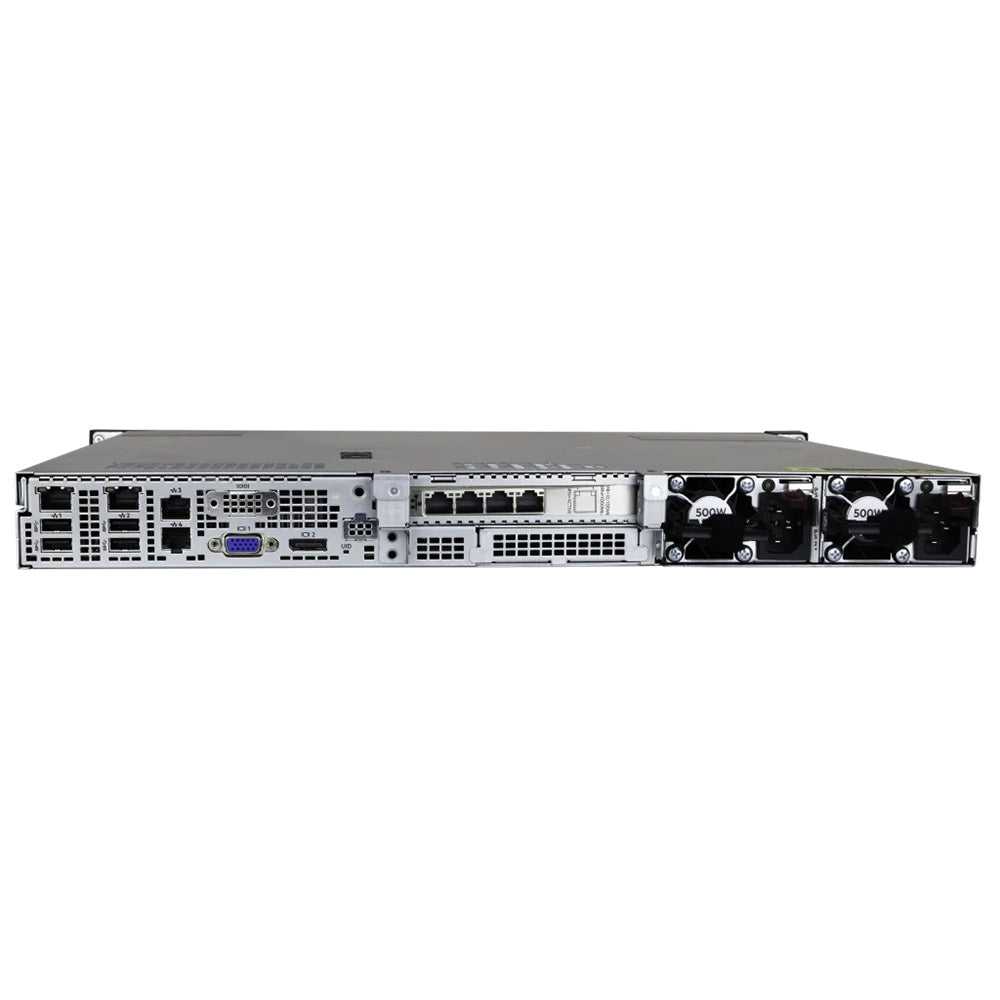

• 4 configurable RJ45 network ports
• 256 × 256 Dante IO
• 64 channels of acoustic echo cancellation (AEC)
• 4x general audio processing capacity compared to Radius NX
• 500 GB system SSD
• 500 GB dedicated media playback SSD
• 32 media playback channels
• 8 media record channels
• Expanded Intelligent Module applications
• ILO port and SNMP support
• Dual redundant hot-swappable power supplies

Optional Software Upgrades:

• Add 128 × 128 Dante IO
• Add 96 AEC channels
• Add 96 media playback channels
