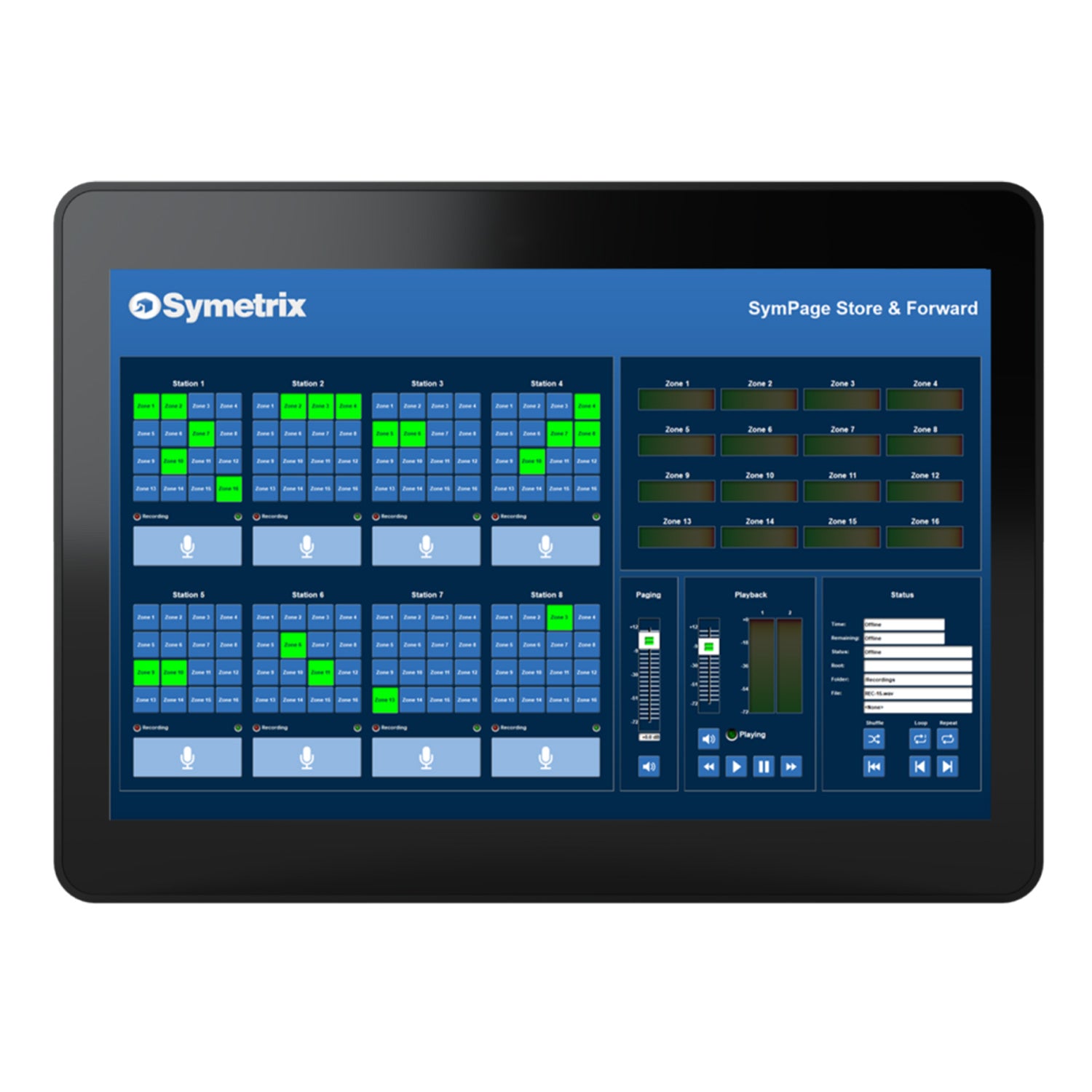

Symetrix T-10 Glass - Touchscreen Controller for Symetrix DSP Systems
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
User control in every part of a building. Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality — anywhere users need to control audio sources and levels.
Features:
- The Next Generation of Control with a new 10" glass touchscreen
- Hi-res touchscreens for Symetrix DSP systems
- Easy-to-program SymVue control interface
- Up to 80 touchscreens per system with batch configuration of multiple units
- Fits U.S. and European 2-gang wall and junction boxes
- Supports landscape or portrait orientation
- PoE/PoE+ powered
- Optional tabletop stand accessory
- Symetrix 5-Year Warranty
SymVue interface. Symetrix touchscreens leverage the power of Symetrix’s award-winning SymVue GUI authoring technology, allowing control screens to be created, tested and simulated offline in Composer before being deployed to the touchscreens. Multiple pages with custom controls, unique backgrounds, corporate logos and more can be created quickly and easily with SymVue.
Custom multi-lingual GUIs can be quickly designed using Symetrix Composer and SymVue software, then exported to as many as 80 touchscreens on a system.
Easy batch configuration of multiple touchscreens. Directly managed by Symetrix Composer, touchscreens can simultaneously export/update to named groups of up to 80 touchscreens with programmers’ choice of four different configurations for each export.
Compact and unobtrusive. Symetrix touchscreens fit in any U.S. or EU 2-gang receptacle.
Ethernet-powered. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.
Note: T-10 Glass requires Composer 8.3 or later for full functionality.
| Form Factor | 2-gang US or EU wall mount. |
| Compatibility | Symetrix Composerª-managed products. |
| Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 meters. |
| Maximum Devices Per System | 80 units per Site File. |
| Display | |
| Type | Capacitive touch full color TFT LCD. |
| Viewable Area | 8.54 in (216.8 mm) x 5.33 in (135.5 mm), 10.1 in (256.54 mm) diagonal. |
| Resolution | 1920 x 1200 pixels. |
| Aspect Ratio | 16:10 |
| Brightness | 850 nits |
| Contrast Ratio | 900:1 |
| Color | 16.7M |
| Orientation | Landscape (horizontal) or portrait (vertical). |
| Mechanical | |
| Dimensions | WHD: 9.70 in x 7.07 in x 2.33 in (246.46 mm x 179.50 mm x 59.30 mm) |
| Space Required | 2-gang US or EU Wall Box Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Power Requirement | PoE+, IEEE 802.3at compliant, 25.5W max |
