Symetrix xControl SymNet Control Output Expander

The SymNet xControl provides external control expansion for use with SymNet Edge and/or Radius DSP systems in conferencing and paging applications. Each of the 8 flexible analog control inputs may be configured for 1 potentiometer or 2 switches. The 16 logic outputs may be used to drive LEDs, trigger external relays, or control contact closure ports. Either of the 2 RS-232 ports may be configured to receive commands from third-party control systems, or, issue commands to third-party control systems. Utilizing PoE, one or more xControl devices may be mounted where convenient and connected to the control network, each with a single cable. A half-rack form factor conserves rack space, or, if preferred, the xControl may be surface mounted.

Features:

• External control expansion device for use with SymNet Edge and/or Radius DSP systems for cost-effective additional push-to-talk capability and LED activity indication in conferencing and paging applications.
• 8 analog control inputs may each be configured for 1 potentiometer or 2 switches. 16 logic outputs drive LEDs or trigger external relays.
• 2 RS-232 ports interface with peripherals such as projectors, camera controls and lighting. Multiple xControls combine for unlimited flexibility.
• xControl utilizes Power over Ethernet (PoE) for a single cable connection to a PoE switch, or, a direct connection to the DSP (PoE injector included).
• Simple set-up and management using SymNet Composer open architecture software.

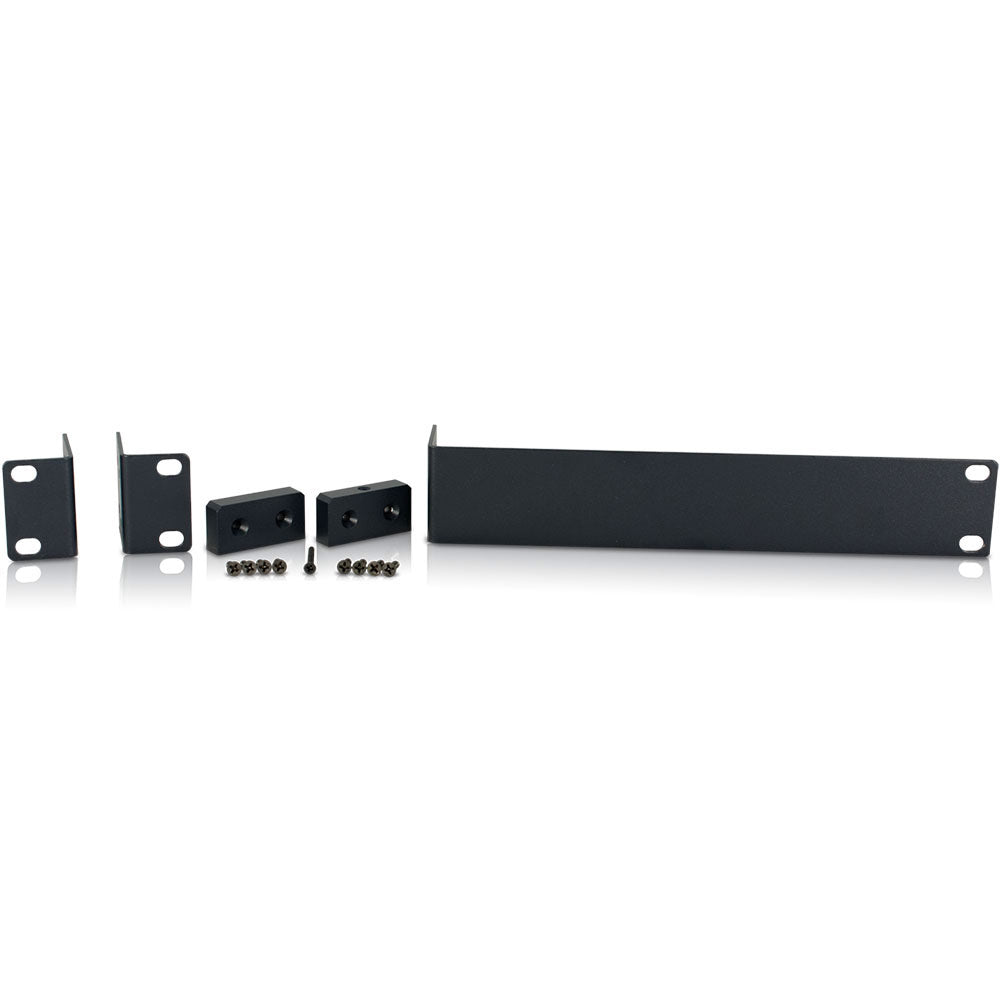

• Versatile half-rack design. All hardware is included to mount 1 or 2 in a single rack space or to surface mount.
