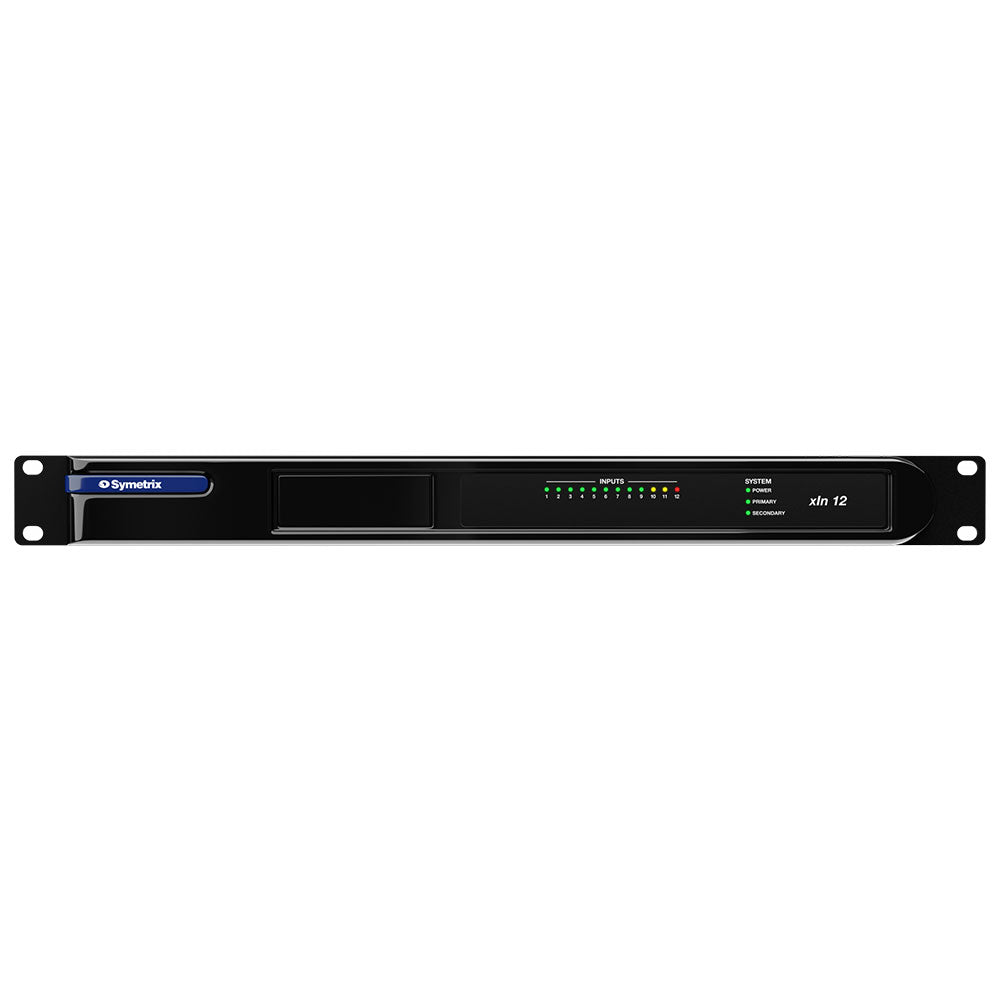

Symetrix xIn 12 - 12-Input Analog to Dante Interface
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.
Features:
- Built-in network switches. Direct connections to Radius, Prism and Edge DSP's.
- Internal power supplies.
- xIn 12 – 12 analog mic/line inputs.
| Sampling rate | 48 kHz, ± 100 ppm. |
| Frequency response (A/D) | 20 Hz Ð 20 kHz, ± 0.5 dB. |
| Channel separation (A/D) | > 111 dB @ 1 kHz, +24 dBu. |
| Dante cable | Standard CAT6, maximum device to device length = 100 meters. |
| Connectors | 3.81 mm terminal blocks. |
| Number of inputs | Twelve (12) switchable balanced mic or line level. |
| Nominal input level | +4 dBu with 20 dB of headroom. |
| Maximum input level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -127 dB with 150 Ohm source impedance. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
| Space Required | 1U (WDH: 18.91 in x 9.5 in x 1.72 in / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 100-240 VAC, 50/60 Hz, 25 Watts maximum universal input. No line voltage switching required. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Shipping Weight | 12 lbs. (5.4 kg). |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
