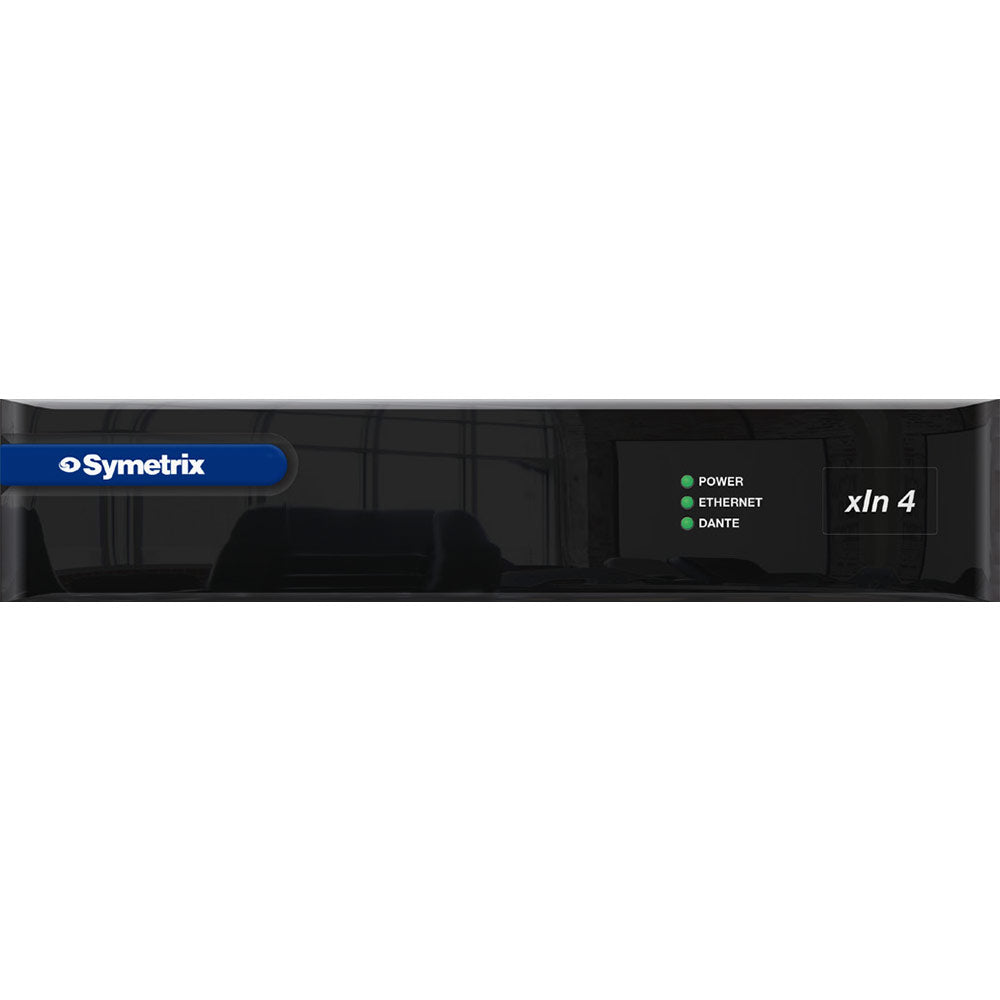

Symetrix xIn 4 - 4-Input Analog to Dante Interface
Symetrix xIn 4 - 4-Input Analog to Dante Interface
DALE SKU # SYME-800110

Symetrix xIn 4 - 4-Input Analog to Dante Interface

Contact us

  • Availability:

    Special Order Item

  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

    • LET OUR TEAM OF EXPERTS ASSIST YOU

    Call Us Chat With Us

    Description

    Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.

    Features:

    • 1/2 Rack Form Factor.
    • PoE – injectors included.
    • xIn 4 – 4 analog mic/line inputs.
    • Optional rack and surface mounting kits sold separately.
    Analog Inputs
    Frequency Response 20 Hz Ð 20 kHz, ± 0.5 dB.
    Channel Separation > 111 dB @ 1 kHz, +24 dBu.
    Connectors 3.5 mm Phoenix¨ connectors.
    Number of Inputs Four (4) switchable balanced mic or line level.
    Nominal Input Level +4 dBu with 20 dB of headroom.
    Maximum Input Level +23 dBu.
    Mic pre-amp gain 0, 11.8, 24, 44 or 54 dB switchable.
    Mic pre-amp EIN < -127dB with 150 ohm source impedance.
    CMRR > 76 dB @ 1 kHz, unity gain.
    Input impedance 8k Ohms balanced, 4k Ohms unbalanced.
    Phantom power (per input) +48 VDC @ 10 mA maximum.
    Dynamic range > 116 dB, A-weighted.
    THD + Noise < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
    Latency 0.28 mS.
    System
    Sampling Rate 48 kHz, ± 100 ppm.
    Dante Cable Standard CAT6, maximum device-to-device length = 100 meters.
    Mechanical Specifications
    Space Required Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
    Electrical PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz).
    Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
    Certifications or Compliance UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS.
    Shipping Weight 4.4 lbs. (2.0 kg)

    Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.

    Features:

    • 1/2 Rack Form Factor.
    • PoE – injectors included.
    • xIn 4 – 4 analog mic/line inputs.
    • Optional rack and surface mounting kits sold separately.
    Analog Inputs
    Frequency Response 20 Hz Ð 20 kHz, ± 0.5 dB.
    Channel Separation > 111 dB @ 1 kHz, +24 dBu.
    Connectors 3.5 mm Phoenix¨ connectors.
    Number of Inputs Four (4) switchable balanced mic or line level.
    Nominal Input Level +4 dBu with 20 dB of headroom.
    Maximum Input Level +23 dBu.
    Mic pre-amp gain 0, 11.8, 24, 44 or 54 dB switchable.
    Mic pre-amp EIN < -127dB with 150 ohm source impedance.
    CMRR > 76 dB @ 1 kHz, unity gain.
    Input impedance 8k Ohms balanced, 4k Ohms unbalanced.
    Phantom power (per input) +48 VDC @ 10 mA maximum.
    Dynamic range > 116 dB, A-weighted.
    THD + Noise < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
    Latency 0.28 mS.
    System
    Sampling Rate 48 kHz, ± 100 ppm.
    Dante Cable Standard CAT6, maximum device-to-device length = 100 meters.
    Mechanical Specifications
    Space Required Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
    Electrical PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz).
    Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
    Certifications or Compliance UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS.
    Shipping Weight 4.4 lbs. (2.0 kg)
