DALE SKU # SYME-800224

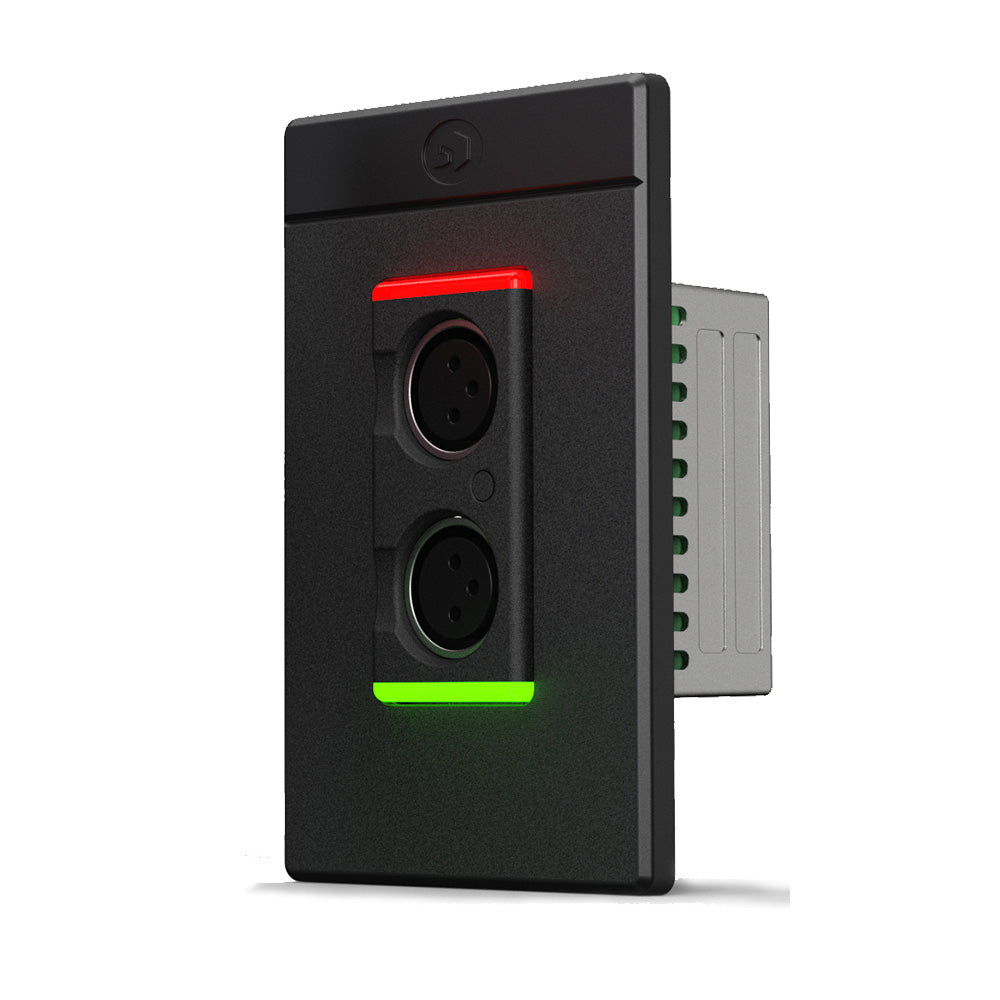

Symetrix xIN XLR-2 - Single Gang Wall Plate Analog to Dante Interface (Black)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The xIO XLR-Series sets a new standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results.

    Features:

    • Studio-grade AD/DA
    • Transparent mic preamps with up to 51 dB of gain adjustable in 3 dB increments
    • Dante-enabled with sampling rates up to 96K
    • PoE IEEE 802.3af; 15.4W Max
    • Drag-and-drop design in Composer®
    • Customizable front-panel RGB LEDs
    • Programmable control buttons
    • Premium light and dark finishes
    • Decora compatible
    • Die-cast zinc construction with exacting tolerances
    • Symetrix five-year warranty

    Sound-Quality
    These wall-mounted, mic/line, Dante-enabled endpoints include an ultra-high performance audio signal path utilizing the same studio-grade mic preamps and AD/DA signal chain as our top-of-the-line DSP. The result is best-in-class clarity, intelligibility, and accuracy that maximizes performance of the entire system.

    Customizable LED Indicators
    A front-panel RGB LED for each connector can be programmed to reflect any system parameter such as signal presence, clip, mute, or preset. Or they can easily be blacked-out.

    Sleek Control Buttons
    Integrated buttons are flush with the faceplate and can control any function of the system. In combination, the bright indicators and control buttons allow for rapid, on-site diagnostics and management of a system.

    Flexible and Simple Deployment
    The product is available in four models that can be matched to any need, simplify set-up, and deliver a sophisticated look and feel in premium light and dark finishes.

    Unmatched Design and Construction
    Symetrix agonized over every detail to create a truly professional solution for the most demanding projects. A raised bezel and proprietary thumb notch ease connector attachment and removal. The vertically oriented network port is accompanied by an integrated stress-release attachment point and the elegant Decora-compatible faceplate snaps into place without visible screws.

    Each xIO XLR is rugged to the core, constructed of die-cast zinc. The design incorporates a unique XLR mounting method that protects internal components and electronics.

    Power PoE IEEE 802.3af; 15.4W Max
    Sampling Rate 48 kHz, 96 kHz
    Frequency response (A/D/A) 20 Hz Ð 20 kHz, ± 0.5 dB
    Dynamic range (A/D/A) > 114 dB, A-weighted
    THD + Noise < -95 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
    Channel separation (A/D/A) > 110 dB @ 1 kHz, +24 dBu
    Product Weight - Single Gang US 0.75 lbs
    Shipping Weight - Single Gang US 1.25 lbs

    The xIO XLR-Series sets a new standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results.

    Features:

    • Studio-grade AD/DA
    • Transparent mic preamps with up to 51 dB of gain adjustable in 3 dB increments
    • Dante-enabled with sampling rates up to 96K
    • PoE IEEE 802.3af; 15.4W Max
    • Drag-and-drop design in Composer®
    • Customizable front-panel RGB LEDs
    • Programmable control buttons
    • Premium light and dark finishes
    • Decora compatible
    • Die-cast zinc construction with exacting tolerances
    • Symetrix five-year warranty

    Sound-Quality
    These wall-mounted, mic/line, Dante-enabled endpoints include an ultra-high performance audio signal path utilizing the same studio-grade mic preamps and AD/DA signal chain as our top-of-the-line DSP. The result is best-in-class clarity, intelligibility, and accuracy that maximizes performance of the entire system.

    Customizable LED Indicators
    A front-panel RGB LED for each connector can be programmed to reflect any system parameter such as signal presence, clip, mute, or preset. Or they can easily be blacked-out.

    Sleek Control Buttons
    Integrated buttons are flush with the faceplate and can control any function of the system. In combination, the bright indicators and control buttons allow for rapid, on-site diagnostics and management of a system.

    Flexible and Simple Deployment
    The product is available in four models that can be matched to any need, simplify set-up, and deliver a sophisticated look and feel in premium light and dark finishes.

    Unmatched Design and Construction
    Symetrix agonized over every detail to create a truly professional solution for the most demanding projects. A raised bezel and proprietary thumb notch ease connector attachment and removal. The vertically oriented network port is accompanied by an integrated stress-release attachment point and the elegant Decora-compatible faceplate snaps into place without visible screws.

    Each xIO XLR is rugged to the core, constructed of die-cast zinc. The design incorporates a unique XLR mounting method that protects internal components and electronics.

    Power PoE IEEE 802.3af; 15.4W Max
    Sampling Rate 48 kHz, 96 kHz
    Frequency response (A/D/A) 20 Hz Ð 20 kHz, ± 0.5 dB
    Dynamic range (A/D/A) > 114 dB, A-weighted
    THD + Noise < -95 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
    Channel separation (A/D/A) > 110 dB @ 1 kHz, +24 dBu
    Product Weight - Single Gang US 0.75 lbs
    Shipping Weight - Single Gang US 1.25 lbs
