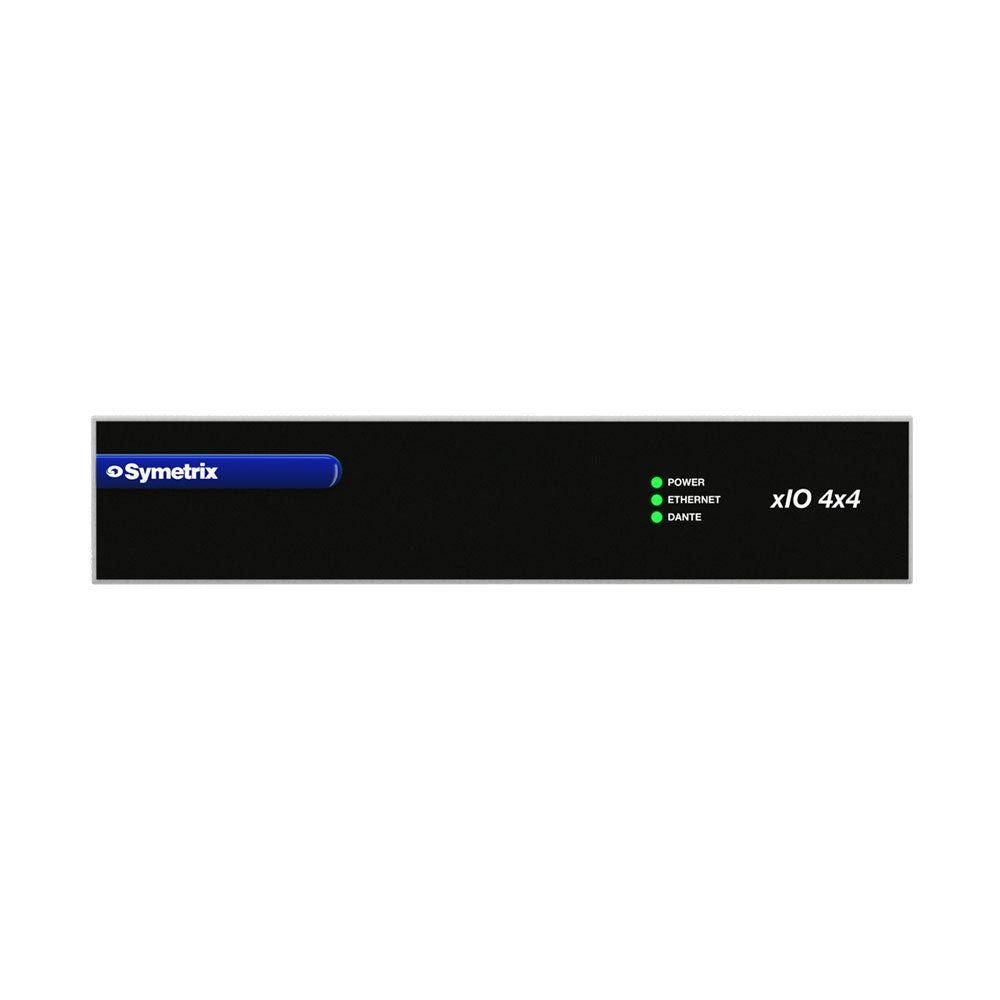

Symetrix xIO 4x4 - 4-Input 4-Output Dante Network Interface
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Symetrix xIO 4x4 - 4-Input 4-Output Dante Network Interface
Sale price$1,799.00
Description
Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.
Features:
- 1/2 Rack Form Factor.
- PoE – injectors included.
- xIO 4×4 – 4 analog mic/line inputs + 4 analog outputs.
- Optional rack and surface mounting kits sold separately.
| Analog Inputs | |
| Frequency Response | 20 Hz Ð 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix¨ connectors. |
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Nominal Input Level | +4 dBu with 20 dB of headroom. |
| Maximum Input Level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -127dB with 150 ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
| Analog Outputs | |
| Frequency Response | 20 Hz Ð 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix¨ connectors. |
| Number of outputs | Four (4) balanced line level. |
| Nominal output level | +4 dBu with 20 dB of headroom. |
| Maximum output level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic range | > 118 dB, A-weighted. |
| THD + Noise | < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.60 mS. |
| System | |
| Sampling Rate | 48 kHz, ± 100 ppm. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
| Mechanical Specifications | |
| Space Required | Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz). |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS. |
| Shipping Weight | 4.4 lbs. (2.0 kg) |
Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.
Features:
- 1/2 Rack Form Factor.
- PoE – injectors included.
- xIO 4×4 – 4 analog mic/line inputs + 4 analog outputs.
- Optional rack and surface mounting kits sold separately.
| Analog Inputs | |
| Frequency Response | 20 Hz Ð 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix¨ connectors. |
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Nominal Input Level | +4 dBu with 20 dB of headroom. |
| Maximum Input Level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -127dB with 150 ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
| Analog Outputs | |
| Frequency Response | 20 Hz Ð 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix¨ connectors. |
| Number of outputs | Four (4) balanced line level. |
| Nominal output level | +4 dBu with 20 dB of headroom. |
| Maximum output level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic range | > 118 dB, A-weighted. |
| THD + Noise | < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.60 mS. |
| System | |
| Sampling Rate | 48 kHz, ± 100 ppm. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
| Mechanical Specifications | |
| Space Required | Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz). |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS. |
| Shipping Weight | 4.4 lbs. (2.0 kg) |
