Description
For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications. Features: Premium 4 IN x 4 OUT Dante digita... Read MoreSuggested Accessories
Description

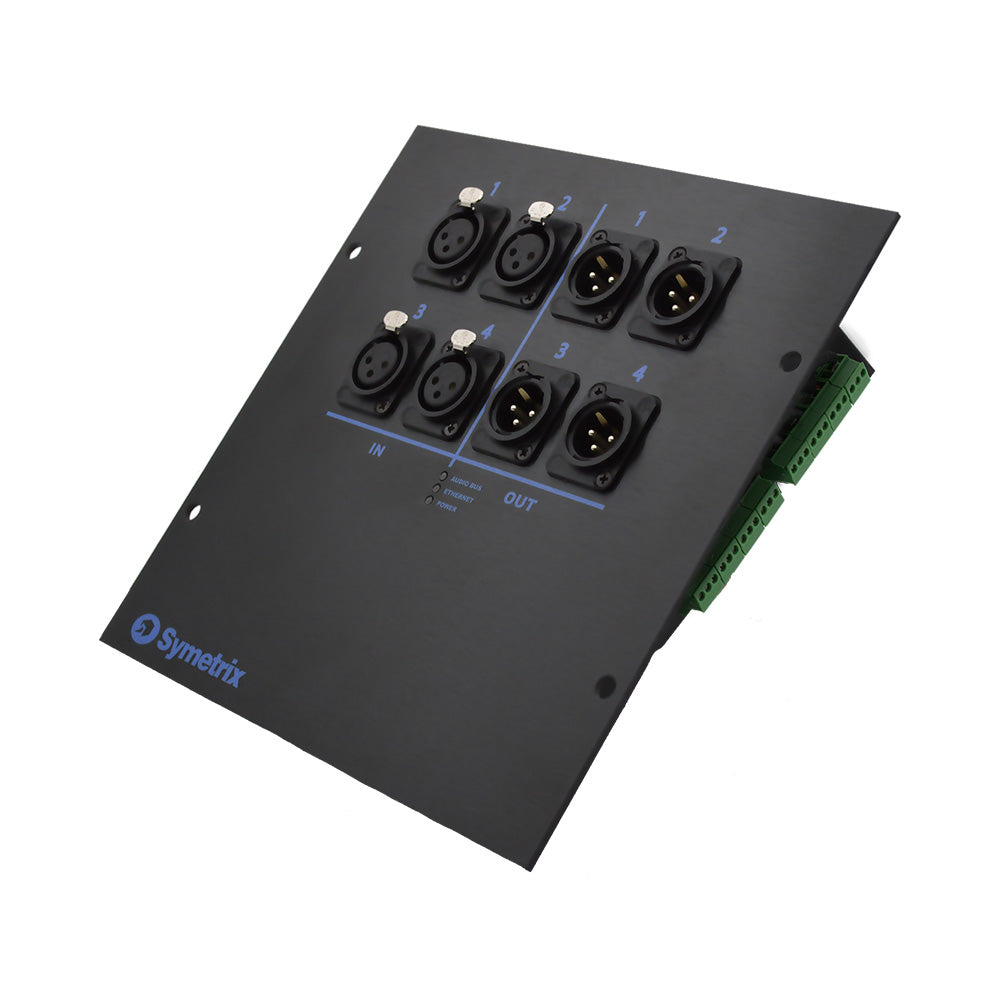

For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.
Features:
Economical and Versatile.
Dante does away with heavy, expensive analog cabling, replacing it with low-cost, readily available CAT5e, CAT6, or fiber optic cables. Using Dante's logical routes instead of physical point-to-point connections, a network can be expanded and reconfigured at any time.
Symetrix Dante systems scale from a simple pairing of a DSP and an analog I/O expander, to multi-DSP distributed networks. System designers use Symetrix Composer software to easily connect Symetrix DSPs and analog I/O expanders to third-party Dante equipped mixing consoles, microphones, power amplifiers, loudspeakers, and computers.
Outstanding Audio Performance.
Using the Dante protocol, Symetrix transmits and receives uncompressed full bandwidth audio with up to 32 bits of resolution at a 48kHz sample rate. Audio is transmitted and received digitally eliminating the analog challenges of interference from other electrical equipment, crosstalk between cables, or signal degradation over long cable runs.
Glitch-Free Redundancy.
Symetrix Radius, Radius NX, Edge, xIn 12, and xOut 12 Dante-enabled products support glitch-free redundancy, enabling a secondary physical network to duplicate the audio traffic on the primary network, automatically preventing audio loss or interruption in the event of a primary network connectivity problem.
Unicast or Multicast.
Dante channels can be configured as either unicast or multicast making the best use of available bandwidth. Unicast provides direct point-to-point connections; multicast streams audio to multiple destinations simultaneously.
Ease of Programming.
Composer is used to program Symetrix Dante equipped DSPs and analog I/O expanders. In addition to the programming of Symetrix devices, Composer also natively configures the setup and routing of select third-party Dante endpoints. Integrators can design a complete end-to-end DSP signal path using just one application.
The Symetrix Dante Advantage
Symetrix provides customers with a network audio solution that is flexible, dependable, scalable, and supportable. In short, just what you'd expect from an industry standard... and just what you'd expect from Symetrix.
More +
Product Specs
Analog Inputs | |
Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
Channel Separation | > 110 dB @ 1 kHz, +24 dBu. |
Connectors | Female Neutrik metal body DL series XLR connectors. |
Number of Inputs | Four (4) switchable balanced mic or line level. |
Nominal Input Level | +4 dBu with 20 dB of headroom (digital). |
Maximum Input Level | +23 dBu (1% distortion). |
Mic pre-amp gain | 0, 12, 24, 44 or 54 dB switchable. |
Mic pre-amp EIN | < -125dB with 150 ohm source impedance. |
CMRR | > 76 dB @ 1 kHz, unity gain. |
Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
Phantom Power (per input) | +48 VDC 10 mA maximum. |
Dynamic Range | > 116 dB, A-weighted. |
THD + Noise | < -100 dB, unweighted; 1 kHz @ +16 dBu with 0 dB gain. |
ADC Latency | 0.30 mS. |
Analog Outputs | |
Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
Channel Separation | > 110 dB @ 1 kHz, +24 dBu. |
Connectors | Male Neutrik metal body DL series XLR connectors. |
Number of Outputs | Four (4) balanced line level. |
Nominal Output Level | +4 dBu with 20 dB of headroom. |
Maximum Output Level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
Dynamic Range | > 116 dB, A-weighted. |
THD + Noise | < -94 dB, unweighted; 1 kHz @ +20 dBu with 0 dB gain. |
DAC Latency | 0.60 mS. |
System | |
Sampling Rate | 48 kHz. |
Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
Latency | 1.92 mS (input to output, 1mS Dante latency). |
Physical | |
Space Required | Minimum requirement of 8”x8”x4” electrical enclosure. |
Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. |
Certification of Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109, FCC 15.109(g), FCC 15.107, EN 55032, EN 55103-2, EN 61000-3-3, EN 61000-3-2, ICES-003, RoHS. |
Shipping Weight | 3.7lbs (1.678kg) |
