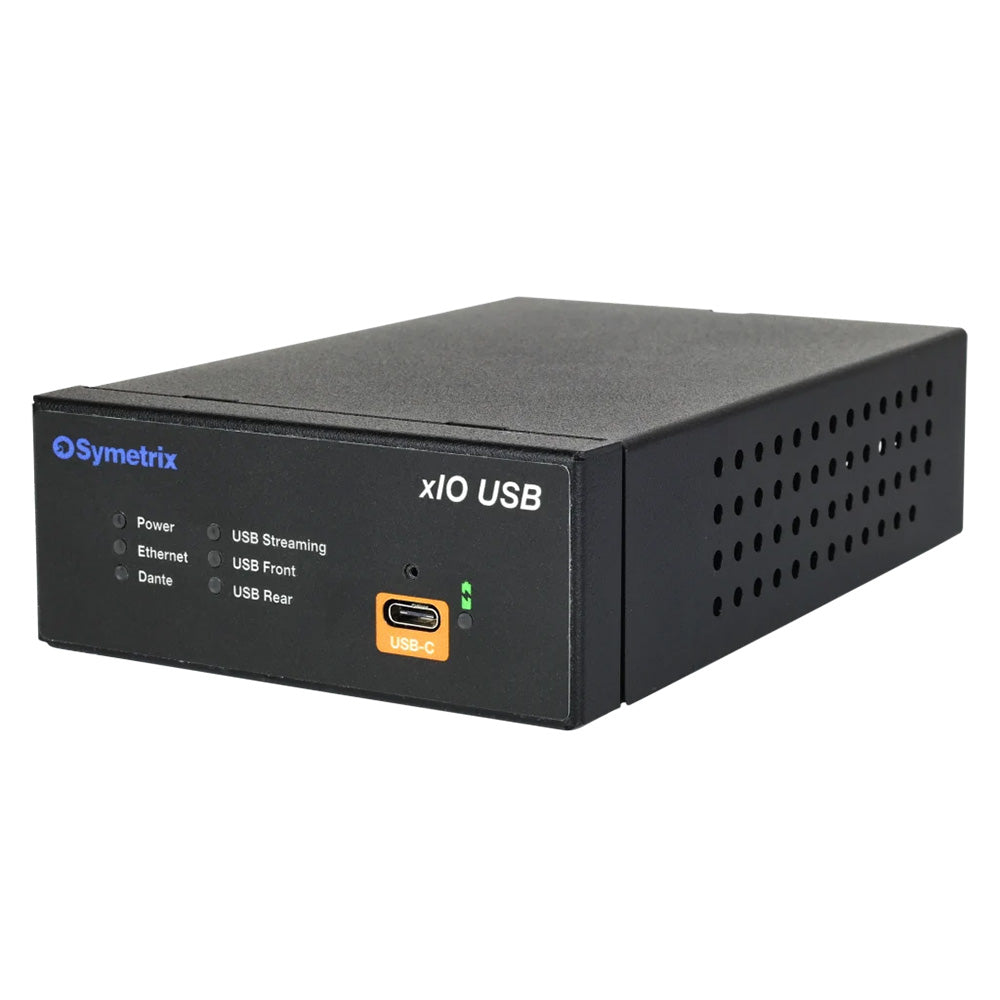

Symetrix xIO USB - Two-Channel USB-C to Dante Interface

USB audio has become ubiquitous in the day-to-day operation of court rooms, meeting rooms, and classrooms. The xIO USB supports educational, justice, conferencing, and other applications that utilize desktops, laptops, or attendee-supplied devices (BYOD).

The xIO USB makes it easy for consultants and integrators to streamline system design and interface with popular collaborations solutions like Microsoft Teams and Zoom.

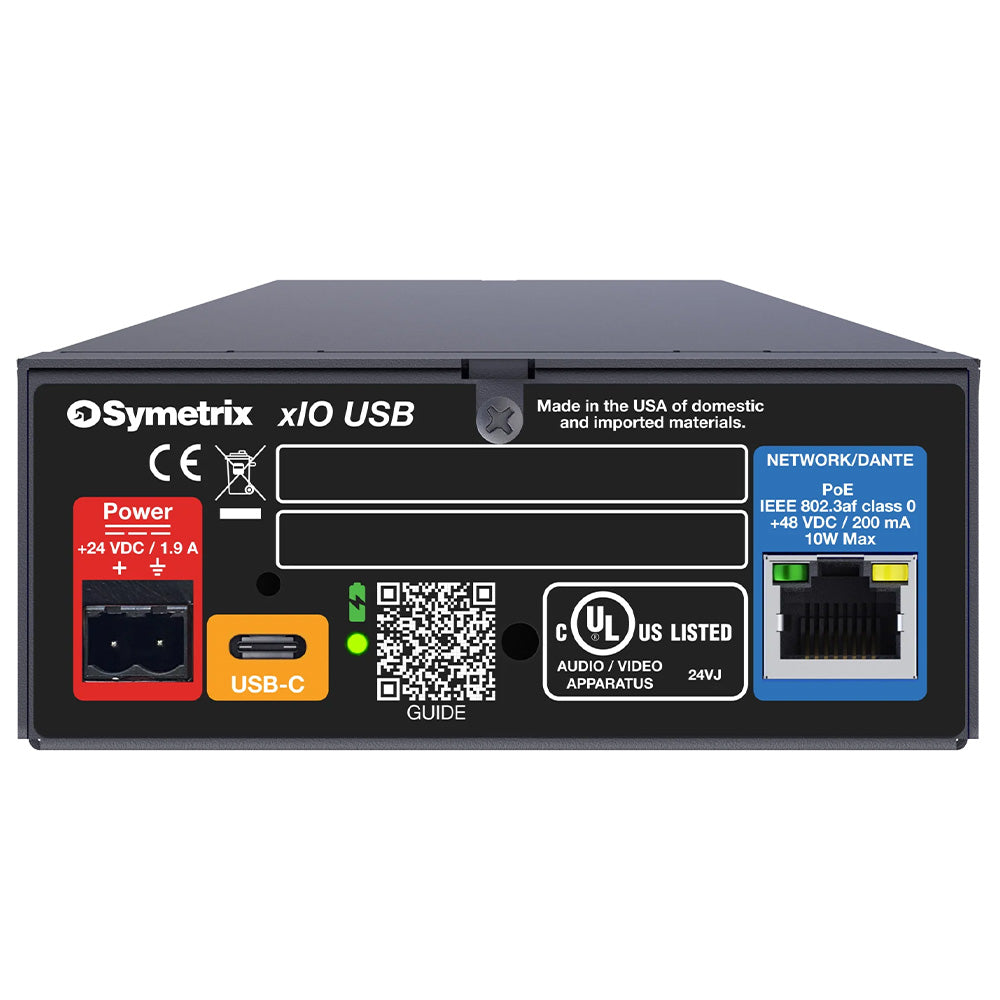

The device features front and rear USB-C connectors, two channels of transmit/receive over USB, and two channels of transmit and receive using the Dante AVoIP protocol. Importantly, the device includes HID synchronization to maximize integration with Symetrix control devices.

With the xIO USB, designers can choose PoE for convenience, or DC power connections that enable charging of user devices like laptops and phones.

The xIO USB endpoint fits in a one-quarter rack space and can be surface mounted in either a vertical or horizontal orientation using the included bracket.

Features:

• USB-C Dante endpoint
• 2 × 2 audio channels transmit and receive via two USB-C ports
• 2 × 2 channels transmit and receive Dante
• Small form factor for easy mounting (1/4U)
• PoE or DC powered
• USB power delivery to device (when using DC power) Part Number 80-0233
• HID sync
• 44.1, 48, 88.2, and 96 kHz USB-C with SRC
• 48 kHz and 96 kHz Dante
• Integrated Composer Intelligent Module
• Included surface mount kit
• Optional four-unit rack shelf
• Optional locking U
