Description
The xIO XLR-Series sets a new standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results. Features: Studio-grade AD/DA Transparent mic preamps with up to... Read MoreSuggested Accessories
Description

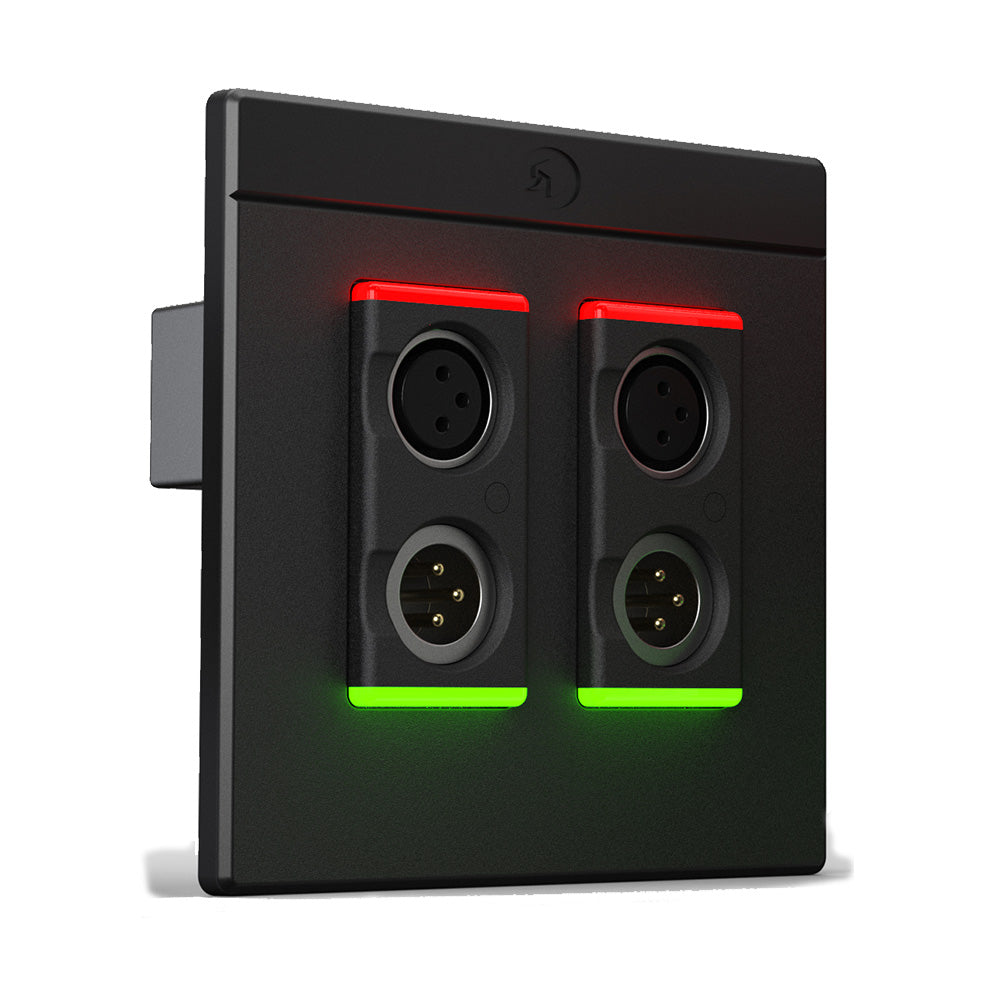

The xIO XLR-Series sets a new standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results.
Features:
Sound-Quality
These wall-mounted, mic/line, Dante-enabled endpoints include an ultra-high performance audio signal path utilizing the same studio-grade mic preamps and AD/DA signal chain as our top-of-the-line DSP. The result is best-in-class clarity, intelligibility, and accuracy that maximizes performance of the entire system.
Customizable LED Indicators
A front-panel RGB LED for each connector can be programmed to reflect any system parameter such as signal presence, clip, mute, or preset. Or they can easily be blacked-out.
Sleek Control Buttons
Integrated buttons are flush with the faceplate and can control any function of the system. In combination, the bright indicators and control buttons allow for rapid, on-site diagnostics and management of a system.
Flexible and Simple Deployment
The product is available in four models that can be matched to any need, simplify set-up, and deliver a sophisticated look and feel in premium light and dark finishes.
Unmatched Design and Construction
Symetrix agonized over every detail to create a truly professional solution for the most demanding projects. A raised bezel and proprietary thumb notch ease connector attachment and removal. The vertically oriented network port is accompanied by an integrated stress-release attachment point and the elegant Decora-compatible faceplate snaps into place without visible screws.
Each xIO XLR is rugged to the core, constructed of die-cast zinc. The design incorporates a unique XLR mounting method that protects internal components and electronics.
More +
Product Specs
Power | PoE IEEE 802.3af; 15.4W Max |
Sampling Rate | 48 kHz, 96 kHz |
Frequency response (A/D/A) | 20 Hz – 20 kHz, ± 0.5 dB |
Dynamic range (A/D/A) | > 114 dB, A-weighted |
THD + Noise | < -95 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain |
Channel separation (A/D/A) | > 110 dB @ 1 kHz, +24 dBu |
Product Weight - Single Gang US | 1.25 lbs |
Shipping Weight - Single Gang US | 1.75 lbs |
