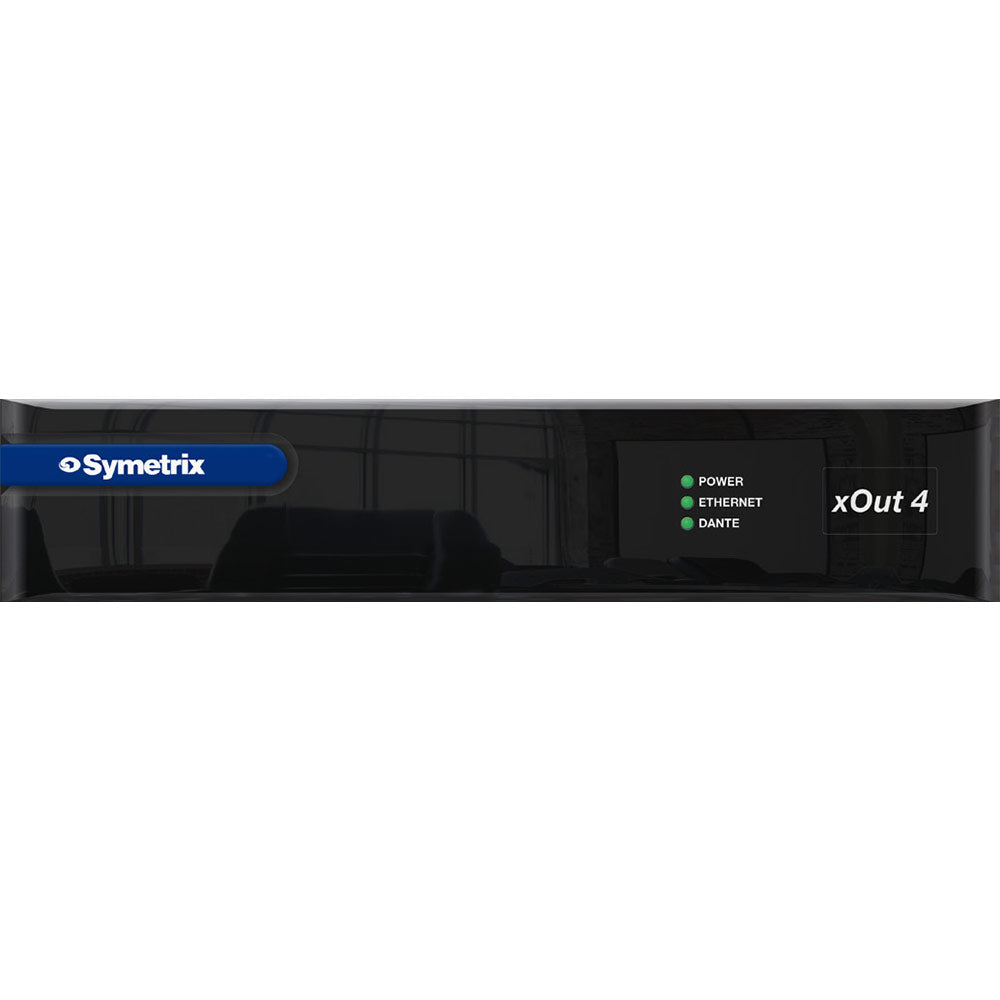

Symetrix xOut 4 Dante to 4-Channel Output Interface



  • Dale #:

    SYME-800112

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders are set up using Composer software. There is no need to use third party applications. There are no switches, circuit board jumpers, or mechanical adjustments of any kind. Symetrix makes it simple and easy. Dante... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders are set up using Composer software. There is no need to use third party applications. There are no switches, circuit board jumpers, or mechanical adjustments of any kind. Symetrix makes it simple and easy.

Dante network protocol – uses standard IT infrastructure. Ultra low latency – no audible delays.

Features:

  • xOut 4 – 4 analog outputs.
  • Powered via PoE – injectors included.
  • Optional 1U tray for rack mounting and bracket for surface mounting sold separately.

More +

Product Specs

Frequency Response 20 Hz – 20 kHz, ± 0.5 dB.
Channel Separation > 111 dB @ 1 kHz, +24 dBu.
Connectors 3.5 mm Phoenix® connectors.
Number of outputs Four (4) balanced line level.
Nominal output level +4 dBu with 20 dB of headroom.
Maximum output level +24 dBu (+22.8 dBu into a 2k Ohm minimum load).
Output impedance 300 Ohms balanced, 150 Ohms unbalanced.
Dynamic range > 118 dB, A-weighted.
THD + Noise < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
Latency 0.60 mS.
Sampling Rate 48 kHz, ± 100 ppm.
Dante Cable Standard CAT6, maximum device-to-device length = 100 meters.
Space Required Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Electrical PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz).
Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Certifications or Compliance UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS.
Shipping Weight 4.4 lbs. (2.0 kg)
